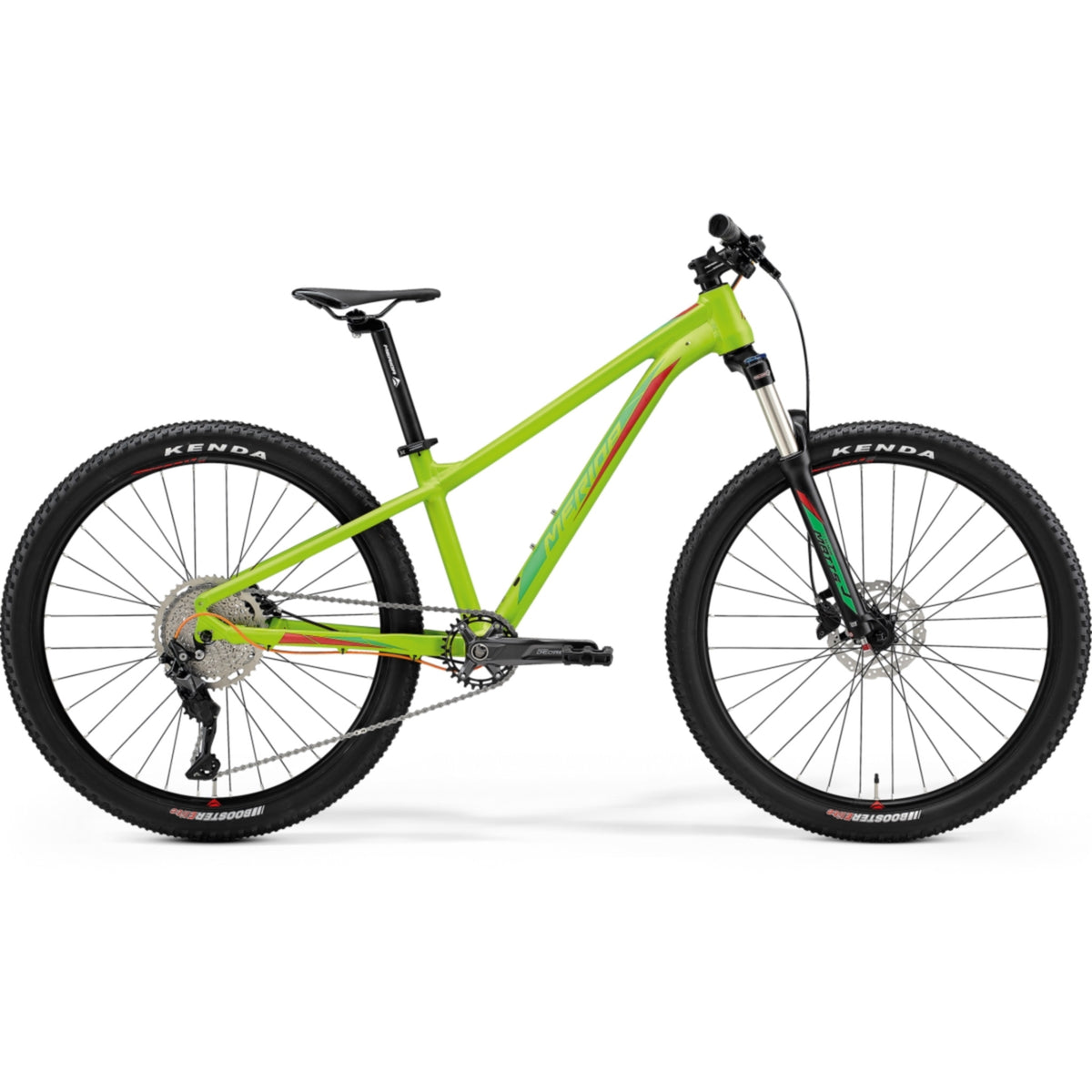

Merida Matts J Champion Silk Green/Red
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Lightweight 6061 race light aluminium frame
- XS 13.5'' adults frame with 26'' wheels, upgradeable to 27.5”
- Shimano Deore 1x10 Speed Drivetrain
- Suntour XCR32 LOR 100mm front fork
- Tektro Hydraulic Disc Brakes
| Bottom bracket: | FSA TH-7420ST-W Cartridge Bearing |
|---|---|
| Brakes: | Tektro HD-M275 2 piston |
| Chain: | KMC X10 |
| Chainwheel: | Shimano Deore M5100 / 30 teeth / 170 mm |
| Colour: | SILK GREEN (GREEN/RED) |
| Colour (text): | SILK GREEN (GREEN/RED) |
| Crankset: | 170 mm |
| Derailleur rear: | Shimano Deore M5120 Shadow+ |
| Fork: | Suntour XCR32 LOR |
| Frame: | MATTS J. 26 Alloy |
| Frame size: | 13.5in |
| Freewheel: | Shimano Deore M4100 / 11-46 teeth /10 speed |
| Grip: | MERIDA EXPERT JR |
| Handlebar: | MERIDA CC |
| Handlebar stem: | MERIDA CC |
| Headset: | MERIDA M2345 |
| Hubs: | Shimano TX05 |
| Pedals: | VP VPE-891 |
| Rim: | MERIDA CC |
| Rotor front: | Shimano RT10 160mm |
| Rotor rear: | Shimano RT10 160mm |
| Saddle: | MERIDA EXPERT JR |
| Season: | 2021 |
| Seat clamp: | MERIDA COMP QR |
| Seat post: | MERIDA CC |
| Shifters: | Shimano Deore M4100 |
| Spokes: | Black steel |
| Tyre front: | MERIDA K1227 / 26x2.2" fold |
| Tyre rear: | MERIDA K1227 / 26x2.2" fold |
| Weight: | 12.13 kg / Max Rider Weight: 135 kg |
| Wheel size: | 26" |
| Frame Size | XS |
| Tyre Sizes | 26" |
| ST seat tube [mm] | 343 |
| TT top tube [mm] | 555 |
| CS chain stay length [mm] | 430 |
| HTA head tube angle [°] | 70.5 |
| STA seat tube angle [°] | 73.3 |
| BD bottom bracked drop [mm] | 45 |
| HT head tube [mm] | 95 |
| FL fork length [mm] | 490 |
| R reach [mm] | 383 |
| S stack [mm] | 582 |
| WB wheel base [mm] | 1045 |
| SH stand over height [mm] | 636 |
Merida Matts Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
