Cube Reaction Hybrid Pro Electric Mountain Bike Prisma Grey 'n' Red 625Wh Battery

$5,839
?

You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

$7,299.99
Buy now, pay later
HOT PRICE
SKU: A9AWTSIU Sold out

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Aluminium Superlite Frame Gravity Casting, Agile Ride Geometry
  • Bosch Drive Unit Performance CX Generation 4
  • Bosch PowerTube 625 Battery
  • X-Fusion MIG32 Air, Tapered 100mm Fork with Lockout
  • Shimano Deore 1 x 11 Speed Drivetrain
  • Shimano MT200 Hydraulic Disc Brakes

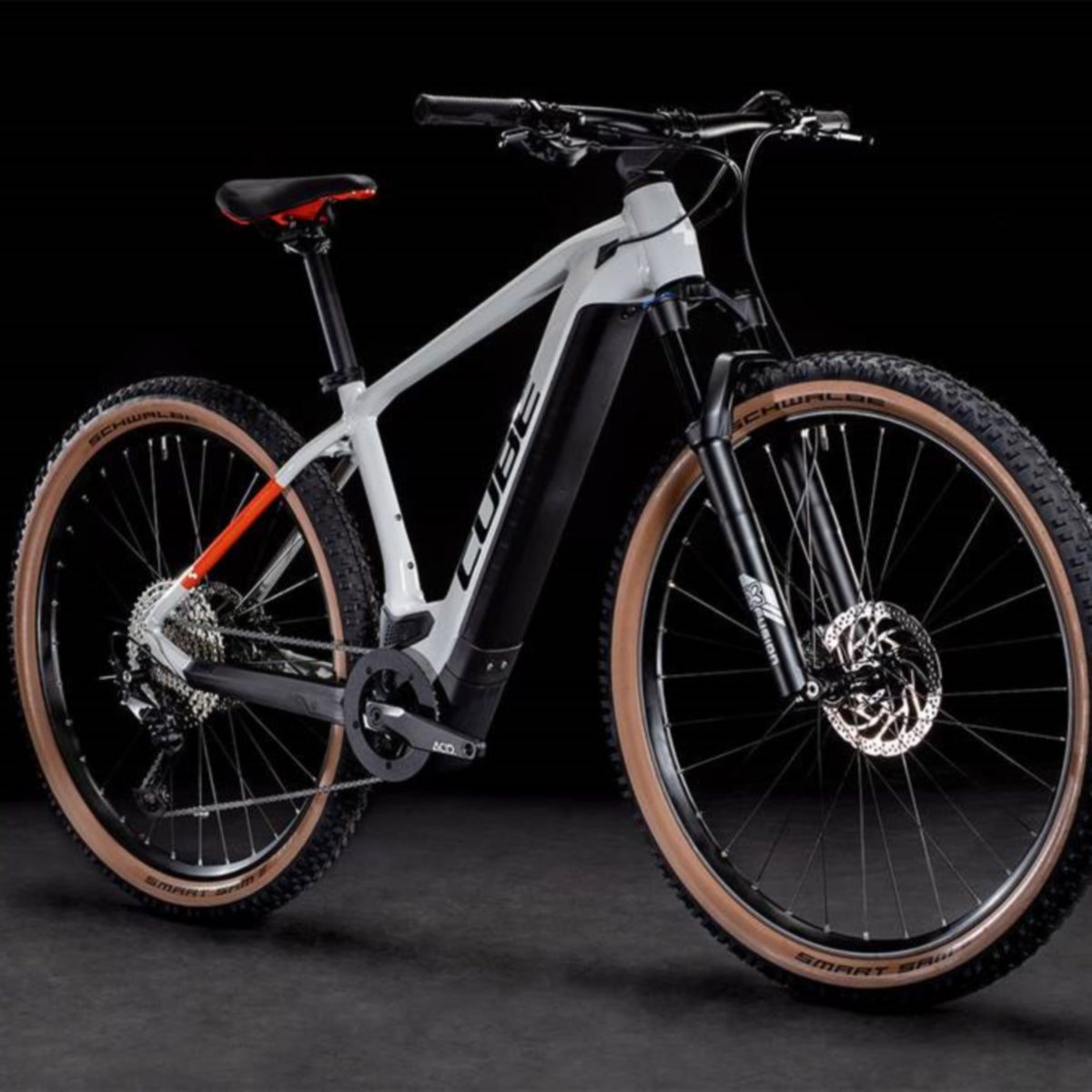

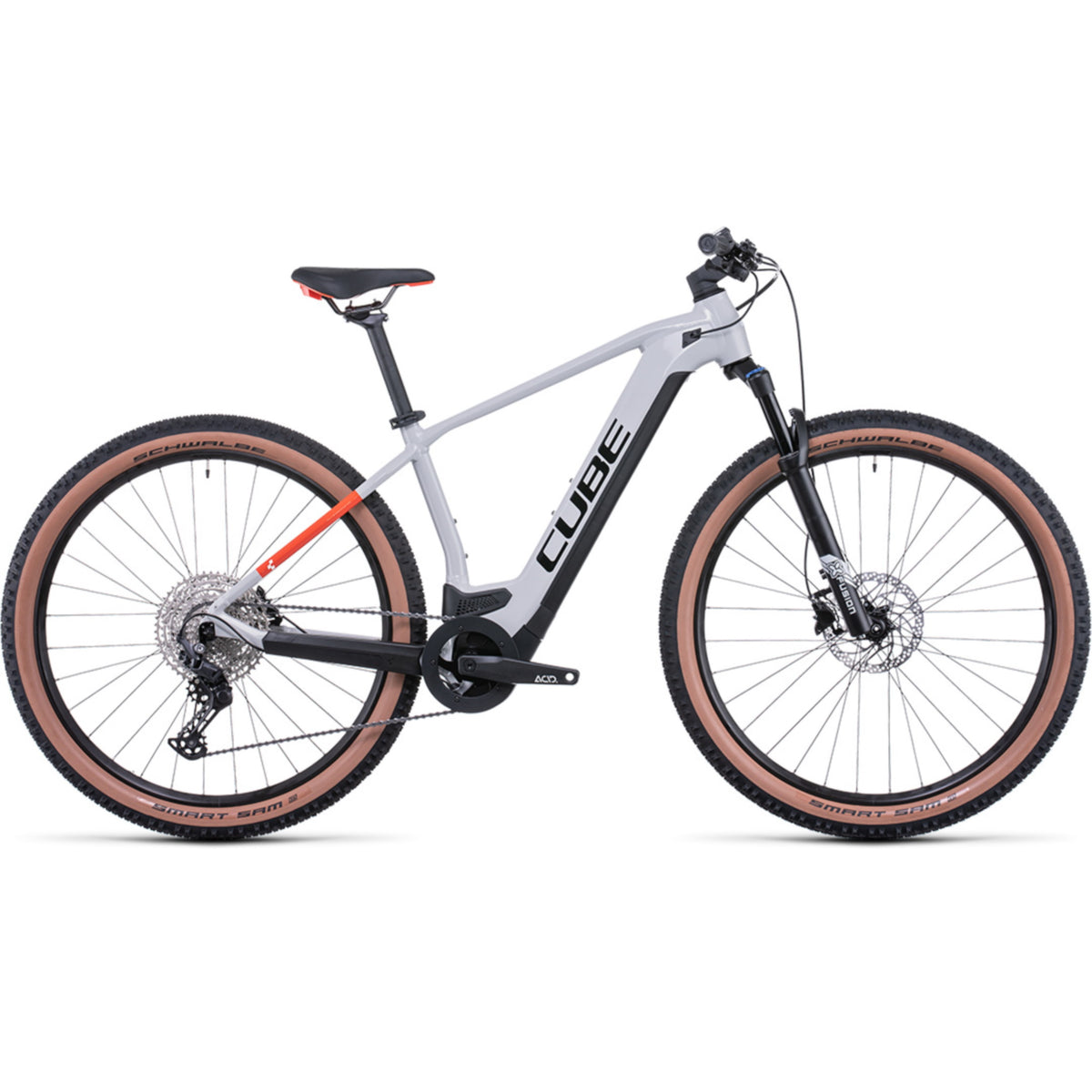

The Reaction Hybrid's PowerTube frame design is so sleek you'll barely notice the high-capacity Bosch battery and sophisticated, fourth-generation CX motor. Agile Ride Geometry and a 1.5in head tube deliver impeccable, confidence-inspiring handling. Internally routed cables reduce maintenance and there's even routing for a stealth dropper post. The fourth-generation Bosch CX motor, Purion controller and high-capacity PowerTube battery give you the power you need to explore. Combined with Shimano's legendarily reliable Deore 1x11 transmission, you’ll ride further, higher and more often than before. The X-Fusion air fork features a lockout, easy adjustability and Boost front axle for plush bump-swallowing performance. Grippy 2.6in Schwalbe tyres with powerful Shimano hydraulic disc brakes ensure you're always in full control. With a choice of frames, from the classic top tube design to Trapeze and Easy Entry, with a range of sizes in each, so you're sure to find the perfect fit.
Accessories: Kickstand/Fender/Carrier Mounting Points
Battery: Bosch PowerTube 625, Charger: Bosch 2A
Brakes: Shimano BR-MT200, Hydr. Disc Brake (180/180)
Chain: KMC X11
Colour: grey´n´red
Colour (text): grey´n´red

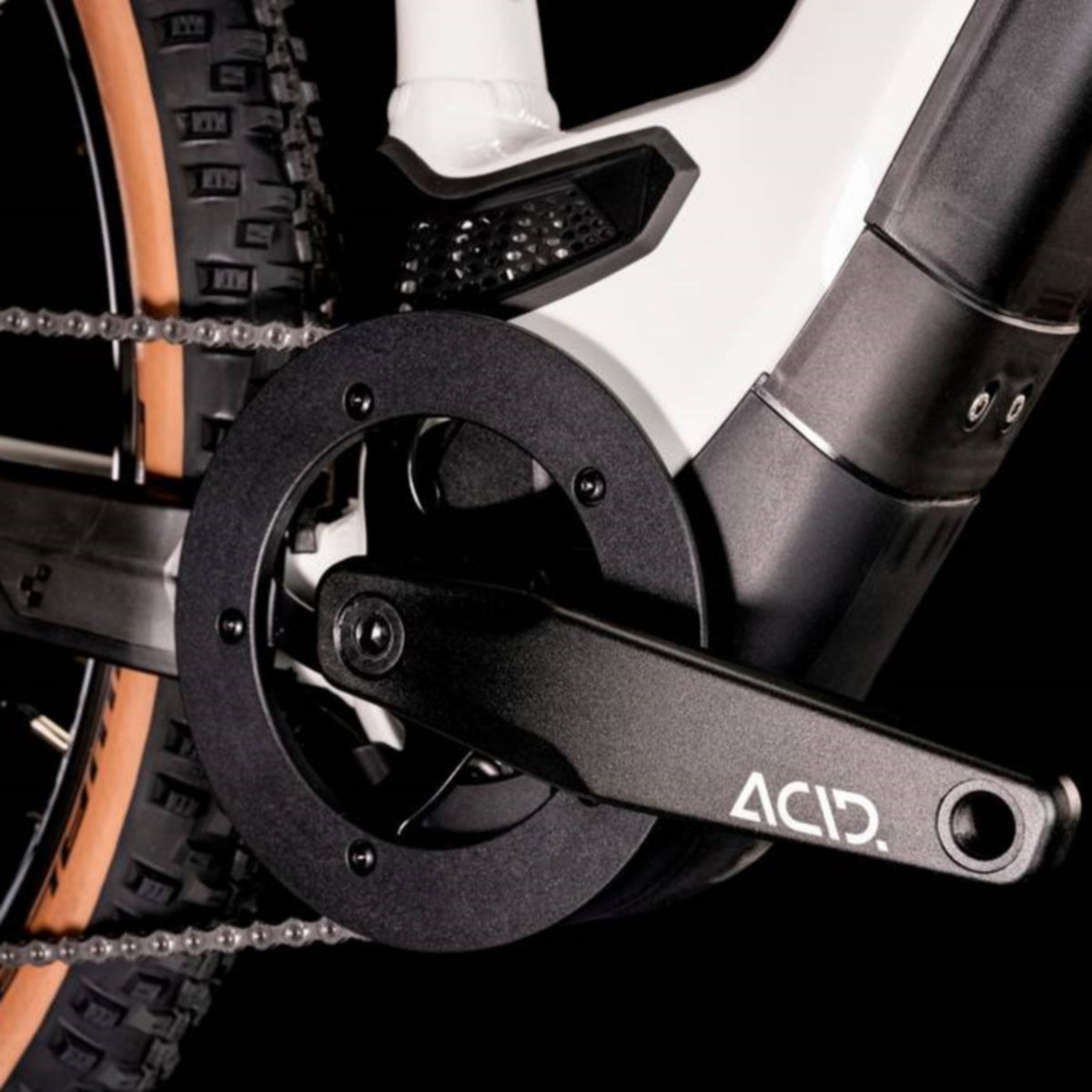

Crankset: ACID E-Crank, 175mm, 38T
Derailleur rear: Shimano Deore RD-M5100-SGS, 11-Speed
Display: Bosch Purion

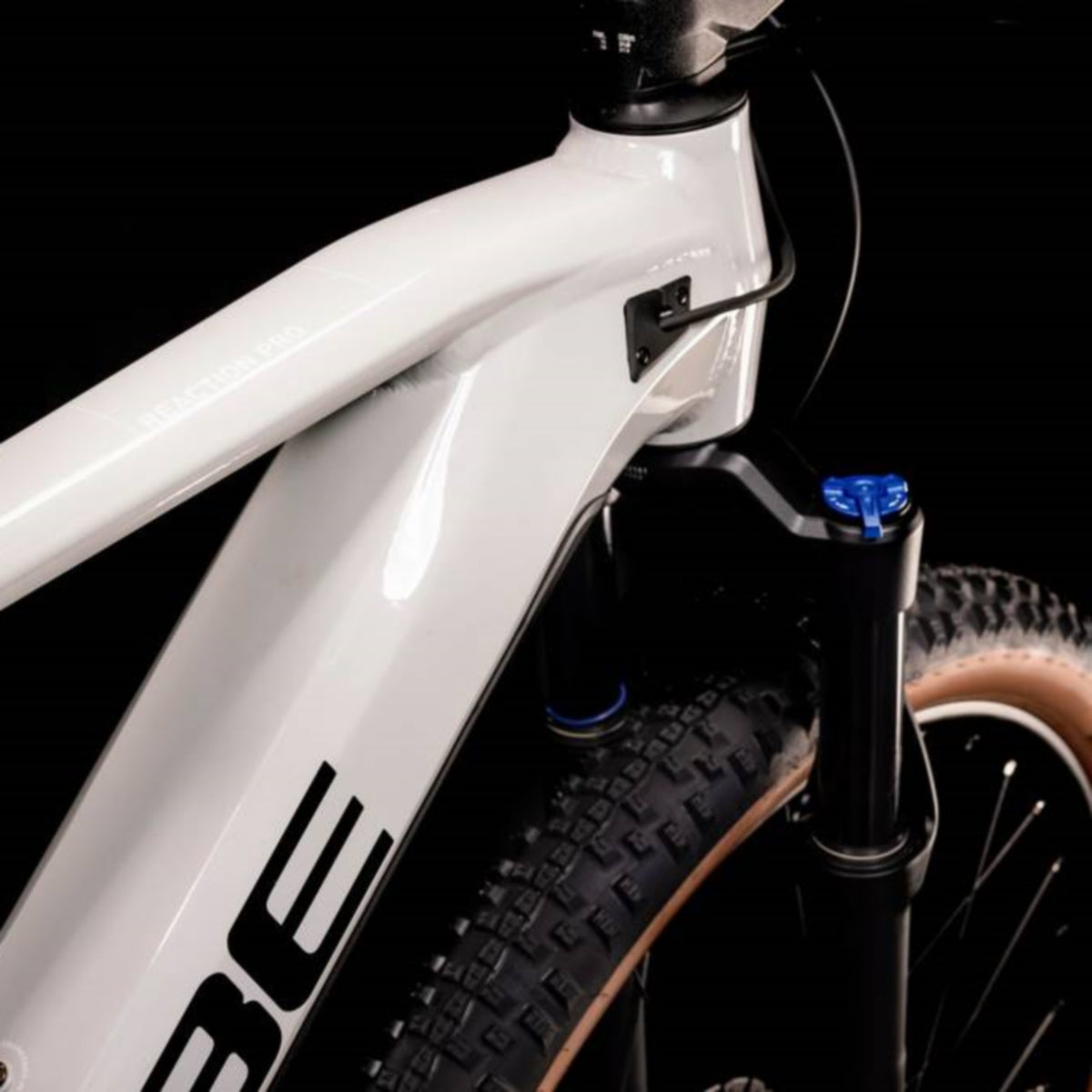

Fork: X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout

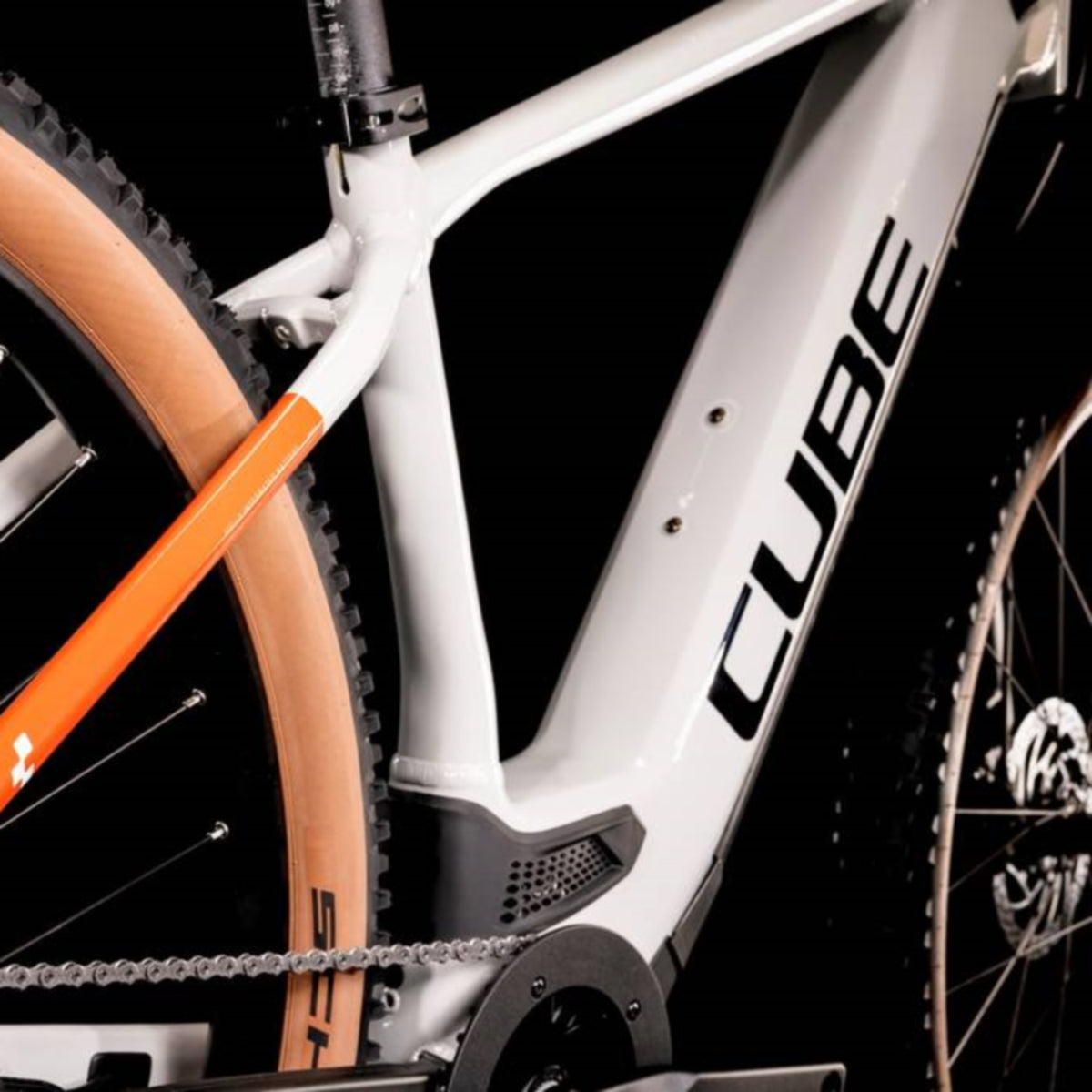

Frame: Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
Freewheel: Shimano Deore CS-M5100, 11-51T Cassette
Grip: Natural Fit MTB Performance Lock On
Handlebar: CUBE Rise Trail Bar, 720mm
Handlebar stem: CUBE Performance Stem E-MTB, 31.8mm
Headset: 27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Hubs: FRONT: Shimano HB-MT400-B, 15mm, Boost, Centerlock / REAR: Shimano FH-TX505, QR, Centerlock
Motor drive unit: Bosch Drive Unit Performance Line CX Cruise Gen4
Pedals: CUBE PP MTB
Rim: CUBE EX30, 32H, Disc, Tubeless Ready

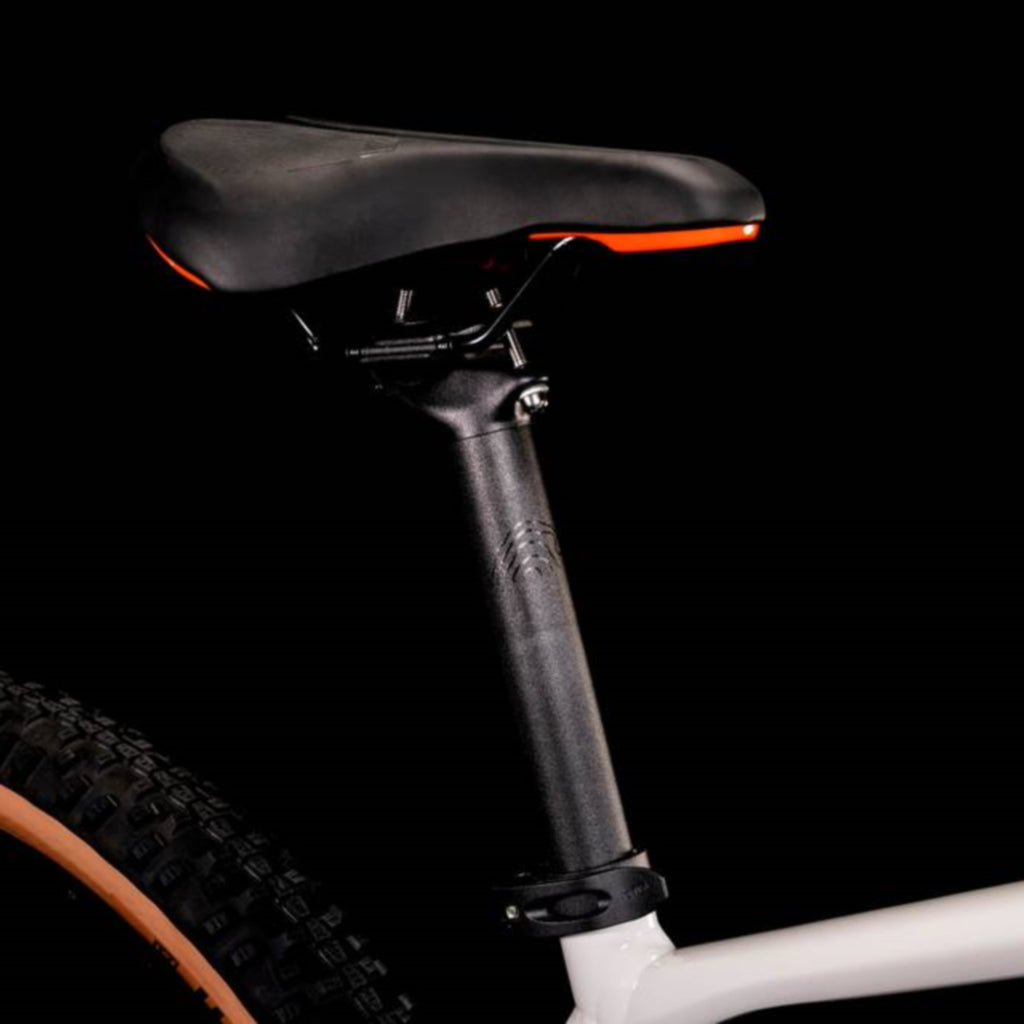

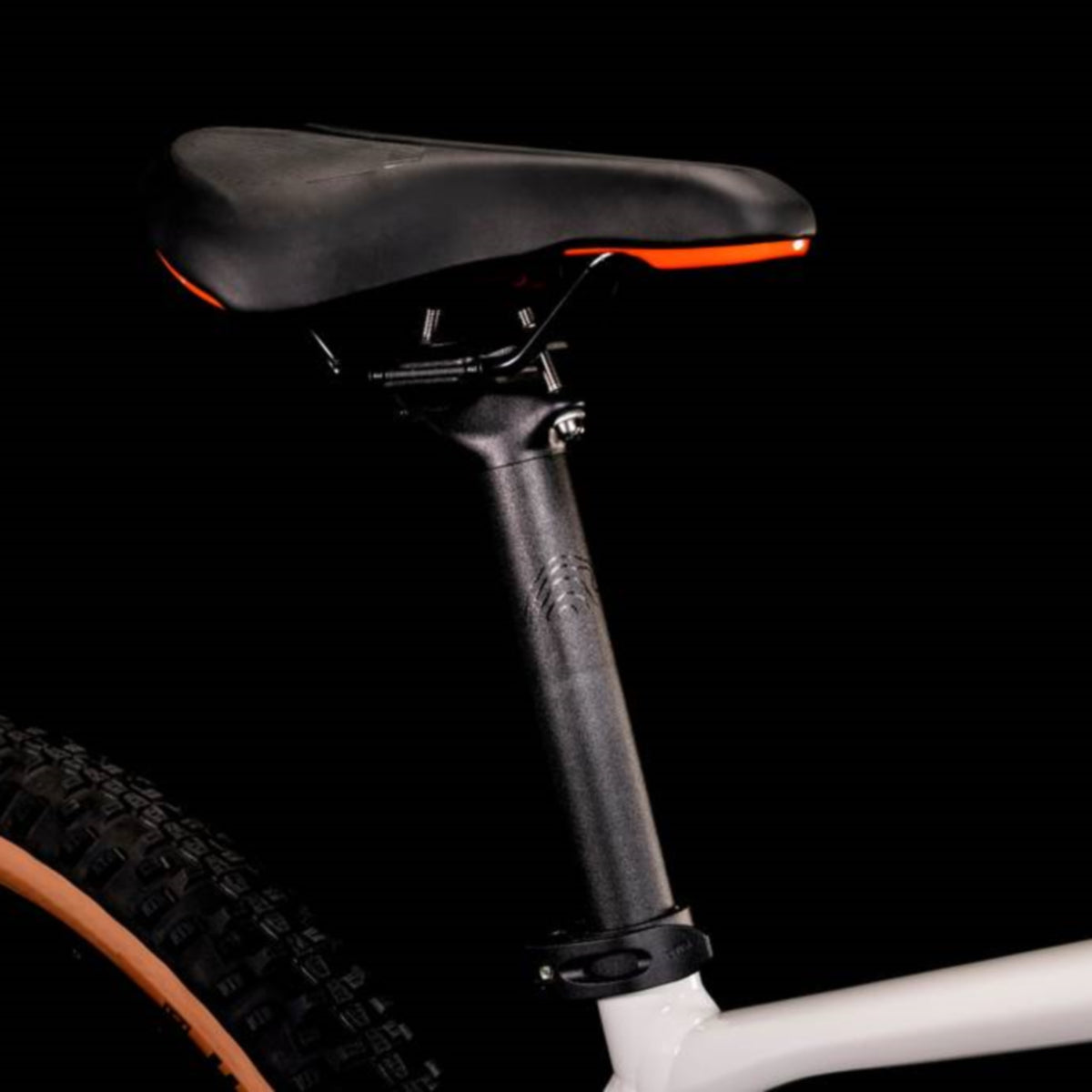

Saddle: Natural Fit Sequence
Season: 2022
Seat clamp: CUBE Varioclose, 34.9mm
Seat post: CUBE Performance Post, 30.9mm
Tyre front: Schwalbe Smart Sam, Active, 2.6
Tyre rear: Schwalbe Smart Sam, Active, 2.6
Weight: 23.7kg / Max system weight (Rider and Bike: 135kg
Wheel size: 29" / 27.5" (Varies by Frame Size)

SIZE

13.5" / 27.5 / XS

15" / 27.5 / S

17" / 29 / M

19" / 29 / L

21" / 29 / XL

23" / 29 / XXL

SEAT TUBE

355

370

405

450

495

545

TOP TUBE HORIZONTAL

577

577

580

600

620

640

SEAT TUBE ANGLE

74

74

74

74

74

74

HEAD TUBE ANGLE

68

68

68

69

69

69

CHAIN STAYS

441

441

460

460

460

460

HEAD TUBE

120

120

115

120

131

146

WHEELSBASE

1119.4

1119.4

1141

1150

1170

1191

BB-HEIGHT TO HUB

48

48

65

65

65

65

STANDOVER HEIGHT

721

732

765

799

832

870

REACH

409.2

409.9

403

420

437

452

STACK

601.6

602.2

628

638

648

662

DIAMETER TIRE MAXIMUM

724

724

724

724

724

724

WIDTH TIRE MAXIMUM

68

68

68

68

68

68


Cube Reaction Hybrid Bike Sizing Chart

Cube Reaction Hybrid Bike Sizing Chart

Cube Bikes Warranties

GENERAL WARRANTY CONDITIONS

Your CUBE bike is guaranteed against any manufacturing defect for 2 years from the date of sale. In addition, we offer our customers the following warranty in the event of frame breakage outside the legal warranty period as follows:

For all rigid frames and forks from model year 2012, we guarantee from the date of sale at the Reseller: 6-Year Aluminium, Carbon, 3-Year Alu-Carbon Guarantee.

If a breakage occurs during this period (from the date of sale), we will replace the frame with the same or similar. This warranty applies only to the frame. The cost of the components necessary for the operation of the frame (eg seat post, derailleur, handlebars and stem, suspension fork, etc.), even if a replacement of the frame requires the replacement of all or part of these components, remains payable client.

EXCLUSIONS: for Fritzz, Hanzz, Two15, for all dirt bikes and all frame exchanges, additional parts are not included in this extended warranty. Here, the 2-year limited warranty applies.

We reserve the right to repair defective frames or parts or replace them with the corresponding updated model.

A condition of the warranty is the normal use of the bicycle in accordance with the manufacturer’s stipulations.

Modification work outside the legal warranty period (2 years) will not be carried out or reimbursed free of charge by us. We therefore ask that the customer be fully aware of this stipulation when concluding the sales contract in order to avoid possible misunderstandings later.

BOSCH warranty:

All warranties on Bosch eBike components are handled by Bosch. The warranty period lasts 24 months from the date of sale of the e-Bike to the final consumer. If the end consumer’s e-Bike is intended for commercial use (eg rental company, courier), the warranty period is 12 months.

Damage resulting from misuse. This includes, but is not limited to, the use of a Pedelec bike in a bike park or similar, overexertion by jumps or any modification of the original Bosch system, such as speed adjustment.

Special case: Carbon Frames and Carbon Forks:

We offer you and your customer a CCR service (CUBE Crash Replacement Service) = exchange service for damaged carbon frames and forks. This exchange service is intended to provide a simple and economical exchange service to your customer following an accident resulting in damage to the carbon frame/forks.

Excluded from warranty and warranty are all forms of damage due to misuse or use not in accordance with the manufacturer’s specifications (e.g. use of a standard frame as a mountain bike, mounting of dual forks crown, extended suspension travel, jump overload, etc.) and any defects due to normal wear and tear. The warranty extension does not apply to Fritzz, Hanzz, Two15 models, all off-road bikes and carbon frames and all mounted components required by a frame exchange.
