Features

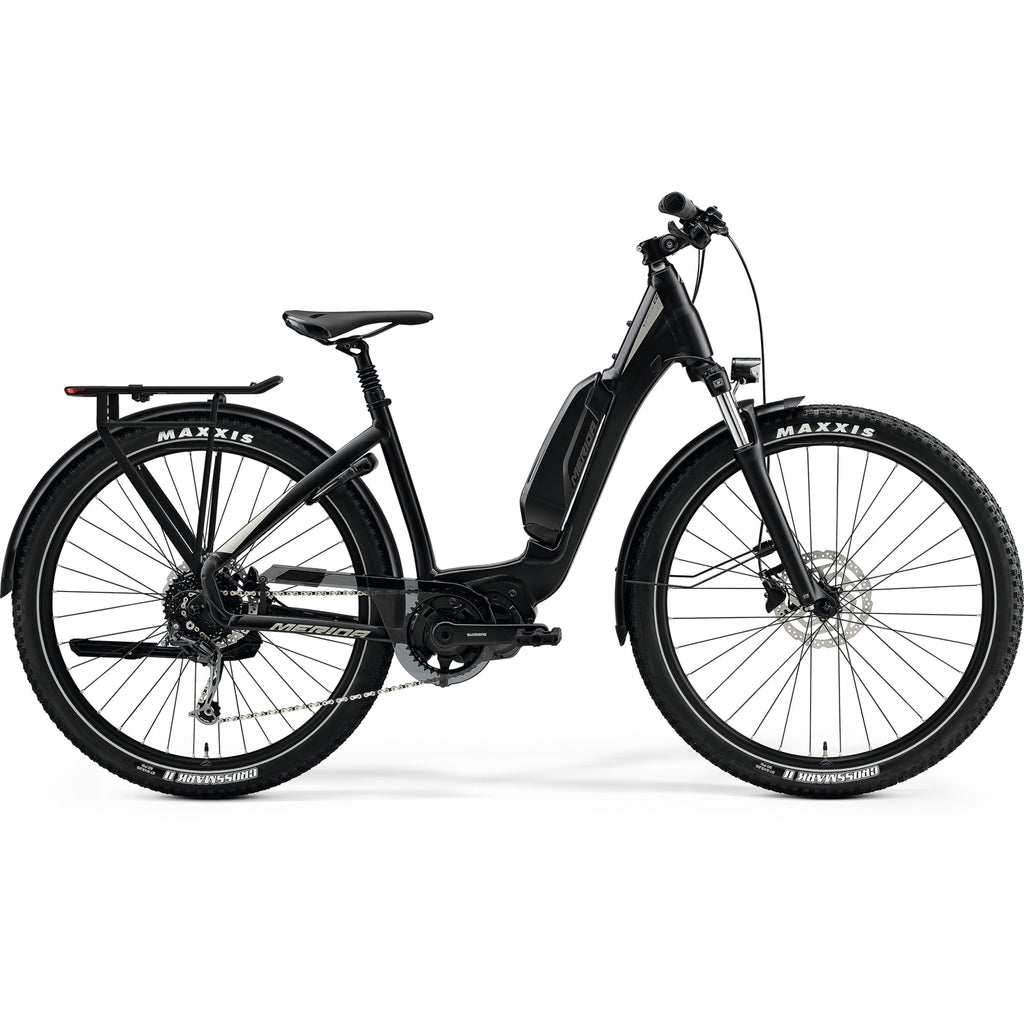

Merida Espresso CC 400 SE EQ Electric Bike 504wh Battery Silk Titan/Black
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Low step-through frame design
- SR Suntour NVX30 80mm fork
- Trekking dedicated Shimano E6100 drive unit, 60Nm torque
- Semi-integrated 504Wh battery
- Assist speeds up to 32 km/h
- Approx range 80 - 210km
- Shimano 9 speed drivetrain
- Shimano hydraulic disc brakes
- Agile 27.5" wheels with grippy high-volume tyres
- Fully equipped with guards, lights, lock, rack and kickstand
| Accessories: | CARRIER: MERIDA MIK HD Carrier with Spring clip & Spanninga rear light / KICKSTAND: Massload CL-KA100K-Mount |
|---|---|
| Battery: | Shimano E8010 504Wh / BATTERY LOCK Abus Key |
| Brakes: | Shimano MT-200 2 piston |
| Chain: | KMC e9S |
| Chainwheel: | Shimano CRE61 38 teeth Shimano FC-E6100 |
| Derailleur rear: | Shimano Deore M592 SGS |
| Display: | Shimano SC-E5000 |
| Fender: | Sunnywheel SW-FA-311-65A(MSB) |
| Fork: | Suntour NVX30 DS Coil 80mm suspension travel 27,5x2,4" max wheelsize |
| Frame: | eSPRESSO LITE 650 material: aluminium 27,5x2,25 max. wheelsize 135x9mm axle standard external max. 504 Wh |
| Freewheel: | Shimano HG200 11-36 teeth 9 speed |
| Handlebar: | MERIDA EXPERT TK material: aluminium 660mm width 15mm rise |
| Handlebar stem: | MERIDA EXPERT CT material: aluminium 31.8mm diameter adjustable 90 mm-XS/S/M, 110 mm-L/XL |
| Headset: | MERIDA 2346 Neck |
| Hubs: | FRONT: Shimano TX505 100x9mm width front hub 32 spoke holes Centerlock / REAR: Shimano TX505 135x9mm width rear hub 36 spoke holes Centerlock |
| Rim: | MERIDA COMP TK 20mm inner width material: aluminium |
| Saddle: | MERIDA EXPERT TK V-mount |
| Season: | 2021 |
| Seat post: | MERIDA EXPERT TK 30.9mm diameter 15mm setback 40mm seatpost suspension travel |
| Spokes: | Black stainless |
| Tyre front: | Maxxis Crossmark II 27.5x2.25" wire reflecting line |
| Tyre rear: | Maxxis Crossmark II 27.5x2.25" wire reflecting line |
| Wheel size: | 27.5" (650b) |
Merida Electric Trekking Bike Sizing Chart
Merida Bikes Warranties
Lifetime warranty on all frames
Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.
Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase
Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase
All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.
The Merida Warranty Excludes:
Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components
Branded Components
Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.
In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.
If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
