Features

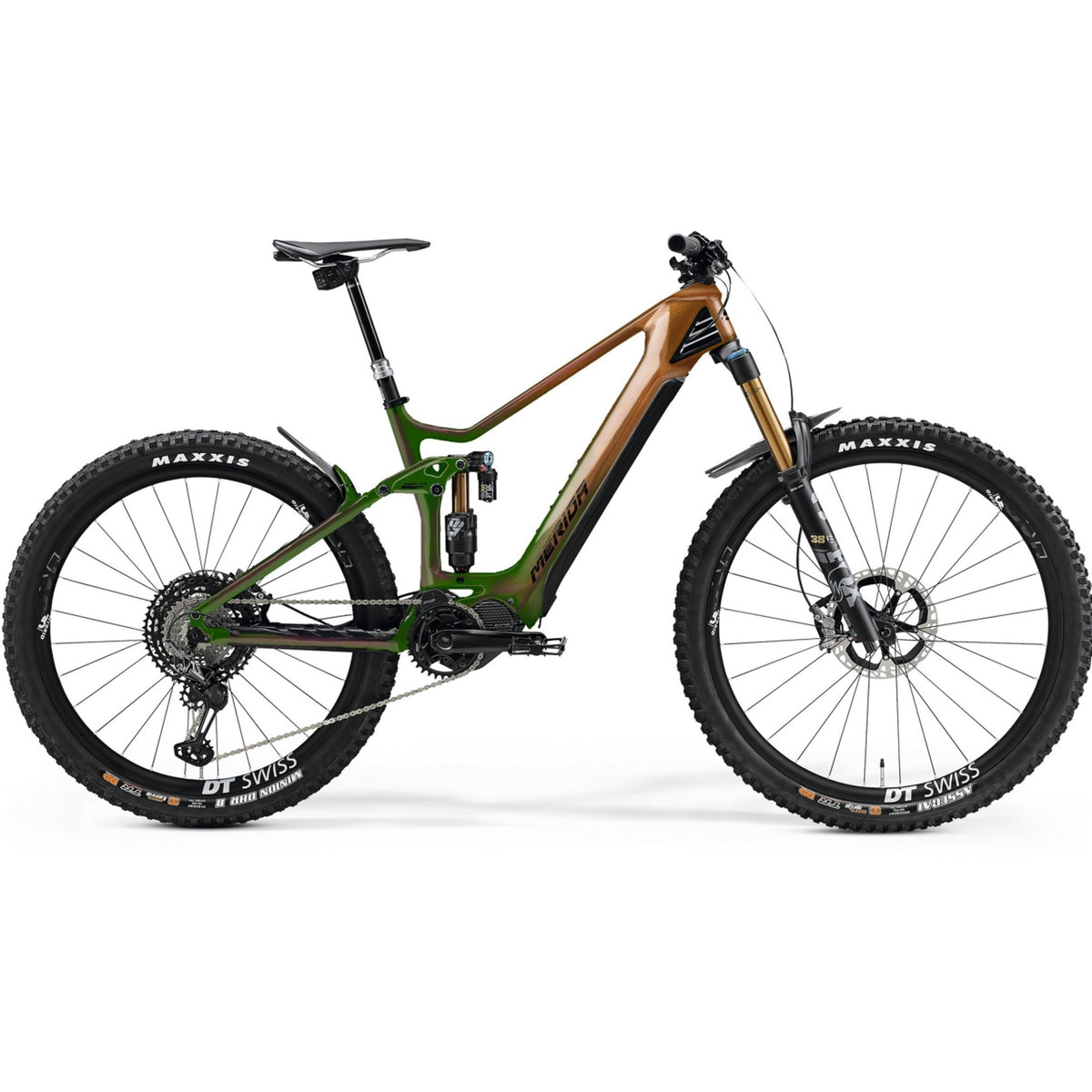

Merida eOne Sixty 10K Electric Enduro Bike 630Wh battery Metallic Brown/Chameleon
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Top of the range model of award winning eOne Sixty
- Lightweight carbon front/aluminium rear frame
- Shimano EP8 motor, 85Nm torque
- Internally mounted 630Wh battery
- Assist speeds up to 32 km/h
- Approx range 30 - 80km on singletrack, 100 - 270km on flat
- Fox Factory level suspension 160/150mm travel split
- Shimano XTR 12 speed drivetrain
- Shimano XTR 4-piston hydraulic disc brakes
- Maxxis Tyres, Mullet setup 29" front 27.5" rear
- THERMO GATE and WIRE PORT tech
| Accessories: | Included: MERIDA Multitool with saddlebox |
|---|---|
| Axles: | REAR: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key |
| Battery: | Shimano E8036 630Wh / Charger: Shimano EC-E8004 |
| Brakes: | Shimano XTR |
| Chain: | KMC e12T EPT |
| Chainwheel: | Shimano CRE80-12-B |
| Crankset: | Shimano FCEM900 |
| Derailleur rear: | Shimano XTR Shadow+ |
| Display: | Shimano SC-EM800 / Mode Switch: Shimano SW-EM800-L |
| Fork: | FOX 38 Factory eMTB+; Air; 160 STR; Tapered; 51mm fork offset; 29x2.6" max WHS |
| Frame: | eONE-SIXTY CFA II; MAT carbon; 150 STR; 27.5x2.8" max. WHS; 148x12 AST; intube; max. 630 Wh |
| Freewheel: | Shimano M9100 Cassette |
| Handlebar: | MERIDA EXPERT eTR |
| Handlebar stem: | MERIDA EXPERT eTR II 40 mm all sizes |
| Light(s): | FRONT: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount / REAR: LEZYNE LED FEMTO USB REAR STVZO |
| Motor drive unit: | Shimano EP8 |
| Pedals: | VP VPE-527 |
| Rim: | DT Swiss Spline HXC1501 spline 30 boost |
| Rotor front: | Shimano RT-MT900 |
| Rotor rear: | Shimano RT-EM910 |
| Saddle: | MERIDA EXPERT CC |
| Season: | 2022 |
| Seat post: | SP REVERB AXS / Lever: EC AXS ROCKSHOX LH 1BUTTON DIS |
| Shock: | FOX Factory Float X2 |
| Tyre front: | Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip |
| Tyre rear: | Maxxis DHR II; 27.5x2.6 "; fold; 3C EXO+ TR |
| Weight: | Max Rider Weight: 140kg |
| Wheel size: | 29" / 27.5" (Mullet Bike) |
| Frame Size | XS | S | M | L | XL |
| Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| ST seat tube [mm] | 405 | 420 | 440 | 470 | 500 |
| TT top tube [mm] | 563 | 584 | 605 | 629 | 652 |
| CS chain stay length [mm] | 439.5 | 439.5 | 439.5 | 439.5 | 439.5 |
| HTA head tube angle [°] | 65.5 | 65.5 | 65.5 | 65.5 | 65.5 |
| STA seat tube angle [°] | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 |
| BD bottom bracked drop [mm] | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| HT head tube [mm] | 110 | 115 | 120 | 135 | 150 |
| FL fork length [mm] | 571 | 571 | 571 | 571 | 571 |
| R reach [mm] | 400 | 420 | 440 | 460 | 480 |
| S stack [mm] | 628.5 | 633 | 637.5 | 651.5 | 665 |
| WB wheel base [mm] | 1168 | 1190 | 1212 | 1238.5 | 1265 |
| SH stand over height [mm] | 742 | 737 | 733 | 740 | 754 |
Merida Electric Mountain Bike Sizing Chart
Merida Bikes Warranties
Lifetime warranty on all frames
Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.
Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase
Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase
All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.
The Merida Warranty Excludes:
Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components
Branded Components
Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.
In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.
If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
