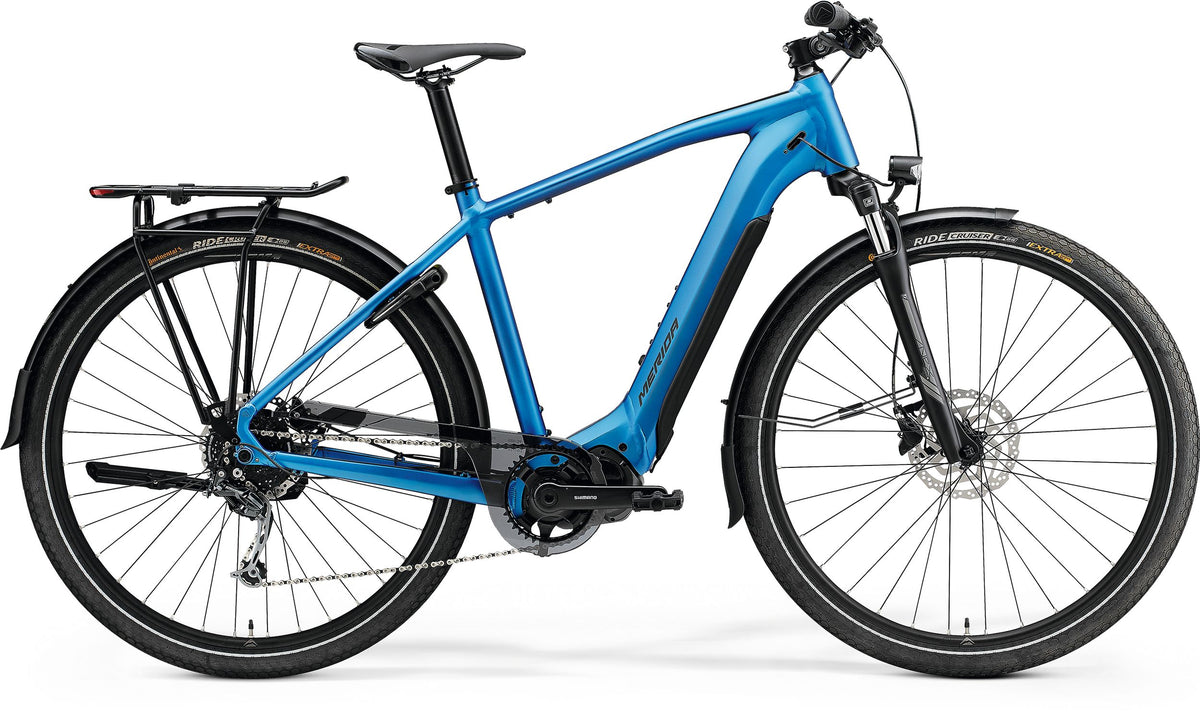

Merida Espresso 400 S EQ Electric Bike 504Wh Battery Silk Blue/Black
Other colours
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Lightweight frame with low top tube for stable stops
- Suntour NEX E25 fork
- Smooth, refined Shimano E6100 drive unit, 60Nm torque
- Integrated Shimano 504Wh battery
- Assist speeds up to 32 km/h
- Approx range 80 - 210km
- Reliable 9-speed Shimano drivetrain
- Powerful Shimano hydraulic disc brakes
- Fast rolling 700c wheels and grippy 50mm tyres
- Mudguards, lights, lock, rack and kickstand included
| Axles: | MERIDA COMP TR; including removeable lever, 6mm allen key |
|---|---|
| Battery: | Shimano E8035 |
| Brakes: | Shimano MT-200 |
| Cassette: | Shimano HG200 |
| Chain: | KMC e9S |
| Chainwheel: | Shimano CRE61 |
| Colour: | Blue/Black |
| Colour (text): | Blue/Black |
| Crankset: | Shimano FC-E6100 |
| Derailleur rear: | Shimano ALIVIO M3100 |
| Display: | Shimano SC-E5000 |
| Fender: | Sunnywheel SW-FA311-60E1 (MSB) |
| Fork: | Suntour NEX E25 |
| Frame: | eSPRESSO LITE II |
| Freewheel: | Shimano HG200 |
| Grip: | MERIDA EXPERT TK |
| Handlebar: | MERIDA EXPERT |
| Handlebar stem: | MERIDA EXPERT CT |
| Headset: | MERIDA 2346 Neck |
| Hubs: | Front: Shimano TX505, Rear: Shimano MT400 |
| Light(s): | Front: Herrmans H-Black MR4 E, Rear: Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier |
| Motor drive unit: | Shimano E6100 |
| Pedals: | VP VPE-891 |
| Rim: | MERIDA COMP TK |
| Rotor front: | Shimano RT10 |
| Rotor rear: | Shimano RT10 |
| Saddle: | MERIDA EXPERT TK |
| Season: | 2022 |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA EXPERT CC |
| Spokes: | Black stainless |
| Tyres: | Continental Ride Cruiser |
| Weight: | 25.11 |
| Wheel size: | 700c |
| Frame Size | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 430 | 470 | 510 | 550 | 590 |
| TT top tube [mm] | 565 | 580 | 590 | 610 | 630 |
| CS chain stay length [mm] | 478 | 478 | 478 | 478 | 478 |
| HTA head tube angle [°] | 70.5 | 71 | 71 | 71.5 | 71.5 |
| STA seat tube angle [°] | 75 | 74.5 | 74.5 | 74 | 74 |
| BD bottom bracked drop [mm] | 70 | 70 | 70 | 70 | 70 |
| HT head tube [mm] | 130 | 140 | 155 | 175 | 205 |
| FL fork length [mm] | 475 | 475 | 475 | 475 | 475 |
| R reach [mm] | 397 | 403 | 409 | 417 | 429 |
| S stack [mm] | 626 | 637 | 651.5 | 672.5 | 701 |
| WB wheel base [mm] | 1114 | 1118 | 1129 | 1138 | 1159.5 |
| SH stand over height [mm] | 724 | 758 | 793 | 828 | 864 |
Merida Electric Trekking Bike Sizing Chart
Merida Bikes Warranties
Lifetime warranty on all frames
Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.
Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase
Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase
All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.
The Merida Warranty Excludes:
Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components
Branded Components
Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.
In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.
If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
