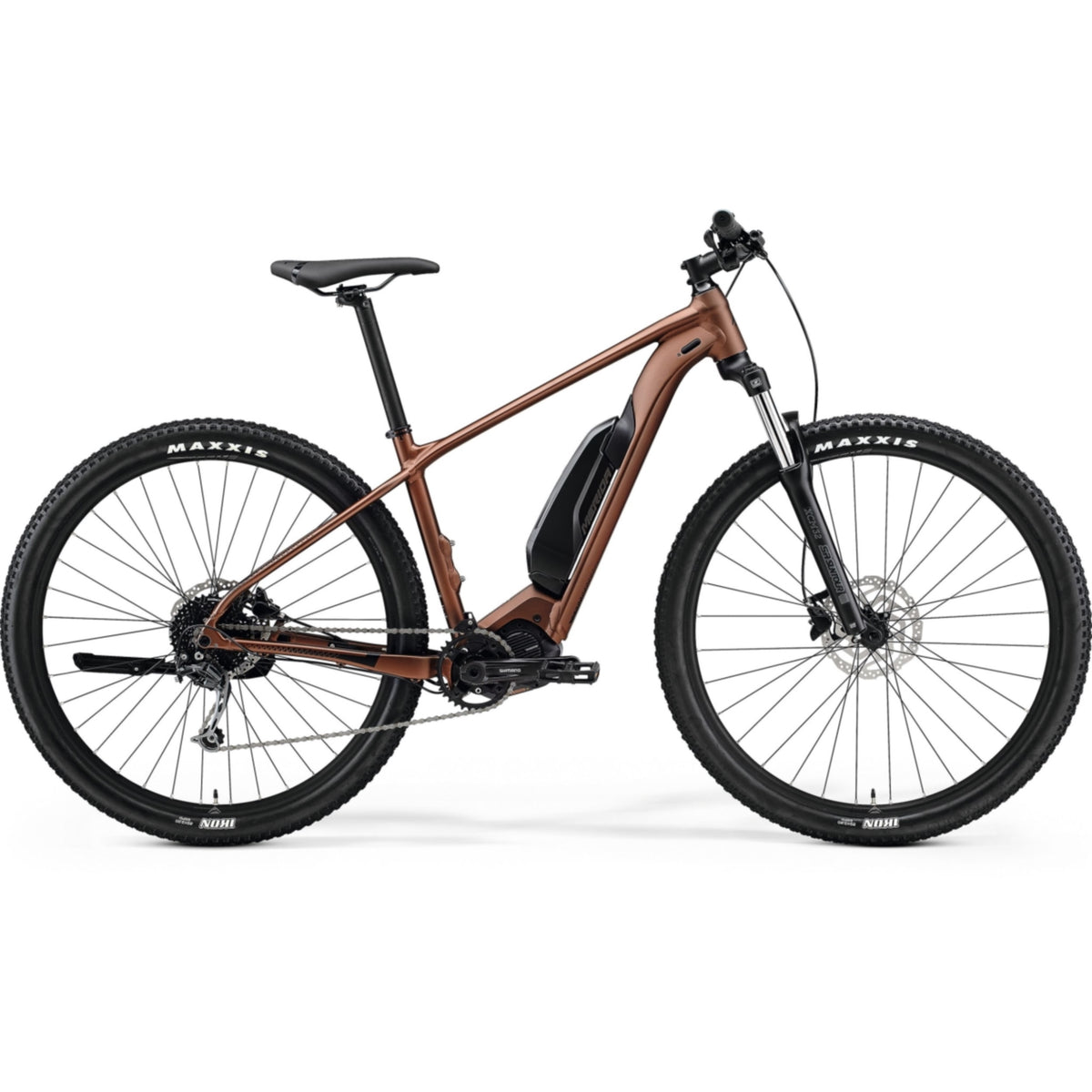

Merida eBig Nine 300 SE Electric Mountain Bike 504wh Battery Silk Bronze
Other options
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Lightweight Prolite 66 triple butted Alloy Frame
- Suntour XCM32 100mm travel Fork
- Shimano E7000 e-MTB motor, 60Nm Torque
- Shimano E8010 Battery, 504Wh
- Assist speeds up to 32 km/h
- Approx range 25 - 40km on singletrack, 75 - 135km on flat
- Shimano 1x9 speed Alivio/Altus Drivetrain
- Tektro Hydraulic Disc Brakes
- Maxxis Ikon, 29x2.2", kevlar bead tyres
- Mounting points for fenders, rack and kickstand
| Axles: | REAR: MERIDA COMP TR, including removable lever, 6/4mm allen key |
|---|---|
| Battery: | Shimano E8010 504Wh |
| Bottom bracket: | included |
| Brakes: | Tektro M275 2 piston |
| Chain: | KMC e9S |
| Crankset: | Shimano CRE70-B 34T / Length: Shimano FC-E8000 165 mm for all sizes |
| Derailleur rear: | Shimano Alivio M3100 SGS |
| Display: | Shimano SC-E5000A |
| Fork: | Suntour XCM32 DS, Coil, 100mm, Tapered, 47mm fork offset, 29x2.4" Max Tyre Width |
| Frame: | eBIG.NINE LITE, Aluminium,Max 29x2.20" without fender Max/ 29"x2.00" with fender Max Tyre Width, 148x12, External Battery |
| Freewheel: | Shimano HG200 11-36T 9-speed Cassette |
| Grip: | MERIDA EXPERT EC |
| Handlebar: | MERIDA EXPERT CC Aluminium 720mm Wide 10mm Rise |
| Handlebar stem: | MERIDA EXPERT CC Aluminium 31.8mm 6° Rise / Length: 80 mm-M, 90 mm-L, 100 mm-XL |
| Headset: | Merida 2341 Neck |
| Hubs: | FRONT: Shimano MT400 110x15 32H, Centerlock / REAR: Shimano MT400-B 148x12 36H, Centerlock |
| Motor drive unit: | Shimano E7000 60Nm |
| Pedals: | VP VPE-537 |
| Rim: | MERIDA COMP CC 20mm Inner Width Aluminium |
| Rotor front: | Shimano RT10 180 mm |
| Rotor rear: | Shimano RT10 180 mm |
| Saddle: | MERIDA COMP SL V-mount |
| Season: | 2022 |
| Seat clamp: | MERIDA EXPERT clamp |
| Seat post: | MERIDA EXPERT MAT aluminium 30.9mm 15° Setback |
| Tyre front: | Maxxis Ikon, 29x2.2", kevlar bead |
| Tyre rear: | Maxxis Ikon, 29x2.2", kevlar bead |
| Weight: | 22.75kg (weighed with 29” wheels in medium frame size) |
| Wheel size: | 29" |
| Frame Size | M / 17" | L / 19" | XL 21" |
| Tyre Sizes | 29" | 29" | 29" |
| ST seat tube [mm] | 430 | 480 | 530 |
| TT top tube [mm] | 590 | 610 | 630 |
| CS chain stay length [mm] | 458 | 458 | 458 |
| HTA head tube angle [°] | 69.5 | 69.5 | 69.5 |
| STA seat tube angle [°] | 73.5 | 73.5 | 73.5 |
| BD bottom bracked drop [mm] | 65 | 65 | 65 |
| HT head tube [mm] | 115 | 125 | 135 |
| FL fork length [mm] | 511 | 511 | 511 |
| R reach [mm] | 402 | 420 | 437 |
| S stack [mm] | 634 | 643 | 652 |
| WB wheel base [mm] | 1123 | 1143 | 1164 |
| SH stand over height [mm] | 733 | 777 | 819 |
Merida Big Nine Bike Sizing Chart
Merida Bikes Warranties
Lifetime warranty on all frames
Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.
Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase
Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase
All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.
The Merida Warranty Excludes:
Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components
Branded Components
Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.
In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.
If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
