Features

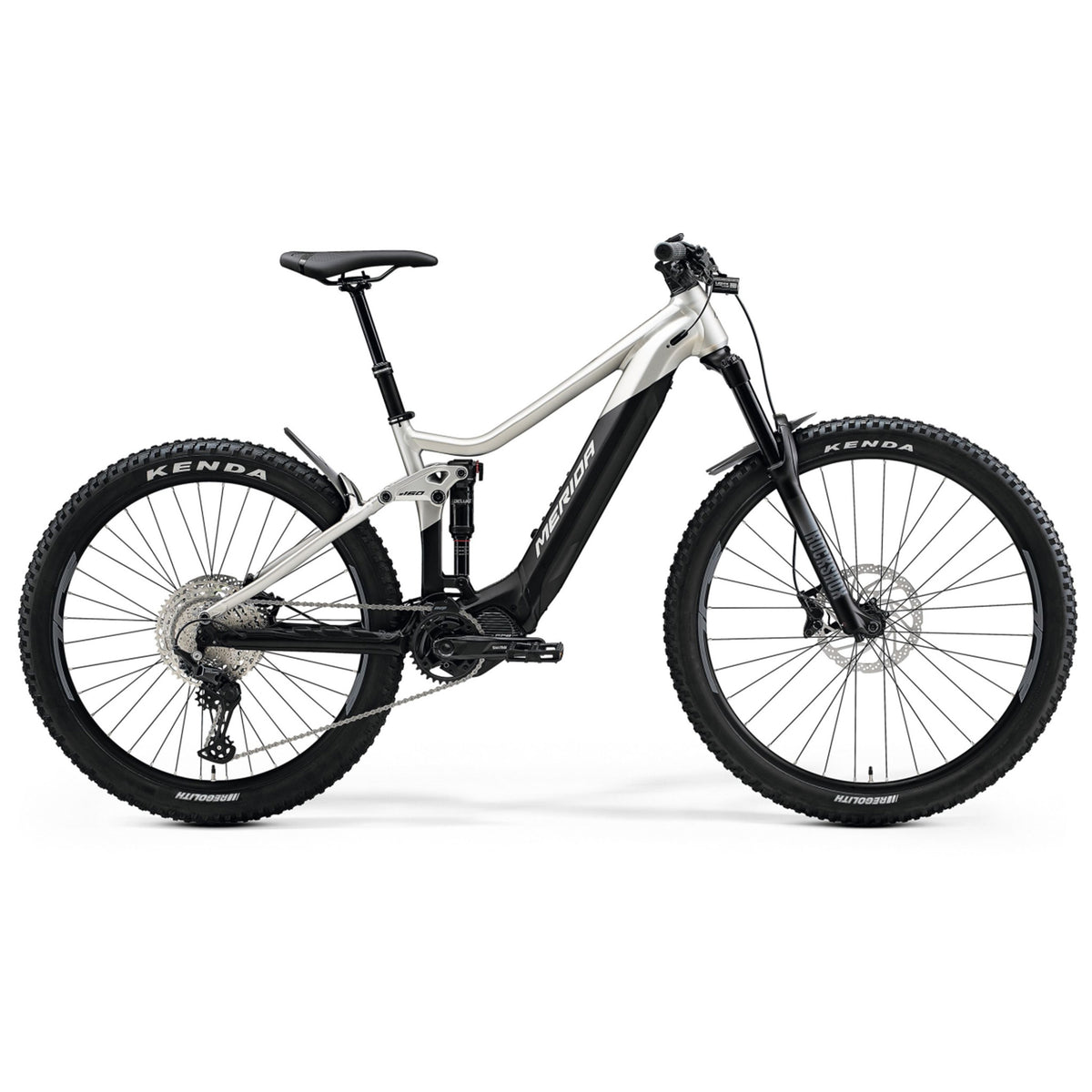

Merida eOne Sixty 500 Electric Enduro Bike 630wh Battery (XS/504wh) Matt Titan/Black
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Tough all-aluminium chassis
- Multiple award and test winning frame geometry
- Rock Shox 35 Gold RL Air 160mm fork
- Powerful Shimano EP8 drive unit
- Integrated 630Wh battery, 504wh on size XS
- Assist speeds up to 32 km/h
- Approx range 100 - 270km, 85 - 230km on size XS
- Rock Shox Deluxe Select+ 150mm shock
- Shimano Deore E-Bike 1 x 11 speed drivetrain
- Shimano 4 piston hydraulic disc brakes
- Mullet wheel setup, 29" front 27.5" rear
Every ounce of our eMTB know-how goes into the eONE-SIXTY 500, with award-winning handling paired to a sleek, all-aluminium frame that houses a high-capacity 630 Wh battery and powerful Shimano EP8 drive unit. Add in the confidence of long-travel RockShox suspension and the control of powerful Shimano brakes and refined drivetrain and no trail is out of reach. The eONE-SIXTY has become one of the most decorated, tested and awarded bike in MERIDA's history. This highly anticipated bike collected a vast amount of amazing test results and wins, as well as a few more industry awards. E-Mountainbike and World of MTB gave it the 'BEST IN TEST' approval in their 'Best of 2021' eMTB group test and FREERIDE gave it a 9.5 out of ten. A perfectly tuned MTB geometry, paired with a tough all-aluminium frame, seamlessly integrated battery and a 29er/27.5" wheel combo that delivers poise and confidence on the toughest trails, the eONE-SIXTY is ready for anything you can throw at it.
| Axles: | MERIDA EXPERT TR; including removeable lever, 6/4mm allen key |
|---|---|
| Battery: | Shimano E8036 630Wh / Shimano E8035 504Wh for XS only |
| Bottom bracket: | included |
| Brakes: | Shimano M4204 |
| Cassette: | Shimano M5100 |
| Chain: | KMC e11S EPT |
| Chainwheel: | Shimano CRE70B |
| Crankset: | Shimano FCEM600 |
| Derailleur rear: | Shimano Deore RDM5100 11 |
| Display: | Shimano SC-E5003A |
| Fender: | C093-02F + C093-02R |
| Fork: | Rock Shox 35 Gold RL; Air; 160 STR; Tapered; 51mm fork offset; 29x2.8" max WHS |
| Frame: | eONE-SIXTY LITE III; MAT aluminium; 150 STR; 27.5x2.8" max. WHS; 148x12 AST; intube; |
| Freewheel: | Shimano M5100 |
| Grip: | MERIDA EXPERT EC |
| Handlebar: | MERIDA EXPERT eTR |
| Handlebar stem: | MERIDA EXPERT eTR II |
| Headset: | MERIDA-8152 |
| Hubs: | Shimano MT400-B |
| Light(s): | Front: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount, Rear: USB REAR Light CG-214RG |
| Motor drive unit: | Shimano EP8 |
| Pedals: | VP VPE-537 |
| Rim: | MERIDA COMP TR |
| Rotor front: | Shimano RT30 |
| Rotor rear: | Shimano RTEM300 |
| Saddle: | MERIDA COMP SL |
| Season: | 2022 |
| Seat clamp: | MERIDA EXPERT clamp |
| Seat post: | MERIDA COMP TR |
| Shock: | Rock Shox Deluxe Select+ |
| Spokes: | Black stainless |
| Tyres: | Kenda Regolith |
| Tyre front: | Kenda Regolith; 29x2.4"; wire |
| Tyre rear: | Kenda Regolith; 27.5x2.6"; wire |
| Wheel size: | 29" / 27.5" (Mullet Bike) |
| Frame Size | XS | S | M | L | XL |
| Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| ST seat tube [mm] | 405 | 415 | 430 | 450 | 470 |
| TT top tube [mm] | 563 | 584 | 605 | 626 | 647 |
| CS chain stay length [mm] | 439.5 | 439.5 | 439.5 | 439.5 | 439.5 |
| HTA head tube angle [°] | 65.5 | 65.5 | 65.5 | 65.5 | 65.5 |
| STA seat tube angle [°] | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 |
| BD bottom bracked drop [mm] | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| HT head tube [mm] | 110 | 115 | 120 | 125 | 130 |
| FL fork length [mm] | 571 | 571 | 571 | 571 | 571 |
| R reach [mm] | 400 | 420 | 440 | 460 | 480 |
| S stack [mm] | 633 | 633 | 638 | 642 | 647 |
| WB wheel base [mm] | 1170 | 1190 | 1212 | 1234 | 1256 |
| SH stand over height [mm] | 737 | 736 | 733 | 739 | 753 |
Merida Electric Mountain Bike Sizing Chart
Merida Bikes Warranties
Lifetime warranty on all frames
Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.
Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase
Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase
All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.
The Merida Warranty Excludes:
Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components
Branded Components
Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.
In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.
If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
99 Bikes Home Delivery Available
Assembled Bikes delivered straight to your door • Available on all Bikes in Auckland • $29 flat rate More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
