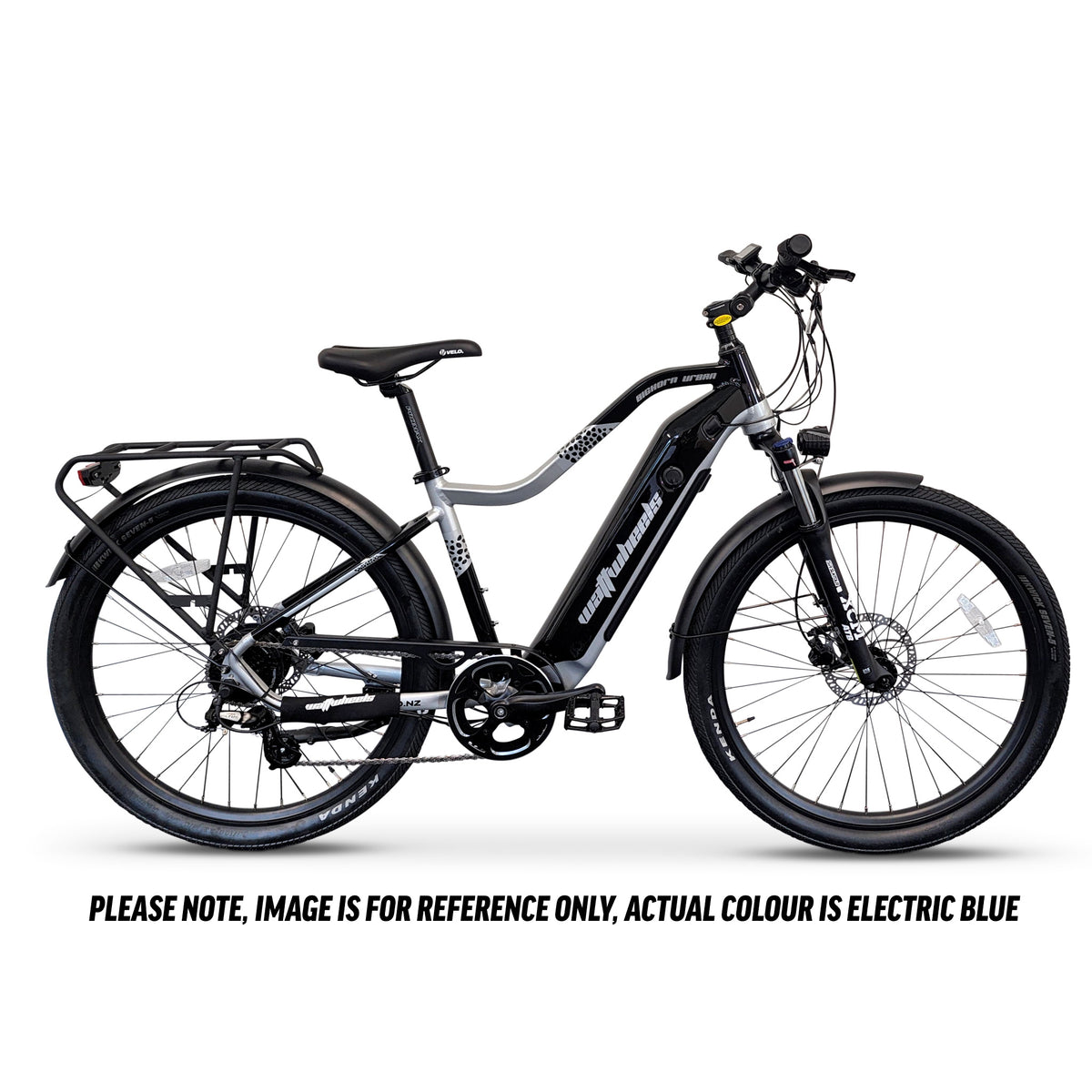

Watt Wheels Bighorn S Hub Drive Electric Bike 500Wh Battery Blue
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
Key Features
- Low Step-Through Frame for safe traffic stops
- Suntour XCM 100mm fork with Lockout
- Powerful AKM 300Wh Hub Drive Motor
- Throttle assist up to 32km/hr, activated from 0km/hr
- 500Wh Integrated Samsung Li-Ion battery, 48V 10.4Ah
- 25-30km Throttle only, 60+km on pedal assist
- Reliable Shimano Altus 1x8 speed drivetrain
- Comes already fitted with commuter accessories
Watt Wheel's bestselling Bighorn Electric Bike is now available with a hub drive motor, offering a perfect balance of performance and affordability for city commuters and urban explorers. A AKM 300Wh rear hub motor maximizes pedal power to tackle even the hilliest of cities, while the thumb throttle will cruise at speeds up to 32km/hr without the need to pedal. The 48v 10.4Ah battery will give you over 60km on pedal assist, with 25-30km on the throttle alone. A Shimano Altus 1x8 speed drivetrain provides smooth shifting performance, paired with Tektro hydraulic disc brakes ensuring responsive braking in any weather. A 100mm travel lockout Suntour XCM fork absorb bumps for maximum comfort and reduced fatigue. Fitted with a chainguard, bottle holder, rear carrier, fenders, and dual lights the Bighorn LS Hub is ready for the daily commute. Available in sizes M with 27.5” wheels and L with 29” to cater for most rider heights. ST model also available with a low top tube for easy mounting.
| Accessories: | Thumb Left hand throttle / Fitted with a chainguard, bottle holder, rear carrier, fenders, and dual lights |
|---|---|
| Battery: | 48V10.4Ah 2600mAh Samsung Li-Ion (500WH) / Sans 48V2Ah Smart Charger |
| Brakes: | Tektro Hydraulic E350 with brake light feature |
| Chain: | KMC 8sp Anti Rust ebike Chain |
| Derailleur rear: | Shimano Altus 8 Speed |
| Display: | Key Disp Colour K286 |
| Features: | Full Comprehensive Warranty - 5 years frame, 2 years motor/battery/display and 12 months rest of components |
| Fender: | Included |
| Fork: | Suntour XCM with Lockout - 100mm Travel |
| Frame: | Lightweight Alloy Low Step-Through Frame perfect for safe traffic stops |
| Freewheel: | 11-34T Shimano Freewheel |
| Grip: | Velo 140mm Lock On |
| Handlebar: | Promax 640mm, 31.8, 10mm Rise |
| Hubs: | KT with sealed bearing, Quick Release |
| Motor drive unit: | AKM 48V 300Wh / Speed: Up to 32km/r / 25-30km Throttle only, Pedal assist up to 60Km |
| Rim: | Prowheel 27.5 13G*36H Doublewall |
| Rotor front: | 180mm Rotors |
| Rotor rear: | 180mm Rotors |
| Saddle: | SR Gel Relaxed Unisex - Black |
| Seat post: | 31.60 * 350mm Alloy |
| Tyre front: | Kenda K1052 27.5 x 2.20 |
| Tyre rear: | Kenda K1052 27.5 x 2.20 |
| Weight: | 27.5kg with battery / Weight Limit: 130Kg Total load weight |
| Wheel size: | 27.5" (650b) |
Wattwheels Bikes Warranties
Wattwheels Ltd warrants that all new products are warranted to the Buyer against manufacturing defects in materials and/or workmanship for the following periods:
Warranty
The warranty period is calculated from the point of delivery/collection. The original receipt of purchase is required to establish proof of purchase and must be provided to Wattwheels for all warranty claims. Wattwheels will require the customer to complete a MANDATORY standard procedure for warranty claims that will involve media such as photos and videos to help Wattwheels after sales staff establish the fault with the product.
Goods we sell are subject to a full comprehensive warranty. The costs/inconvenience caused by the loss of use of the product is not covered whilst the warranty procedure takes place. The warranty for replacement components will be based on the date of delivery. Under no circumstance will a replacement component have a warranty date different than the original date of delivery. If a replacement is necessary due to a defect in materials and/or workmanship, then upon return to Wattwheels, the component will be replaced during the warranty period.
Wattwheels will have no obligation under this warranty in the event the product is damaged or destroyed as a result of any of the following events: components used on a non Wattwheels product, damage or destruction by abuse; collision; theft; improper maintenance or mishandling of the product; natural forces such as wind, lightning, hail, etc.; any wilful or negligent act; penetration, or opening of the product casings in any manner. Replacement will be honoured only by Wattwheels.
This is Wattwheels exclusive warranty. No party is granted express or implied authority to change or annul this warranty in any manner. Implied warranty including that of merchant-ability and fitness for a particular purpose are expressly limited in duration to the duration of this warranty. Wattwheels disclaims any liability for special, incidental or consequential damages.
This warranty is not meant to suggest or imply that the products cannot be broken or will last forever. It does mean that the product is covered subject to the terms of the warranty. This warranty applies only to the original Buyer of the product and is not transferable to subsequent owners or any other party. This warranty is void if the product is subjected to abuse, neglect, improper repair, improper maintenance, alteration, modification, an accident or other abnormal, excessive, or improper use, at the sole discretion of Wattwheels.
Warranty Exclusions
This Warranty does not cover:
Proof of purchase must be provided. The original Purchaser must contact a Wattwheels representative to discuss the problem with the product. The original Purchaser is responsible for the return of the product, undamaged in transit, to Wattwheels for warranty work and for the costs associated with shipping the component(s) when returning them. If Wattwheels determines a warranty claim is valid and Warranty Procedure conforms with this warranty, Wattwheels will replace component(s). For valid warranty claims hereunder, Wattwheels will reimburse the original Purchaser for shipping costs incurred as a result of returning the product to Wattwheels for warranty work at standard ground shipping rates, and Wattwheels will pay for shipping costs to return the product to the original. You must retain and send us the receipts for shipping.
Limited Liability
Unless otherwise provided, the sole remedy under the above warranty, or any implied warranty, is limited to the replacement of defective parts at the sole discretion of Wattwheels. In no event shall Wattwheels be responsible for direct, incidental or consequential damages, including, without limitation, damages for personal injury, property damage, or economic losses, whether based on contract, warranty, negligence, product liability, or any other theory.
Cancellation
Buyer has a 7 day period to cancel an order for a full refund. After the cancellation period, no refunds will be awarded. The Goods will be delivered with no returns.
Returns
Our extensive quality control means that our products are thoroughly tested and ultra-reliable by industry standards. All products are warranted to work as described on arrival and for the warranty period. If there is a warranty claim, it will be assessed by Wattwheels and new parts will be delivered upon claim’s approval. Wattwheels will accept the return of warranted components. If there is a major fault with the product, contact Wattwheels immediately. Wattwheels will not accept returns for change of mind.
Warranty
- Motor/Battery: 24 months
- Frame: 60 months (Folding bikes is 36 months)
- Additional Components: 12 months
- Motor/Battery: 12 months
- Frame: 24 months (Folding bikes is 18months)
- Additional Components: 6 months
The warranty period is calculated from the point of delivery/collection. The original receipt of purchase is required to establish proof of purchase and must be provided to Wattwheels for all warranty claims. Wattwheels will require the customer to complete a MANDATORY standard procedure for warranty claims that will involve media such as photos and videos to help Wattwheels after sales staff establish the fault with the product.
Goods we sell are subject to a full comprehensive warranty. The costs/inconvenience caused by the loss of use of the product is not covered whilst the warranty procedure takes place. The warranty for replacement components will be based on the date of delivery. Under no circumstance will a replacement component have a warranty date different than the original date of delivery. If a replacement is necessary due to a defect in materials and/or workmanship, then upon return to Wattwheels, the component will be replaced during the warranty period.
Wattwheels will have no obligation under this warranty in the event the product is damaged or destroyed as a result of any of the following events: components used on a non Wattwheels product, damage or destruction by abuse; collision; theft; improper maintenance or mishandling of the product; natural forces such as wind, lightning, hail, etc.; any wilful or negligent act; penetration, or opening of the product casings in any manner. Replacement will be honoured only by Wattwheels.
This is Wattwheels exclusive warranty. No party is granted express or implied authority to change or annul this warranty in any manner. Implied warranty including that of merchant-ability and fitness for a particular purpose are expressly limited in duration to the duration of this warranty. Wattwheels disclaims any liability for special, incidental or consequential damages.
This warranty is not meant to suggest or imply that the products cannot be broken or will last forever. It does mean that the product is covered subject to the terms of the warranty. This warranty applies only to the original Buyer of the product and is not transferable to subsequent owners or any other party. This warranty is void if the product is subjected to abuse, neglect, improper repair, improper maintenance, alteration, modification, an accident or other abnormal, excessive, or improper use, at the sole discretion of Wattwheels.
Warranty Exclusions
This Warranty does not cover:
- normal wear and tear
- damage or failure from abuse, neglect, misuse, or accident
- damage from stunt riding, ramp jumping, acrobatics, competitive events, such as bicycle racing, bicycle motocross racing, or similar activities or any activity that is not consistent with the intended use of the product
- damages resulting from improper charging of the battery pack or use of any charger not supplied by Wattwheels
- installation of any parts, accessories, or electrical component(s) not originally intended for or compatible with the product as sold, or any modification of the frame or any component(s) originally supplied; tires, brake pads, chains, lights, motors, battery packs, displays, or vehicle controllers that have been opened for any purpose whatsoever, other than by Wattwheels
- All warranties are void if the product is used for any purpose other than the reasonable intended use of the product. Additionally, this warranty does not cover damage associated with commercial use, unless otherwise agreed upon and signed in writing.
- Aftermarket components or modifications
Proof of purchase must be provided. The original Purchaser must contact a Wattwheels representative to discuss the problem with the product. The original Purchaser is responsible for the return of the product, undamaged in transit, to Wattwheels for warranty work and for the costs associated with shipping the component(s) when returning them. If Wattwheels determines a warranty claim is valid and Warranty Procedure conforms with this warranty, Wattwheels will replace component(s). For valid warranty claims hereunder, Wattwheels will reimburse the original Purchaser for shipping costs incurred as a result of returning the product to Wattwheels for warranty work at standard ground shipping rates, and Wattwheels will pay for shipping costs to return the product to the original. You must retain and send us the receipts for shipping.
Limited Liability
Unless otherwise provided, the sole remedy under the above warranty, or any implied warranty, is limited to the replacement of defective parts at the sole discretion of Wattwheels. In no event shall Wattwheels be responsible for direct, incidental or consequential damages, including, without limitation, damages for personal injury, property damage, or economic losses, whether based on contract, warranty, negligence, product liability, or any other theory.
Cancellation
Buyer has a 7 day period to cancel an order for a full refund. After the cancellation period, no refunds will be awarded. The Goods will be delivered with no returns.
Returns
Our extensive quality control means that our products are thoroughly tested and ultra-reliable by industry standards. All products are warranted to work as described on arrival and for the warranty period. If there is a warranty claim, it will be assessed by Wattwheels and new parts will be delivered upon claim’s approval. Wattwheels will accept the return of warranted components. If there is a major fault with the product, contact Wattwheels immediately. Wattwheels will not accept returns for change of mind.
Watt Wheels is a Kiwi-owned Electric Bike company whose founders are passionate about cycling and exploring our amazing country. Watt Wheels Ebikes are custom designed to meet the needs of the New Zealand market, for more information about Watt Wheels click here.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
Courier Delivery Available
• $9.99 for orders $99 & under • Free for orders over $99 • Bulky shipping fees apply for bikes & bulky items based on item weight More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
