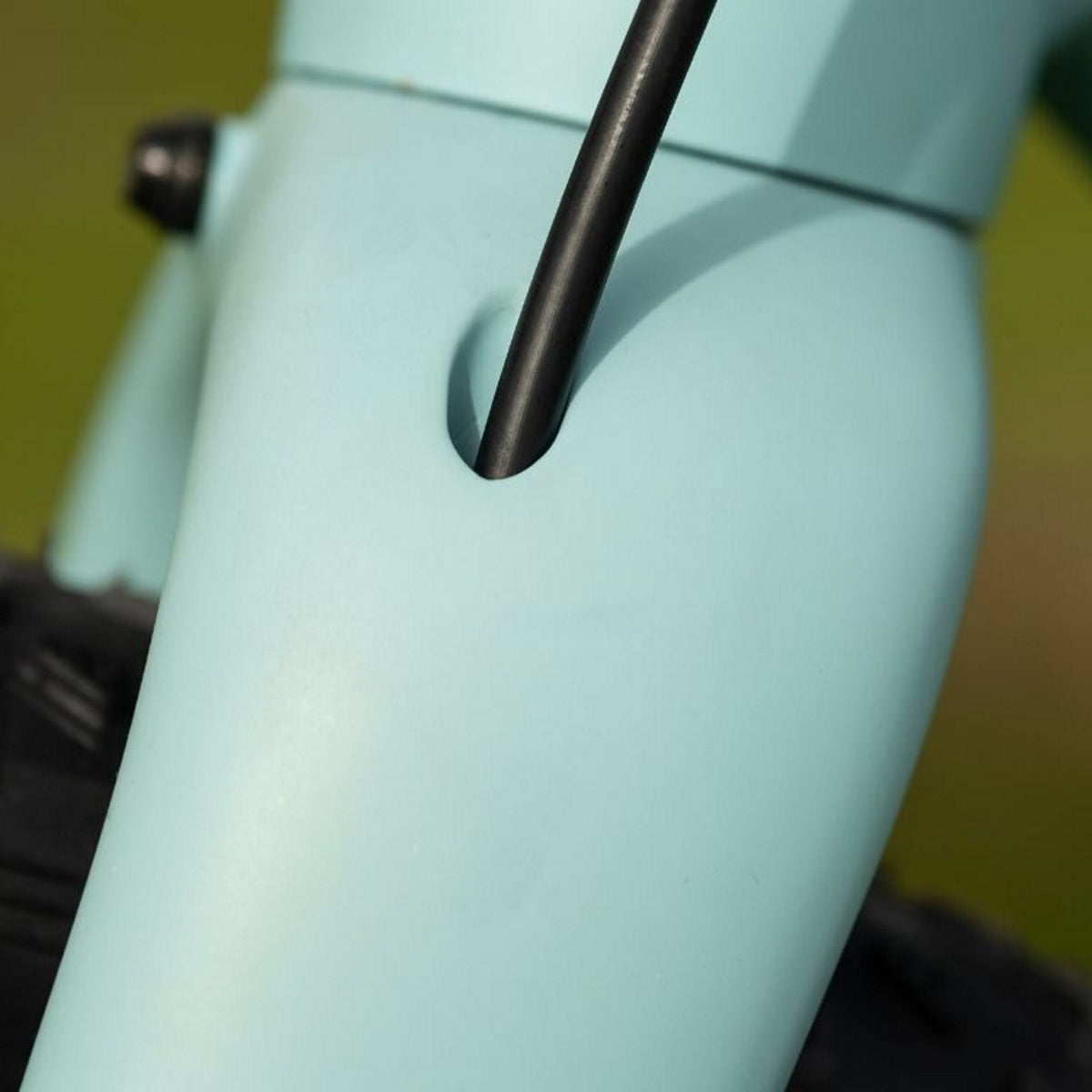

- Series 3 aluminum frame with internal cable routing
- Rack and fender eyelets for mounting accessories
- Marin full carbon fork, flat-mount disc
- SRAM Apex 12-Speed drivetrain

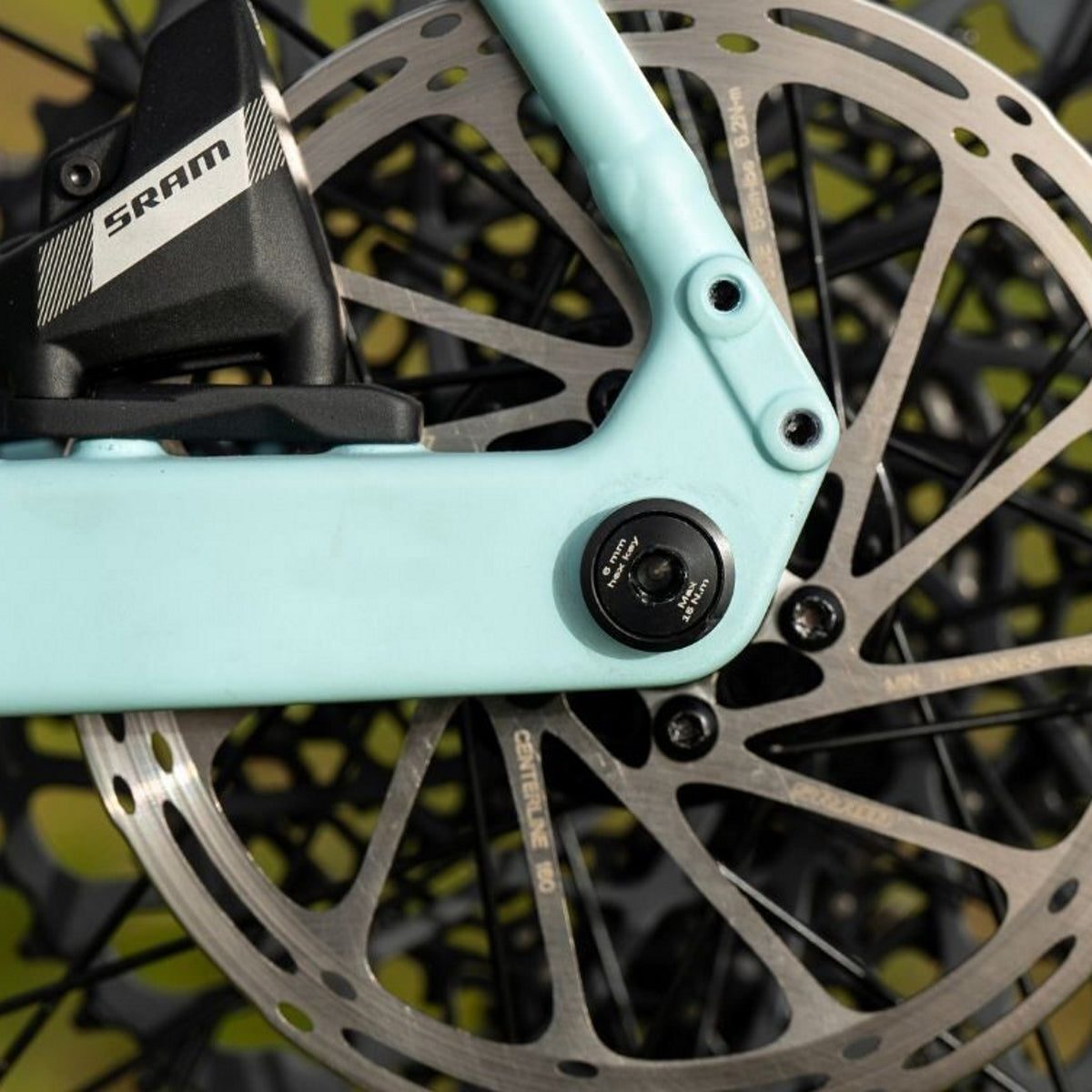

- SRAM hydraulic brakes
- Vee Tire Co, Rocket Man 700c x 44mm tires
- Internal dropper post routing ready
The Marin DSX 2 is built around a Series 3 aluminum frame with internal cable routing, and rack and fender eyelets for mounting accessories. The lightweight, carbon fork is also packed with mounting points for bikepacking gear. There’s also a 1 x 12-speed SRAM Apex drivetrain, Vee Tire Co, Rocket Man 700c x 44mm tires with clearance up to 29” x 2.1”. SRAM hydraulic brakes with the latest flat mount disc brake standard ensure smooth, controlled stopping in all conditions with minimal maintenance. Dropper posts are quickly becoming standard fare for gravel racers and riders that spend significant time on rough surfaces, and the DSX features internal dropper post routing for easy upgrades.
| Axles: | Bolt-On Thru-Axles F and R |
|---|---|
| Bottom bracket: | SRAM DUB BSA |
| Brakes: | SRAM DB-S300 Flat Mount Hydraulic Disc |
| Cassette: | SRAM CS-XG-1275, 10-52T |
| Chain: | SRAM NX Eagle |
| Crankset: | SRAM Apex 1, 40T |
| Derailleur rear: | SRAM Apex 1, 12-Speed |
| Fork: | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Frame: | Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
| Grip: | Marin MTB |
| Handlebar: | Marin MiniRiser |
| Handlebar stem: | Marin 3D Forged Alloy |
| Headset: | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Hubs: | FRONT: Forged Aluminum, 100x12mm, Disc, 32H / REAR: Shimano Forged Aluminum, 142x12mm, XDR, Disc, 32H |
| Pedals: | Marin Oso OE Flat |
| Rim: | Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible |
| Rotor front: | 160mm Rotor |
| Rotor rear: | 160mm Rotor |
| Saddle: | Marin DSX |
| Season: | 2024 |
| Seat post: | Marin Alloy |
| Spokes: | 14g Black Stainless Steel |
| Tyres: | Vee Tire Co. Rocket Man, 700Cx44mm |
| Wheel size: | 700c |
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 544.4 | 572.5 | 600.6 | 628.7 |
| Reach | 380 | 405 | 420 | 435 |
| Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° |
| Head Tube Length | 120 | 150 | 180 | 210 |
| Seat Tube Angle | 74° | 74° | 74° | 74° |
| Seat Tube Length | 430 | 480 | 520 | 558 |
| Top Tube Effective | 536.1 | 569.2 | 592.2 | 615.3 |
| BB Height | 279.5 | 279.5 | 279.5 | 279.5 |
| BB Drop | 80 | 80 | 80 | 80 |
| Chain Stay | 425 | 425 | 425 | 425 |
| Wheel Base | 1024.42 | 1060 | 1085.4 | 1110.9 |
| Stand Over Height | 658.76 | 700.51 | 730.39 | 758.5 |
| Fork Offset | 50 | 50 | 50 | 50 |
| SeatPost Diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 640 | 680 | 680 | 680 |
| Stem Length | 70 | 70 | 70 | 70 |
| Crank Length | 170 | 175 | 175 | 175 |
All lengths in millimeters
Marin DSX 1 Bike Sizing Chart
