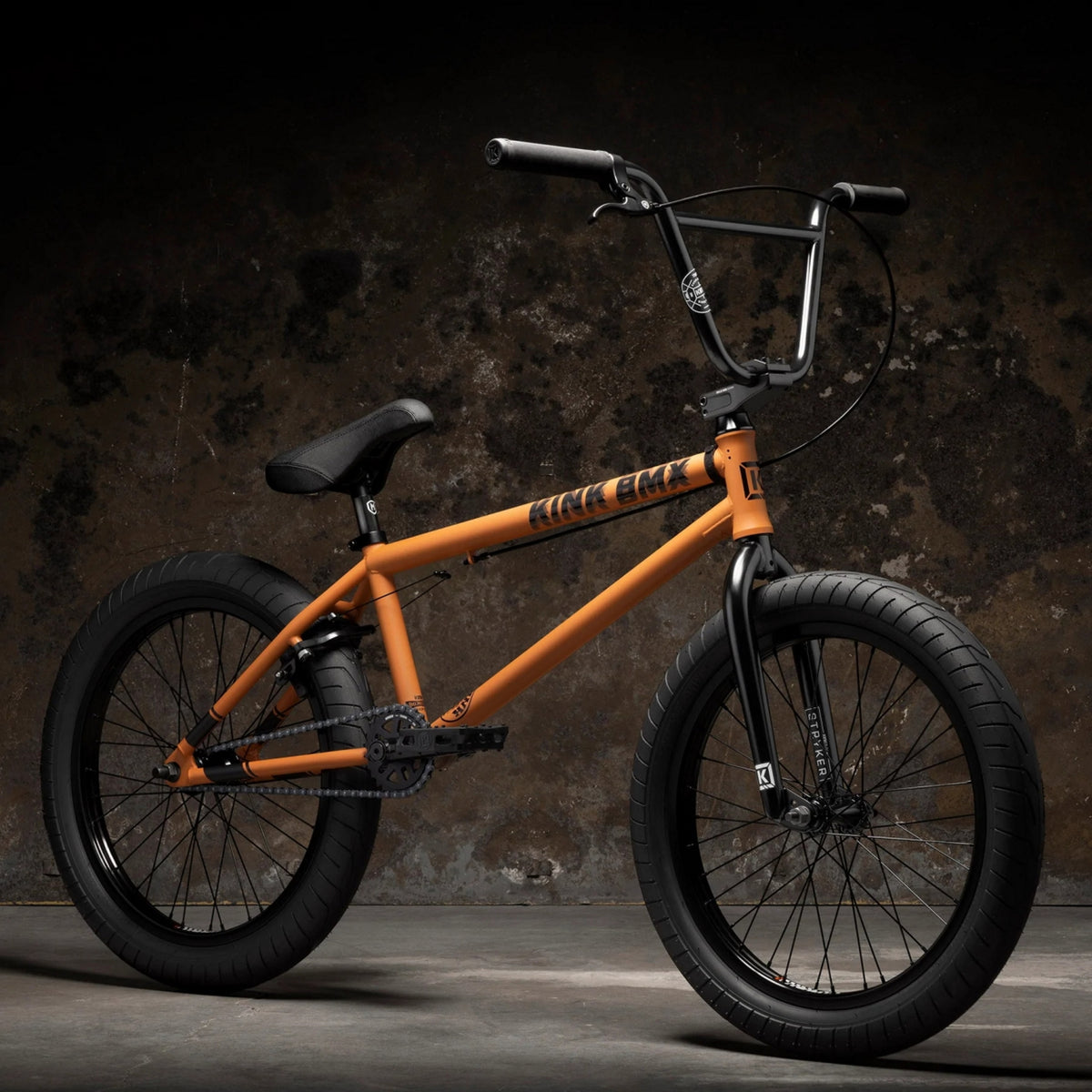

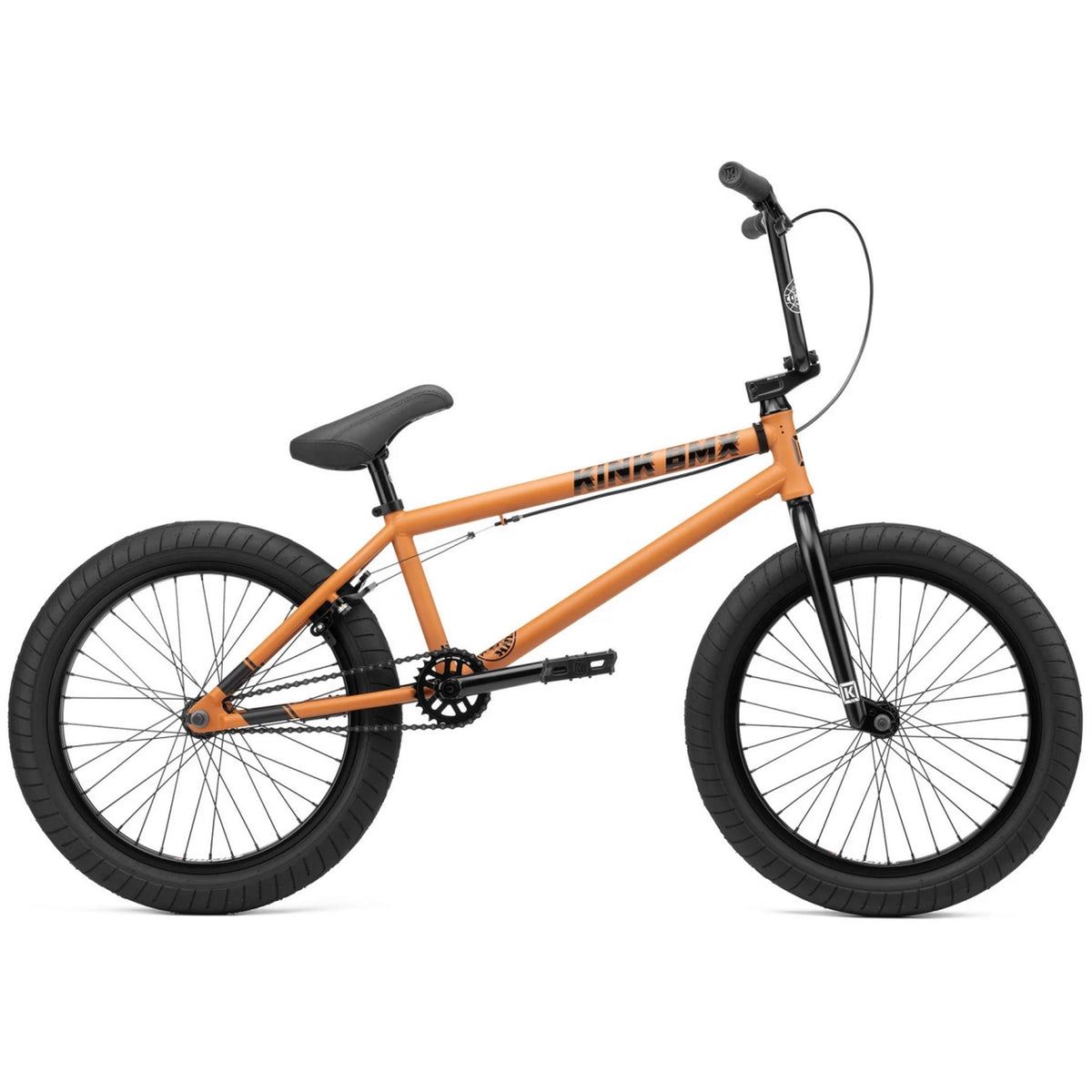

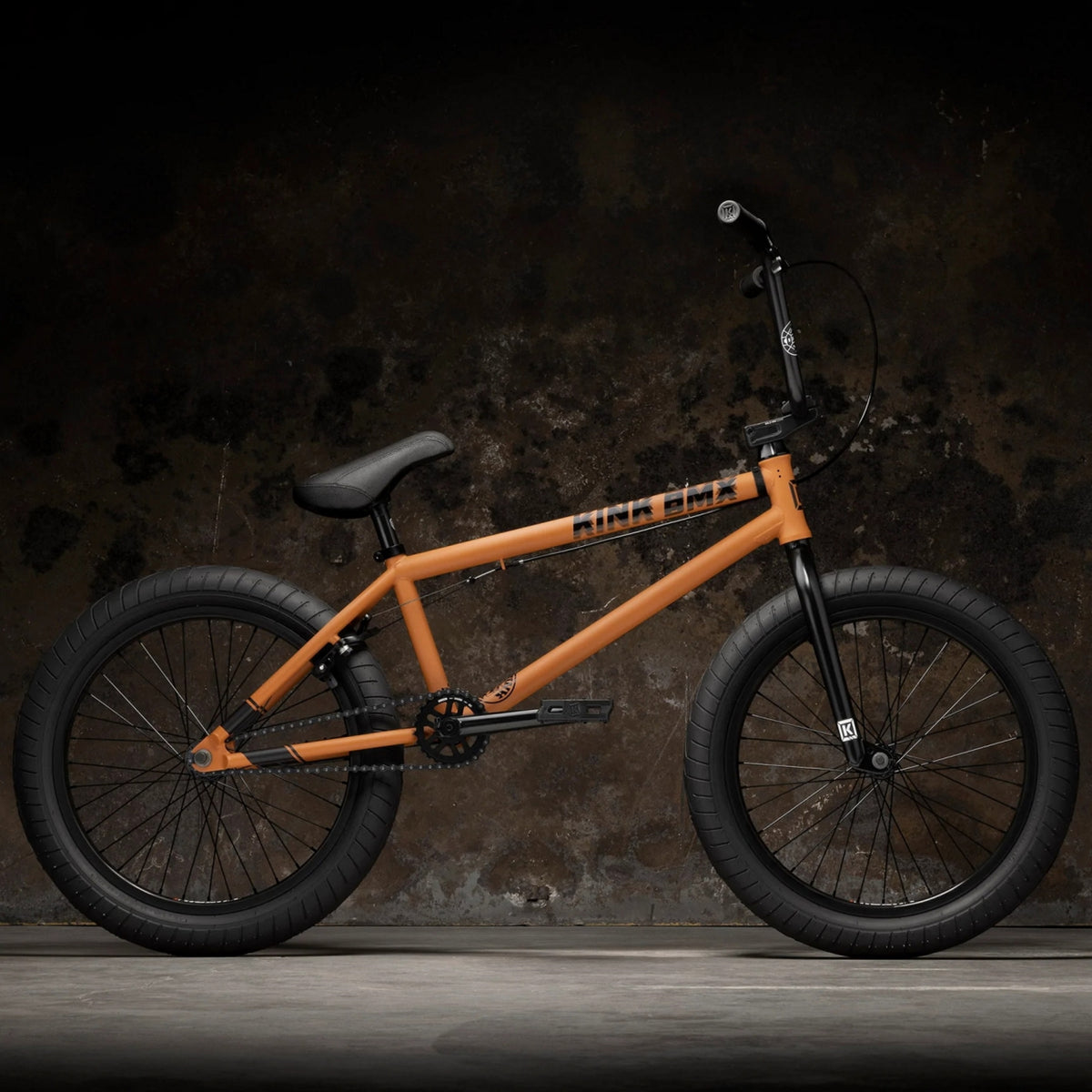

Kink Whip XL is one of Kink’s most popular models, the same high quality components as the Whip, but available in an XL 21” toptube size for taller riders. This beast is constructed using full 100% 4130 chromoly throughout the entire frame, fork and handlebar set. Complimenting this strong, durable structure are sealed bearings everywhere; headset, bottom bracket, and both front and rear hubs. Both wheels are laced up with Mission Mylar rims, giving this bike double wall rims front and rear. Topping off all the great functionality, the Whip XL comes in a Matte Sedona Red colorway. Featuring Kink Stryker forks, taller 9.25” Kink T925 bars, and Kink Ridge 3-piece tubular chromoly cranks, the Whip XL is fitted with great components featuring modern geometry. Adding to all these specs are the comfortable Kink Form flangeless grips, Kink Hemlock pedals, and Mission Charge sprocket. Retailing for a price everyone can agree with, the Whip XL cannot be beaten.
Bottom bracket: | Sealed Mid 19mm |
---|---|
Brakes: | Mission Cease V2 |
Chain: | Mission 410 |
Chainwheel: | Mission Charge 25T 6061 Aluminum |

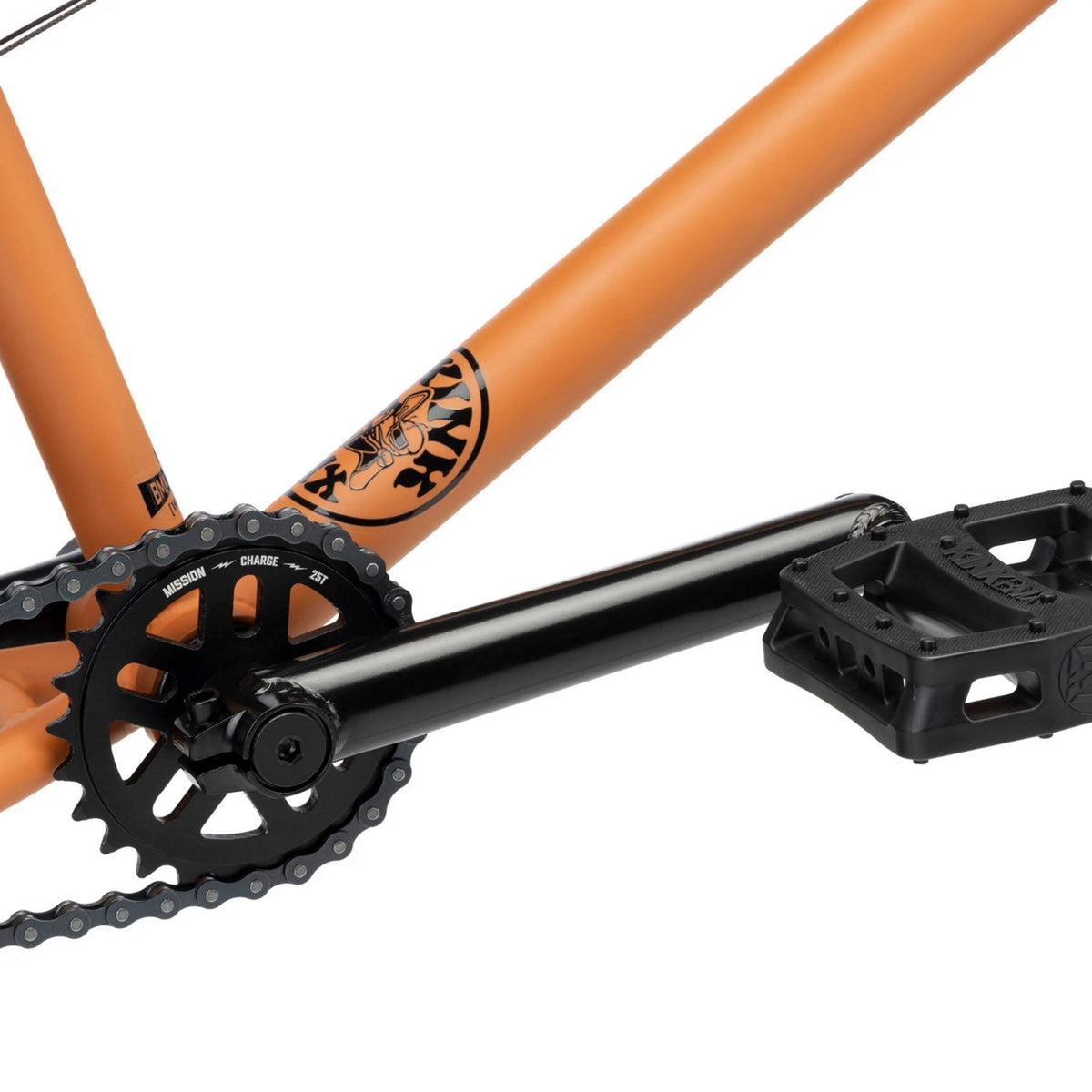

Crankset: | Kink Ridge 3pc Tubular Chromoly 170mm – 8 Spline |
Fork: | Kink Stryker 100% 4130 Chromoly Tapered Fork Legs |
Frame: | Kink Whip XL 100% 4130 Chromoly |
Freewheel: | 9T |

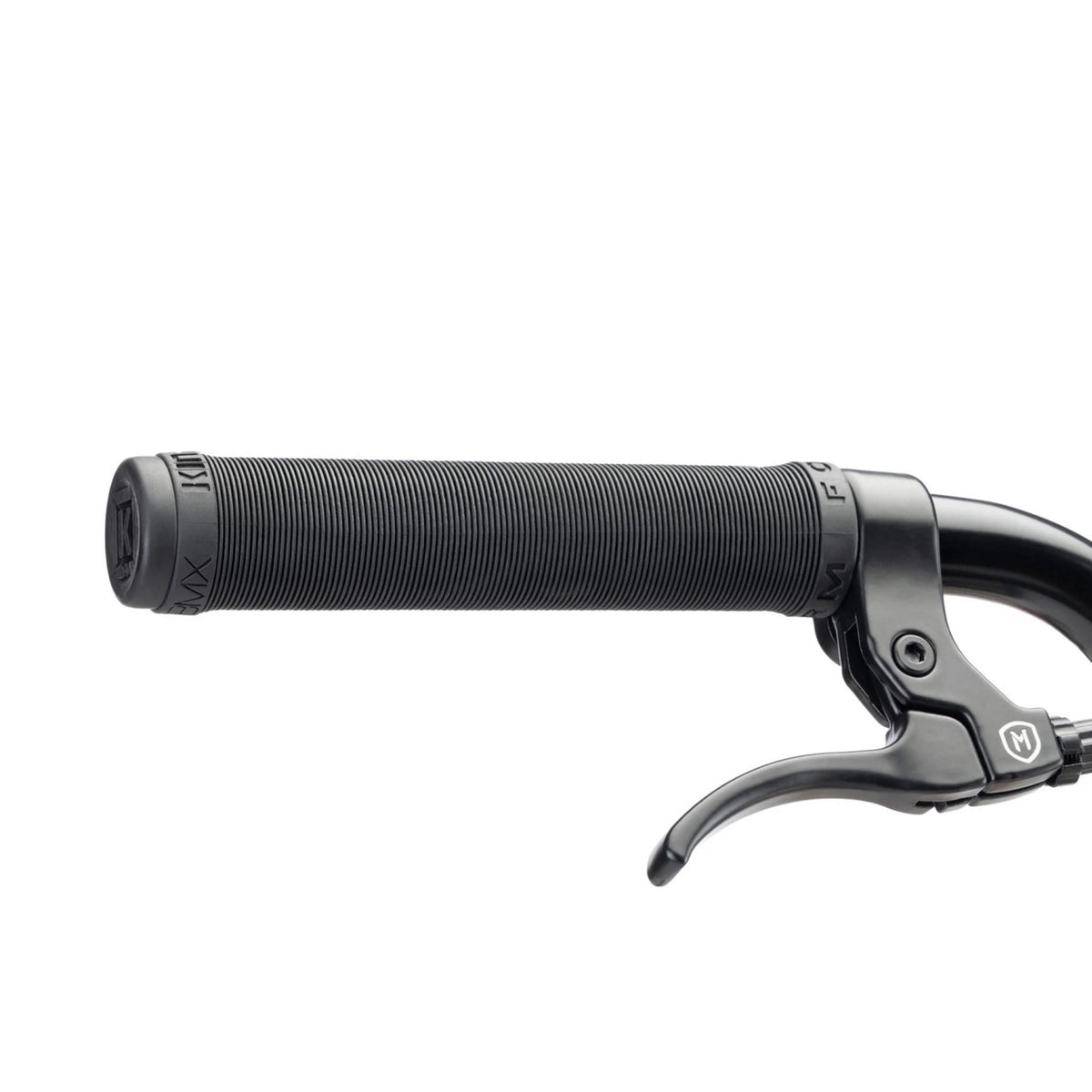

Grip: | Kink Form, Thrust Barends |
Handlebar: | Kink T925 9.25" 100% 4130 Chromoly |

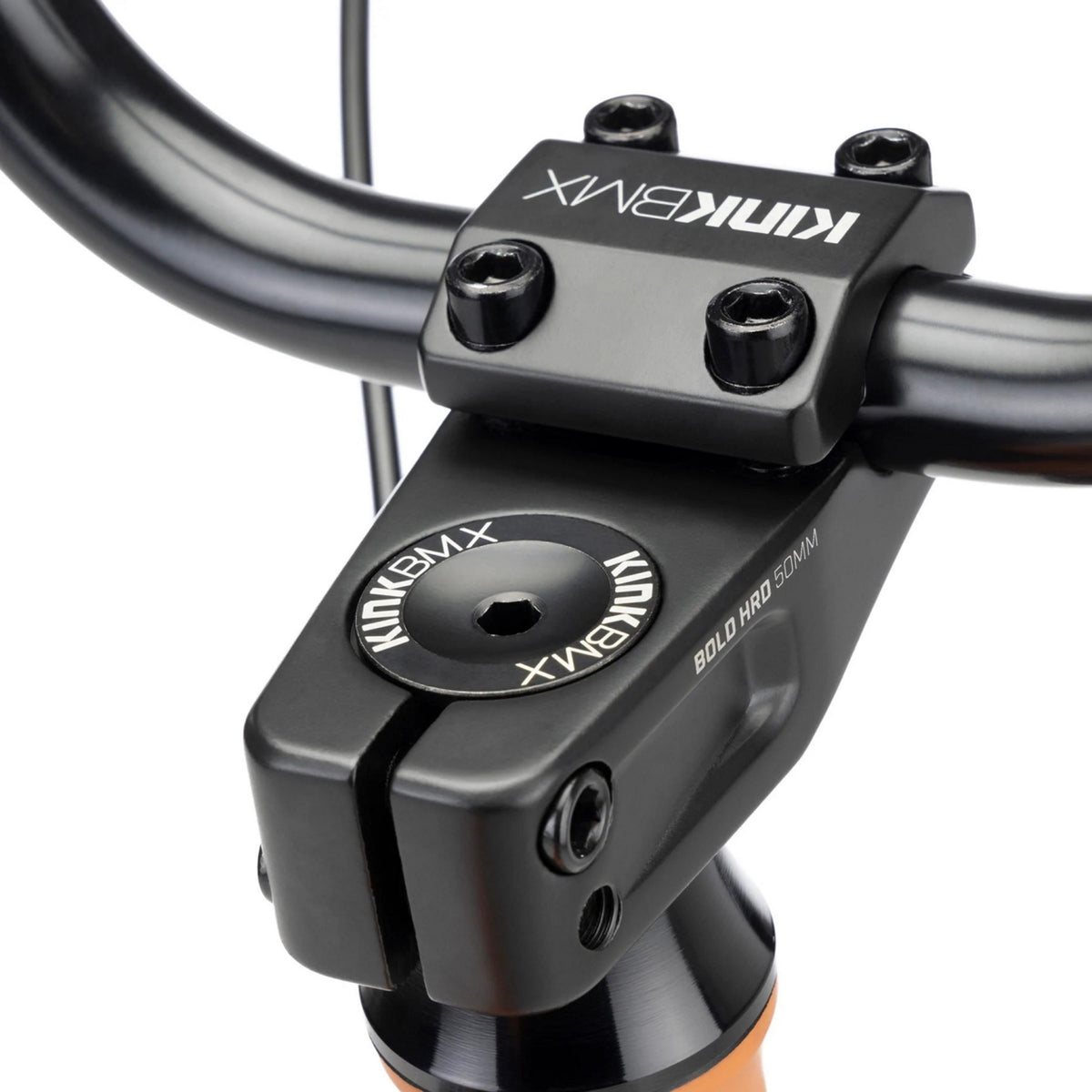

Handlebar stem: | Kink Bold HRD 50mm |
Headset: | Mission Sealed Integrated (41.8 x 45) |
Hubs: | FRONT: Mission Foxtrot Sealed 3/8″ Axle / REAR: Mission Engage Sealed Cassette 14mm |
Pedals: | Kink Hemlock |
Rim: | Mission Mylar |

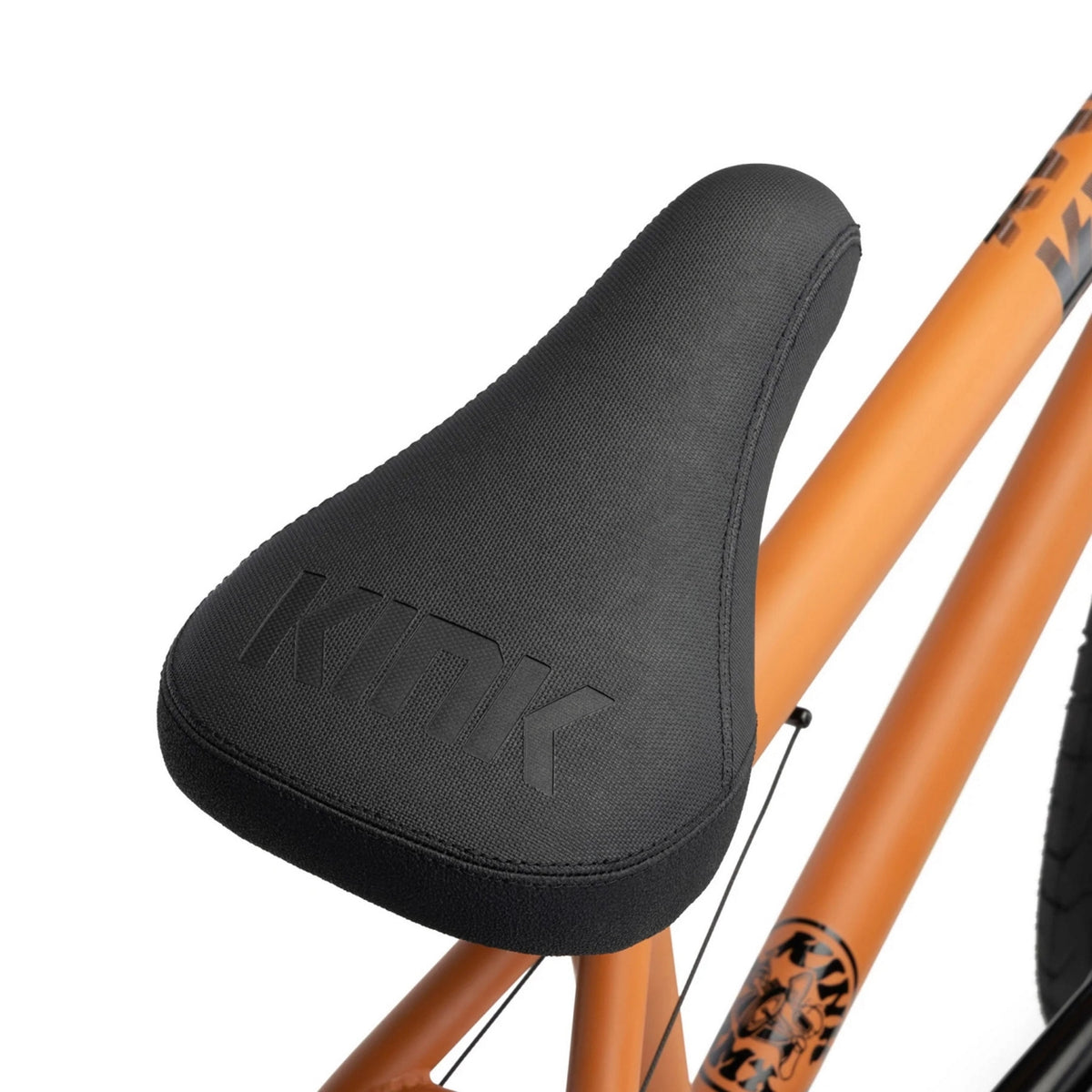

Saddle: | Kink Duran Stealth |
Season: | 2023 |
Seat clamp: | Mission Slim Clamp |
Seat post: | Mission Stealth |

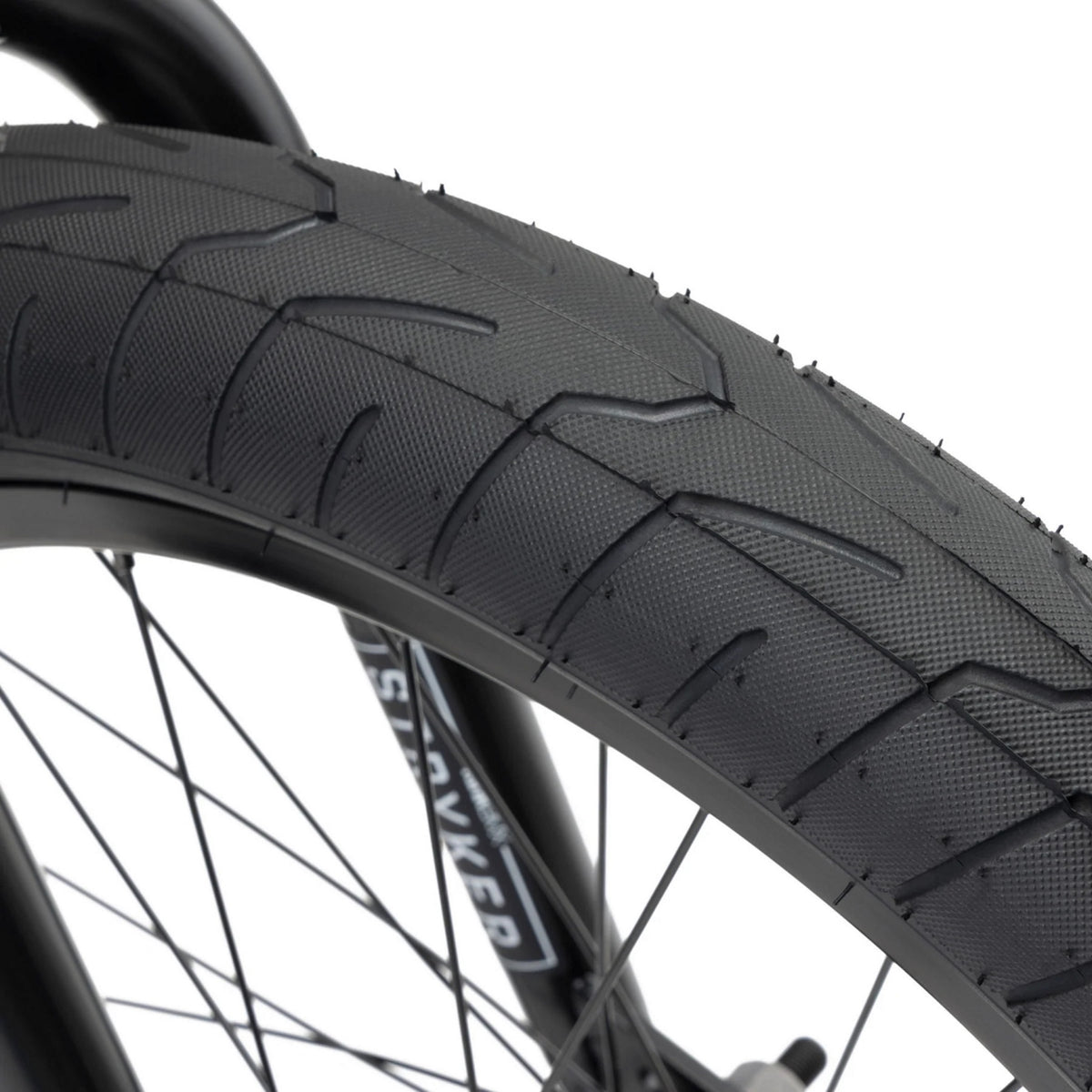

Tyre front: | Kink Sever 2.4" |
Tyre rear: | Kink Sever 2.4" |
Weight: | 12.61kg |
Wheel size: | 20" |
Toptube Length | 21" |
Chainstay Length | 13.25" |
Headtube Angle | 75° |
Seattube Angle | 71° |
Standover Height | 9" |
Bottom Bracket Height | 11.6" |
Fork Offset | 32mm |
Kink 20" Wheel BMX Sizing Chart
Kink BMX Bikes Warranties
General Policy
All Kink products are warranted by Kink to be free from any defects in workmanship and materials.
This warranty is for the original purchaser and owner of the Kink product only.
If the Kink product includes a warranty card, it must be returned or registered online within fourteen (14) days of purchase.
Normal wear, neglect, improper use, improper assembly or general product abuse is not covered.
Cost of shipping the product back to Kink and any labor charges incurred are not covered. However, Kink will cover shipping costs of the replacement item back to you.
Please contact Kink with any problems you are having with our product(s), even if you do not think it is covered under this warranty policy. We will do our best to take care of any issue you are having with our products.
Complete Bikes
One (1) year warranty against material defects, workmanship defects, breaks, cracks and defective or malfunctioning parts. Complete bikes are designed for different level riders, therefore the technology and components used may vary between models. We offer this warranty to assure you we stand behind all of our products and that they are built with the best materials and workmanship possible.
Regardless of the place of purchase, your bike must be assembled by a qualified bike shop. Assembling a Kink bike yourself, could void all warranty coverage. Your bike will come semi-assembled for shipping only. All parts pre-assembled are not properly adjusted for riding and must be checked over and adjusted by a qualified bike shop. We also strongly recommend that ongoing maintenance and/or upgrades are done by a qualified bike shop.
Issues that are not covered after being built by a reputable bike shop include; stripped threads and/or rounded nuts, bent dropouts, bent axles, tires, tubes, grips, minor paint and cosmetic finishes, dents, rider abuse, misuse, neglect, or improper maintenance. The rider is also responsible for purchasing a bike appropriate to their riding level.
Aftermarket Frames, Forks, Handlebars, and Cranks
Two (2) year warranty against material defects, workmanship defects, breaks, and cracks. Bends will be handled on a case by case basis. A lifetime crash replacement upgrade may be offered for products older than two (2) years. A crash replacement may be an exact or similar product offered at a discounted price.
Aftermarket Parts
Two (2) year warranty against material defects, workmanship defects, breaks and cracks.
Wear and Tear Parts
Thirty (30) day warranty against manufacturer defects only. This includes parts such as tires, grips, seats, brake cables, brake pads, chains, plastic pedal bodies, and plastic hub guards. These items are designed to have a limited lifespan and are not covered against cracks, breaks, rips, tears or wear.
Apparel and Merch
Fifteen (15) day warranty against manufacturer defects only (ex. misprints, sewing defects).
Additional Note
Products that have been claimed under warranty already or replaced with a crash replacement upgrade will only be covered with a thirty (30) day manufacturer defect warranty, and not the full warranty. These items may not be covered a second time, and will be treated on a case by case basis. If you damage a product beyond its original warranty timeframe, you may be eligible to purchase a replacement or upgrade at a discounted price.
Product Warning
Use Kink products at your own risk. These products have been engineered and manufactured using the best materials and workmanship available and are intended to be used by an experienced bicycle rider. These products are to be installed or assembled by an experienced bicycle mechanic and used only in the manner intended by the bicycle manufacturer. Be sure to follow any enclosed instructions when installing Kink products. Do not use this product if defective or damaged. The purchaser or user assumes all risks associated with the use of this product and is responsible for purchasing the correct product(s) for their riding ability.
