Features

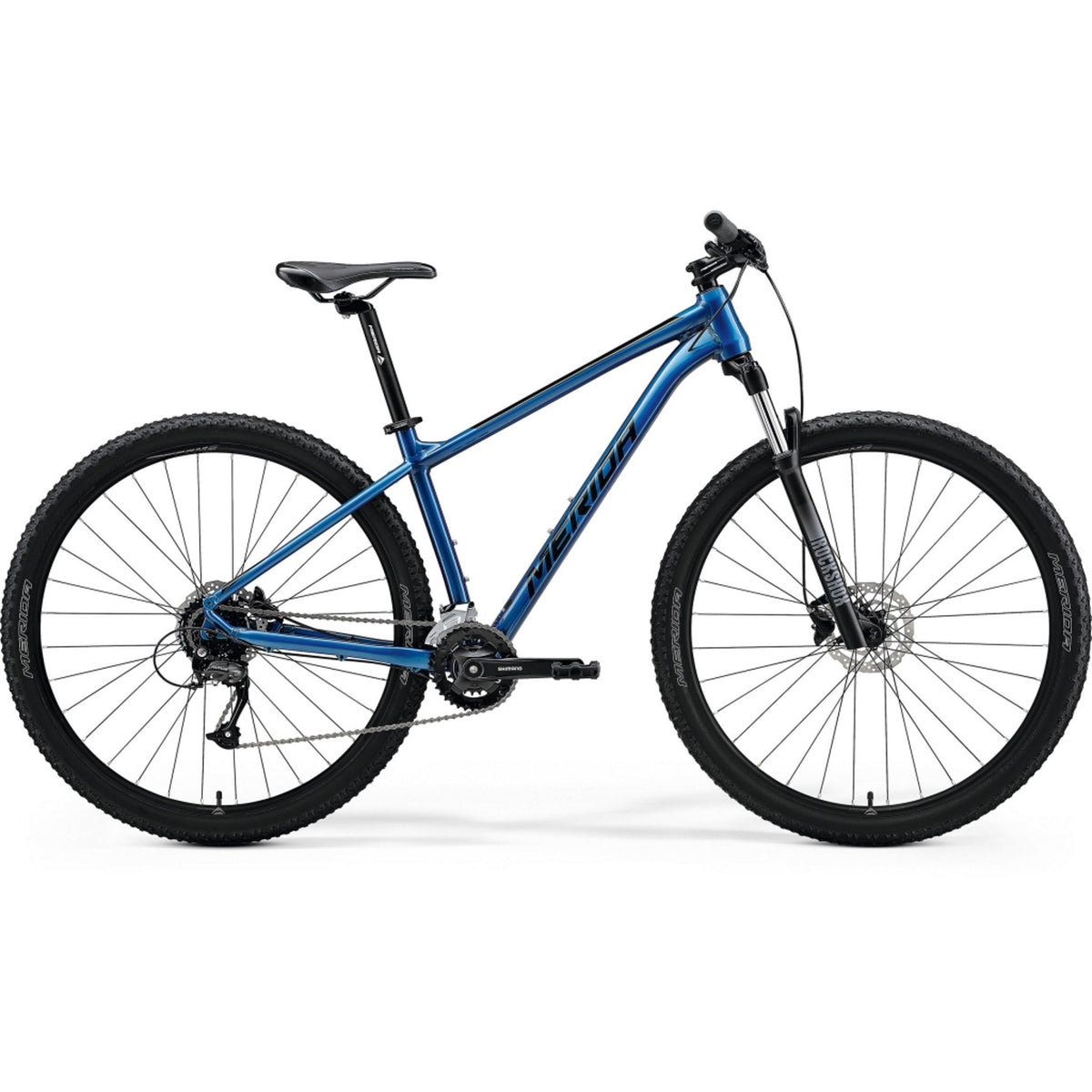

Merida Big Nine 60 X2 Hardtail Mountain Bike Blue/Black
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Lightweight 6061 aluminium frame, smooth welding
- Internal cable routing, downtube exit
- Rock Shox Judy TK 100mm fork
- Shimano Altus/Mixed 2 x 9 speed drivetrain
- Fast rolling 29er wheels, Merida 2.2” tyres
- Kickstand, fender and carrier rack mounts
| Axles: | 135x9mm axle standard |
|---|---|
| Bottom bracket: | BSA bottom bracket standard |
| Brakes: | Shimano ST-EF505 BR-MT200 brake caliper |
| Chain: | KMC M99 |
| Chainwheel: | Shimano MT101-2 36-22 teeth 170 mm-XS/S, 175 mm-M/L |
| Derailleur rear: | Shimano RD-M370 |
| Fork: | Rock Shox Judy TK Coil 100mm suspension travel Lockout 42mm fork offset 27.5x2.25" max. wheelsize |
| Frame: | BIG.SEVEN TFS III material: aluminium 27.5x2.25" max. wheelsize 135x9mm axle standard BSA bottom bracket standard |
| Freewheel: | Shimano CS-HG200 11-32 teeth 9 speed |
| Handlebar: | MERIDA CC material: aluminium 690mm width 15mm rise |
| Handlebar stem: | MERIDA CC material: aluminium 31.8mm diameter 6° stem angle 70 mm-XS/S, 80 mm-M, 90 mm-L |
| Headset: | MERIDA M2345 |
| Hubs: | Shimano TX505 100x9mm width front hub 32 spoke holes Centerlock |
| Rim: | MERIDA CC 17mm inner width material: aluminium |
| Saddle: | MERIDA Sport comfort |
| Season: | 2021 |
| Seat post: | MERIDA CC material: aluminium 30.9mm diameter 15mm setback |
| Spokes: | Black steel |
| Weight: | 13.93 kg weighed with 29" wheels and at frame size M, without pedals |
| Wheel size: | 29" |
| Frame Size | S | M | L | XL | XXL |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| seat tube [mm] | 370 | 430 | 470 | 510 | 560 |
| top tube [mm] | 570 | 590 | 610 | 630 | 650 |
| chain stay length [mm] | 440 | 440 | 440 | 440 | 440 |
| head tube angle [°] | 70 | 70 | 70 | 70 | 70 |
| seat tube angle [°] | 73 | 73 | 73 | 73 | 73 |
| bottom bracked drop [mm] | 60 | 60 | 60 | 60 | 60 |
| head tube [mm] | 100 | 115 | 130 | 145 | 160 |
| fork length [mm] | 506 | 506 | 506 | 506 | 506 |
| reach [mm] | 382 | 398 | 414 | 429 | 445 |
| stack [mm] | 614 | 628 | 642 | 656 | 670 |
| wheel base [mm] | 1069 | 1090 | 1110 | 1131 | 1152 |
| stand over height [mm] | 679 | 727 | 763 | 800 | 843 |
Merida Big Nine Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
