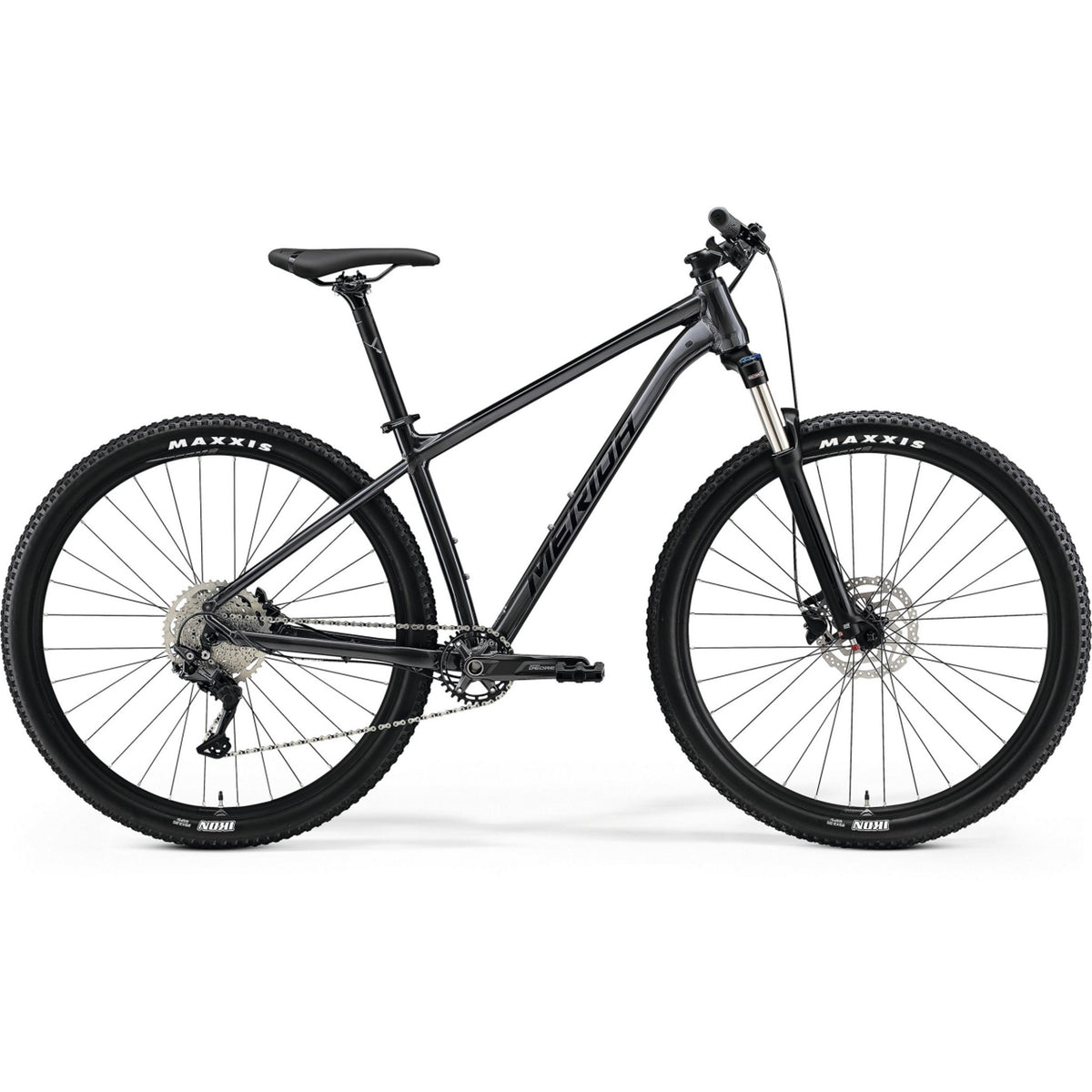

Merida Big Nine 200 Hardtail Mountain Bike Dark Silver/Black
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Double butted aluminium frame with 29er wheels
- Upright geometry for maximum control and comfort
- Internal cable routing, easy access downtube exits
- SR Suntour 100mm air suspension fork with lockout
- Shimano Deore 1 x 10 speed drivetrain
- Tektro Hydraulic disc brakes
- Maxxis Ikon, 29 x 2.2" tyres
| Brakes: | Tektro M275 2 piston |
|---|---|
| Chain: | KMC X10 |
| Crankset: | Shimano Deore M5100 32T 170 mm-S, 175 mm-M up |
| Derailleur rear: | Shimano Deore M5120 Shadow+ |
| Fork: | Suntour XCR32 LOR Air 100mm Travel Lockout 46mm fork offset |
| Frame: | BIG.NINE TFS III Aluminium 29" 135x9 BSA Bottom Bracket |
| Freewheel: | Shimano Deore M4100 11-46T 10-speed Cassette |
| Grip: | MERIDA COMP EC |
| Handlebar: | MERIDA EXPERT CC Aluminium 720mm Wide 10mm Rise |
| Handlebar stem: | MERIDA COMP CC Aluminium 31.8mm 6° Rise S-70 mm, M-80 mm, L-90 mm, XL-100 mm, XXL-110 mm |
| Headset: | MERIDA M2345 |
| Hubs: | FRONT: Shimano TX505 100x9 32H, Centerlock / REAR: Shimano TX505 135x9 32H, Centerlock |
| Pedals: | VP VPE-891 |
| Rim: | MERIDA COMP CC 20mm Inner Width Aluminium |
| Rotor front: | Shimano RT10 180mm |
| Rotor rear: | Shimano RT10 160mm |
| Saddle: | MERIDA COMP SL V-mount |
| Season: | 2022 |
| Seat clamp: | MERIDA COMP QR |
| Seat post: | MERIDA COMP CC MAT aluminium 30.9mm 0° Setback |
| Tyre front: | Maxxis Ikon, 29x2.2", wire |
| Tyre rear: | Maxxis Ikon, 29x2.2", wire |
| Wheel size: | 29" |
| Frame Size | S | M | L | XL | XXL |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 370 | 430 | 470 | 510 | 560 |
| TT top tube [mm] | 570 | 590 | 610 | 630 | 650 |
| CS chain stay length [mm] | 440 | 440 | 440 | 440 | 440 |
| HTA head tube angle [°] | 70 | 70 | 70 | 70 | 70 |
| STA seat tube angle [°] | 73 | 73 | 73 | 73 | 73 |
| BD bottom bracked drop [mm] | 60 | 60 | 60 | 60 | 60 |
| HT head tube [mm] | 100 | 115 | 130 | 145 | 160 |
| FL fork length [mm] | 506 | 506 | 506 | 506 | 506 |
| R reach [mm] | 382 | 398 | 414 | 429 | 445 |
| S stack [mm] | 614 | 628 | 642 | 656 | 670 |
| WB wheel base [mm] | 1069 | 1090 | 1110 | 1131 | 1152 |
| SH stand over height [mm] | 679 | 727 | 763 | 800 | 843 |
Merida Big Nine Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
