Features

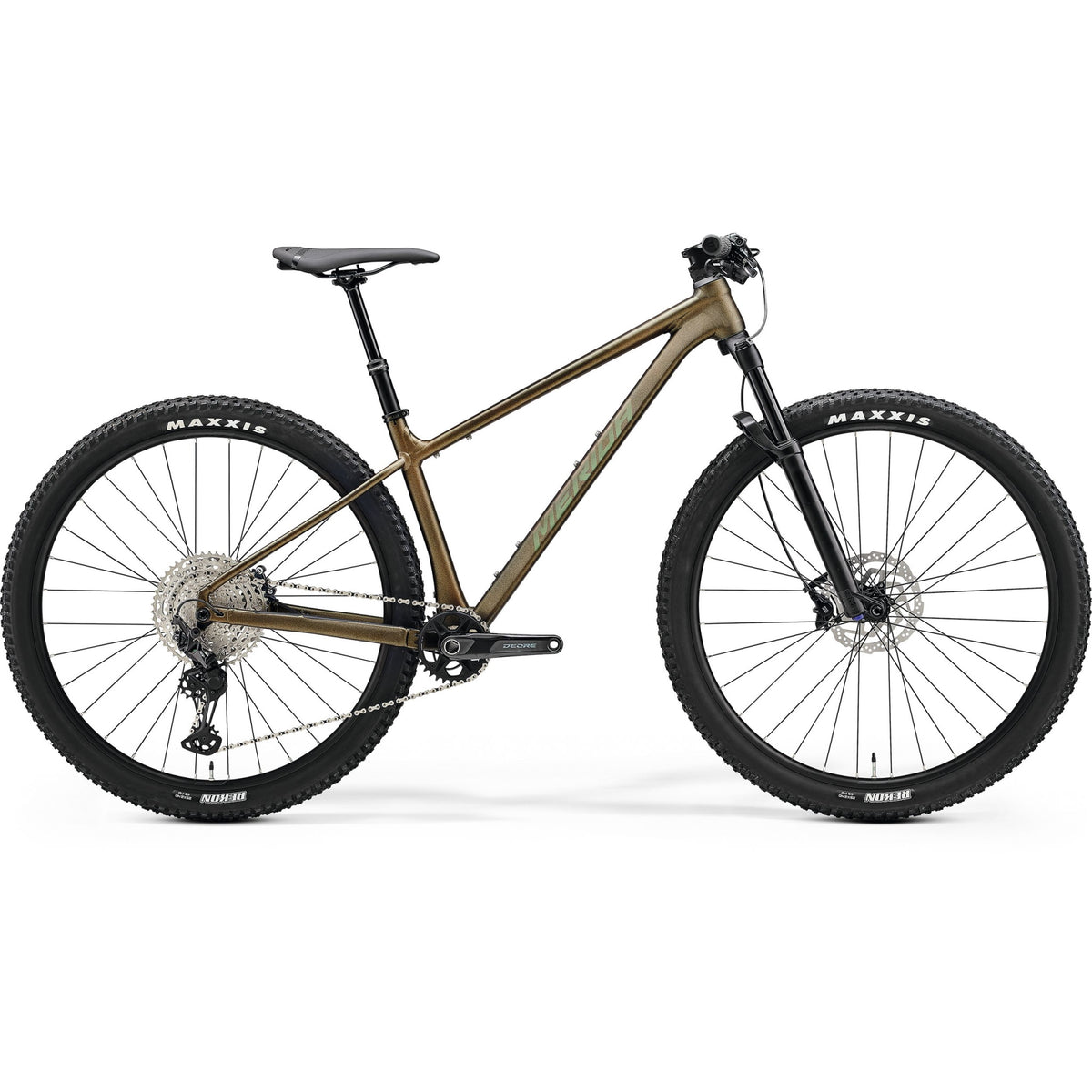

Merida Big Nine TR Limited Cross-Country/Trail Bike Silk Sparkle Gold (Green/Black)
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- High-performance LITE aluminium frame with 2.4" tyre clearance
- Progressive geometry with AGILOMETER sizing for confident handling
- Manitou Machete fork with 120 mm travel for improved descending ability
- Wide range Shimano 12-speed drivetrain
- MERIDA wheelset with trail-ready Maxxis tyres
- Lightweight MERIDA dropper seatpost with remote lever
The Big Nine TR Limited blurs the line between cross-country and trail, with a high-value, high-performance aluminium frame that's as capable on the descents as it is on the climbs. Alongside Merida’s progressive geometry, AGILOMETER sizing and clearance for 2.4" tyres, they’ve added more aggressive rubber, a dropper seatpost and 120mm travel Manitou fork to boost descending confidence while keeping it lightning-fast on singletrack. Shimano's SLX hydraulic brakes and 12-speed drivetrain round the package out.
The Big Nine TR lite frame offers up truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today. The HFS hydroforming system allows for sleeker tube profiles as well as integrated mounting points for rear racks and fenders, making fitting accessories fast, simple and reliable. Internal cable routing, including wireport cable technology enables all control cables from the handlebar to enter the frame through the headset cover, creating a clean and uncluttered look, allowing for a lighter, stronger and more aerodynamic frame structure than with conventional cable ports. While a downtube exit means cables are easily accessible for routine maintenance or replacement, but it prevents excessive movement and noise that can cause wear and distraction.
| Axles: | MERIDA EXPERT TR including removeable lever, 6/4 mm allen key |
|---|---|
| Bottom bracket: | Shimano BB-MT-501 24 mm |
| Brakes: | Shimano SLX M7100 / Shimano SLX M7110 2 piston |
| Cassette: | Shimano Deore M6100 10-51 teeth 12 speed |
| Chain: | KMC X12 |
| Colour: | SILK SPARKLING GOLD (GREEN/BLACK) |
| Colour (text): | SILK SPARKLING GOLD (GREEN/BLACK) |
| Crankset: | Shimano Deore M6100 32 teeth 170 mm-S, 175 mm-M up |
| Derailleur rear: | Shimano XT SGS |
| Fork: | Manitou Machete Comp Air 120 mm suspension travel Tapered 44 mm fork offset |
| Frame: | BIG.NINE TR LITE III material: aluminium 29x2.4" max. wheelsize 148x12 mm axle standard BSA bottom bracket standard |
| Grip: | MERIDA COMP EC |
| Handlebar: | MERIDA EXPERT CC material: aluminium 760 mm width flat |
| Handlebar stem: | MERIDA TEAM CC III material: aluminium 31.8 mm diameter -6° stem angle S, M, L: 60 mm, XL, XXL 70 mm |
| Headset: | Acros ICR MERIDA EXTERNAL Upper and lower IPS sealing |
| Hubs: | Shimano TC500-B / Shimano TC500-MS-B 110x15 mm width front hub 32 spoke holes Centerlock 148x12 mm width rear hub 32 spoke holes Centerlock |
| Rim: | MERIDA COMP CC II 25 mm inner width material: aluminium tubeless ready |
| Rotor front: | Shimano RT10 180 mm |
| Rotor rear: | Shimano RT10 180 mm |
| Saddle: | MERIDA COMP SL V-mount incl. MERIDA minitool |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA EXPERT TR 30.9 mm diameter 0 mm setback XS 100 mm travel seatpost - S 125 mm travel seatpost - M 150 mm travel seatpost - L/XL 170 mm travel seatpost |
| Spokes: | Double Butted Black stainless |
| Tyre front: | Maxxis Rekon 29x2.4" wire |
| Tyre rear: | Maxxis Rekon 29x2.4" wire |
| Weight: | 13.46 kg weighed at frame size M / Max Weight: 135 kg Total weight of bike, rider and luggage |
| Wheel size: | 29" |
| Frame Size | S | M | L | XL | XXL |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 380 | 410 | 440 | 470 | 500 |
| TT top tube [mm] | 594 | 614 | 637 | 659 | 681 |
| CS chain stay length [mm] | 430 | 430 | 430 | 430 | 430 |
| HTA head tube angle [°] | 66.9 | 66.9 | 66.9 | 66.9 | 66.9 |
| STA seat tube angle [°] | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| BD bottom bracked drop [mm] | 57 | 57 | 57 | 57 | 57 |
| HT head tube [mm] | 95 | 95 | 105 | 115 | 125 |
| FL fork length [mm] | 530 | 530 | 530 | 530 | 530 |
| R reach [mm] | 420 | 440 | 460 | 480 | 500 |
| S stack [mm] | 614 | 614 | 624 | 633 | 643 |
| WB wheel base [mm] | 1132 | 1152 | 1176 | 1199 | 1223 |
| SH stand over height [mm] | 712 | 713 | 715 | 723 | 758 |
Merida Big Nine Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
