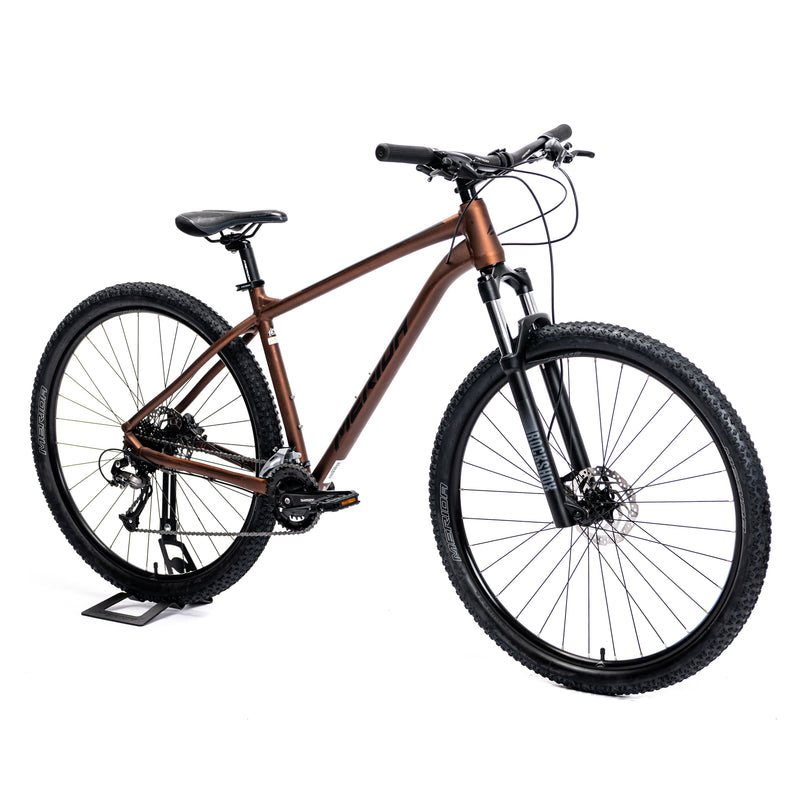

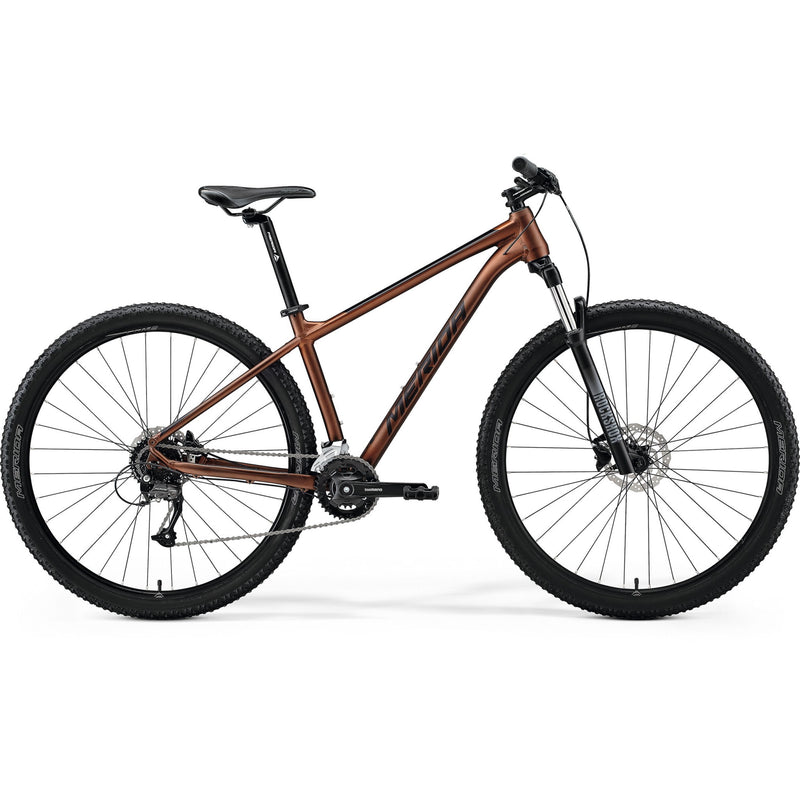

Merida Big Nine 60 X2 Hardtail Mountain Bike Matt Bronze/Black
Other options
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
| Axles: | 135x9mm axle standard |
|---|---|
| Bottom bracket: | BSA bottom bracket standard |

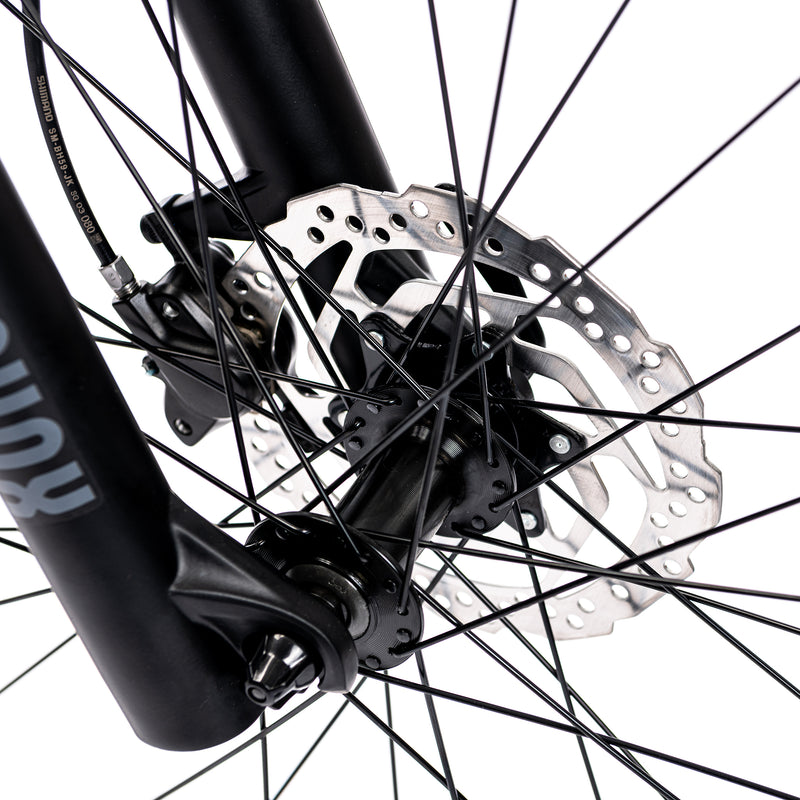

| Brakes: | Shimano ST-EF505 BR-MT200 brake caliper |
| Chain: | KMC M99 |

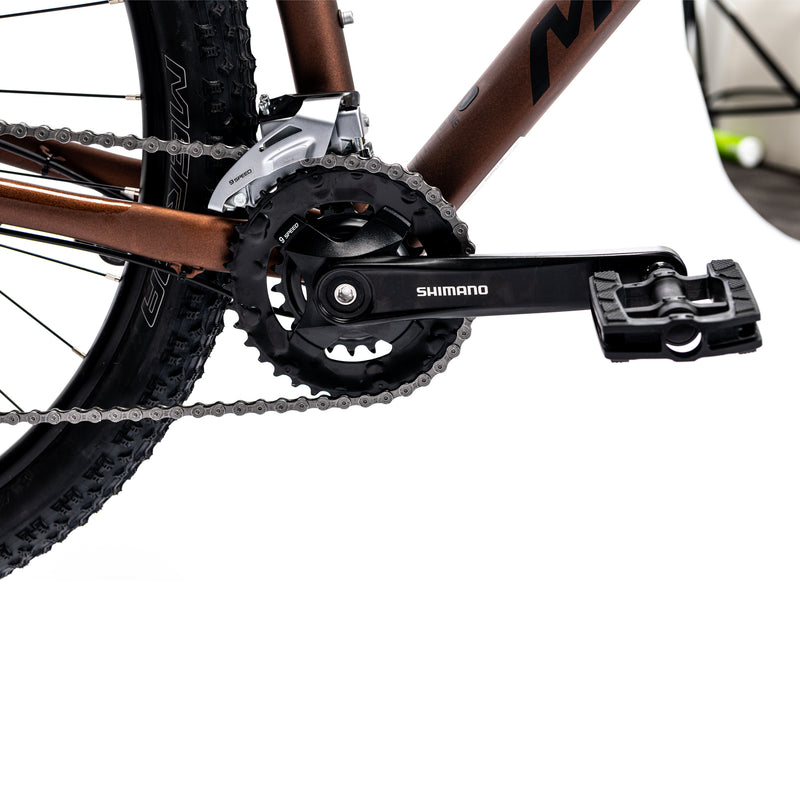

| Chainwheel: | Shimano MT101-2 36-22 teeth 170 mm-XS/S, 175 mm-M/L |
| Crankset: | 170 mm-XS/S, 175 mm-M/L |

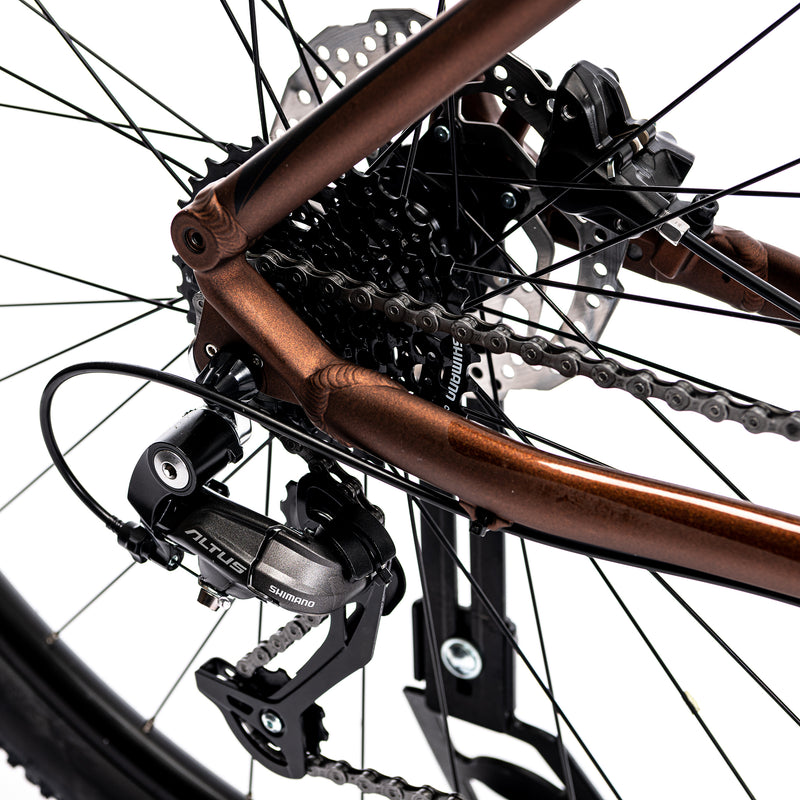

| Derailleur rear: | Shimano RD-M370 |
| Fork: | Rock Shox Judy TK Coil 100mm suspension travel Lockout 42mm fork offset 27.5x2.25" max. wheelsize |
| Frame: | BIG.SEVEN TFS III material: aluminium 27.5x2.25" max. wheelsize 135x9mm axle standard BSA bottom bracket standard |
| Freewheel: | Shimano CS-HG200 11-32 teeth 9 speed |

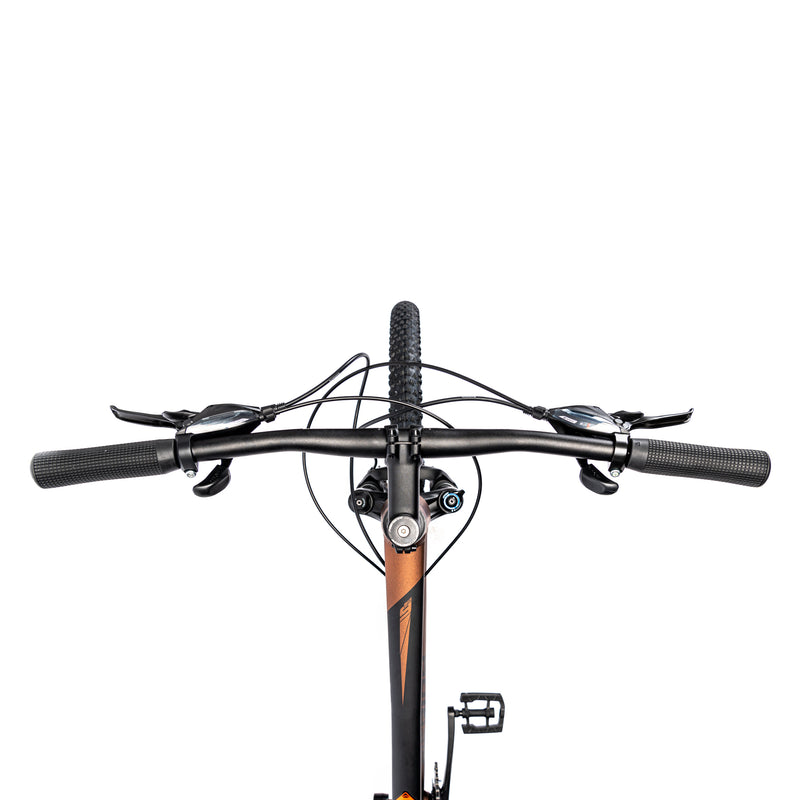

| Handlebar: | MERIDA CC material: aluminium 690mm width 15mm rise |
| Handlebar stem: | MERIDA CC material: aluminium 31.8mm diameter 6° stem angle 70 mm-XS/S, 80 mm-M, 90 mm-L |
| Headset: | MERIDA M2345 |
| Hubs: | Shimano TX505 100x9mm width front hub 32 spoke holes Centerlock |
| Rim: | MERIDA CC 17mm inner width material: aluminium |
| Saddle: | MERIDA Sport comfort |
| Season: | 2021 |
| Seat post: | MERIDA CC material: aluminium 30.9mm diameter 15mm setback |
| Spokes: | Black steel |
| Tyres: | MERIDA K1080 29x2.2" wire |
| Wheel size: | 29" |
Legend
ST Seat Tube
TT Top Tube
CS Chain Stay Length
HTA Head Tube Angle
STA Seat Tube Angle
BD Bottom bracket Drop
HT Head Tube
FL Fork Length
R Reach
S Stack
WB Wheel Base
Size | MD | LG | XL | XXL |
| Wheel Size | 29" | 29" | 29" | 29" |
| Frame Size | 43 | 47 | 51 | 56 |
| ST Seat Tube (mm) | 430.0 | 470.0 | 510.0 | 560.0 |
| TT Top Tube (mm) | 590.0 | 610.0 | 630.0 | 650.0 |
| CS Chain Stay Length (mm) | 440.0 | 440.0 | 440.0 | 440.0 |
| HTA Head Tube Angle (°) | 70.0 | 70.0 | 70.0 | 70.0 |
| STA Seat Tube Angle (°) | 73.0 | 73.0 | 73.0 | 73.0 |
| HT Head Tube (mm) | 115.0 | 130.0 | 145.0 | 160.0 |
| R Reach (mm) | 398.0 | 414.0 | 429.0 | 445.0 |
| S Stack (mm) | 628.0 | 642.0 | 656.0 | 670.0 |
| WB Wheel Base (mm) | 1090.0 | 1110.0 | 1131.0 | 1152.0 |
Merida Big Nine Bike Sizing Chart
Merida Bikes Warranties
Lifetime warranty on all frames
Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.
Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase
Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase
All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.
The Merida Warranty Excludes:
Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components
Branded Components
Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.
In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.
If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
