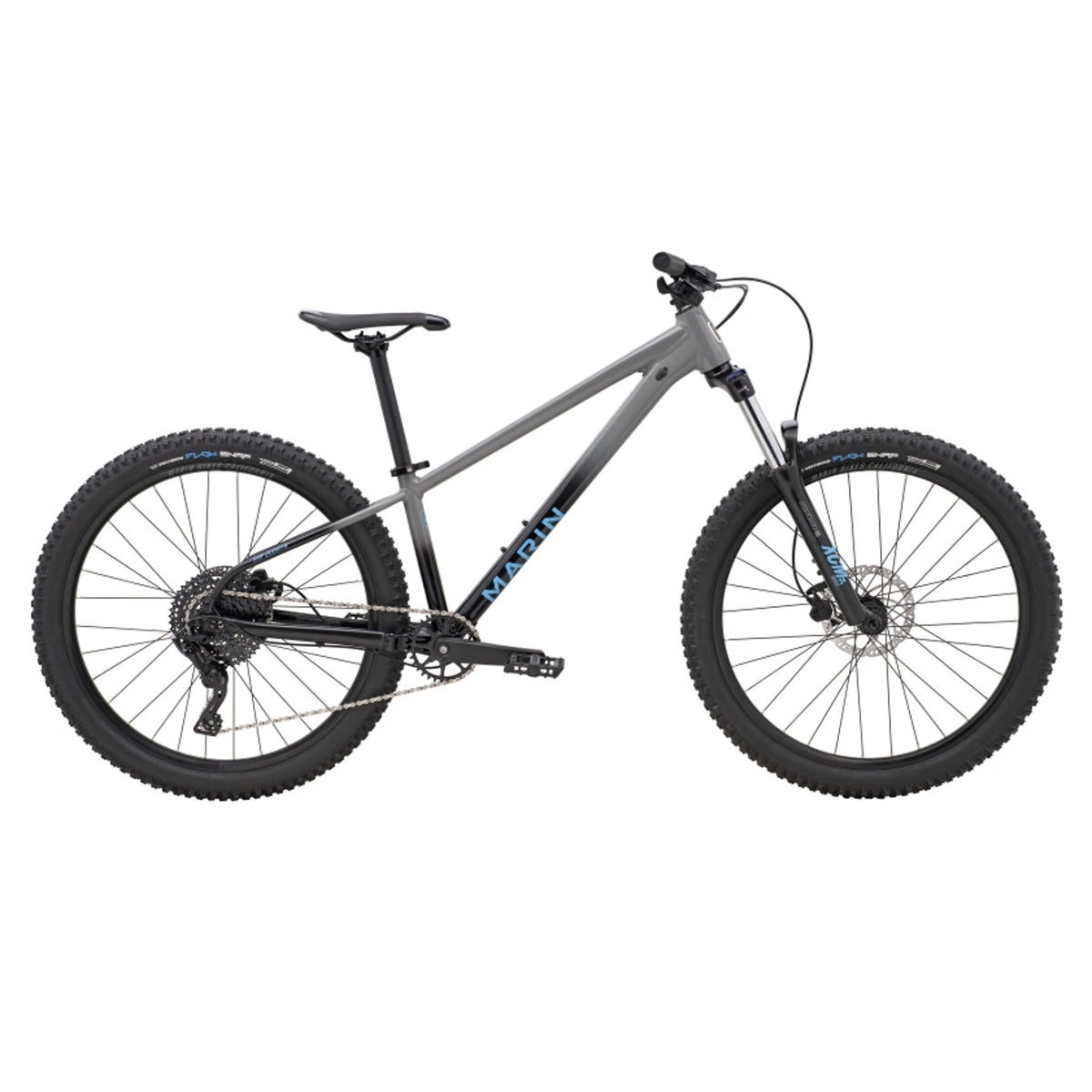

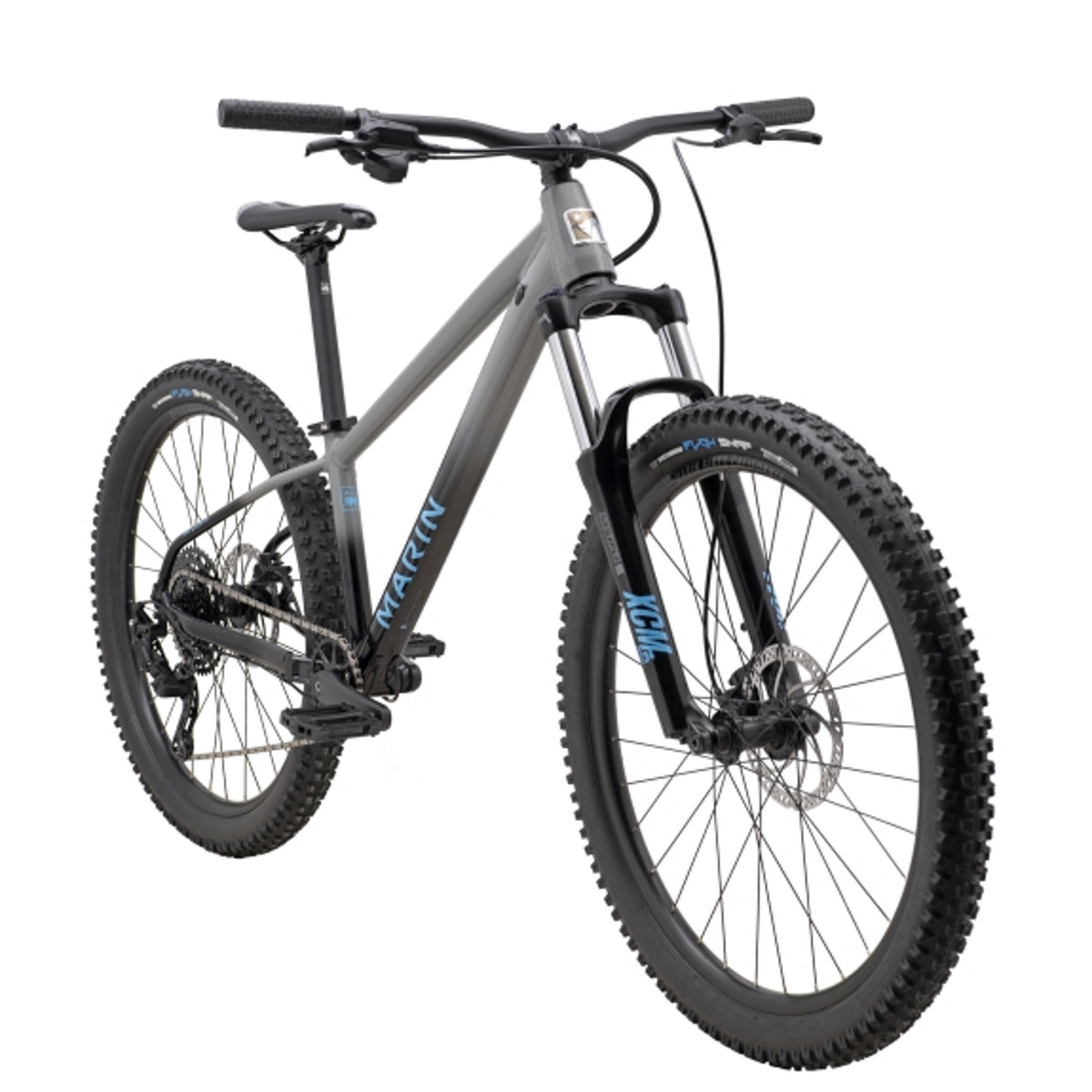

Marin San Quentin 1 Trail/Dirt Jump Bike Grey Black
Marin San Quentin 1 Trail/Dirt Jump Bike Grey Black
Marin San Quentin 1 Trail/Dirt Jump Bike Grey Black
Marin San Quentin 1 Trail/Dirt Jump Bike Grey Black

Features

Brake type: Hydraulic disc brake
Cassette: 9 speed
Chainset type: Single
Fork brand: Suntour
Frame material: Alloy
Front travel: 130mm
Gender: Unisex
Wheel size: 27 5

Marin San Quentin 1 Trail/Dirt Jump Bike Grey Black

$1,199
?

You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

$1,599
Buy now, pay later
Clearance
SKU: 6X1UFBEU Low stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • All New Series 2 6061 Aluminum, Double Butted Frame, Internal Cable Routing
  • Balanced geometry for enduro trail riding and dirt jumping
  • SR Suntour XCM34 130mm Fork
  • Tektro M275 Hydraulic Disc Brakes, 180mm Rotors
  • Microshift/Sunrace 1 x 9 Speed Drivetrain
  • Vee Tire Co, Flow Snap, 27.5” x 2.6” Tyres
The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time. The San Quentin 1 features a Series 2 aluminum frame, with tapered head tubes, 3D forged drop outs, IS brake mounts, and semi-internal cable routing. Taking cues from the Alcatraz, the San Quentin provides all the benefits of the DJ style with massive stand over, slick frame tubes, and a sexy paint job. The slack head tube angle paired with a steep seat tube angle create a ride that will fly uphill with perfect front wheel precision but then descend like it’s on rails. The balanced rider position thanks to the steep seat tube puts your weight between the wheels for impressive climbing and handling on flats, while the slack front end and short rear center help to pull you through the rough descents and corners with an intuitive feel.
Axles: Bolt-On Thru-Axle
Bottom bracket: Sealed Cartridge Bearing, Square Taper
Brakes: Tektro M275 Hydraulic Disc, 180mm Rotor
Chain: KMC X-9
Crankset: Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
Derailleur rear: MicroShift RD-M9195M, 9 Speed, With Clutch
Fork: SR Suntour XCM34 Boost 15x110mm Spacing, 130mm Travel, Coil Spring, 27.5", Bolt-On Thru-Axle
Frame: All New Series 2 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB
Freewheel: CASSETTE: Sunrace, 9 Speed, 11-46T
Grip: Marin MTN, Closed End
Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Handlebar stem: Marin 3D Forged Alloy, 45mm
Headset: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Hubs: FRONT:Forged Alloy, Quad Sealed Cartridge Bearings, Alloy Axle, QR type, 141mm Width, Disc, 32H, Shimano Standard Freehub Body / REAR: Forged Alloy, 110x15mm, Sealed Cartridge Bearing, Disc, 32H
Pedals: Nylon Platform
Rim: Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible
Saddle: Marin Speed Concept
Season: 2023
Seat post: Marin Alloy, 30.9mm
Spokes: 14g Black Stainless Steel
Tyre front: Vee Tire Co, Flow Snap, 27.5x2.6", MPC Compound, Wire Bead
Tyre rear: Vee Tire Co, Flow Snap, 27.5x2.6", MPC Compound, Wire Bead
Wheel size: 27.5" (650b)

SMLXL
Stack623.4627.9636.9641.4
Reach422450470500
Headtube Angle64°64°64°64°
Headtube Length110115125130
Seattube Angle77°77°77°77°
Seattube Length310340375414
Toptube Effective565.9594.9617648.1
BB Height316316316316
BB Drop50505050
Chainstay425425425425
Wheelbase11761206.21230.61262.8
Standover Height628.1657665.4681.6
Fork Offset47474747
Seatpost Diameter30.930.930.930.9
Handlebar Width780780780780
Stem Length35353535
Crank Length170170170170

All lengths in millimeters

Marin San Quentin Bike Sizing Chart

Marin Bikes are Made For Fun. Since the first mountain bikes bearing the Marin name debuted in 1986, the brand has been dedicated to enriching the lives of riders by making fun, high caliber bicycles, which provide years of riding enjoyment. They operate their business based on hard work, fueled by passion, and fulfilled by the satisfaction of bringing the joy of cycling to riders across the world.
