Features

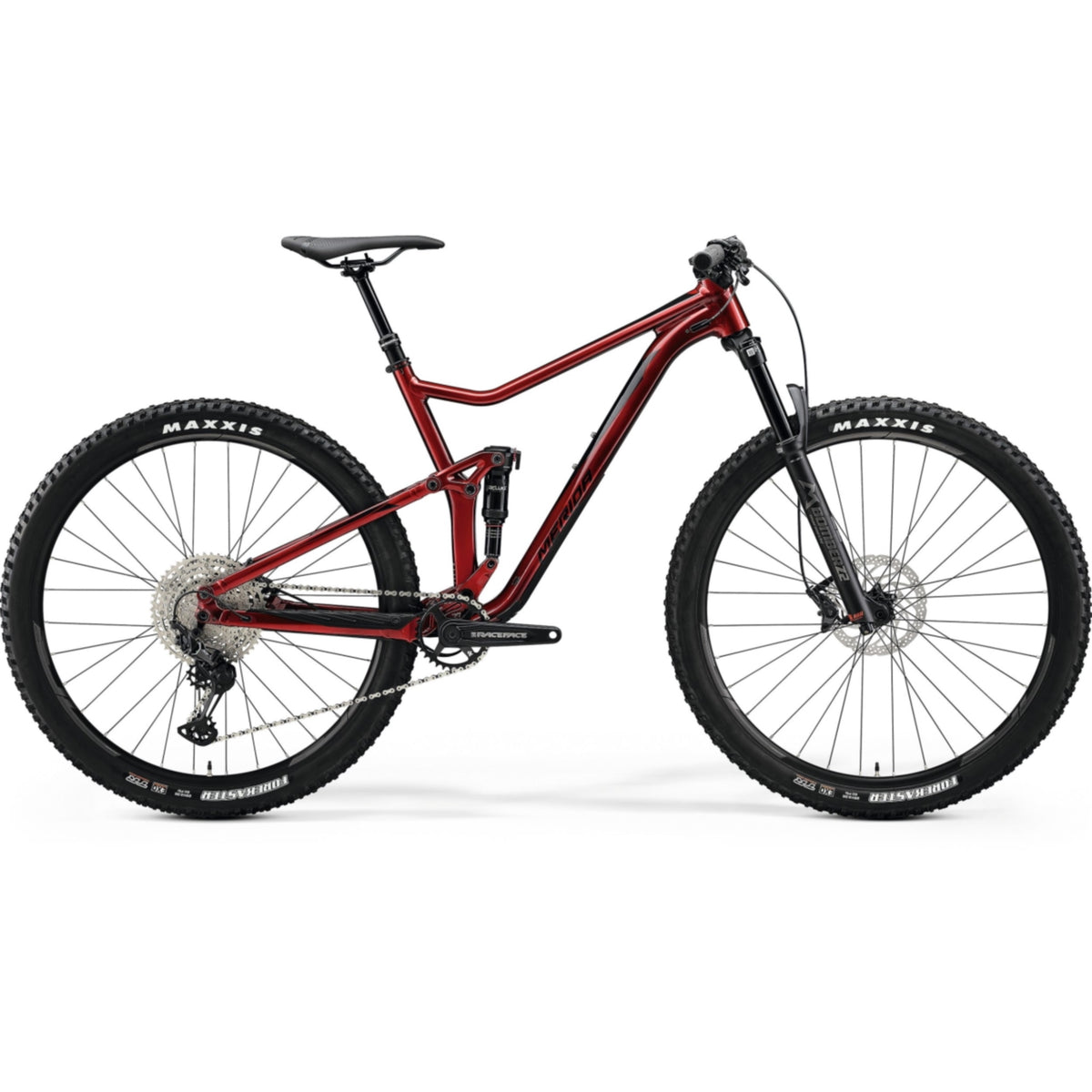

Merida One Twenty 600 Trail Bike Dark Strawberry/Black
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Lightweight 6066 series alloy triple butted, hydroformed frame
- Marzocchi Z2 Air 130mm front Fork
- Rock Shox Deluxe Select+ 120mm lockout Shock
- Shimano XT/Deore M6100 1x12 Speed Drivetrain
- Shimano Deore M6100 Hydraulic Disc Brakes
- Internally routed Dropper Post with remote lever
- Maxxis Forekaster 29 x 2.35 Tyres
- Select bolts can be tightened via a TORX 30 key from just one side
| Axles: | REAR: MERIDA EXPERT TR, including removable lever, 6/4mm allen key |
|---|---|
| Bottom bracket: | Race Face BB BB92– Ø24mm |
| Brakes: | Shimano M6100, 2 piston |
| Chain: | KMC X12 |
| Crankset: | Race Face Ride, 32T, 170 mm-S, 175 mm-M up |
| Derailleur rear: | Shimano XT M8100 Shadow+ |
| Fork: | Marzocchi Z2, Air, 130mm Travel, Tapered, 44mm fork offset |
| Frame: | ONE-TWENTY LITE, 120mm, Aluminium, 29, 148x12, BB92 Bottom Bracket |
| Freewheel: | Shimano Deore M6100 Cassette, 10-51T, 12-speed |
| Grip: | MERIDA COMP EC |
| Handlebar: | MERIDA EXPERT TR, Aluminium, 760mm Wide, 20mm Rise |
| Handlebar stem: | MERIDA EXPERT TR, Aluminium, 35, 0° Rise, 50 mm all sizes |
| Headset: | FSA NO.47/50 |
| Hubs: | FRONT: Shimano MT400-B, 110x15, 32H, Centerlock / REAR: Shimano MT410-B, 148x12, 32H, Centerlock |
| Rim: | MERIDA EXPERT TR, 29mm Inner Width, Aluminium, Tubeless ready (tubeless tape and valves not included) |
| Rotor front: | Shimano RT30, 180mm |
| Rotor rear: | Shimano RT30, 180mm |
| Saddle: | MERIDA COMP SL, V-mount |
| Season: | 2022 |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA COMP TR, 30.9mm, 0° Setback, S: 100 SPT - M: 125 SPT - L/XL: 150 SPT |
| Shock: | Rock Shox Deluxe Select+, lockout |
| Tyre front: | Maxxis Forekaster, 29x2.35", fold, TR EXO Dual |
| Tyre rear: | Maxxis Forekaster, 29x2.35", fold, TR EXO Dual |
| Weight: | 14.91 kg weighed at frame size L and 29“ wheels (w/o pedals) |
| Wheel size: | 29" |
| Frame Size | S | M | L | XL |
| Tyre Sizes | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 400 | 440 | 480 | 520 |
| TT top tube [mm] | 572 | 592 | 614 | 637 |
| CS chain stay length [mm] | 435 | 435 | 435 | 435 |
| HTA head tube angle [°] | 67.3 | 67.3 | 67.3 | 67.3 |
| STA seat tube angle [°] | 75.5 | 75.5 | 75.5 | 75.5 |
| BD bottom bracked drop [mm] | 40 | 40 | 40 | 40 |
| HT head tube [mm] | 95 | 95 | 105 | 115 |
| FL fork length [mm] | 541 | 541 | 541 | 541 |
| R reach [mm] | 415 | 435 | 455 | 475 |
| S stack [mm] | 607 | 607 | 616 | 626 |
| WB wheel base [mm] | 1141 | 1161 | 1185 | 1208 |
| SH stand over height [mm] | 707 | 730 | 759 | 787 |
Merida Dual Suspension Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
