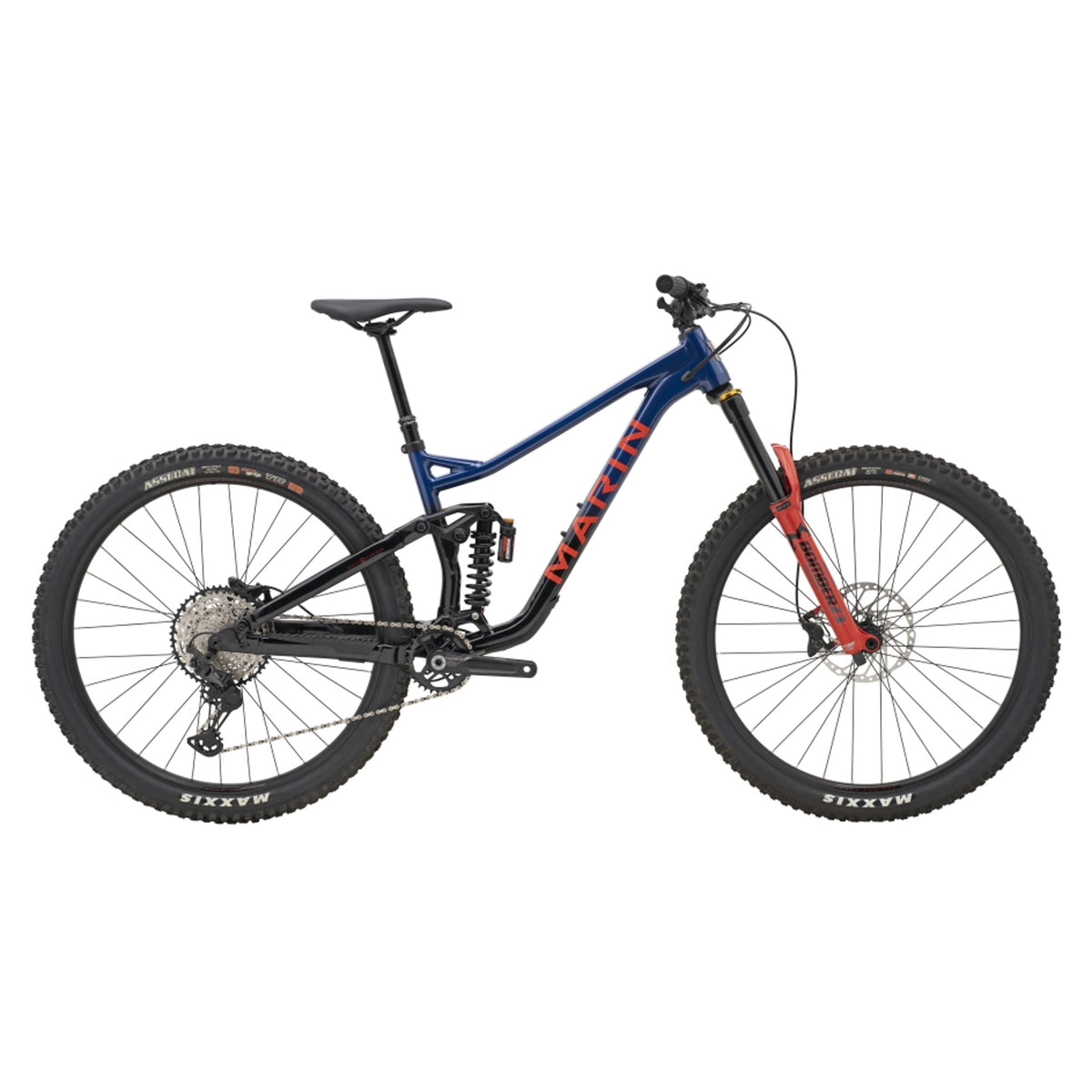

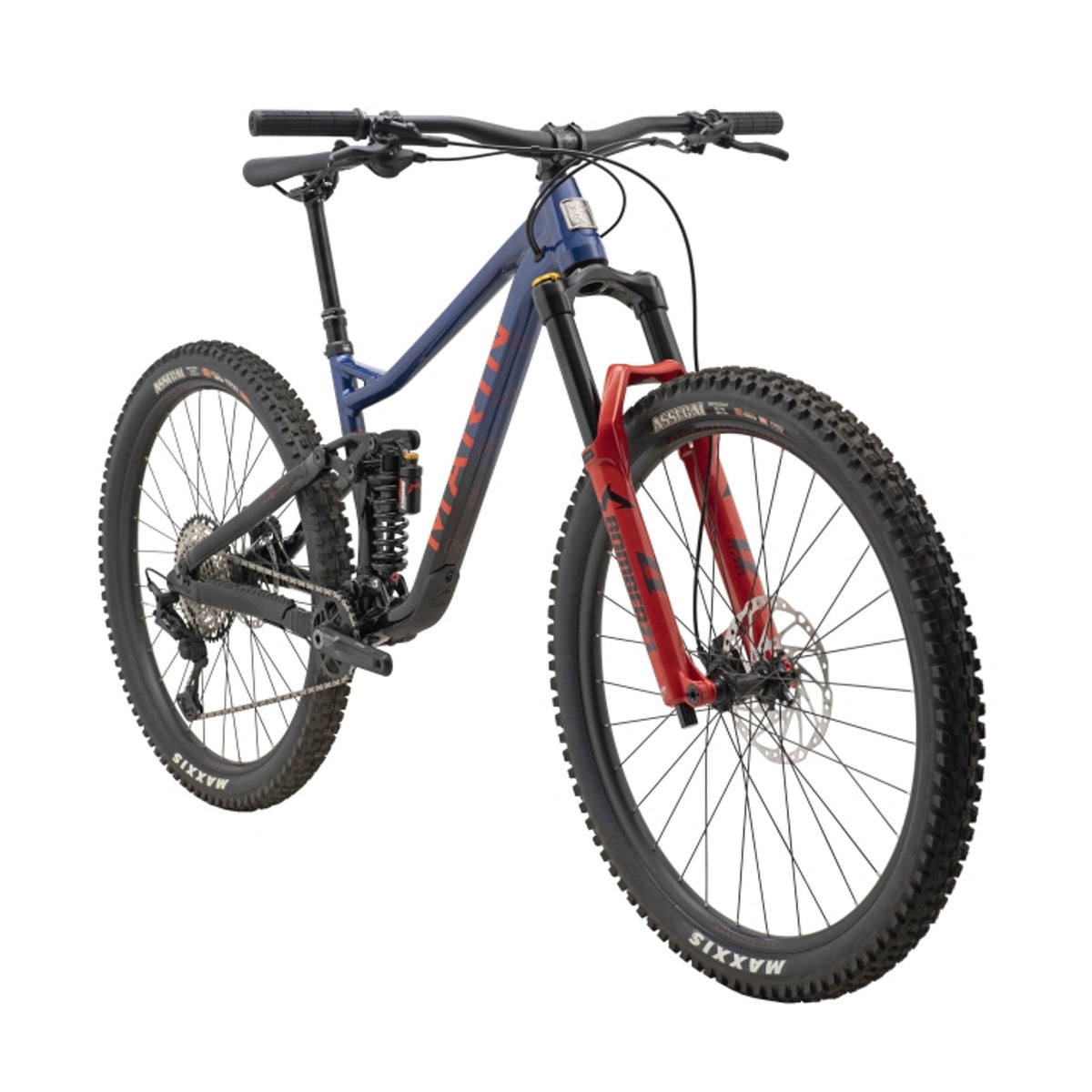

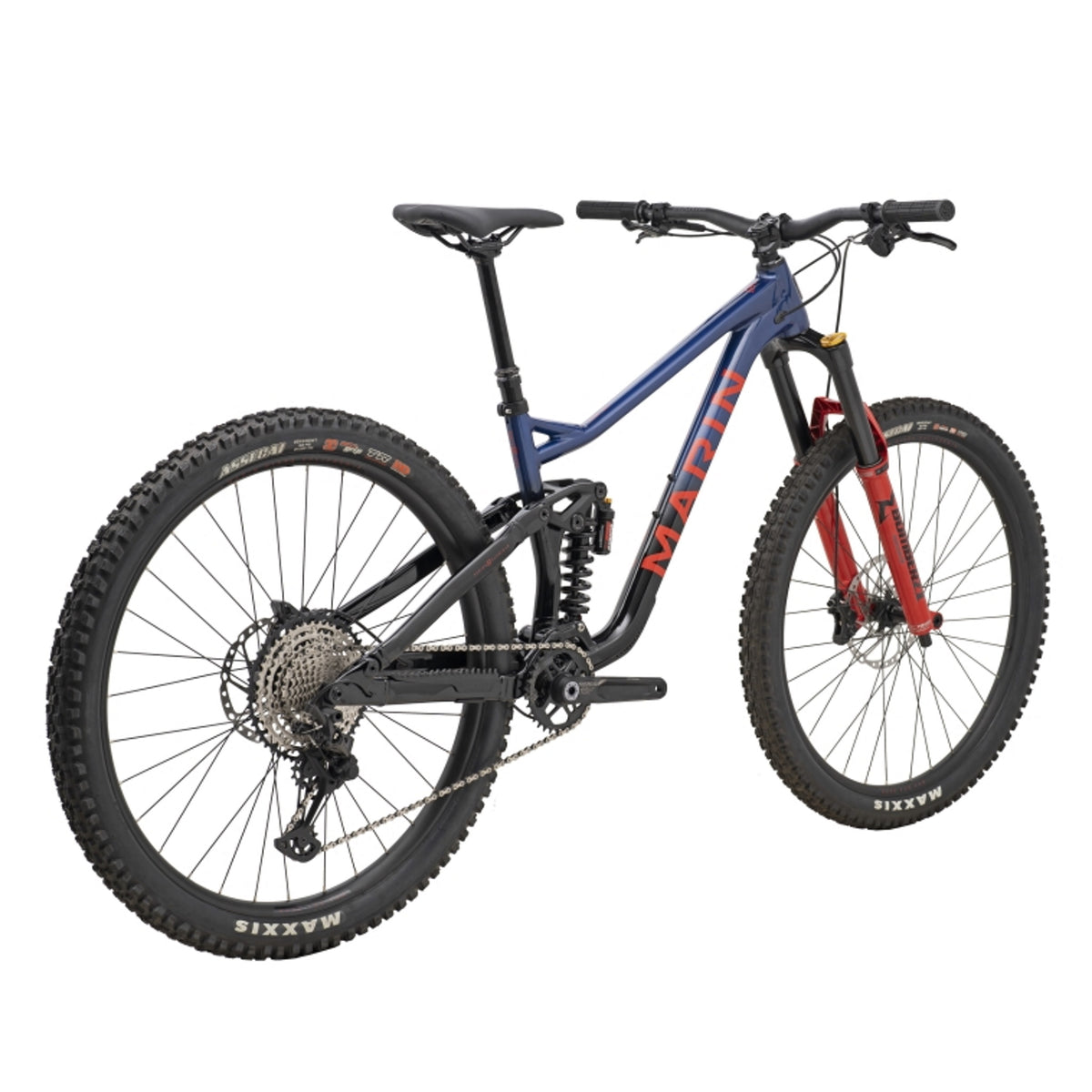

Marin Alpine Trail XR Enduro Bike Blue Black
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Series 4 6061 Aluminum Frame, 29” Wheels
- Marin’s acclaimed MultiTrac Suspension Platform
- Internal Dropper Post and Rear Derailleur Routing
- Marzocchi Z1 Coil, 160mm Travel Fork
- Marzocchi CR Coil, 150mm Travel Shock
- Shimano SLX / XT 1 x 12 Speed Drivetrain
- Shimano BR-MT420, 4-Piston Hydraulic Disc Brakes
- Maxxis Assegai 29 x 2.5” Tubeless Ready Tyres
| Accessories: | Downtube Protector |
|---|---|
| Axles: | Bolt-On Thru-Axle |
| Bottom bracket: | MEGAEVO BB, 73mm BSA Threaded |
| Brakes: | Shimano BR-MT420, 4-Piston Hydraulic Disc |
| Chain: | KMC X-12 Silver and Black |
| Crankset: | FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing |
| Derailleur rear: | Shimano XT 12-Speed, SGS |
| Fork: | Marzocchi Z1 Coil, 160mm Travel, Sweep Adjust Damper, Rebound Adjustment, Black Stanchions, 110x15 Kabolt, 44mm Offset |
| Frame: | Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs |
| Freewheel: | CASSETTE: Shimano SLX M7100 Cassette, 12-Speed, 10-51T |
| Grip: | Marin Single Clamp Locking |
| Handlebar: | Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
| Handlebar stem: | Marin CNC, 35mm Length, 35mm Bar Bore |
| Headset: | FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Hubs: | FRONT: Shimano HF-MT410B, 110x15mm, Centerlock / REAR: Shimano HB-MT510B, 148x12mm, Disc, Microspline Freehub Body |
| Rim: | Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible |
| Rotor front: | 203mm Rotor |
| Rotor rear: | 180mm Rotor |
| Saddle: | Marin Speed Concept |
| Season: | 2023 |
| Seat post: | TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm |
| Shock: | Marzocchi CR Coil, Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, M8x25mm Lower Mount, S/M 350lb Spring, L/XL 450lb Spring |
| Spokes: | 14g Black Stainless Steel |
| Tyre front: | Maxxis Assegai 29x2.5”, MAXX GRIP, EXO+, Tubeless Compatible |
| Tyre rear: | Maxxis Assegai 29x2.5”, MAXX GRIP, DoubleDown, Tubeless Compatible |
| Wheel size: | 29" |
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 619 | 628 | 632 | 643 |
| Reach | 430 | 455 | 480 | 515 |
| Headtube Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| Headtube Length | 100 | 110 | 115 | 130 |
| Seattube Angle | 78° | 78° | 78° | 78° |
| Seattube Length | 390 | 400 | 425 | 430 |
| Toptube Effective | 561.7 | 589 | 615 | 652 |
| BB Height | 342 | 342 | 342 | 342 |
| BB Drop | 35 | 35 | 35 | 35 |
| Chainstay | 430 | 430 | 430 | 430 |
| Wheelbase | 1199 | 1229 | 1256 | 1297 |
| Standover Height | 714 | 716 | 732 | 734 |
| Fork Offset | 44 | 44 | 44 | 44 |
| Seatpost Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
| Handlebar Width | 780 | 780 | 780 | 780 |
| Stem Length | 50 | 50 | 50 | 50 |
| Crank Length | 170 | 170 | 170 | 170 |
All lengths in millimeters
Marin Alpine Trail Bike Sizing Chart
