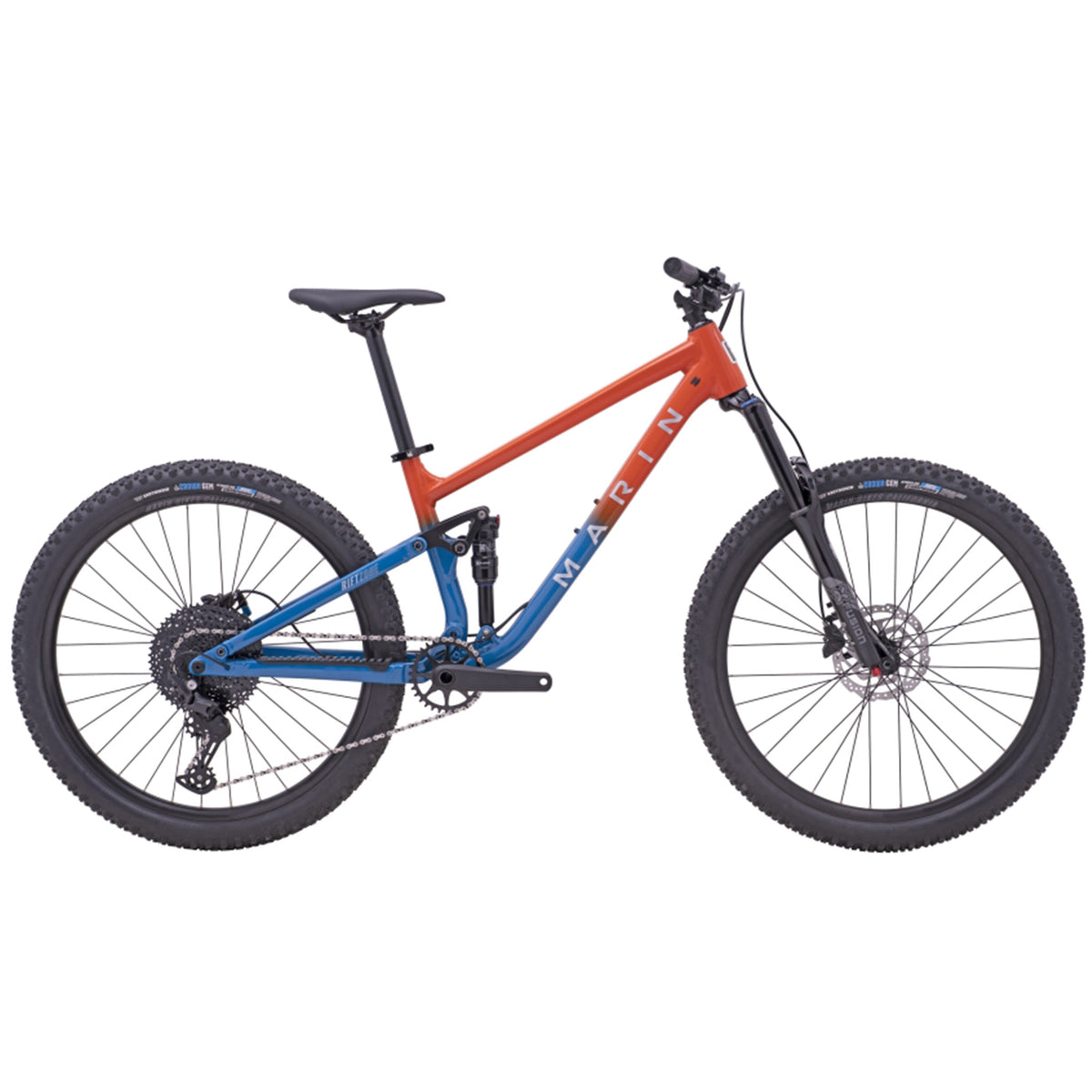

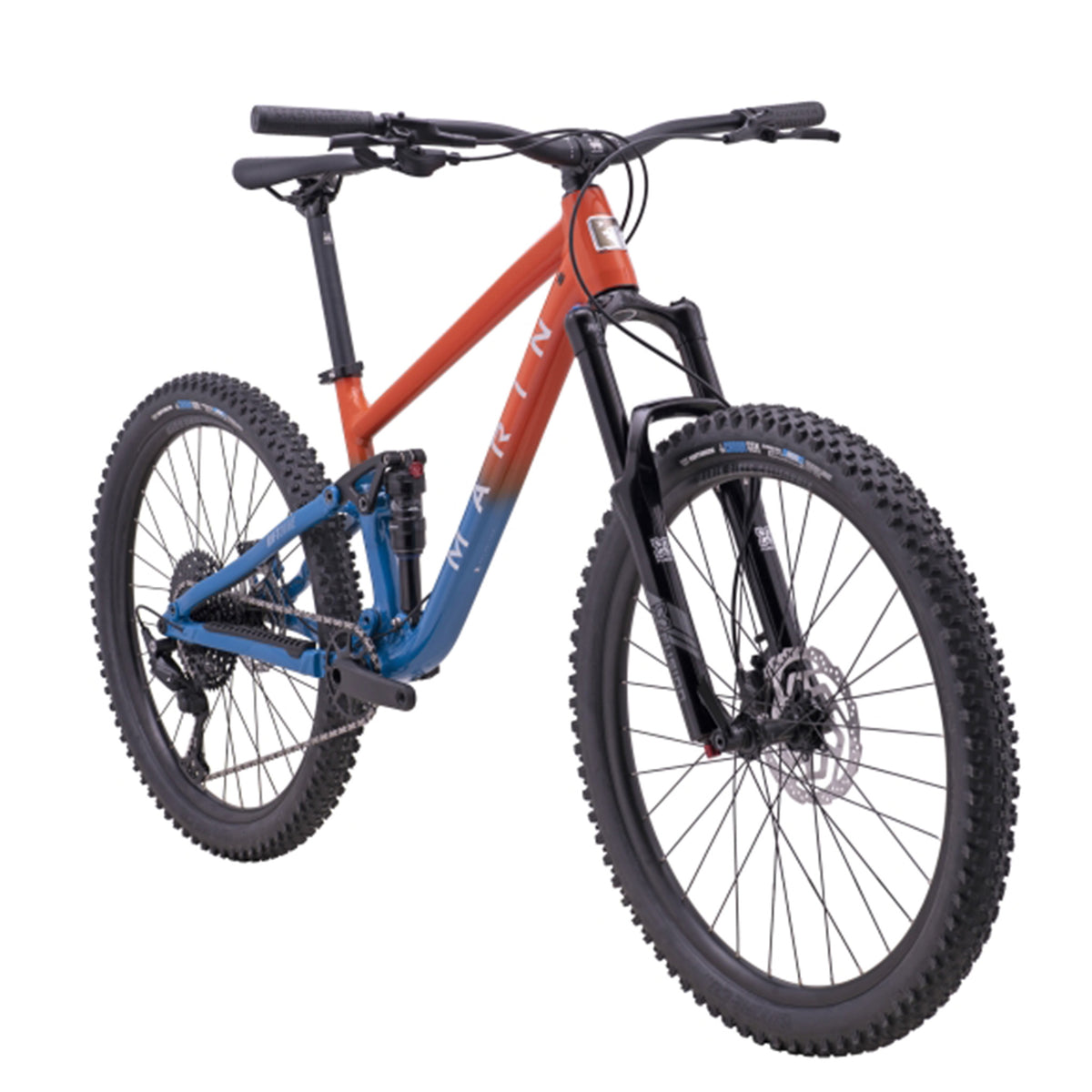

Marin Rift Zone 1 Trail Bike 27.5" Wheels Orange Black
Marin Rift Zone 1 Trail Bike 27.5" Wheels Orange Black
Marin Rift Zone 1 Trail Bike 27.5" Wheels Orange Black
Marin Rift Zone 1 Trail Bike 27.5" Wheels Orange Black

Features

Brake type: Hydraulic disc brake
Cassette: 11 speed
Chainset type: Single
Fork brand: X fusion
Frame material: Alloy
Front travel: 140mm
Gender: Unisex
Groupset: Shimano deore
Wheel size: 27 5

Marin Rift Zone 1 Trail Bike 27.5" Wheels Orange Black

$2,399
?

You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

$2,999.99
Buy now, pay later
HOT PRICE
SKU: H78XT0TK Low stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • All New Series 3 6061 Aluminum Frame
  • Marin MultiTrac Suspension Platform
  • X-Fusion Sweep Boost RC 140mm Fork
  • X-Fusion O2 Pro R, Custom Tune 130mm Shock
  • Shimano Deore 1 x 11 Speed Drivetrain
  • Shimano MT201 Hydraulic Disc Brakes
  • Vee Tire Crown Gem 27.5 x 2.35" Tyres
Marin’s ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics to local shred laps to big mountain adventures. The Marin Rift Zone 1 is your gateway to the Rifty family, made to push the limits of your riding but not your bank balance. Built around an all-new Series 3 aluminum frame, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider a high feature upgrade-worthy platform. Marin’s acclaimed MultiTrac suspension system is fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedalling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of longer travel on large drops. Rounding off the build is a reliable X-Fusion fork and shock combo, grippy Vee Crown Gem tires, plenty of Shimano and a hand-picked selection of Marin components
Bottom bracket: External Sealed Cartridge Bearing
Brakes: Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Cassette: Sunrace, 11-Speed, 11-51T, ED Black
Chain: KMC X-11 Silver and Black
Colour: Orange Black
Crankset: Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
Derailleur rear: Shimano Deore, 11 Speed, SGS
Fork: X-Fusion Sweep Boost RC, 27.5", 140mm Travel, Compresion and Rebound Adjustment, 110x15mm Thru Axle, 44mm Offset
Frame: All New Series 3 6061 Aluminum Frame, 27.5” Wheels, 120mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
Grip: Marin MTN, Closed End
Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Handlebar stem: Marin 3D Forged Alloy, 35mm
Headset: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Hubs: Front: Shimano HF-MT400B, 110x15mm, Centerlock, Rear: Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body
Rim: Marin Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
Saddle: Marin Speed Concept
Season: 2023
Seat post: Marin Alloy, 30.9mm
Shock: X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom
Spokes: 14g Black Stainless Steel
Tyres: Vee Tire Crown Gem 27.5x2.3", Dual Control Compound, Tubeless Ready
Tyre front: Vee Tire Crown Gem 27.5x2.3", Dual Control Compound, Tubeless Ready
Tyre rear: Vee Tire Crown Gem 27.5x2.3", Dual Control Compound, Tubeless Ready
Wheel size: 27.5" (650b)

XSSMLXL
Stack569.1600.7605.2609.8614.3
Reach415430450470500
Headtube Angle65.5°65.5°65.5°65.5°65.5°
Headtube Length115120125130135
Seattube Angle77°77°77°77°77°
Seattube Length330390400425430
Toptube Effective552.6568.7589.7610.8641.8
BB Height339339339339339
BB Drop2020202020
Chainstay430430430430430
Wheelbase1147.81164.81186.91208.91241
Standover Height661.7677.8687.8682.3687.8
Fork Offset4444444444
Seatpost Diameter30.930.930.930.930.9
Handlebar Width780780780780780
Stem Length3535353535
Crank Length170170170170170

All lengths in millimeters

Marin Rift Zone Bike Sizing Chart

Marin Rift Zone Bike Sizing Chart

Marin Bikes are Made For Fun. Since the first mountain bikes bearing the Marin name debuted in 1986, the brand has been dedicated to enriching the lives of riders by making fun, high caliber bicycles, which provide years of riding enjoyment. They operate their business based on hard work, fueled by passion, and fulfilled by the satisfaction of bringing the joy of cycling to riders across the world.


View Marin range

Click & Collect Available

• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »

No Courier Delivery

• This item is unavailable to be shipped with a courier More info »

For just $5, you can join Club 99 and you’ll gain access to exclusive benefits that will ensure you make the most of your bike purchase both in store and online. The ride starts with Club 99.

Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
