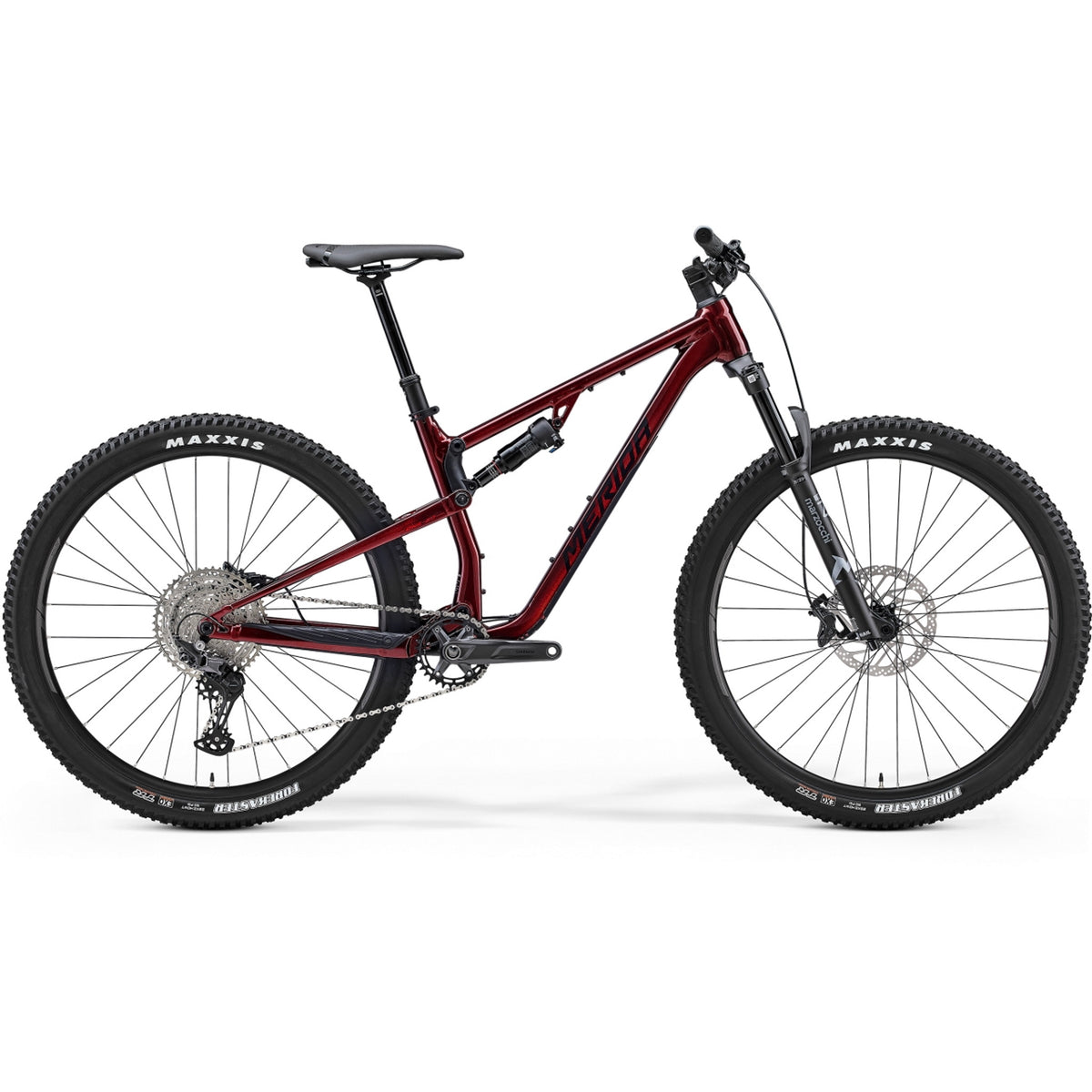

Merida One Twenty 600 Trail Bike Burgundy Red (Black/Red)
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Trail-ready LITE aluminium frame with P-FLEX technology
- Progressive geometry and AGILOMETER sizing
- Marzocchi Z2 fork and RockShox Deluxe shock both 130mm travel
- Wide range 12-speed Shimano Deore M6100 drivetrain for crisp shifting
- Shimano Deore 4-piston front and 2-piston rear hydraulic disc brakes
- MERIDA dropper seat post
The One Twenty is a bike that doesn't need to be shoehorned into a category. Short travel trail, downcountry - call it whatever you want, but this is a fun mountain bike for doing fun mountain bike things. Light enough to climb all day but planted on the descents - and the perfect balance everywhere else. Whether you're into flowing singletrack sessions or big mileage in the mountains, the One Twenty is Merida’s do-it-all Swiss Army Knife of a bike. The high-value, high-quality LITE aluminium frame is paired with Merida’s progressive geometry concept but tweaked it to suit a fun, short-travel machine and, thanks to the Agilometer sizing concept from their award-winning One Sixty and One Forty range, you can pick stable or agile handling independently of bike fit. The hardest part will be getting the smile off your face.
| Axles: | MERIDA EXPERT TR including removeable lever, 6/4 mm allen key |
|---|---|
| Bottom bracket: | Shimano BB-MT-501 24 mm |
| Brakes: | Shimano Deore M6120 4 piston / Shimano Deore M6100 2 piston |
| Cassette: | Shimano Deore M6100 10-51 teeth 12 speed |
| Chain: | KMC X12 |
| Colour: | BURGUNDY RED (BLACK/RED) |
| Colour (text): | BURGUNDY RED (BLACK/RED) |
| Crankset: | Shimano Deore MT512 32 teeth 170 mm on all sizes |
| Derailleur rear: | Shimano Deore M6100 SGS |
| Fork: | Marzocchi Z2 Air 130 mm suspension travel Tapered 44 mm fork offset platform 29x2.6" max. wheelsize |
| Frame: | ONE-TWENTY LITE V 130 mm suspension travel material: aluminium 29x2.5" max. wheelsize 148x12 mm axle standard BSA bottom bracket standard |
| Grip: | MERIDA COMP EC |
| Handlebar: | MERIDA EXPERT TR II material: aluminium 780 mm width 18 mm rise |
| Handlebar stem: | MERIDA EXPERT eTRII material: aluminium 35 mm diameter 0° stem angle 40 mm |
| Headset: | Acros ICR MERIDA EXTERNAL neck Upper and lower IPS sealing |
| Hubs: | Shimano TC500-B / Shimano TC500-MS-B 110x15 mm width front hub 32 spoke holes Centerlock 148x12 mm width rear hub 32 spoke holes Centerlock |
| Rim: | MERIDA COMP TR 29 mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included) |
| Rotor front: | Shimano RT30 203 mm |
| Rotor rear: | Shimano RT30 180 mm |
| Saddle: | MERIDA COMP SL V-mount incl. MERIDA minitool |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA EXPERT TR II Diameter: 34.9 mm Setback: 0 mm Travel: 150 mm XSHORT/SHORT, 170 mm MID, 200 mm LONG/XLONG |
| Shock: | Rock Shox Deluxe Select+ lockout |
| Spokes: | Double Butted Black stainless |
| Tyre front: | Maxxis Forekaster 29x2.4" fold TR Dual |
| Tyre rear: | Maxxis Forekaster 29x2.4" fold TR Dual |
| Weight: | 15.7 kg weighed at frame size M / Max Weight: 135 kg Total weight of bike, rider and luggage |
| Wheel size: | 29" |
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 470 |
| TT top tube [mm] | 548 | 569 | 590 | 611 | 632 |
| CS chain stay length [mm] | 435 | 435 | 435 | 435 | 435 |
| HTA head tube angle [°] | 66 | 66 | 66 | 66 | 66 |
| STA seat tube angle [°] | 78.5 | 78.5 | 78.5 | 78.5 | 78.5 |
| BD bottom bracked drop [mm] | 40 | 40 | 40 | 40 | 40 |
| HT head tube [mm] | 95 | 100 | 105 | 110 | 115 |
| FL fork length [mm] | 541 | 541 | 541 | 541 | 541 |
| R reach [mm] | 425 | 445 | 465 | 485 | 505 |
| S stack [mm] | 604 | 609 | 613 | 618 | 622 |
| WB wheel base [mm] | 1155 | 1177 | 1199 | 1221 | 1243 |
| SH stand over height [mm] | 748 | 750 | 752 | 754 | 756 |
Merida Dual Suspension Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
