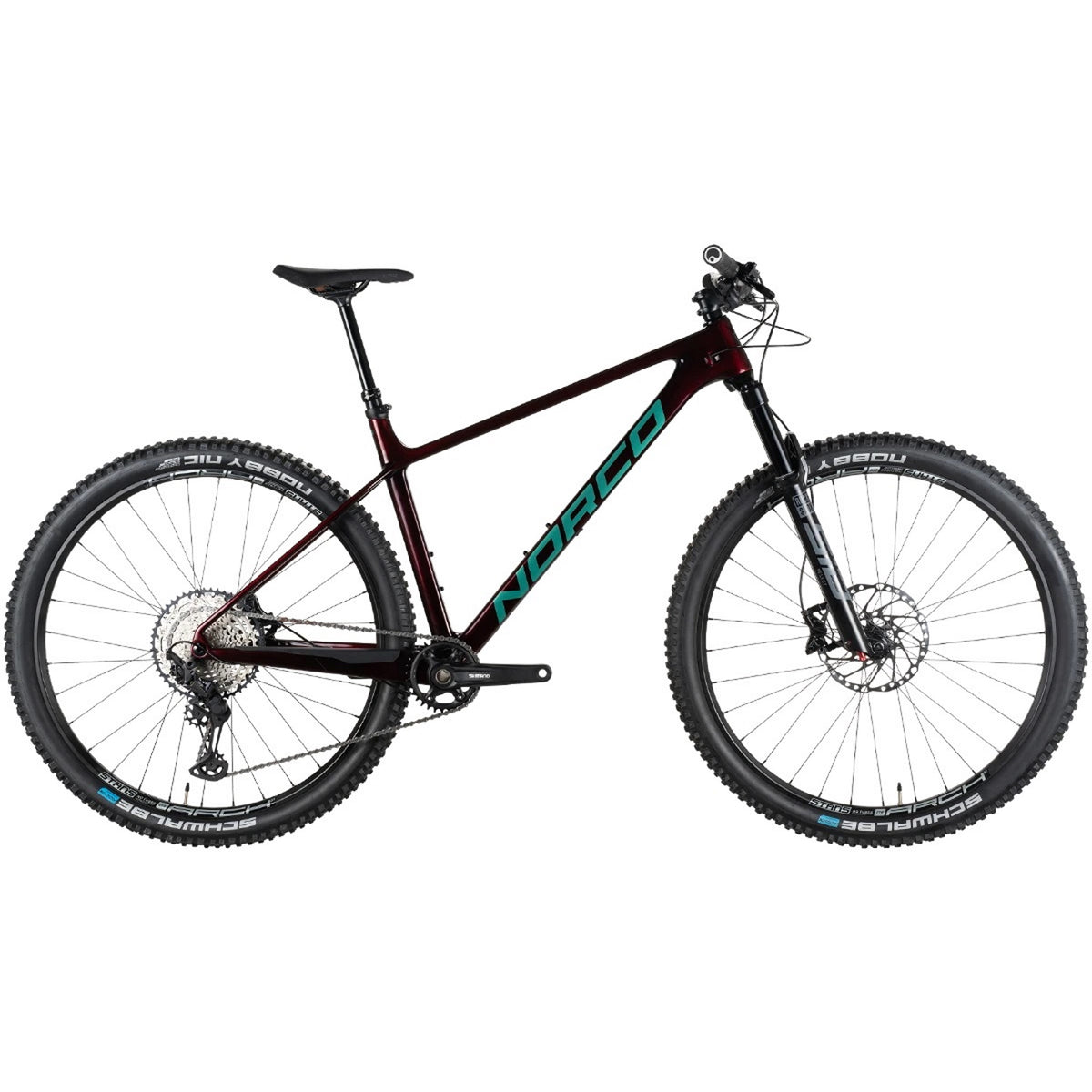

Norco Revolver HT 2 120 Cross Country Race Bike Red/Green
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Lightweight, Stiff and Fast Carbon XC Race Frame
- XC Race calibre RockShox SID Select 120mm fork
- Shimano SLX/Deore 12 Speed Drivetrain
- Shimano Deore BR-MT420, 4 Piston Hydraulic Disc Brakes
- X-Fusion Manic Dropper Post
- Schwalbe Nobby Nic Evo, 2.35", Super Terrain Tyres
| Bottom bracket: | Shimano BB-MT500 PF92 |
|---|---|
| Brakes: | Shimano Deore BR-MT420, Matallic Pads, 4 Piston |
| Chain: | Shimano Deore |
| Crankset: | Shimano FC-MT6100, 32T, 170mm (S), 175mm (M, L, XL) |
| Derailleur rear: | Shimano XT RD-M8100 |
| Fork: | RockShox SID Select, 120mm, 51mm Offset |
| Frame: | Carbon XC Race |
| Freewheel: | Shimano SLX, 10-51T, 12 Speed Cassette |
| Grip: | Ergon GA20 Lock-On |
| Handlebar: | Butted Alloy Lite, 760mm, 15mm Rise |
| Handlebar stem: | Norco SL Alloy Stem, 60mm Length, 31.8mm Clamp |
| Headset: | FSA Internal |
| Hubs: | FRONT: Shimano HB-MT400-B, 15x110mm Boost, Center Lock / REAR: Shimano FH-MT510-B, 12x148mm Boost, Micro Spline, Center Lock |
| Rim: | Stans Arch S1 29" 32H |
| Rotor front: | Shimano SM-RT64, 180mm |
| Rotor rear: | Shimano SM-RT64, 180mm |
| Saddle: | Fizik Alpaca Terra, Wingflex |
| Season: | 2023 |
| Seat post: | X-Fusion Manic Dropper, 31.6mm, 125mm (S), 150mm (M, L, XL) |
| Spokes: | Stainless Black |
| Tyre front: | Schwalbe Nobby Nic Evo, 2.35", Super Terrain, TLE |
| Tyre rear: | Schwalbe Nobby Nic Evo, 2.35", Super Terrain, TLE |
| Wheel size: | 29" |
| S | M | L | XL | |
|---|---|---|---|---|
| Wheel Size | 29" | 29" | 29" | 29" |
| Travel (mm front) | 120 | |||
| Reach | 422 | 452 | 482 | 512 |
| Stack | 605 | 614 | 624 | |
| Head Tube Angle | 67.8 | |||
| Fork Offset | 51 | |||
| Seat Tube Length | 425 | 440 | 485 | 510 |
| Effective Seat Tube Angle | 75.3 | |||
| Rear Centre Length | 420.0 | 423.3 | 426.7 | 430.0 |
| Bottom Bracket Drop | 54 | |||
| Bottom Bracket Height | 321 | |||
| Horizontal Top Tube | 581 | 611 | 644 | 676 |
| Wheelbase | 1120 | 1154 | 1191 | 1228 |
| Standover | 675 | 692 | 727 | 750 |
| Head Tube Length | 90 | 100 | 110 | |
| Trail | 97 | |||
| Recommended Seatpost Drop | 125 | 150 | 170 | |
| Maximum Post Insertion | 205 | 220 | 240 | 250 |
| Stem Length | 60 | |||
| Crank Length | 175 | |||
| Tire Size | 2.0" – 2.35" | |||
| Water Bottle Compatible | 1 x 750 mL | |||
Norco Cross Country Bike Sizing Chart
Norco Bicycles was founded in 1964 with the idea of getting more people on bicycles. Over the past 50 years this philosophy has moved from it's Canadian beginnings and can now be found in more than 25 countries. Norco as a business has always focused on the people. Cycling is at the root of Norco and being passionate about the products that they design, and ride has made for continued innovation and world class products. 50 years and counting.
