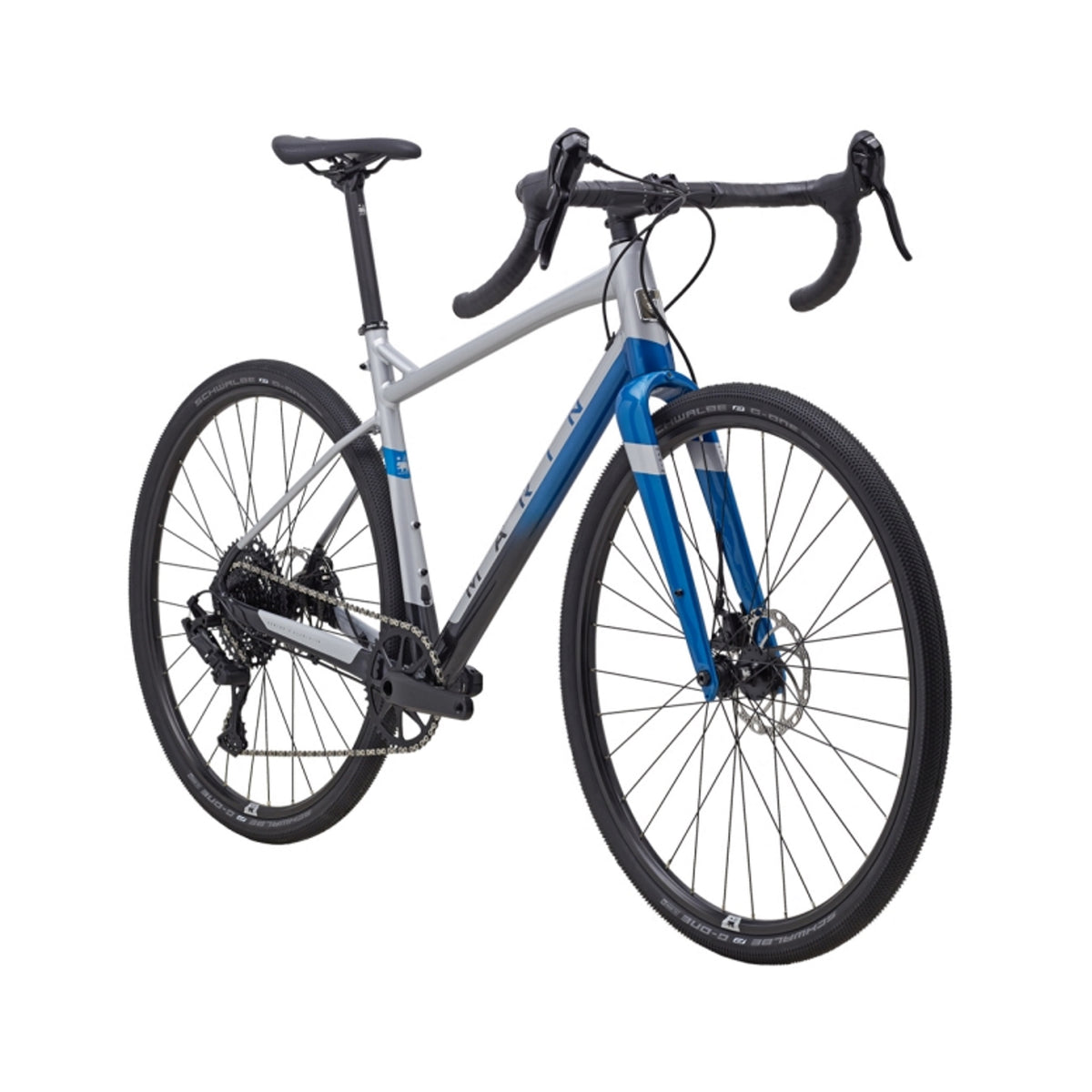

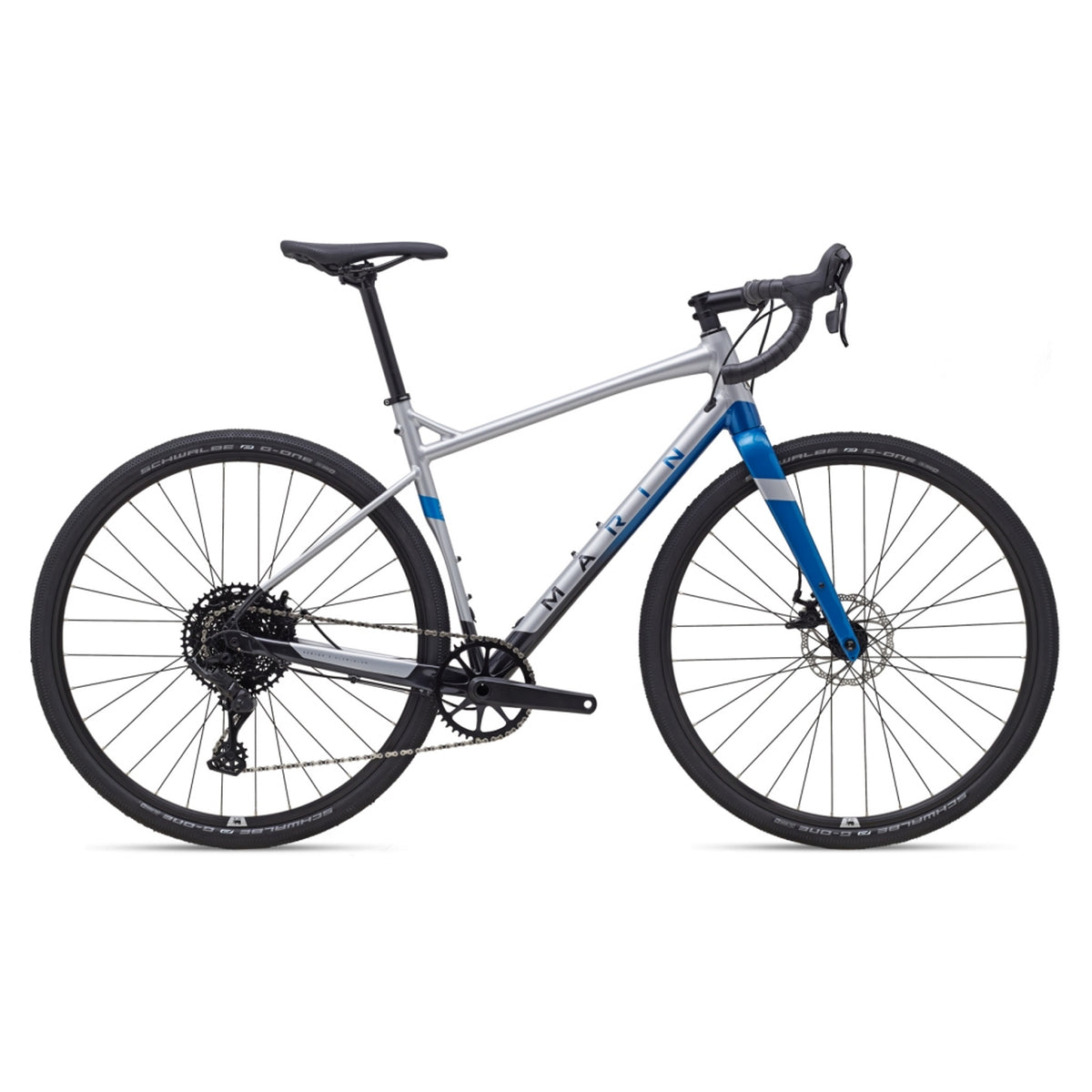

Marin Gestalt X10 Gravel Bike Chrome

Name: Marin Gestalt X10 Gravel Bike Chrome
Brand: Marin
SKU: 9YROT1DI
Price: 999.00 NZD
Availability: OutOfStock

$2,199.99

HOT PRICE

SKU: 9YROT1DI Sold out

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Marin series 3 6061 aluminium frame
Full carbon rigid fork with tapered steerer
1x10 MicroSHIFT Advent X drivetrain
Tektro Mechanical disc brakes
Integrated fender, rack mounts and bottle bosses

The Gestalt X10 is made to expand your horizons beyond the road. By adding generous tire clearance, lowering the standover, using reliable and simple 1x drivetrain, internal cable routing with dropper post routing and tuning the geometry for more adventurous riding. This is the Bike for the dropbar rider looking for singletrack action, the perfect bike to ride both to and from the trail, cut through unexplored places and find new routes. Built around a lightweight series 3 6061 aluminium frame with 142x12mm thru-axle dropouts, paired with a Marin full carbon fibre fork with tapered steerer, flat mount disc brakes and fender eyelets. The 1x10 MicroSHIFT Advent X drivetrain is lightweight and offers a wide range of evenly spaced gears, while Tektro Mechanical disc brakes provide good braking control and minimal maintenance. Integrated fender, rack mounts and bottle bosses make the Gestalt X10 an excellent option as an all-seasons commuter or bikepacking rig.

Axles:	Bolt-On Thru-Axles F and R
Bottom bracket:	External Sealed Cartridge Bearings
Brakes:	Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
Chain:	KMC X10
Crankset:	Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T
Derailleur rear:	MicroSHIFT Advent X 10-Speed Wide-Range
Fork:	Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Frame:	Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Freewheel:	SunRace 10-Speed, 11-51T Cassette
Grip:	Marin Shock Absorbing Perforated Tape
Handlebar:	Marin Butted Alloy, Compact 16º Flared Drop
Handlebar stem:	Marin 3D Forged Alloy
Headset:	FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Hubs:	Forged Aluminum Alloy, 32H
Rim:	Marin Aluminum Double Wall, 19mm Inner, 24mm Tall, Disc Specific
Saddle:	Marin Beyond Road Concept
Season:	2022
Seat post:	Marin Alloy, 27.2mm
Spokes:	14g Black Stainless Steel
Tyre front:	Schwalbe G-One Performance, 700Cx40mm, Folding Bead
Tyre rear:	Schwalbe G-One Performance, 700Cx40mm, Folding Bead
Wheel size:	700c

	50	52	54	56	58	60
Stack	548.6	564.7	578.8	599.7	618.7	639.4
Reach	373	373.1	373.5	387.3	401.8	410.6
Headtube Angle	70.5°	71°	71°	71.5°	71.5°	72°
Headtube Length	120	135	150	170	190	210
Seattube Angle	75°	74°	73.5°	73.5°	73.5°	73.5°
Seattube Length	450	470	490	510	530	550
Toptube Effective	520	535	545	565	585	600
BB Height	269	269	269	269	269	269
BB Drop	80	80	80	80	80	80
Chainstay	415	415	415	415	415	415
Wheelbase	999.2	1000.1	1005.4	1021.2	1036	1046.1
Standover Height	583	666	694	714	727	747
Fork Offset	50	50	50	50	50	50
Seatpost Diameter	27.2	27.2	27.2	27.2	27.2	27.2
Handlebar Width	440	440	460	460	480	480
Stem Length	70	70	70	70	90	90
Crank Length	170	170	175	175	175	175

All lengths in millimeters

Marin Gestalt Bike Sizing Chart

Marin Bikes are Made For Fun. Since the first mountain bikes bearing the Marin name debuted in 1986, the brand has been dedicated to enriching the lives of riders by making fun, high caliber bicycles, which provide years of riding enjoyment. They operate their business based on hard work, fueled by passion, and fulfilled by the satisfaction of bringing the joy of cycling to riders across the world.
