Features

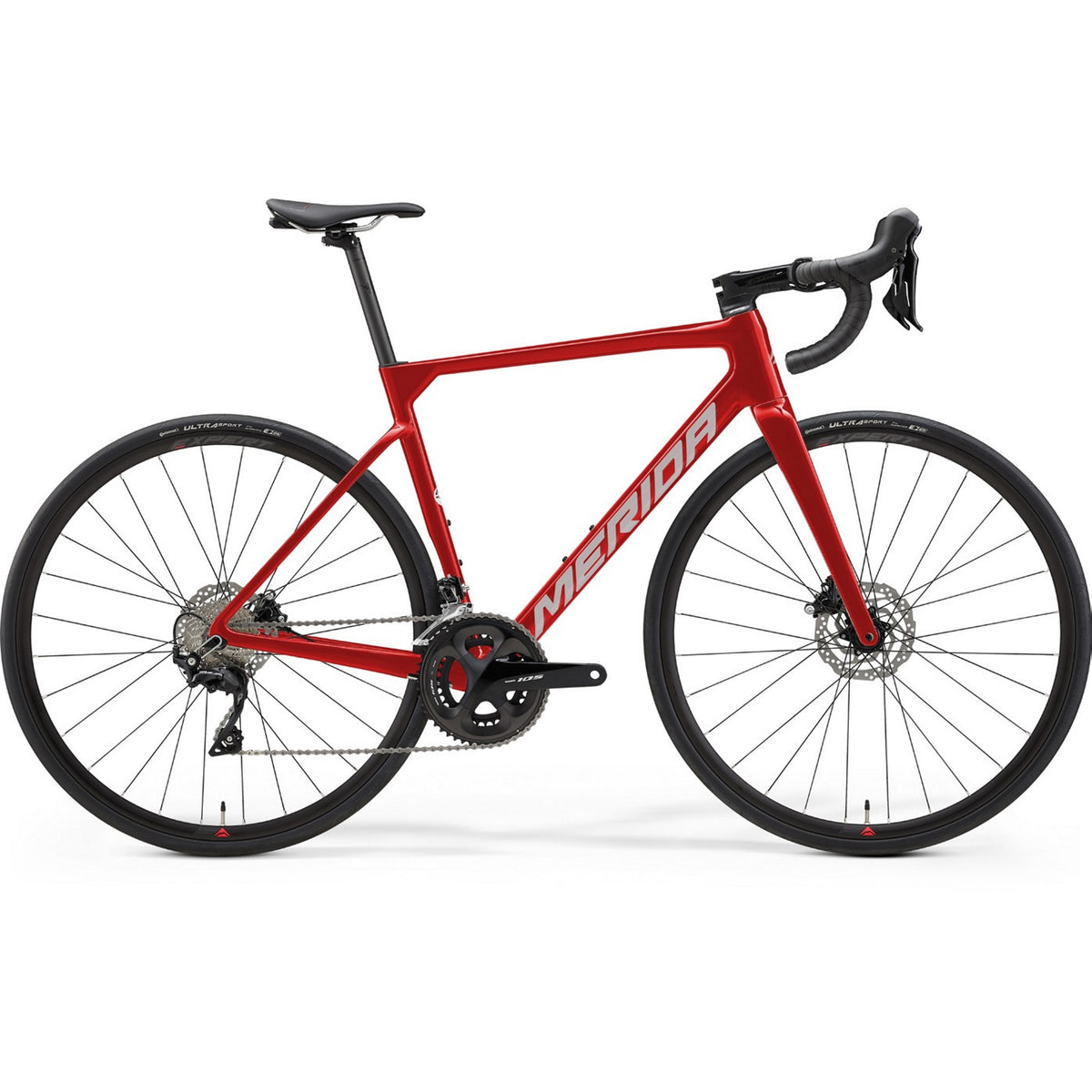

Merida Scultura 4000 Road Race Bike Heritage Red

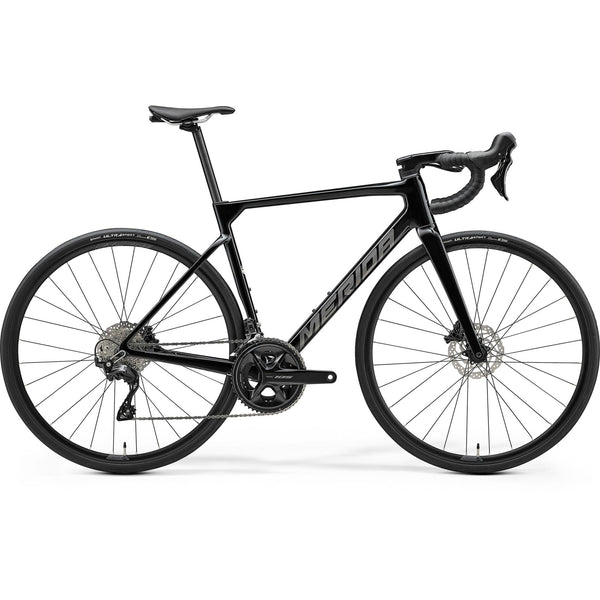

Other colours
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Lightweight CF3 carbon frame with race-proven geometry
- Full CF3 carbon fork, X-Taper headtube
- Wire port internal cable routing, Di2 ready
- Shimano 105 2 x 12 speed groupset
- Shimano 105 hydraulic disc brakes, disc cooler technology
- Merida Expert SL wheelset with Continental Ultra Sport III 28c tyres
Thanks to incorporating selected aero details from Merida’s test and award-winning Reacto aero bike, the Scultura is the most aerodynamic version ever. Yet, it remains true to its lightweight, agility and rider comfort focus; in fact it takes these factors to the next level. The Scultura demonstrates outstanding compliance, providing the rider with class-leading riding comfort that will help to keep the body fresh for the final sprint or ascent. This classic road bike combines outstanding comfort with whippet-like acceleration and class-leading climbing pedigree.
The Scultura 4000 features the same race-proven geometry as Merida’s aero specialist, the Reacto, in a lightweight, comfort-focused CF3 full carbon frame and fork. Packed with class leading technology such as the X-taper headtube which significantly boost precision, the Di2 ready internal cable routing and the smart wire port cable housing which semi-integrates cables through the headset for a clean uncluttered look as well as a more aerodynamic frame structure. Equipped with the latest, super smooth Shimano 2 x 12-speed 105 groupset and matching hydraulic disc brakes. Rolling on durable Merida Expert CC rims with Shimano hubs and Continental Ultra Sport III 700 x 28c tyres for a perfect balance of fast rolling race speed and durability. With low weight and class-leading riding comfort the Scultura 4000 is the complete package.
| Axles: | FRONT: MERIDA EXPERT TR / REAR: MERIDA EXPERT SL; including removable lever; 6/4mm allen key |
|---|---|
| Bottom bracket: | SM-BB71-41B, Pressfit 86.5 |
| Brakes: | Shimano 105; Hydraulic disc |
| Cassette: | Shimano CS-R7101; 11-34 ATC; 12 GER |
| Chain: | Shimano CN-M6100-12 |
| Crankset: | Shimano 105; FCR7100, 52-36 ATC 165 mm-3S/XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL |
| Derailleur rear: | Shimano 105; GS |
| Fork: | SCULTURA CF3 disc; MAT carbon; 700x30C max. WHS |
| Frame: | SCULTURA CF3 V; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5 |
| Grip: | MERIDA ROAD Expert |
| Handlebar: | MERIDA EXPERT SLII; MAT aluminium; 380mm(3S-XXS-XS-S) , 400mm (M-L-XL) |
| Handlebar stem: | EXPERT SL 2PII; MAT aluminium; -9 ASD 90mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL |
| Headset: | MERIDA TEAM SL (OP-203 neck) |
| Hubs: | FRONT: Shimano HB-TC500; 100x12 WHF; 28 SPH; Centerlock / REAR: Shimano FH-TC500-HL; 12-142 WHR; 28 SPH; Centerlock |
| Rim: | MERIDA EXPERT SL; 17 IWR; 22 HRI; MAT aluminium |
| Rotor front: | Shimano RT10; 160mm |
| Rotor rear: | Shimano RT10; 160mm |
| Saddle: | MERIDA EXPERT SL; 6% recycled and 23% nature material; V-mount; incl. MERIDA minitool |
| Season: | 2025 |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA EXPERT CC; 27.2 DSP; 15 SSB; Carbon |
| Spokes: | Double Butted Black stainless |
| Tyre front: | Continental Ultra Sport III; 700x28C; fold |
| Tyre rear: | Continental Ultra Sport III; 700x28C; fold |
| Weight: | FRAME: approx. 997 g - in size M |
| Wheel size: | 700c |
| Frame Size | 3XS | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" | 28" |
| seat tube [mm] | 400 | 435 | 458 | 481 | 501 | 521 | 550 |
| top tube [mm] | 505 | 520 | 535 | 545 | 560 | 575 | 590 |
| chain stay length [mm] | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| head tube angle [°] | 70.5 | 70.5 | 72 | 72.5 | 73.5 | 73.5 | 74 |
| seat tube angle [°] | 75.5 | 74.5 | 74 | 74 | 73.5 | 73 | 73 |
| bottom bracket drop [mm] | 70 | 70 | 70 | 66 | 66 | 66 | 66 |
| head tube [mm] | 100 | 105 | 112 | 128 | 140 | 155 | 176 |
| fork length [mm] | 385 | 385 | 385 | 385 | 385 | 385 | 385 |
| reach [mm] | 373 | 377 | 383 | 390 | 395 | 400 | 409 |
| stack [mm] | 512 | 517 | 529 | 542 | 557 | 571 | 593 |
| wheel base [mm] | 979 | 985 | 982 | 989 | 990 | 1000 | 1010 |
| stand over height [mm] | 700 | 721 | 745 | 765 | 782 | 800 | 823 |
Merida Scultura Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
