Features

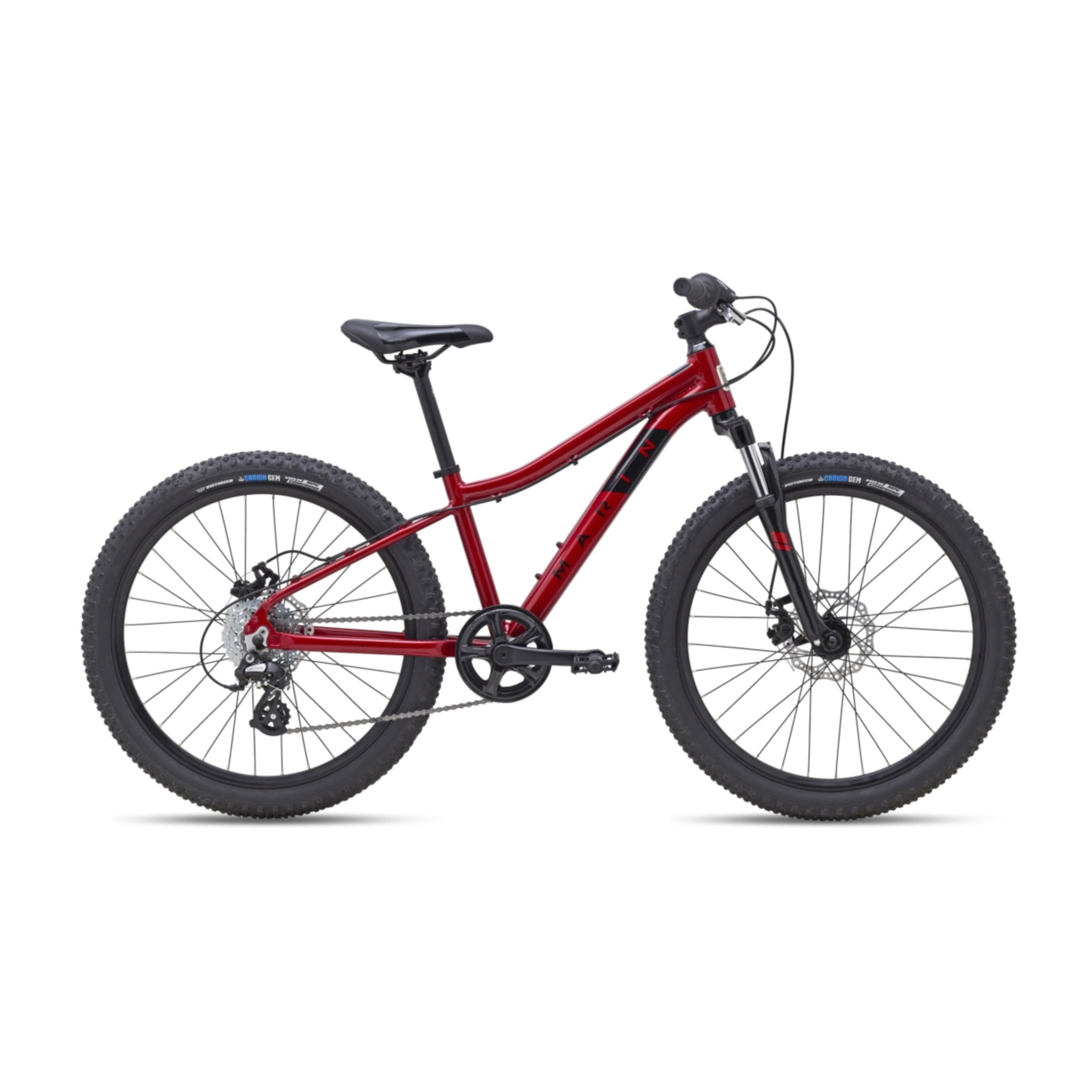

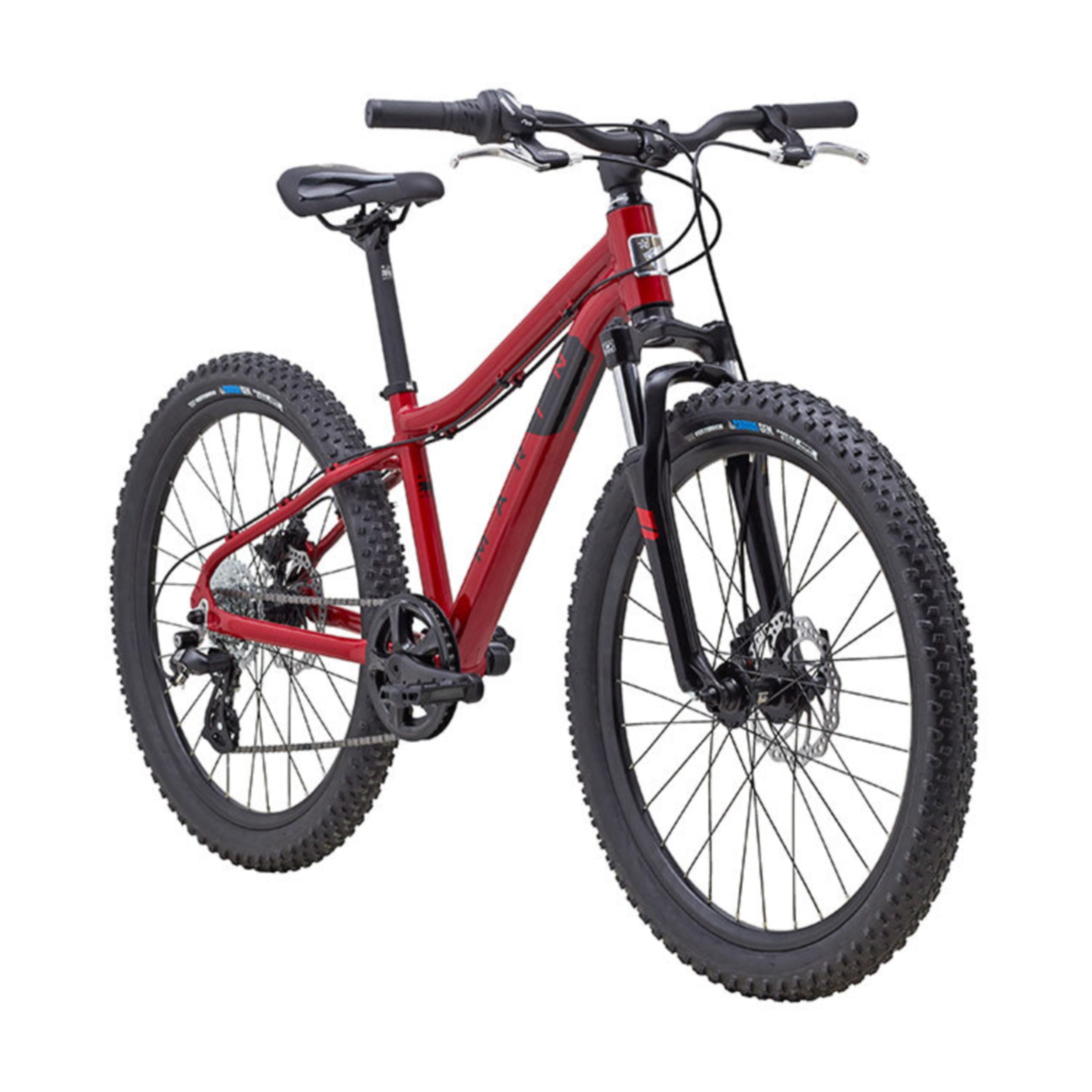

Marin Bayview Trail 24" Kids Mountain Bike Red/Black
Other colours
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Series 1 Lightweight 6061 Aluminum Frame
- SR Suntour XCT Jr 50mm Front Fork
- Shimano Altus 1 x 7 Speed Drivetrain
- Power CX7 Mechanical Disc Brakes
- Vee Crown Gem 24”x 2.25” Tyres
| Bottom bracket: | Sealed Cartridge Bearings, Square Taper |
|---|---|
| Brakes: | Power CX7 Mechanical Disc, Shimano Pad Compatible |
| Chain: | KMC Z50 |
| Colour: | Red/Black |
| Colour (text): | Red/Black |
| Crankset: | Forged Alloy, 30T, 152mm, Ring Guard |
| Derailleur rear: | Shimano Altus, 7-Speed |
| Fork: | SR Suntour XCT Jr 24", Pre-Load Adjust Coil Spring, 50mm Travel |
| Frame: | Series 1 6061 Aluminum, 24” Wheels, IS Seatstay Disc Mount, 135mm Dropouts |
| Freewheel: | Shimano HG-20 7-Speed, 12-32T Cassette |
| Grip: | Marin Dual Density |
| Handlebar stem: | Marin Riser, 30mm Rise, 590mm Width |
| Headset: | FSA, Threaded |
| Hubs: | Formula, 32H |
| Pedals: | Kids Specific Nylon Pedal |
| Rim: | Marin, Double Wall Alloy |
| Rotor front: | 160mm Rotor |
| Rotor rear: | 160mm Rotor |
| Saddle: | Marin Kids MTB |
| Season: | 2022 |
| Seat post: | Marin Alloy, 27.2mm |
| Shifters: | Shimano Revo Twist 1x7-Speed |
| Tyre front: | Vee Tire Crown Gem, 24”x2.25”, Wire Bead |
| Tyre rear: | Vee Tire Crown Gem, 24”x2.25”, Wire Bead |
| Wheel size: | 24" |
| ONE SIZE | |
|---|---|
| Stack | 502.75 |
| Reach | 331.92 |
| Headtube Angle | 70° |
| Headtube Length | 105 |
| Seattube Angle | 73° |
| Seattube Length | 321 |
| Toptube Effective | 485 |
| BB Height | 283 |
| BB Drop | 25 |
| Chainstay | 400 |
| Wheelbase | 946.97 |
| Standover Height | 581.19 |
| Fork Offset | 40 |
| Seatpost Diameter | 27.2 |
| Handlebar Width | 590 |
| Stem Length | 70 |
| Crank Length | 152 |
All lengths in millimeters
Kids Bike Sizing Chart
Marin Bikes are Made For Fun. Since the first mountain bikes bearing the Marin name debuted in 1986, the brand has been dedicated to enriching the lives of riders by making fun, high caliber bicycles, which provide years of riding enjoyment. They operate their business based on hard work, fueled by passion, and fulfilled by the satisfaction of bringing the joy of cycling to riders across the world.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
