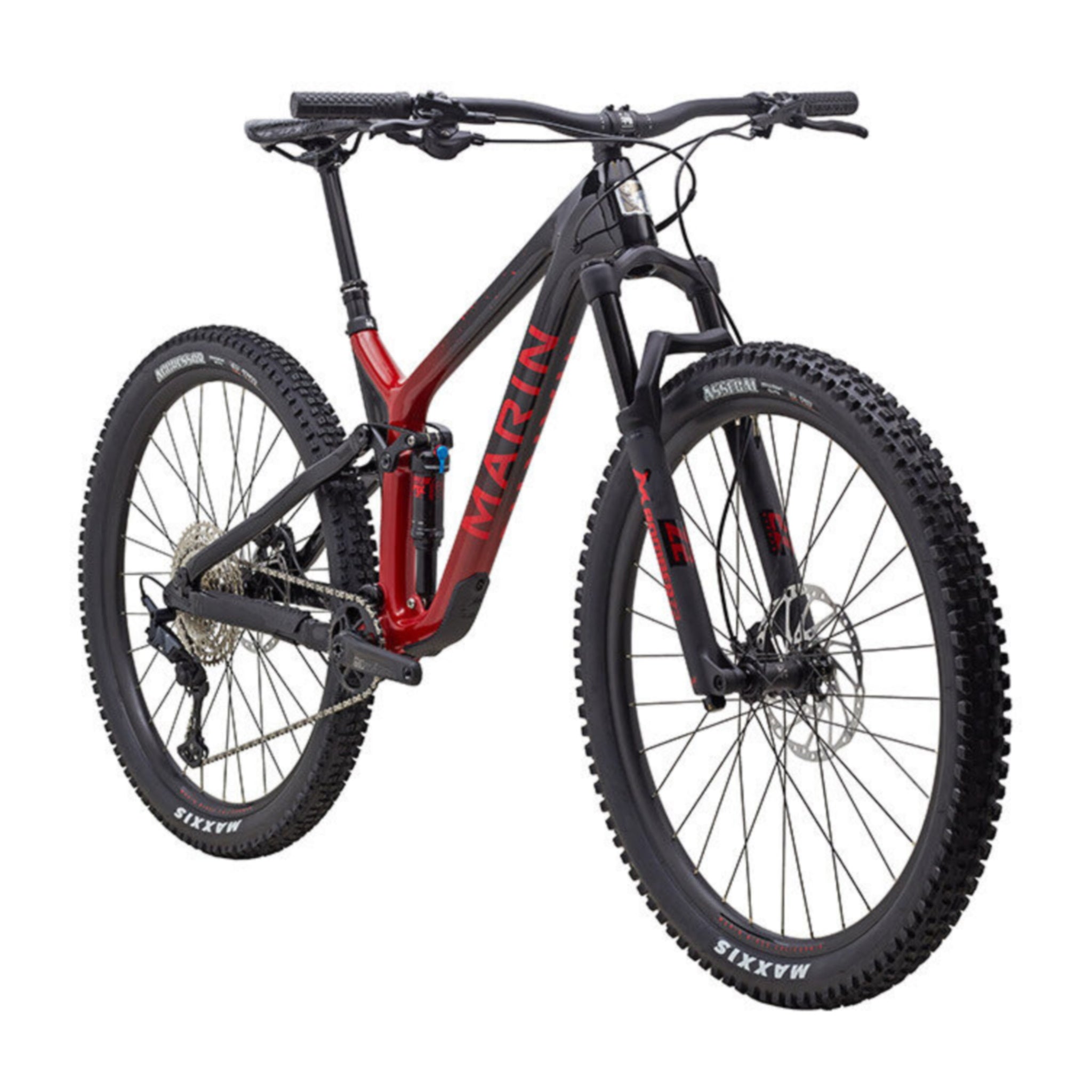

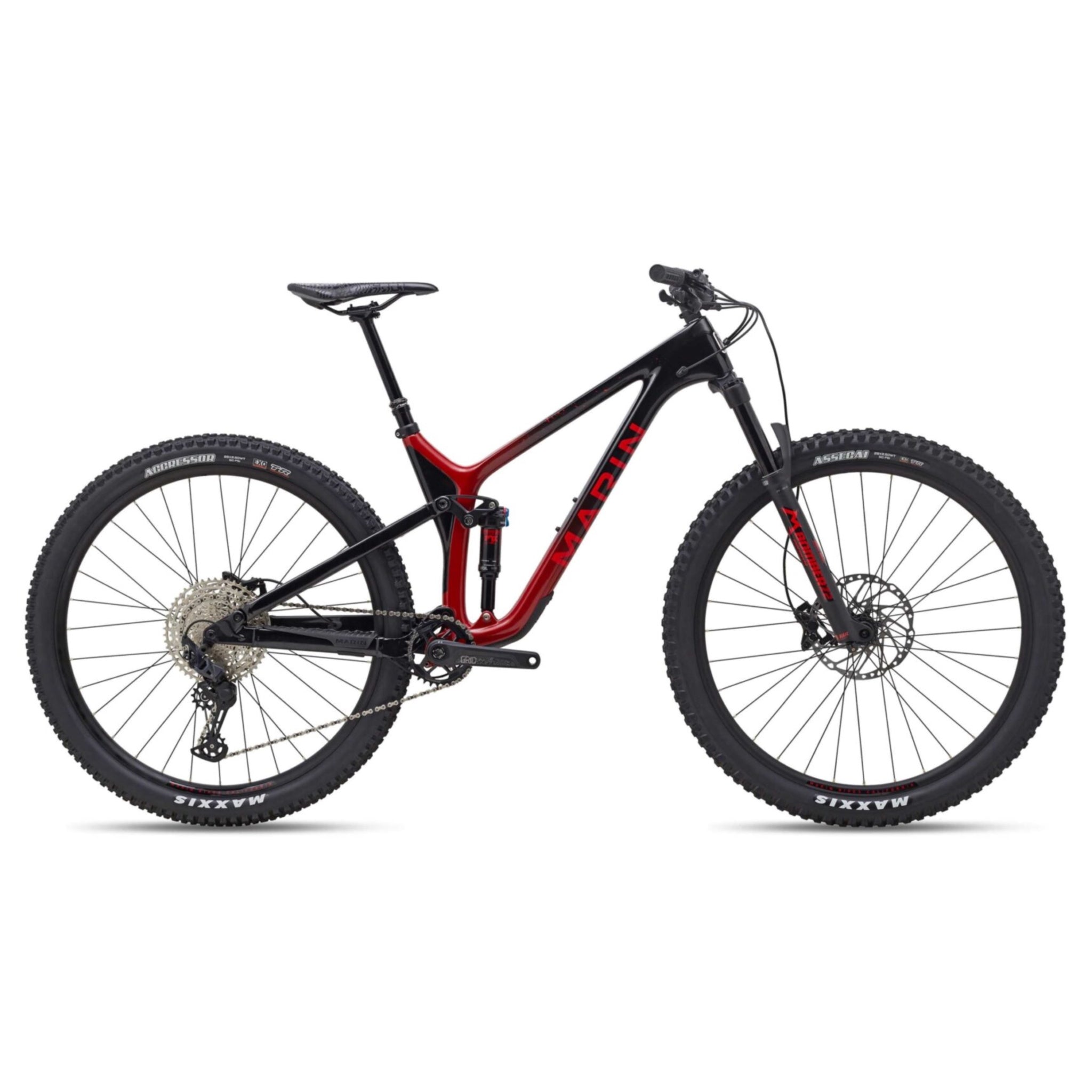

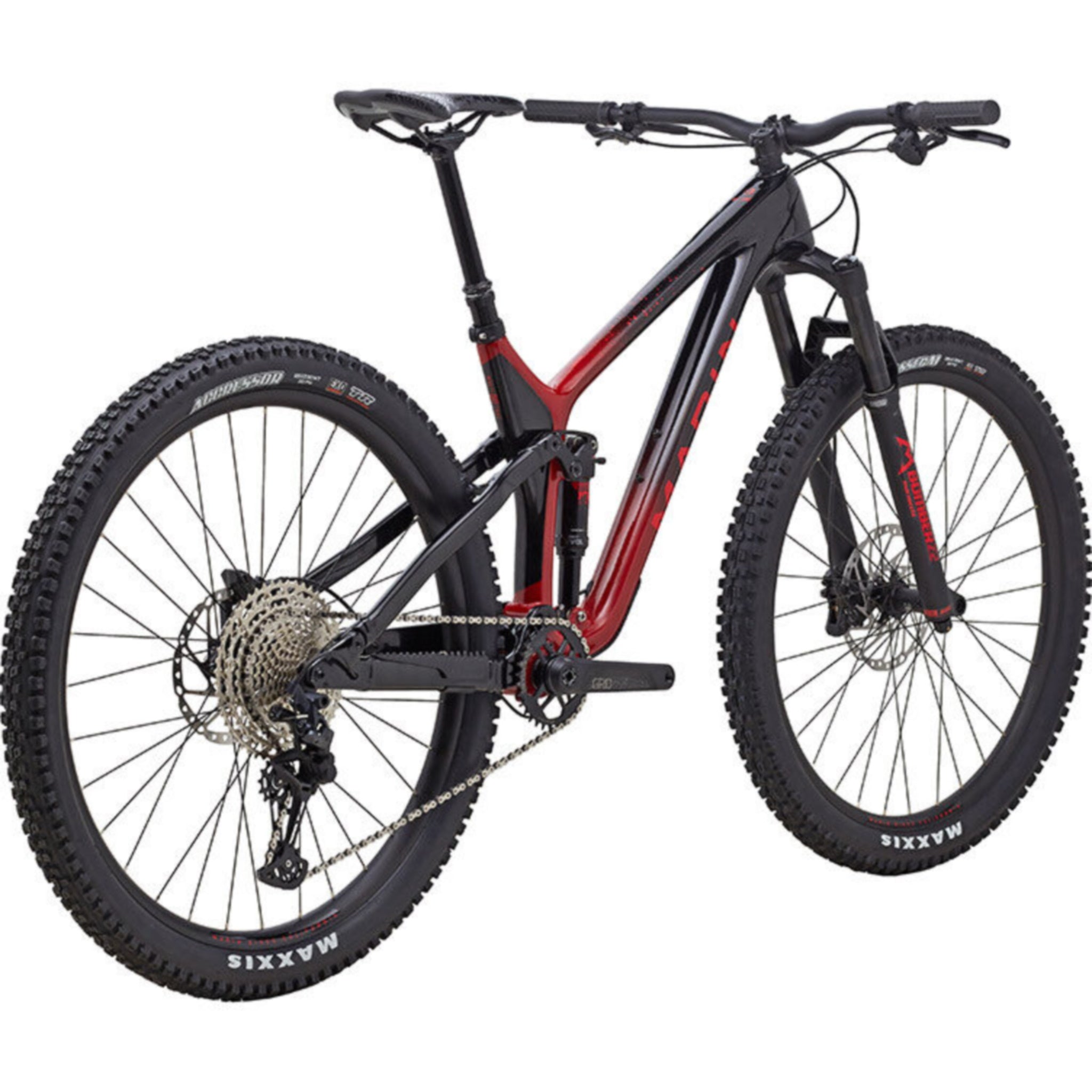

Marin Rift Zone Carbon 1 29" Trail Bike Red/Carbon
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- High-quality carbon fiber frame
- 29" wheels for speed and stability
- Marzocchi Bomber Z2 130mm fork
- Shimano SLX 1 x 12 speed drivetrain
- Progressive MultiTrac suspension system
| Axles: | Bolt-On Thru-Axle |
|---|---|
| Bottom bracket: | Mego EXO 73mm BSA |
| Brakes: | Shimano MT420, 4-Piston Hydraulic Disc Brake |
| Chain: | KMC X-12 Silver and Black |
| Crankset: | New FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing |
| Derailleur rear: | Shimano SLX, 12-Speed, SGS |
| Fork: | Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 130mm Travel, Kabolt Bolt-On Axle, 44mm Offset |
| Frame: | Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs |
| Freewheel: | SunRace, 12-Speed Cassette, 11-51T, ED Black |
| Grip: | Marin Grizzly Single Clamp Locking |
| Handlebar: | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Handlebar stem: | Marin 3D Forged Alloy, 35mm |
| Headset: | FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Hubs: | FRONT: Forged Alloy, 110x15mm, Disc, 32H / REAR: Forged Alloy, 148x12mm, Quad Sealed Bearings, Disc, 32H, Standard Freehub Body |
| Rim: | Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible |
| Rotor front: | 203mm Rotor |
| Rotor rear: | 180mm Rotor |
| Saddle: | Marin Speed Concept |
| Season: | 2022 |
| Seat post: | X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm |
| Shock: | Fox Float DPS, Performance Series, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom |
| Spokes: | 14g Black Stainless Steel |
| Tyre front: | Maxxis Assegai 29x2.5”, 3C MaxxTerra, EXO, Tubeless Compatible Rear |
| Tyre rear: | Maxxis Aggressor 29x2.5”, 3C Maxx Terra, EXO, Tubeless Compatible |
| Wheel size: | 29" |
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 602.6 | 607.15 | 611.7 | 616.25 |
| Reach | 430 | 455 | 480 | 515 |
| Headtube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| Headtube Length | 100 | 105 | 110 | 115 |
| Seattube Angle | 76° | 76° | 76° | 76° |
| Seattube Length | 390 | 400 | 425 | 430 |
| Toptube Effective | 580.24 | 606.36 | 632.51 | 668.65 |
| BB Height | 344 | 344 | 344 | 344 |
| BB Drop | 34 | 34 | 34 | 34 |
| Chainstay | 425 | 425 | 425 | 425 |
| Wheelbase | 1158.92 | 1186 | 1213 | 1252 |
| Standover Height | 643 | 650 | 659 | 662 |
| Fork Offset | 44 | 44 | 44 | 44 |
| Seatpost Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
| Handlebar Width | 780 | 780 | 780 | 780 |
| Stem Length | 35 | 35 | 35 | 35 |
| Crank Length | 170 | 175 | 175 | 175 |
All lengths in millimeters
Marin Rift Zone Bike Sizing Chart
Marin Bikes are Made For Fun. Since the first mountain bikes bearing the Marin name debuted in 1986, the brand has been dedicated to enriching the lives of riders by making fun, high caliber bicycles, which provide years of riding enjoyment. They operate their business based on hard work, fueled by passion, and fulfilled by the satisfaction of bringing the joy of cycling to riders across the world.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
