Features

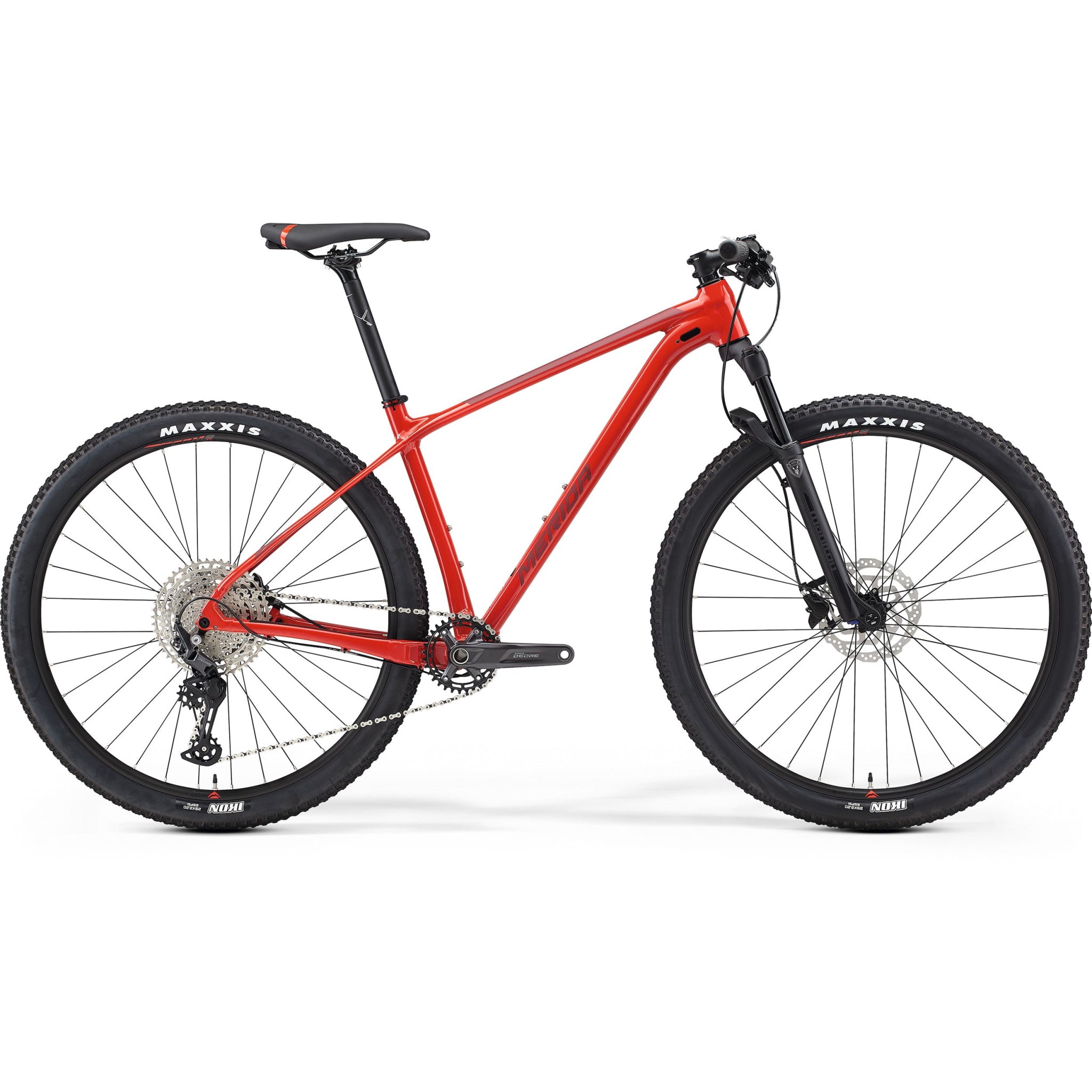

Merida Big Nine Limited Cross Country Race Bike Glossy/Matt Race Red
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Triple butted smooth welded lightweight aluminium frame
- XC and marathon focused geometry
- Manitou Markhor 100mm travel suspension fork with remote lockout
- Shimano Deore M5100 1 x 11 speed drivetrain
- Tektro hydraulic disc brakes
- SMART ENTRY internal cable routing
- Dropper post ready frame
| Axles: | MERIDA EXPERT TR |
|---|---|
| Bottom bracket: | Shimano MT500-PA pressfit |
| Brakes: | Tektro M275 2 piston |
| Chain: | KMC X11 |
| Crankset: | Shimano Deore M5100 32 teeth 170 mm-S, 175 mm-M up |
| Derailleur rear: | Shimano Deore M5100 Shadow+ SGS |
| Fork: | Manitou Markhor Comp Air 100mm suspension travel Tapered Remote lockout 51mm fork offset |
| Frame: | BIG.NINE LITE aluminium, 29x2.25" max. wheelsize 148x12mm axle standard BB92 bottom bracket standard |
| Freewheel: | Shimano Deore M5100 11-51 teeth 11 speed |
| Grip: | MERIDA COMP EC |
| Handlebar: | MERIDA EXPERT CC material: aluminium 760mm width flat |
| Handlebar stem: | MERIDA EXPERT CC material: aluminium 31.8mm diameter -6° stem angle S-70 mm, M-80 mm, L-90 mm, XL-100 mm, XXL-110 mm |
| Headset: | MERIDA M2331 |
| Hubs: | Shimano MT400-B 110x15mm width front hub 32 spoke holes Centerlock 148x12mm width rear hub 32 spoke holes Centerlock |
| Rim: | MERIDA COMP CC 20mm inner width material: aluminium |
| Rotor front: | Shimano RT10 180mm |
| Rotor rear: | Shimano RT10 160mm |
| Saddle: | MERIDA COMP SL V-mount incl. MERIDA minitool |
| Season: | 2022 |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA COMP CC material: aluminium 30.9mm diameter 0mm setback |
| Spokes: | Black stainless |
| Tyre front: | Maxxis Ikon 29x2.2" wire |
| Tyre rear: | Maxxis Ikon 29x2.2" wire |
| Weight: | Max Weight Limit: 135kg |
| Wheel size: | 29" |
| Frame Size | S | M | L | XL | XXL |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| seat tube [mm] | 382 | 444 | 483 | 532 | 584 |
| top tube [mm] | 585 | 605 | 625 | 645 | 665 |
| chain stay length [mm] | 433 | 433 | 433 | 433 | 433 |
| head tube angle [°] | 70 | 70 | 70 | 70 | 70 |
| seat tube angle [°] | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| bottom bracked drop [mm] | 65 | 65 | 65 | 65 | 65 |
| head tube [mm] | 95 | 100 | 110 | 125 | 145 |
| fork length [mm] | 506 | 506 | 506 | 506 | 506 |
| reach [mm] | 403 | 422 | 439 | 455 | 469 |
| stack [mm] | 614 | 619 | 628 | 642 | 661 |
| wheel base [mm] | 1080 | 1100 | 1121 | 1142 | 1163 |
| stand over height [mm] | 688 | 740 | 771 | 816 | 859 |
Merida Big Nine Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
