Features

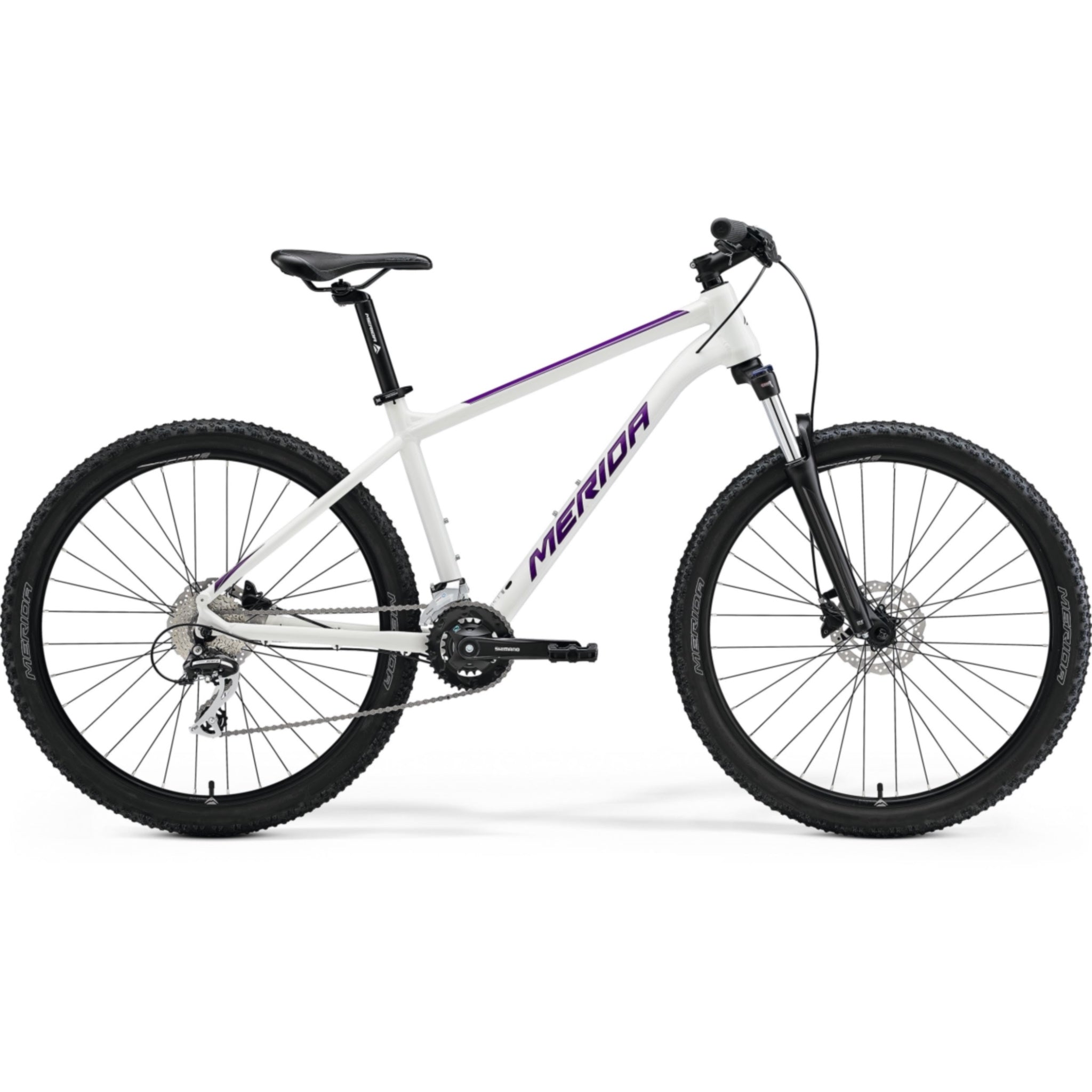

Merida Big Seven 20 2X Hardtail Mountain Bike White/Purple
Other options
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Lightweight 6061 Aluminium frame, internal cable routing
- SR Suntour 100mm front fork with lockout
- Shimano Acera 2x8 speed drivetrain, 16 gears
- Shimano hydraulic disc brakes
- 27.5” wheels with alloy rims & 2.2” tyres
- Integrated mounting points for mudguards, kickstand and rear rack
| Axles: | FRONT: 100x9mm / REAR: 135x9mm |
|---|---|
| Bottom bracket: | FSA TH-7420ST-W, Cartridge Bearing |
| Brakes: | Shimano ST-EF505 BR-MT200 brake caliper |
| Chain: | Sunrace M84 |
| Crankset: | Shimano FC-M315-2 36-22 170 mm-XS/S, 175 mm-M/L |
| Derailleur rear: | Shimano RD-M360 |
| Fork: | Suntour XCT30 HLO Coil 100mm suspension travel Lockout. |
| Frame: | BIG.SEVEN TFS III Aluminium27.5 135x9 BSA Bottom Bracket |
| Freewheel: | Sunrace Cassette CSM558AU 11-32 teeth 8 speed black |
| Grip: | MERIDA EC |
| Handlebar: | MERIDA CC Aluminium 690mm width 15mm rise |
| Handlebar stem: | MERIDA CC Aluminium 31.8mm diameter 6° Rise 70 mm-XS/S, 80 mm-M, 90 mm-L |
| Headset: | MERIDA M2345 |
| Hubs: | Shimano TX505 32H, Centerlock |
| Pedals: | VP VPE-891 |
| Rim: | MERIDA CC 17mm inner width Aluminium |
| Rotor front: | Shimano RT10 160 mm |
| Rotor rear: | Shimano RT10 160 mm |
| Saddle: | MERIDA Sport comfort |
| Season: | 2022 |
| Seat clamp: | MERIDA COMP QR |
| Seat post: | MERIDA CC MAT aluminium 30.9mm diameter 15mm setback |
| Tyre front: | MERIDA K1080, 27.5x2.2", wire |
| Tyre rear: | MERIDA K1080, 27.5x2.2", wire |
| Weight: | Max rider and luggage weight limit: 135kg |
| Wheel size: | 27.5" (650b) |
| Frame Size | XS | S | M | L |
| Tyre Sizes | 27.5" | 27.5" | 27.5" | 27.5" |
| seat tube [mm] | 340 | 380 | 440 | 480 |
| top tube [mm] | 550 | 570 | 590 | 610 |
| chain stay length [mm] | 430 | 430 | 430 | 430 |
| head tube angle [°] | 69 | 69 | 69 | 69 |
| seat tube angle [°] | 73 | 73 | 73 | 73 |
| bottom bracked drop [mm] | 30 | 30 | 30 | 30 |
| head tube [mm] | 100 | 115 | 130 | 145 |
| fork length [mm] | 487 | 487 | 487 | 487 |
| reach [mm] | 378 | 394 | 409 | 425 |
| stack [mm] | 563 | 577 | 591 | 605 |
| wheel base [mm] | 1056 | 1078 | 1099 | 1120 |
| stand over height [mm] | 649 | 689 | 740 | 778 |
Merida Big Seven Bike Sizing Chart
Merida Bikes Warranties
Lifetime warranty on all frames
Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.
Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase
Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase
All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.
The Merida Warranty Excludes:
Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components
Branded Components
Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.
In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.
If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
