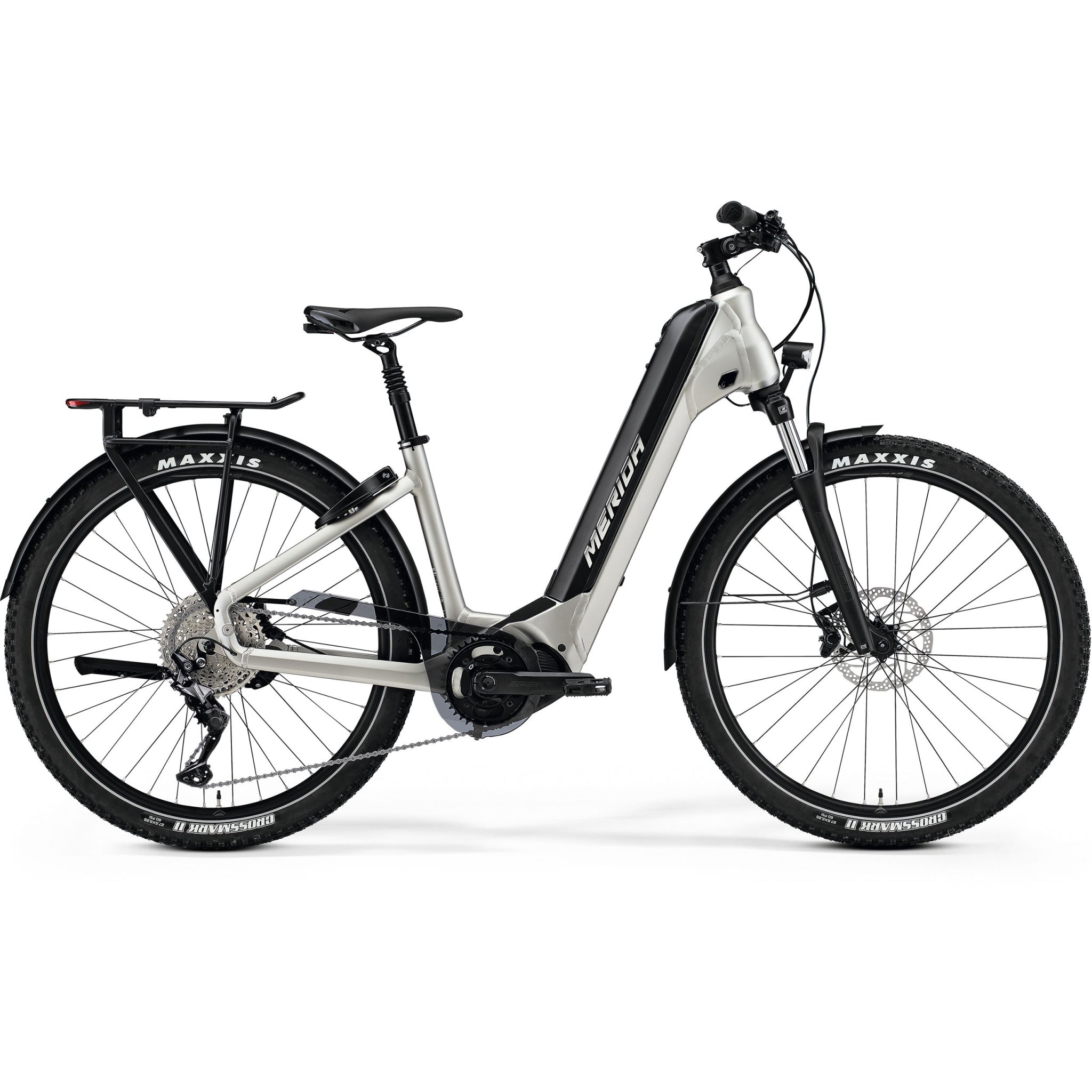

Merida Espresso CC 400 EQ 630Wh Battery / EP600 Silk Titian
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Powerful Shimano E600 drive unit, 85Nm torque
- Super low step-through ENERGY CRADLE frame design
- internally mounted 630 Wh battery
- Assist speeds up to 32 km/h
- Approx range 80 - 210km
- Smooth Shimano 10-speed drivetrain
- Suspension fork and seat post for comfort and control
- Agile 650b wheels with grippy high-volume tyres
- Fully equipped with guards, lights, lock, rack and kickstand
| Accessories: | CHAINGUARD: Sunnywheel SW-CG-173A / CARRIER: MERIDA MIK HD Spring clip Spanninga rear light / KICKSTAND: Atranvelo 1219-PC-7 |
|---|---|
| Battery: | Shimano E8036 630Wh |
| Brakes: | Shimano MT200 2 piston |
| Chain: | KMC e10S EPT |
| Chainwheel: | Shimano CRE61 38 teeth |
| Colour: | SILK TITAN (BLACK) |
| Colour (text): | SILK TITAN (BLACK) |
| Crankset: | Shimano FC-EM600 165 mm |
| Derailleur rear: | Shimano Deore M5120 SGS |
| Display: | Shimano SC-E5000A |
| Fender: | Sunnywheel SW-FA-311-65A(MSB) |
| Fork: | SR Suntour NVX30 DS Coil 80mm suspension travel 27,5x2,4" max wheelsize |
| Frame: | eSPRESSO CC LITE II material: aluminium 27,5x2,25" max. wheelsize 135x9mm axle standard internal |
| Freewheel: | Shimano M4100 11-46 teeth 10 speed |
| Grip: | MERIDA EXPERT TK |
| Handlebar: | MERIDA EXPERT TK material: aluminium 660mm width 15mm rise |
| Handlebar stem: | MERIDA EXPERT CT material: aluminium 31.8mm diameter adjustable 90 mm- XS/S/M, 110 mm- L/XL |
| Headset: | MERIDA 8152 |
| Hubs: | FRONT: Shimano TX505 100x9mm width front hub 32 spoke holes Centerlock / REAR: Shimano TX505 135x9mm width rear hub 36 spoke holes Centerlock |
| Light(s): | FRONT: Herrmans H-Black MR4 E STVZO / REAR: Spanninga Commuter Glow XE STVZO integrated in MERIDA MIK HD carrier |
| Motor drive unit: | Shimano E600, 85Nm Torque |
| Pedals: | VP VPE-891 |
| Rim: | MERIDA COMP TK 20mm inner width material: aluminium |
| Rotor front: | Shimano RT10 180 mm |
| Rotor rear: | Shimano RTEM300 180 mm |
| Saddle: | MERIDA EXPERT TK V-mount |
| Season: | 2022 |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA EXPERT TK 30.9mm diameter 15mm setback 40mm seatpost suspension travel |
| Spokes: | Black stainless |
| Tyre front: | Maxxis Crossmark II 27.5x2.25" wire reflecting line |
| Tyre rear: | Maxxis Crossmark II 27.5x2.25" wire reflecting line |
| Wheel size: | 27.5" (650b) |
| Frame Size | XS | S | M | L | XL |
| Tyre Sizes | 27.5" | 27.5" | 27.5" | 27.5" | 27.5" |
| seat tube [mm] | 380 | 430 | 480 | 530 | 580 |
| top tube [mm] | 580 | 595 | 615 | 635 | 655 |
| chain stay length [mm] | 470 | 470 | 470 | 470 | 470 |
| head tube angle [°] | 70 | 70 | 70 | 70 | 70 |
| seat tube angle [°] | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| bottom bracket drop [mm] | 65 | 65 | 65 | 65 | 65 |
| head tube [mm] | 170 | 175 | 180 | 190 | 200 |
| fork length [mm] | 476 | 476 | 476 | 476 | 476 |
| reach [mm] | 385 | 399 | 417 | 435 | 452 |
| stack [mm] | 656 | 661 | 666 | 675 | 685 |
| wheel base [mm] | 1113 | 1129 | 1149 | 1170 | 1190 |
| stand over height [mm] | 403 | 403 | 402 | 402 | 401 |
Merida Electric Trekking Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
