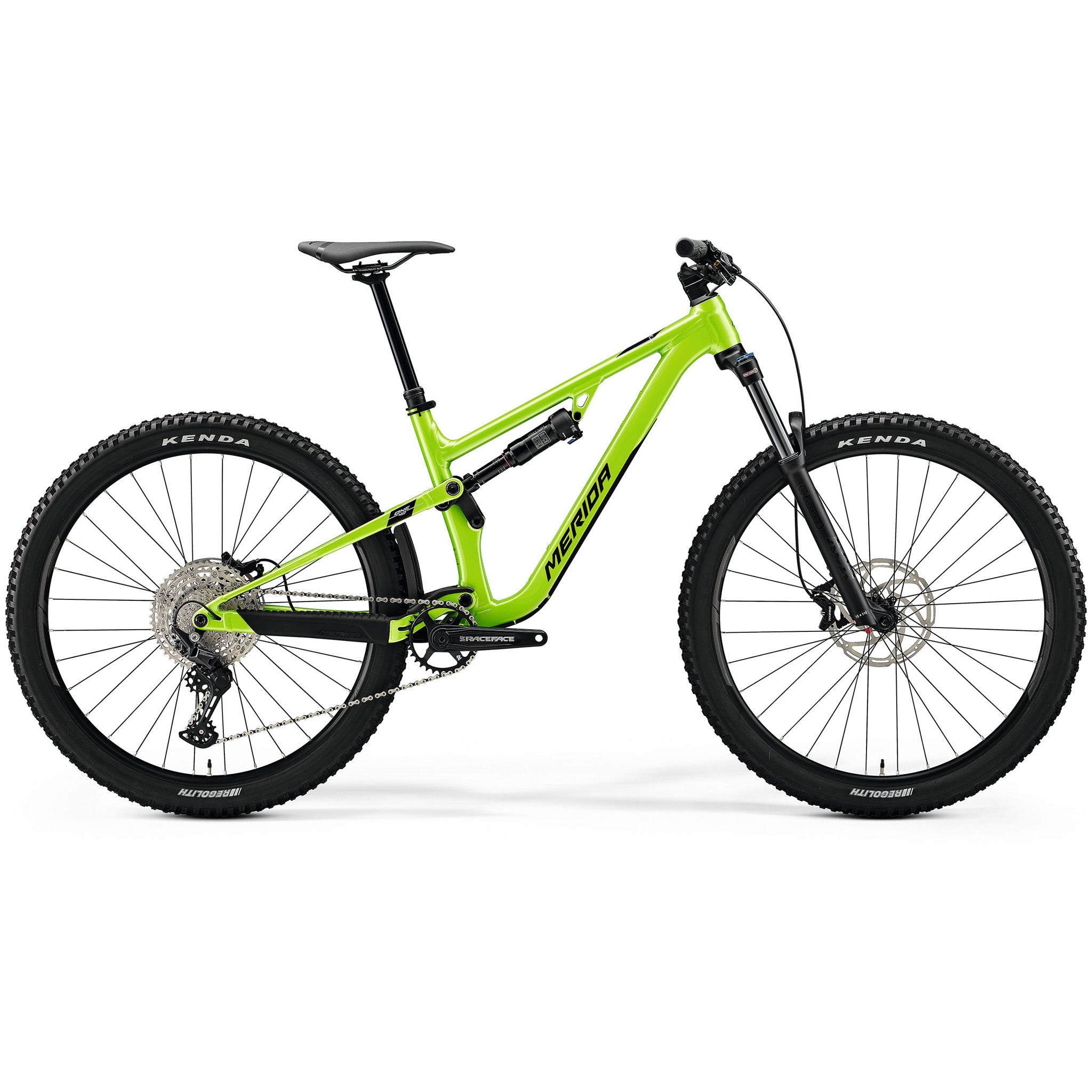

Merida One Forty 400 Trail Bike Green/Black
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Full aluminium frame with FAST kinematic suspension and AGILOMETER sizing
- Radical new trail geometry with full 29er wheels
- SR Suntour and RockShox suspension, 150 mm front, 143 mm rear
- Wide-range Shimano 11-speed drivetrain
- 200 mm dropper post on XL/L/M, 150 mm on S, 125 mm on XS
- Powerful 4-piston hydraulic disc brakes
| Axles: | MERIDA COMP TR, including removable lever, 6 allen key |
|---|---|
| Bottom bracket: | Race Face BSA 68/73 – 24mm |
| Brakes: | TEKTRO HD-M745, 4 piston |
| Cassette: | Shimano Deore M5100, 11-51T, 11-speed |
| Chain: | KMC X11 |
| Crankset: | Race Face Ride, 32T |
| Derailleur rear: | Shimano Deore M5100 Shadow+ |
| Fork: | Suntour XCR34 LOR DS, Air, 140mm, Tapered, 51mm fork offset, 29x2.4" Max Tyre Width |
| Frame: | ONE-FORTY LITE III, 143mm 29", Aluminium, 29x2.5" Max Tyre Width, 148x12, BSA Bottom Bracket |
| Freewheel: | Shimano Deore M5100 |
| Grip: | MERIDA COMP EC |
| Handlebar: | MERIDA TEAM TR, Aluminium, 780mm Wide, XS/S 18mm Rise, M/L/XL 30mm Rise |
| Headset: | MERIDA-8151 1-1/8"-1.5" cartridge bearing set |
| Hubs: | Front: Shimano MT400-B, 110x15, 32H, Centerlock, Rear: Shimano MT400-B, 148x12, 32H, Centerlock |
| Rim: | MERIDA COMP TR, 29mm Inner Width, Aluminium, Tubeless ready (tubeless tape and valves not included) |
| Rotor front: | Tektro TR203-35, 203 mm |
| Rotor rear: | Tektro TR203-35, 203 mm |
| Saddle: | MERIDA COMP SL, V-mount |
| Season: | 2022 |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA EXPERT TR II, 34.9mm, 0° Setback, XS: 125 SPT - S: 150 SPT - M/L/XL: 200 SPT |
| Shock: | Rock Shox Deluxe Select+, lockout |
| Spokes: | Black stainless |
| Tyres: | Kenda Regolith, 29x2.4", wire |
| Weight: | 16.88 kg |
| Wheel size: | 29" |
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 470 |
| TT top tube [mm] | 532 | 559 | 586 | 618 | 649 |
| CS chain stay length [mm] | 437.5 | 437.5 | 437.5 | 437.5 | 437.5 |
| HTA head tube angle [°] | 65 | 65 | 65 | 65 | 65 |
| STA seat tube angle [°] | 80 | 80 | 80 | 80 | 80 |
| BD bottom bracked drop [mm] | 35 | 35 | 35 | 35 | 35 |
| HT head tube [mm] | 95 | 95 | 95 | 105 | 120 |
| FL fork length [mm] | 557 | 557 | 557 | 557 | 557 |
| R reach [mm] | 426 | 453 | 480 | 509 | 535 |
| S stack [mm] | 607 | 607 | 607 | 616 | 629 |
| WB wheel base [mm] | 1177 | 1204 | 1232 | 1265 | 1298 |
| SH stand over height [mm] | 730 | 735 | 738 | 735 | 730 |
Merida Big Trail Sizing Chart
Merida Bikes Warranties
Lifetime warranty on all frames
Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.
Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase
Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase
All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.
The Merida Warranty Excludes:
Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components
Branded Components
Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.
In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.
If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
