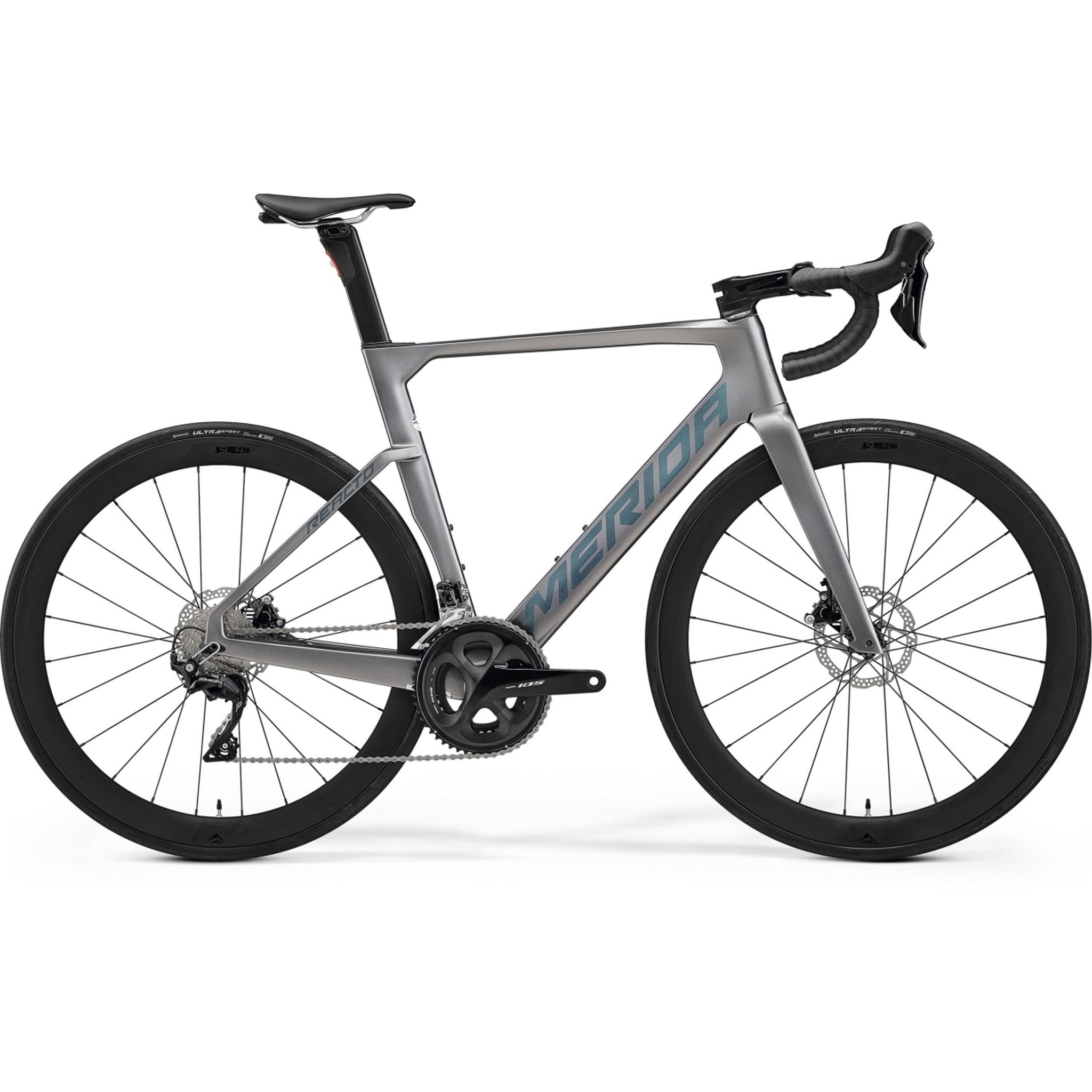

Merida Reacto Limited Aero Road Race Bike Gunmetal Grey/Blue
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Lightweight CF3 carbon aero frame and fork
- Shimano 105 2x11-speed groupset
- FSA ACR SMR stem/MERIDA EXPERT CW handlebar combination
- MERIDA TEAM SL45 carbon wheelset
- MERIDA S-FLEX carbon aero post with integrated rear light
- DISC COOLER technology and WIRE PORT cable integration
| Axles: | FRONT: MERIDA EXPERT SL / REAR: MERIDA EXPERT SL, including removable lever, 6/4mm allen key |
|---|---|
| Bottom bracket: | SM-BB71-41B, Pressfit 86.5 |
| Brakes: | Shimano 105, Hydraulic disc |
| Chain: | KMC X11 |
| Crankset: | Shimano 105, 52-36T 165 mm-XXS/XS, 170 mm-S, 172.5 mm-M, 175 mm-L/XL |
| Derailleur rear: | Shimano 105, GS |
| Fork: | REACTO CF3 IV DISC, MAT Carbon, 700x30C Max Tyre Width |
| Frame: | REACTO CF3 IV, MAT Carbon, 700x30C Max Tyre Width, 100x12/142x12, BB86,5 Bottom Bracket |
| Freewheel: | CASSETTE: Shimano CS-R7000, 11-30T, 11-speed |
| Grip: | MERIDA ROAD Expert |
| Handlebar: | MERIDA EXPERT CW, Aluminium, 380mm (XXS), 400mm (XS-S), 420mm (M), 440 (L-XL) |
| Handlebar stem: | FSA SMR ACR, Aluminium, -6° Rise 90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL |
| Headset: | FSA ACR |
| Rim: | MERIDA TEAM SL45, 100x12, 142x12, 19mm Inner Width, 45mm Rim Height, Centerlock, Aluminium |
| Rotor front: | Shimano RT54, 160mm |
| Rotor rear: | Shimano RT54, 160mm |
| Saddle: | MERIDA EXPERT SL, V-mount, incl. MERIDA minitool |
| Season: | 2022 |
| Seat clamp: | MERIDA REACTO Aero |
| Seat post: | MERIDA Team CW, Aero shape, 15° Setback, Carbon |
| Tyre front: | Continental Ultra Sport III, 700x25C, fold |
| Tyre rear: | Continental Ultra Sport III, 700x25C, fold |
| Weight: | Frame weight: 1.15kg (size M) / Max Rider Weight: 120kg |
| Wheel size: | 700c |
| Frame Size | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" |
| seat tube [mm] | 470 | 500 | 520 | 540 | 560 | 590 |
| top tube [mm] | 520 | 536 | 545 | 560 | 575 | 590 |
| chain stay length [mm] | 408 | 408 | 408 | 408 | 408 | 408 |
| head tube angle [°] | 70.5 | 72 | 72.5 | 73.5 | 73.5 | 74 |
| seat tube angle [°] | 74.5 | 74 | 74 | 73.5 | 73 | 73 |
| bottom bracked drop [mm] | 70 | 70 | 66 | 66 | 66 | 66 |
| head tube [mm] | 105 | 112 | 128 | 140 | 155 | 176 |
| fork length [mm] | 385 | 385 | 385 | 385 | 385 | 385 |
| reach [mm] | 377 | 384 | 390 | 395 | 400 | 409 |
| stack [mm] | 517 | 529 | 542 | 557 | 571 | 593 |
| wheel base [mm] | 985 | 983 | 990 | 990 | 999 | 1010 |
| stand over height [mm] | 746 | 771 | 792 | 810 | 826 | 853 |
Merida Reacto Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
