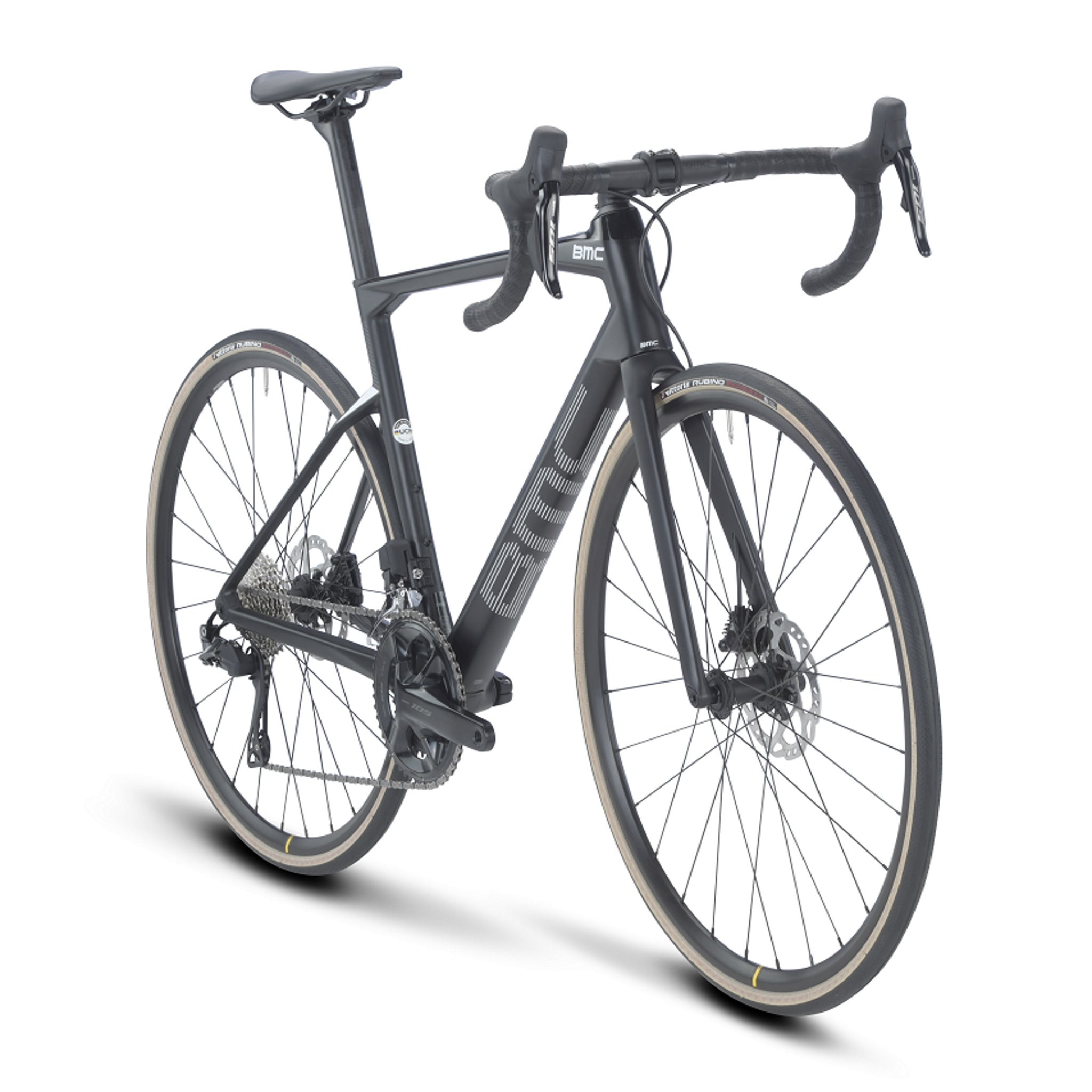

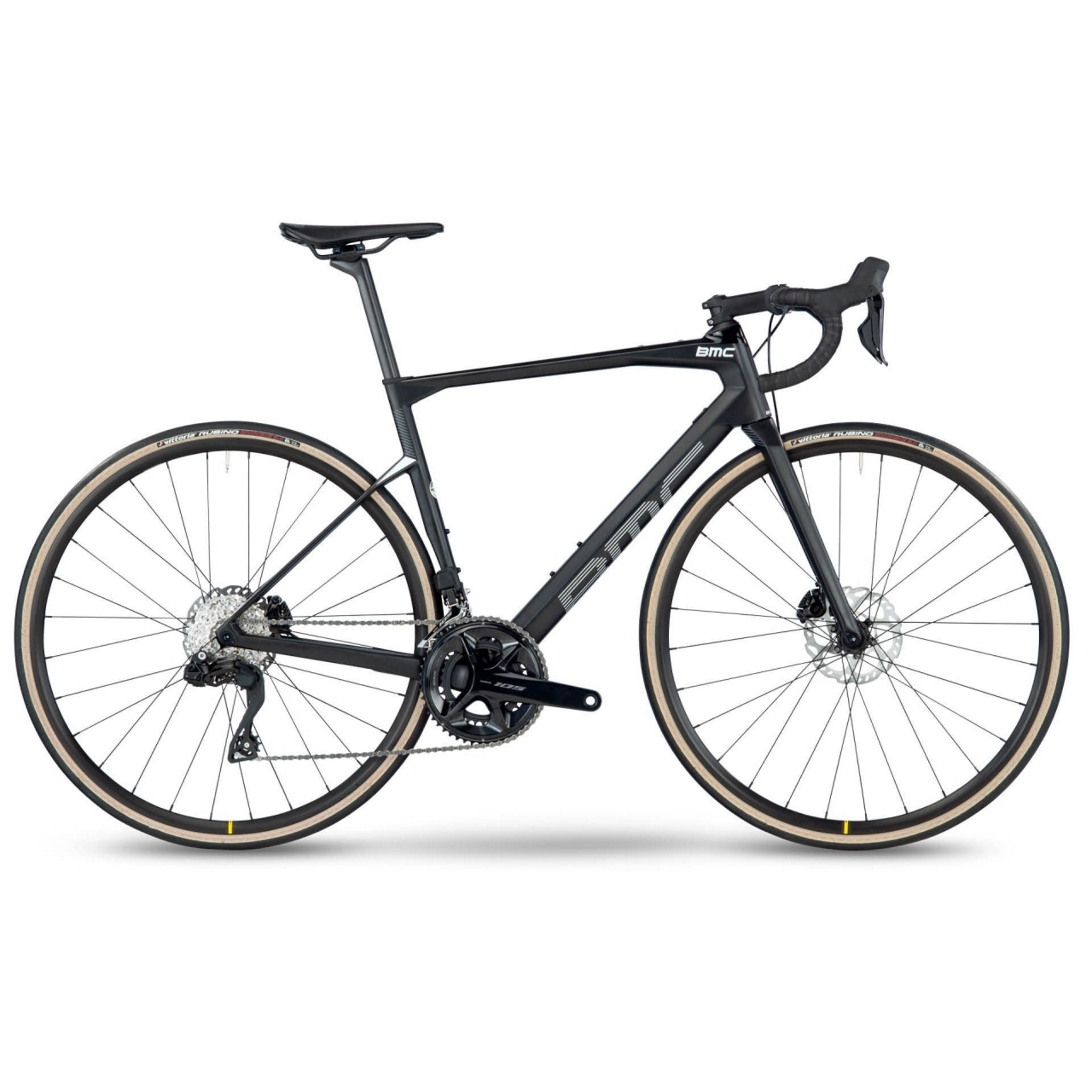

- Premium Swiss engineered BMC Carbon Frame and Fork
- Endurance Tuned Compliance Concept (TCC)
- D-Shaped Carbon seatpost, integrated seat clamp
- Shimano 105 Di2 2 x 12-speed groupset
- Shimano 105 hydraulic disc brakes
- Mavic Open Disc tubeless ready wheelset
- Vittoria Rubino 28mm tyres, clearance up to 33mm
Brakes: | SHIMANO 105 - SM-RT70 Rotors (160/140) |
---|---|
Chain: | SHIMANO 105 12spd |
Chainwheel: | SHIMANO 105 R7100 50-34T |
Derailleur rear: | SHIMANO 105 Di2 |
Fork: | Roadmachine Premium Carbon with Tuned Compliance Concept Endurance Internal Cable Routing Flat Mount Disc 12x100mm Thru-Axle |
Frame: | Roadmachine Premium Carbon with Tuned Compliance Concept Endurance Internal Cable Routing PF86 Bottom Bracket Flat Mount Disc 12x142mm Thru-Axle |
Freewheel: | SHIMANO 105 R7100 11-34T Cassette |
Handlebar: | BMC RAB 03 - Ergo Top Shape - Compact Bend |
Handlebar stem: | BMC RSM01 |
Hubs: | CL-712 (F)/RXC-1425 (R) - Thru Axle |
Rim: | Mavic Open Disc |
Saddle: | Fizik Antares R7 |
Season: | 2023 |
Seat post: | Roadmachine Premium Carbon D-Shaped Seatpost 15mm Offset |
Tyre front: | VITTORIA RUBINO - 28mm / Clearance up to 33mm (Measured Width) |
Tyre rear: | VITTORIA RUBINO - 28mm / Clearance up to 33mm (Measured Width) |
Weight: | Weight Limit: 110kg |
Wheel size: | 700c |
Size | 47 | 51 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
Rider Height CM | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
Stack MM | 516 | 541 | 562 | 586 | 610 | 644 |
Reach MM | 374 | 382 | 386 | 390 | 394 | 398 |
Seat Tube MM | 420 | 457 | 500 | 522 | 539 | 573 |
Top Tube MM | 522 | 532 | 546 | 556 | 568 | 583 |
Head Tube MM | 112 | 139 | 156 | 181 | 206 | 242 |
Seat Tube Angle | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
Head Angle | 71.2 | 71.2 | 72.0 | 72.0 | 72.0 | 72.0 |
Rear Center MM | 410 | 410 | 410 | 410 | 410 | 410 |
Front Center MM | 583 | 599 | 597 | 609 | 621 | 635 |
Wheelbase MM | 982 | 999 | 997 | 1008 | 1020 | 1035 |
BB Drop MM | 71 | 71 | 71 | 71 | 71 | 71 |
Fork Length MM | 375 | 375 | 375 | 375 | 375 | 375 |
Fork Rake MM | 50 | 50 | 45 | 45 | 45 | 45 |
Trail MM | 63 | 63 | 63 | 63 | 63 | 63 |
Crank Length MM | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
Stem Length MM | 90 | 90 | 100 | 110 | 110 | 120 |
Stem Angle | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 |
Bar Width MM | 400 | 420 | 420 | 420 | 420 | 440 |
Bar Drop MM | 125 | 125 | 125 | 125 | 125 | 125 |
Bar Reach MM | 70 | 70 | 70 | 70 | 70 | 70 |
Post Offset MM | 15 | 15 | 15 | 15 | 15 | 15 |
Standover Height MM | 719 | 750 | 782 | 805 | 825 | 859 |
Seatpost Length MM | 330 | 380 | 380 | 380 | 380 | 430 |
BMC Roadmachine Bike Sizing Chart
BMC Bikes Warranties
What are the key points in the warranty policy for BMC bikes?
BMC provides a voluntary warranty of three years on every frame, and two years on BMC components and paintwork (paintwork one year for bikes before 2014). By registering your new BMC bike on the Bike Registration page, you can extend the warranty on the frame to five years.
Is there a warranty on used BMC bikes?
The warranty begins with the purchase of a new BMC bike and continues in effect, if the bike is sold on. However, you must be able to provide the original receipt in order to file a warranty claim.
Does the warranty cover racing?
The warranty covers racing. Damage caused by crashes, external influences, or inappropriate use is however excluded from the warranty.
How do I register a warranty claim?
If you purchased our product from a retailer, please get in touch with them and they will handle the warranty process for you.
Where can I find the BMC serial number?
The serial number (also known as frame number) can be found in front of or below the bottom bracket. On model year 2014 bicycles or newer, it is printed at the bottom of the QR code.
Manufacturer warranty
The buyer has rights to warranty claims subject to the following conditions.
The products are covered by the warranty
The warranty only covers BMC-made frames, rigid forks and components (hereinafter BMC products). The warranty only covers new BMC products that were purchased from a BMC retailer. All other parts and components are excluded from this warranty and are covered by the individual component manufacturers.
Warranty period
Frame: 3 years
Paint: 2 years (1 year for models before 2014)
Other BMC products: 2 years
Buyers of a bicycle from Model Year 2011 onwards have the option of registering their frames within 30 days after purchase with a BMC retailer on the BMC website, which will extend the warranty period for the frame from 3 to 5 years. The warranty period is not extended after repair/exchange of the frame.
Warranty exclusion
The following components/parts and situations are excluded from this warranty or lead to exclusion from this warranty:
Technical changes made to the bicycle without the approval of the manufacturer
Later alteration/additions involving incompatible or non-original parts
Wearing parts such as ball bearings, sliding bearings, bearing bolts, bearing screws, etc.
Non-BMC parts/components
Consequential damage
Repair of the problem by the BMC retailer is possible
Inappropriate use/transport
Missing warranty inspection within appropriate period
Inappropriate maintenance (Take note of the operating instructions!)
Damage due to missing or faulty adjustment or worn components
Consequences of a fall
Damage due to weather effects or normal wear
Damage due to unsuitable cleaning agents or additives,or tools such as high-pressure cleaners.
Commercial lending/hiring
Scope of the warranty service
BMC agrees in this warranty conditions to provide the following services within the respective warranty periods:
Repair or replacement with equivalent parts/components at the discretion of BMC, provided that the model and/or colour of the replacement may deviate from that of the replaced part;
Services that are not covered by the warranty and that are within the area of competence of the retailer as well as the cleaning of bicycles delivered in a dirty state are charged according to the usual hourly rates,material and transport costs;
A service provided under warranty (repair/replacement) does not extend the original warranty period.
No warranty claims exist in addition to those mentioned above.
Submitting warranty claims
Warranty claims are to be submitted to your BMC retailer in the form of a completed warranty application form, the copy of a warranty card or a purchasing receipt from your BMC retailer.
Your BMC retailer will report your warranty claim, incl.pictures of the defective parts and the frame number, to BMC who will decide on further procedures immediately after receipt of the warranty request. Parts that require inspection will be detached, cleaned and forwarded to BMC as required.
The BMC retailer will be provided with the products that have been repaired or replaced under warranty. The assembly and basic adjustment must be performed by the BMC retailer. All warranty claims can be rejected when this requirement is not met.
Intricate Swiss engineering is a given when you’re talking about BMC Switzerland. This premium approach to bikes goes back to 1994, when they began in Grenchen, Switzerland, where they are still housed today. With just 120 employees and three global offices, you could be surprised at the extent of their innovation. The in-house Impec Lab is the beating heart of BMC research and development thanks to some of the brightest minds in the industry keeping them at the cutting edge of design. After extensive development, BMC’s collection naturally becomes the choice of the world’s top athletes, who go on to win such races as the Tour de France, Team Time Trials, World Championships of various disciplines, and numerous Ironman Championships.
The sport of cycling is evolving at a breakneck speed – and BMC are at the front of the bunch, pushing the pace.
