Features

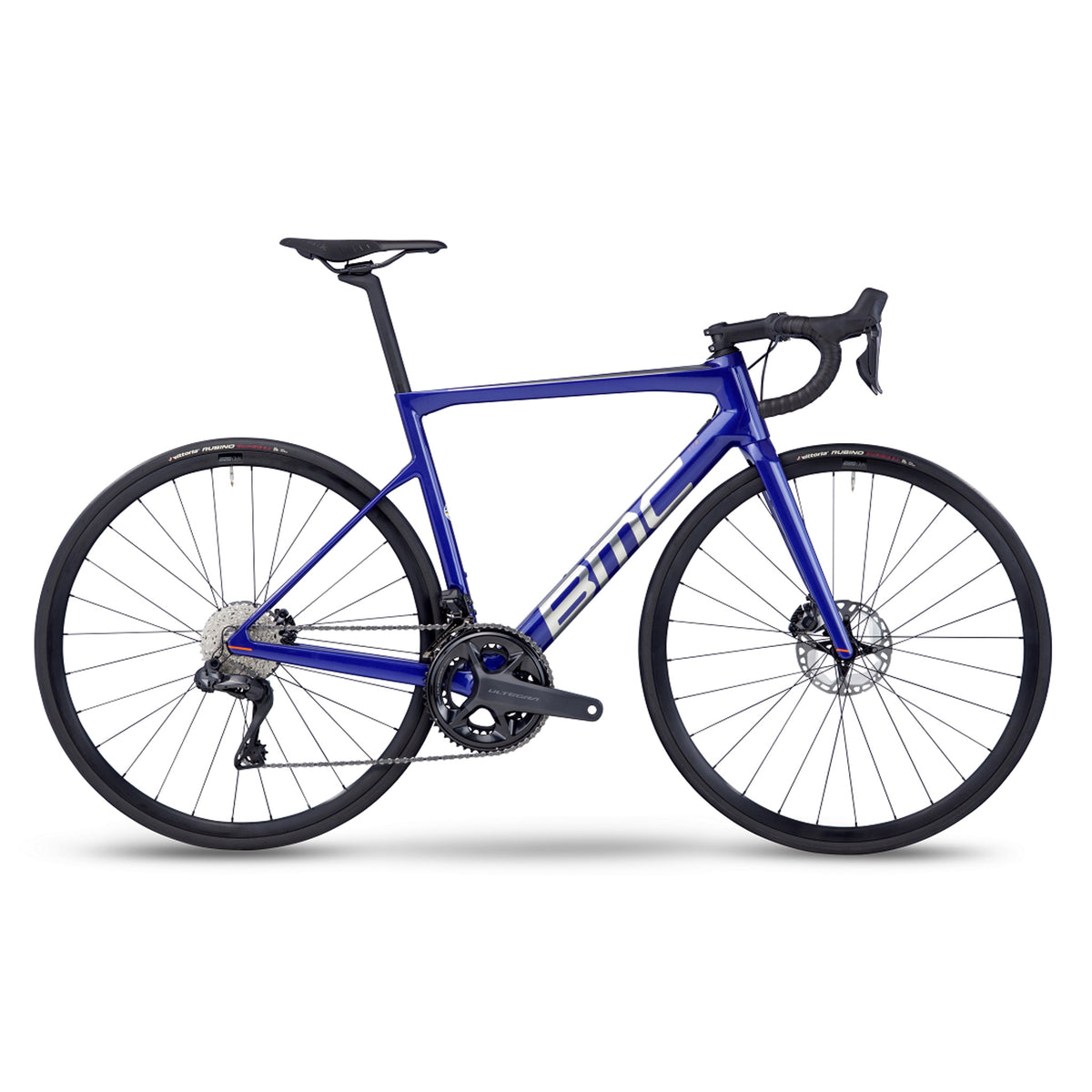

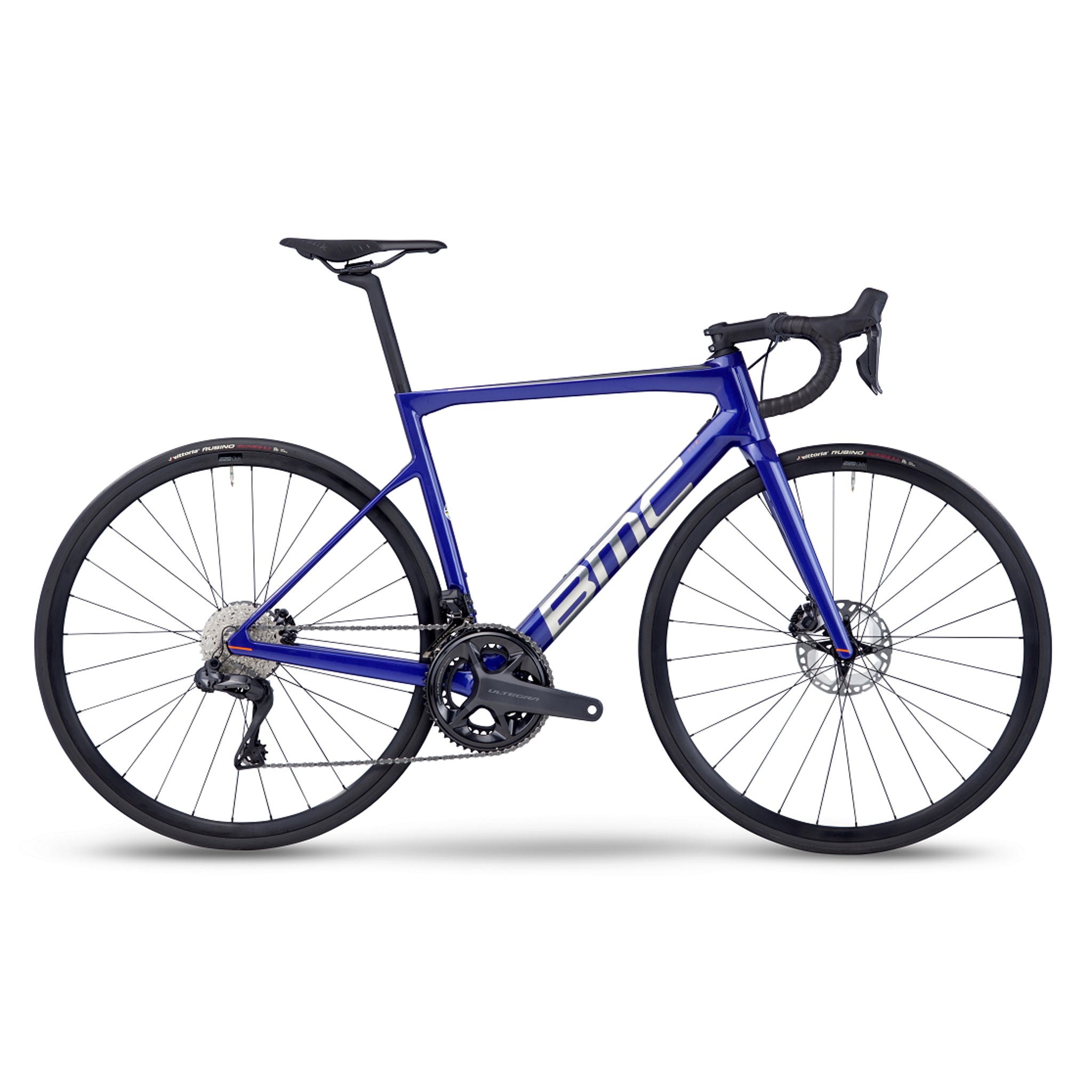

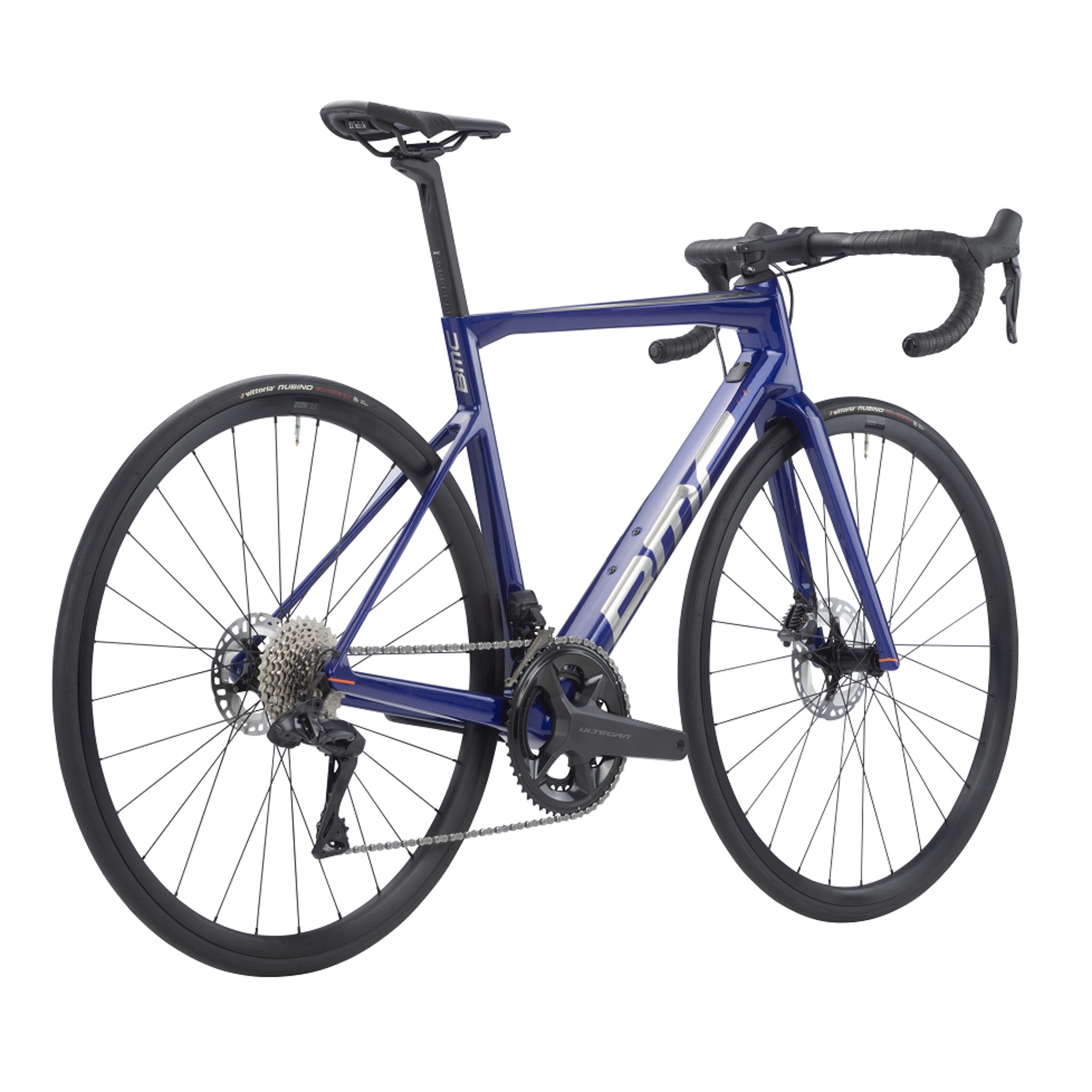

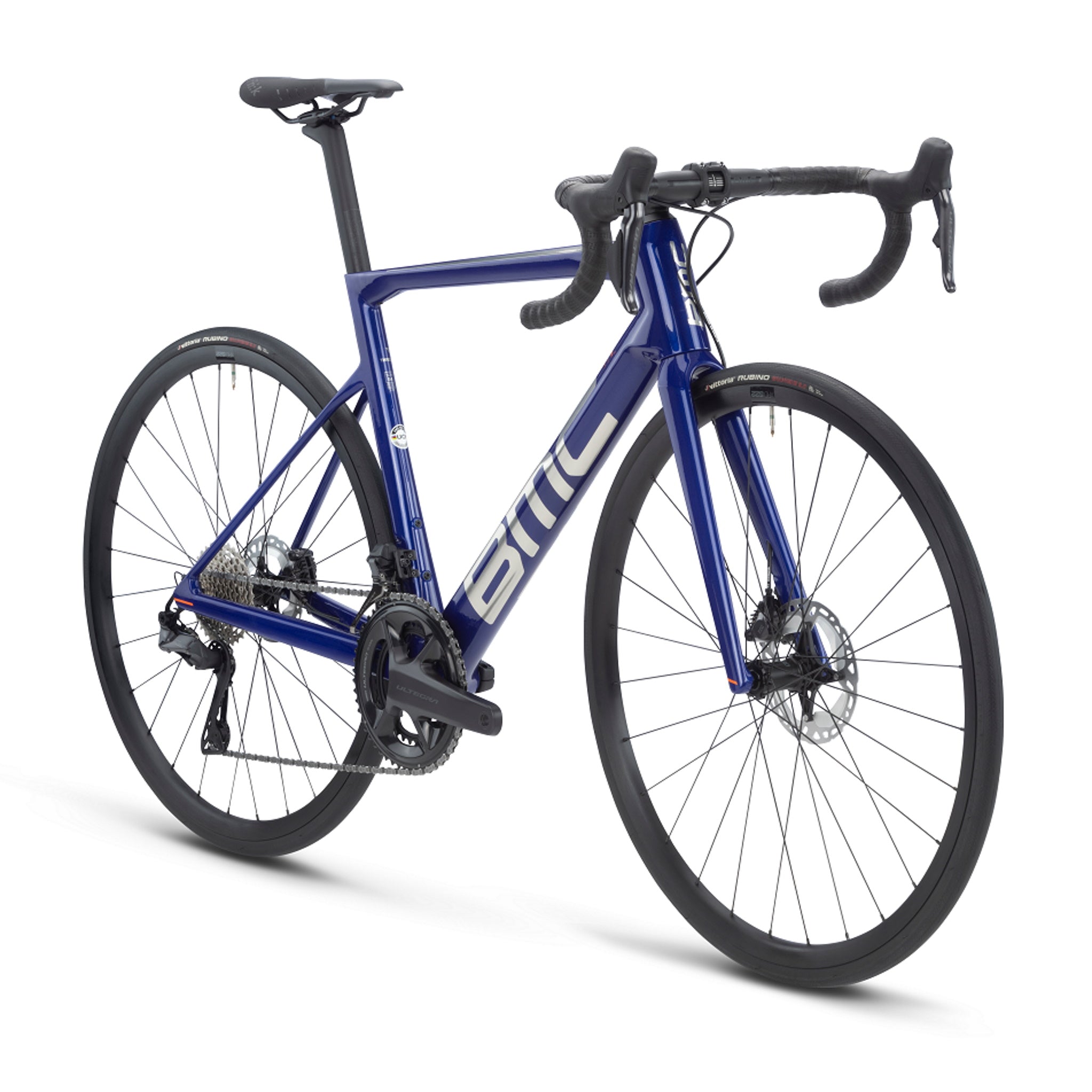

BMC Teammachine SLR Three Blue/Brushed Alloy/Orange
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Accelerated composites evolution technology+ (ACE+)
- Integrated Cockpit System (ICS)
- Tuned Compliance Concept technology (TCC)
- Aerocore Fork Design, Stealth Dropout, TCC Race Compliance Level
- D-shaped seat post for aerodynamics and improved compliance
- Shimano Ultegra Di2 2x12 speed Drivetrain
- BMC XRD-522 Wheelset, Vittoria Rubino 25mm tyres
| Brakes: | SHIMANO Ultegra - RT-MT800 Rotors (160/140) |
|---|---|
| Chain: | SHIMANO Ultegra 12spd |
| Crankset: | SHIMANO Ultegra 12spd 52-36T |
| Derailleur rear: | SHIMANO Ultegra Di2 12spd |
| Fork: | Teammachine SLR Carbon, TCC Race Compliance Level, Internal Cable Routing, Flat Mount Disc, Stealth Dropout Design, 12x100mm Thru-Axle |
| Frame: | Teammachine SLR Carbon with Aerocore Design, PF86 Bottom Bracket, Flat Mount Disc, 12x142mm Thru-Axle |
| Freewheel: | SHIMANO Ultegra 12spd 11-34T Cassette |
| Handlebar: | BMC RAB 02 - Ergo Top Shape - Compact Bend |
| Handlebar stem: | BMC RSM01 |
| Hubs: | XRD-522 |
| Rim: | XRD-522 - Tubeless Ready - 25 mm |
| Saddle: | Fizik Antares R7 |
| Season: | 2023 |
| Seat post: | Teammachine SLR Carbon D-Shaped Seatpost, 15mm Offset |
| Tyre front: | Vittoria Rubino - 25mm |
| Tyre rear: | Vittoria Rubino - 25mm |
| Weight: | Weight Limit: 110kg |
| Wheel size: | 700c |
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height CM | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Stack MM | 506 | 530 | 550 | 565 | 584 | 608 |
| Reach MM | 367 | 377 | 386 | 392 | 401 | 409 |
| Seat Tube MM | 423 | 468 | 504 | 524 | 545 | 574 |
| Top Tube MM | 517 | 534 | 549 | 559 | 574 | 589 |
| Head Tube MM | 110 | 130 | 145 | 165 | 184 | 210 |
| Seat Tube Angle | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Head Angle | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
| Rear Center MM | 410 | 410 | 410 | 410 | 410 | 410 |
| Front Center MM | 568 | 586 | 589 | 599 | 614 | 630 |
| Wheelbase MM | 968 | 986 | 989 | 1000 | 1015 | 1030 |
| BB Drop MM | 69 | 69 | 69 | 69 | 69 | 69 |
| Fork Length MM | 368 | 368 | 368 | 368 | 368 | 368 |
| Fork Rake MM | 48 | 48 | 43 | 43 | 43 | 43 |
| Trail MM | 63 | 63 | 63 | 63 | 63 | 63 |
| Crank Length MM | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Stem Length MM | 90 | 90 | 100 | 110 | 110 | 120 |
| Stem Angle | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 |
| Bar Width MM | 400 | 420 | 420 | 420 | 420 | 440 |
| Bar Drop MM | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach MM | 70 | 70 | 70 | 70 | 70 | 70 |
| Post Offset MM | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height MM | 717 | 752 | 779 | 797 | 817 | 843 |
| Seatpost Length MM | 330 | 380 | 380 | 380 | 380 | 380 |
BMC Teammachine Bike Sizing Chart
Intricate Swiss engineering is a given when you’re talking about BMC Switzerland. This premium approach to bikes goes back to 1994, when they began in Grenchen, Switzerland, where they are still housed today. With just 120 employees and three global offices, you could be surprised at the extent of their innovation. The in-house Impec Lab is the beating heart of BMC research and development thanks to some of the brightest minds in the industry keeping them at the cutting edge of design. After extensive development, BMC’s collection naturally becomes the choice of the world’s top athletes, who go on to win such races as the Tour de France, Team Time Trials, World Championships of various disciplines, and numerous Ironman Championships.
The sport of cycling is evolving at a breakneck speed – and BMC are at the front of the bunch, pushing the pace.
