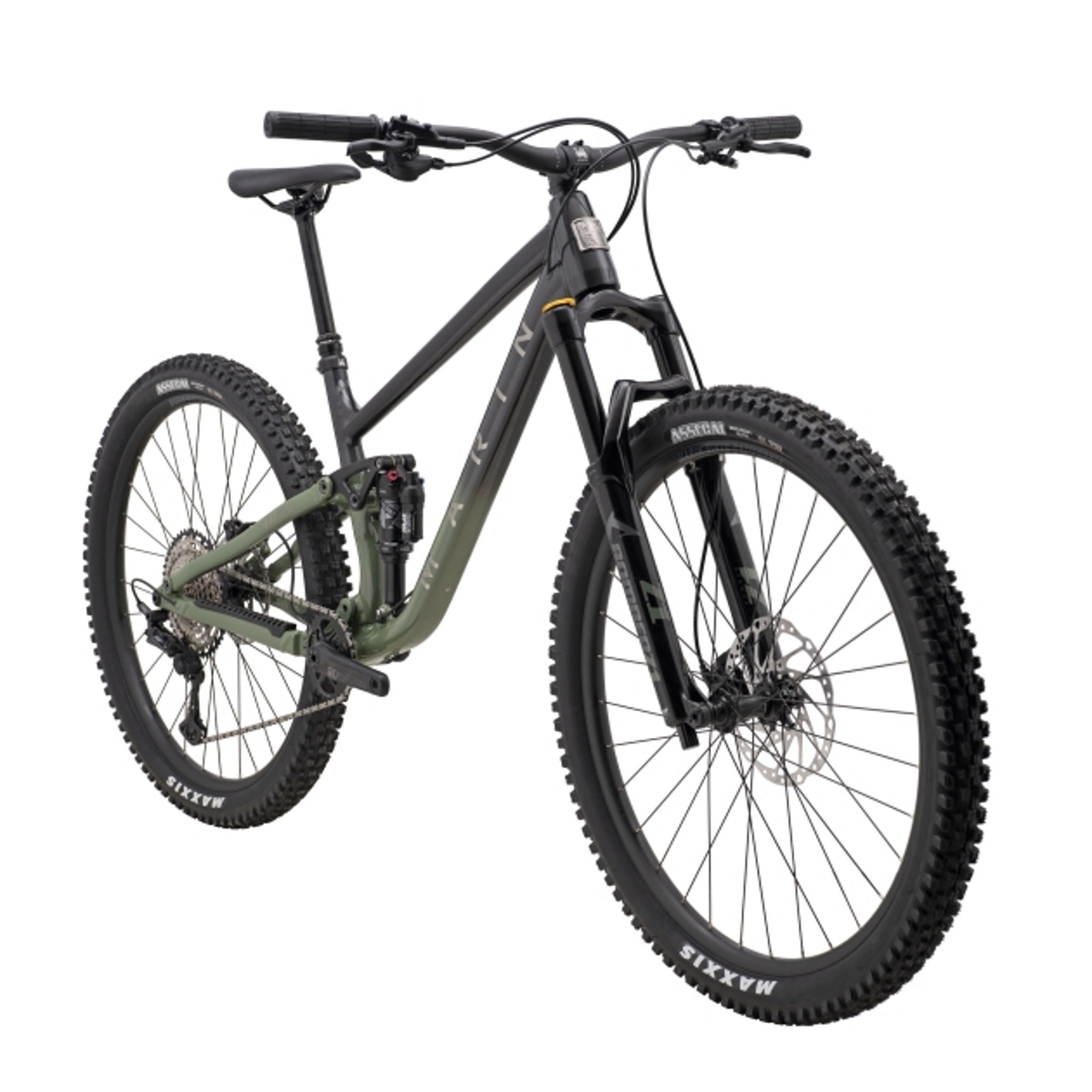

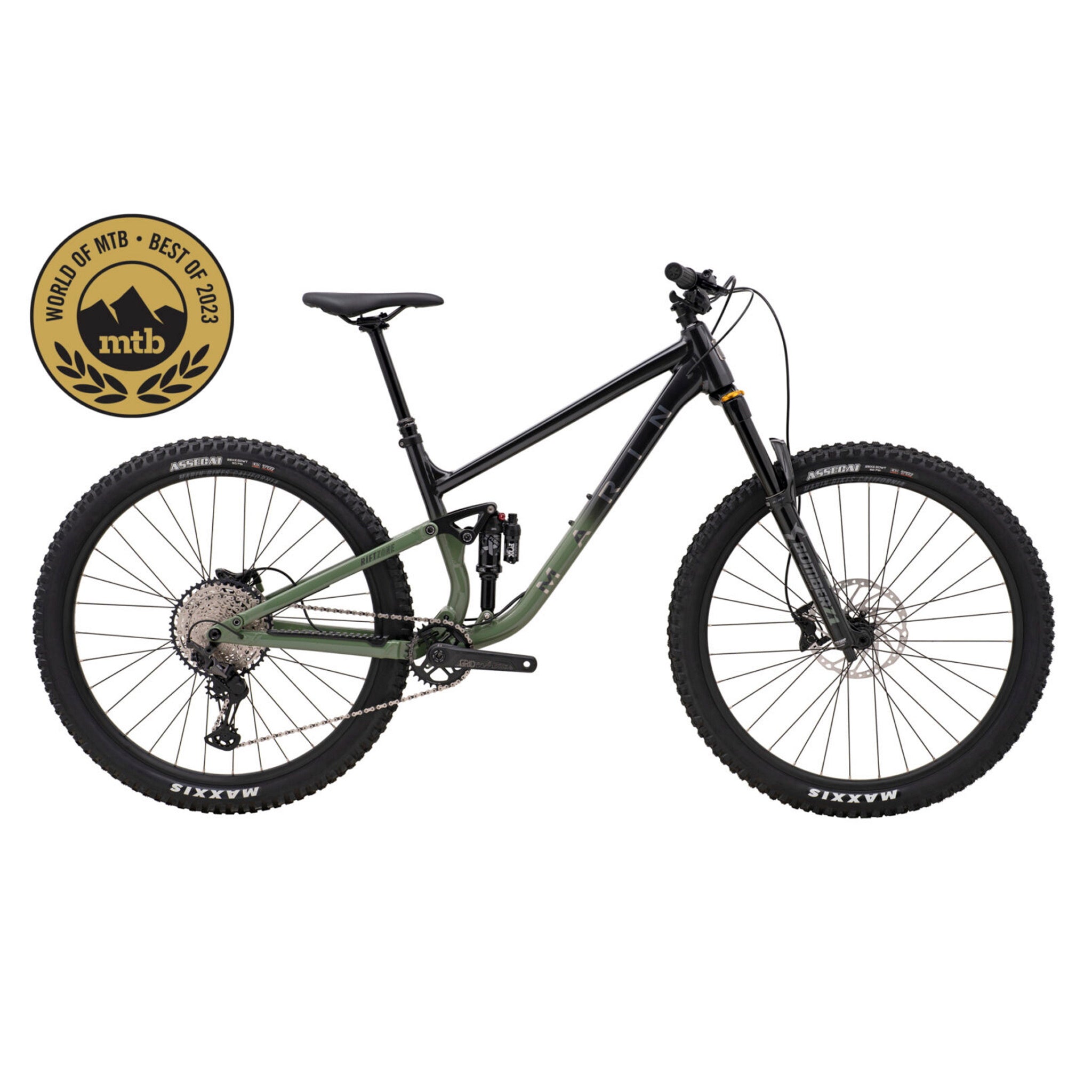

Marin Rift Zone XR Trail Bike Teal Black
Marin Rift Zone XR Trail Bike Teal Black
Marin Rift Zone XR Trail Bike Teal Black
Marin Rift Zone XR Trail Bike Teal Black

Features

Brake type: Hydraulic disc brake
Cassette: 12 speed
Chainset type: Single
Fork brand: Marzocchi
Frame material: Alloy
Front travel: 140mm
Gender: Unisex
Groupset: Shimano xt slx
Wheel size: 29 27 5 varies by frame size

Marin Rift Zone XR Trail Bike Teal Black

$3,749
?

You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

$4,999
Buy now, pay later
25% OFF FULL PRICE
SKU: JW9SNSKE Low stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • All New Series 3 6061 Aluminium Frame
  • Marin MultiTrac Suspension Platform
  • Marzocchi Bomber Z1 140mm Fork
  • Fox Float X, Performance Series 130mm Shock
  • Shimano mixed 1 x 12 Speed Drivetrain
  • Shimano BR-MT420, 4-Piston Hydraulic Disc Brakes
  • TranzX Remote Lever Dropper Post
  • Maxxis Assegai 2.5” tyres, wheel size depends on frame size
Marin’s ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics to local shred laps to big mountain adventures. The XR in the Marin Rift Zone XR model means Extra Rad. This hard-charging special edition is made for riders that want the raddest, baddest Rifty in the alloy frame division. With an all-new Series 3 6061 Aluminum frame with slick internal cable routing, 29” wheels (27.5” on size small), and Marin’s acclaimed MultiTrac suspension system, which is fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedalling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a longer travel on large drops. Rounding off the build is a Marzocchi Bomber Z1 fork, Fox Float X shock, Maxxis Assegai tires, X-Fusion Manic dropper, burly Shimano 4 piston brakes and loads of Marin fine details.
Axles: Bolt-On Thru-Axle
Bottom bracket: Mego EXO 73mm BSA
Brakes: Shimano BR-MT420, 4-Piston Hydraulic Disc, Metallic Pads
Cassette: Sunrace 12-Speed, 10-51T
Chain: KMC X-12 Silver and Black
Crankset: FSA Grid, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
Derailleur rear: Shimano XT, 12-Speed, SGS
Fork: Marzocchi Bomber Z1 27.5", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 37mm Offset
Frame: All New Series 3 6061 Aluminum Frame, 27.5” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Freewheel: Sunrace 12-Speed, 10-51T Cassette
Grip: Marin Grizzly, Lock On
Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Handlebar stem: Marin 3D Forged Alloy, 35mm
Headset: FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Hubs: FRONT: Marin 110x15mm, Centerlock / REAR: Marin 148x12mm, Centerlock, HG Freehub
Rim: Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
Rotor front: 203mm Rotor
Rotor rear: 180mm Rotor
Saddle: Marin Speed Concept
Season: 2023
Seat post: TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
Shifters: Shimano Deore, 12-Speed, SL-7100R, I-Spec EV
Shock: Fox Float X, Performance Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom
Spokes: 14g Black Stainless Steel
Tyre front: Maxxis Assegai, 2.5", MAXX TERAA, EXO, Tubeless Compatible
Tyre rear: Maxxis Assegai, 2.5", MAXX TERAA, EXO, Tubeless Compatible
Wheel size: 29" / 27.5" (Varies by Frame Size)

SMLXL
Stack623.6628.2637.3641.8
Reach435460485515
Headtube Angle65.5°65.5°65.5°65.5°
Headtube Length110115125130
Seattube Angle77°77°77°77°
Seattube Length390400425430
Toptube Effective579605632.1663.2
BB Height343343343343
BB Drop35353535
Chainstay430430430430
Wheelbase11701205.11234.41266.3
Standover Height690.2691.2701.7700.5
Fork Offset44444444
Seatpost Diameter30.930.930.930.9
Handlebar Width780780780780
Stem Length35353535
Crank Length170170170170

All lengths in millimeters

Marin Rift Zone Bike Sizing Chart

Marin Rift Zone Bike Sizing Chart

Marin Bikes are Made For Fun. Since the first mountain bikes bearing the Marin name debuted in 1986, the brand has been dedicated to enriching the lives of riders by making fun, high caliber bicycles, which provide years of riding enjoyment. They operate their business based on hard work, fueled by passion, and fulfilled by the satisfaction of bringing the joy of cycling to riders across the world.


View Marin range

Click & Collect Available

• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »

No Courier Delivery

• This item is unavailable to be shipped with a courier More info »

For just $5, you can join Club 99 and you’ll gain access to exclusive benefits that will ensure you make the most of your bike purchase both in store and online. The ride starts with Club 99.

Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
