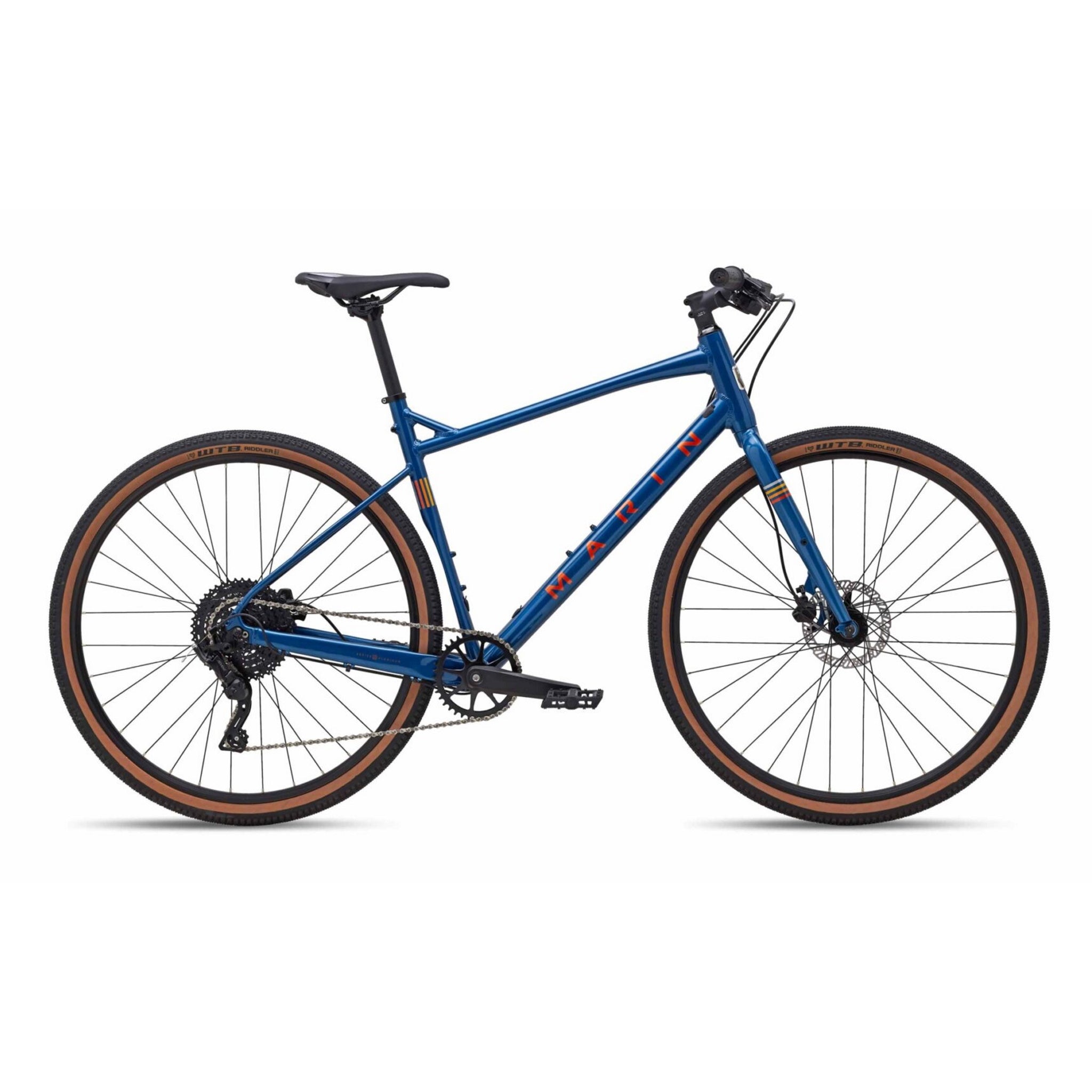

Marin DSX Gravel/Beyond Road Bike Blue
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Series 2 aluminum frame with internal cable routing
- Rack and fender eyelets for mounting accessories
- Marin 6061 aluminum fork, flat-mount disc
- microSHIFT 9-Speed drivetrain
- Clark’s hydraulic brakes
- WTB Riddler 700c x 45mm tires
- Internal dropper post routing ready
The Marin DSX is everything you want from a modern, flat-bar gravel bike. Zippy aluminum frame, compliant fork, heaps of tire clearance, low standover, dropper post compatibility and a whole load of options for bags and fenders. Taking inspiration from the Gestalt X drop bar line, Marin made the DSX to feel like an MTB but still cut it on all of those adventures that would normally demand curly bars. Perfect for racking up road miles, daily grinds to work, multi-day epics and flowy singletrack, the DSX is the perfect modern gravel bike for riders that prefer their bars flat.
The most affordable member of the family, the Marin DSX feels high-end, but doesn’t blow your adventure budget. It has a Series 2 6061 aluminum frame with internal cable routing, and rack and fender eyelets. The matching 6061 aluminum fork is also packed with mounting points for bikepacking gear. There’s also a 1 x 9-speed microSHIFT drivetrain, WTB Riddler 700c x 45mm tires with clearance up to 29” x 2.1”. Clark’s hydraulic brakes with the latest flat mount disc brake standard ensure smooth, controlled stopping in all conditions with minimal maintenance. Dropper posts are quickly becoming standard fare for gravel racers and riders that spend significant time on rough surfaces, and the DSX features internal dropper post routing for easy upgrades.
| Bottom bracket: | Sealed Cartridge Bearings, Square Taper |
|---|---|
| Brakes: | Clark's Clout Hydraulic Disc |
| Cassette: | SunRace 9-Speed, 11-46T |
| Chain: | KMC X9 |
| Crankset: | Alloy Crank, Steel Narrow-Wide Chainring, 38T |
| Derailleur rear: | microSHIFT Advent 9, Clutch |
| Fork: | 6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets |
| Frame: | Series 2 DSX, 6061 Aluminum, Internal Cable Routing, Mudguard and Rack Mounts, IS Disc Mount |
| Grip: | Marin MTB |
| Handlebar: | Marin Mini Riser |
| Handlebar stem: | Marin 3D Forged Alloy |
| Headset: | FSA, Orbit CE No.8B |
| Hubs: | Forged Aluminum Alloy, Disc, 32H |
| Pedals: | Marin Oso OE Flat |
| Rim: | Marin Aluminum Double Wall, Disc Specific |
| Rotor front: | 160mm Rotor |
| Rotor rear: | 160mm Rotor |
| Saddle: | Marin DSX |
| Season: | 2024 |
| Seat post: | Marin Alloy |
| Spokes: | 14g Black Stainless Steel |
| Tyres: | WTB Riddler, 700Cx45mm |
| Wheel size: | 700c |
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 544.4 | 572.5 | 600.6 | 628.7 |
| Reach | 380 | 405 | 420 | 435 |
| Headtube Angle | 69.5° | 69.5° | 69.5° | 69.5° |
| Headtube Length | 120 | 150 | 180 | 210 |
| Seattube Angle | 74° | 74° | 74° | 74° |
| Seattube Length | 430 | 480 | 520 | 558 |
| Toptube Effective | 536.1 | 569.2 | 592.2 | 615.3 |
| BB Height | 279.5 | 279.5 | 279.5 | 279.5 |
| BB Drop | 80 | 80 | 80 | 80 |
| Chainstay | 425 | 425 | 425 | 425 |
| Wheelbase | 1024.42 | 1060 | 1085.4 | 1110.9 |
| Standover Height | 658.76 | 700.51 | 730.39 | 758.5 |
| Fork Offset | 50 | 50 | 50 | 50 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 640 | 680 | 680 | 680 |
| Stem Length | 70 | 70 | 70 | 70 |
| Crank Length | 170 | 175 | 175 | 175 |
All lengths in millimeters
Marin DSX 1 Bike Sizing Chart
