- Series 2 frame with a mixte step thru design for easy mounting and dismounting
- Full chromoly steel frame and fork have integrated mounting bosses
- Shimano Hydraulic Disc Brakes
- Shimano CUES 10-speed drivetrain
- Bosch Active Line Plus Drive Unit
- Bosch Power Pack 545Wh Battery
- Assist speeds up to 32 km/h
- Approx. range 40 - 150km, depending on terrain and assistance used
- Integrated bright LED lights
Adventure inspired, commute ready! The Larkspur E takes Marins modern icon and given it a boost. The Larkspur E is ideally suited to a wide range of cycling endeavours, from fire road cruising to neighbourhood exploring, errands, commuting, and beyond. It's an adventure bike, it's a gravel bike, it's a mountain bike, it’s one of Marins funnest bikes yet!
The Larkspur E's Bosch Active Line Plus drive unit offers a range of 40-150km, depending on rider weight, terrain, climate, and level of assistance used, and can recharge in about four hours. The top assisted speed is 32km/hr, and the different modes are selected via the controller with a clean integrated display next to the left grip. Shimano's CUES 10-speed drivetrain has a wide range and industry-leading durability when paired with center motors, while hydraulic disc brakes with large rotors help you effortlessly stop on the proverbial dime. And when you do come to a stop, push the lever for the dropper post to put both feet safely on the ground.
| Accessories: | Rear Kickstand |
|---|---|
| Battery: | Bosch Power Pack 545, 545Wh / Bosch EB12.110.016; 2A Charger |
| Brakes: | Shimano MT201 Hydraulic |
| Cassette: | Shimano CUES 10-Speed 11-48T |
| Chain: | KMC E11S |
| Crankset: | Forged Aluminum w/ 38T Steel Chairing |
| Derailleur rear: | Shimano CUES 10-Speed |

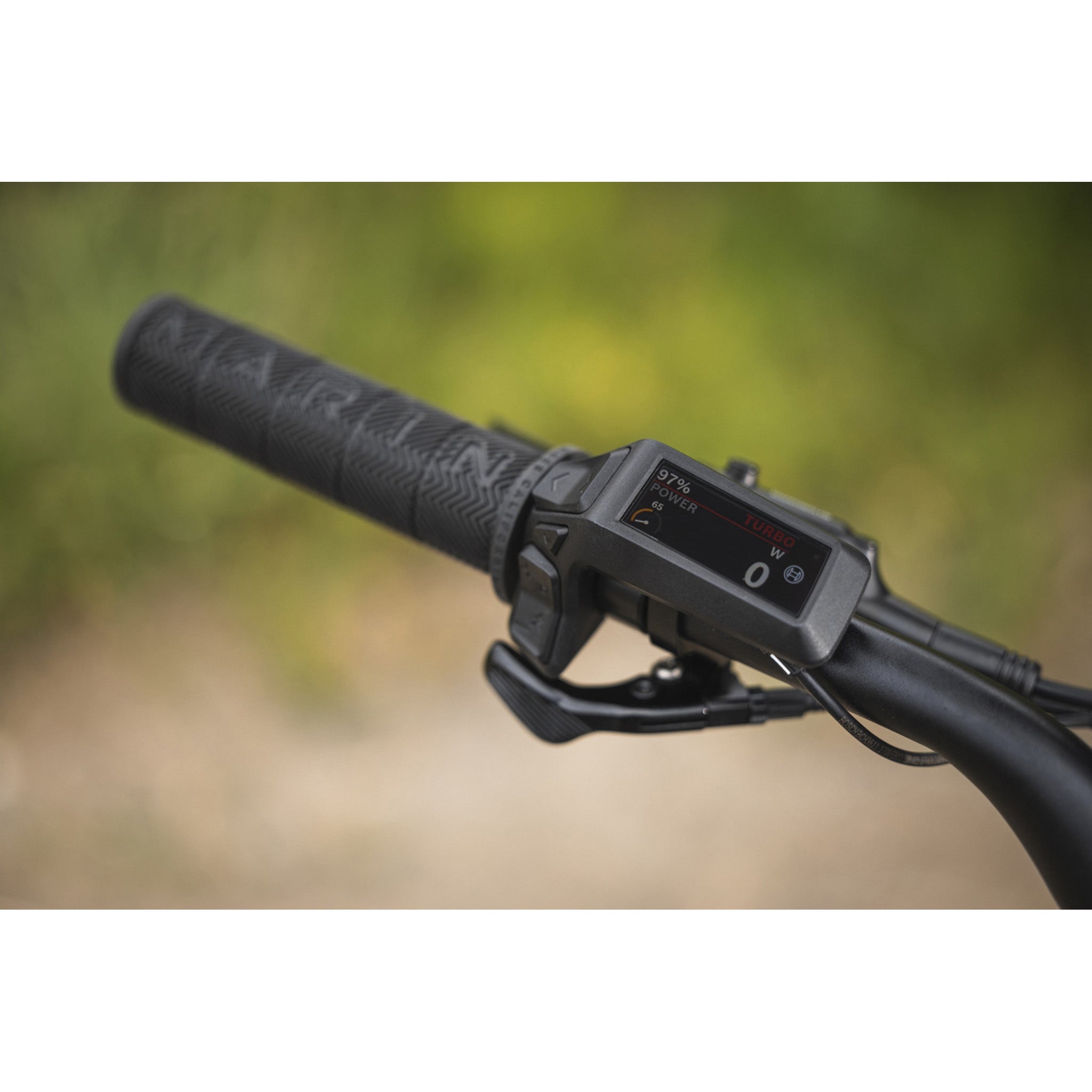

| Display: | Bosch Purion 200 Controller & LCD Display |
| Features: | 25-93 miles / 40-150km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 7.3 Hours (estimated, under ideal conditions) |
| Fork: | CrMo Steel, Curved Blade, Disc Specific, Fender and Rack Eyelets |
| Frame: | Series 2 Butted CrMo, 27.5 Wheels, Mixte Low-Step, Integrated Headset, Disc Brake, Kickstand Mount, Fender and Rack Mounts |
| Grip: | Marin County |
| Handlebar: | Marin Urban Alloy, 31.8mm Clamp |
| Handlebar stem: | Marin Alloy |
| Headset: | FSA Orbit CE No.8B |
| Hubs: | Forged Alloy, Disc Specific, 32H |

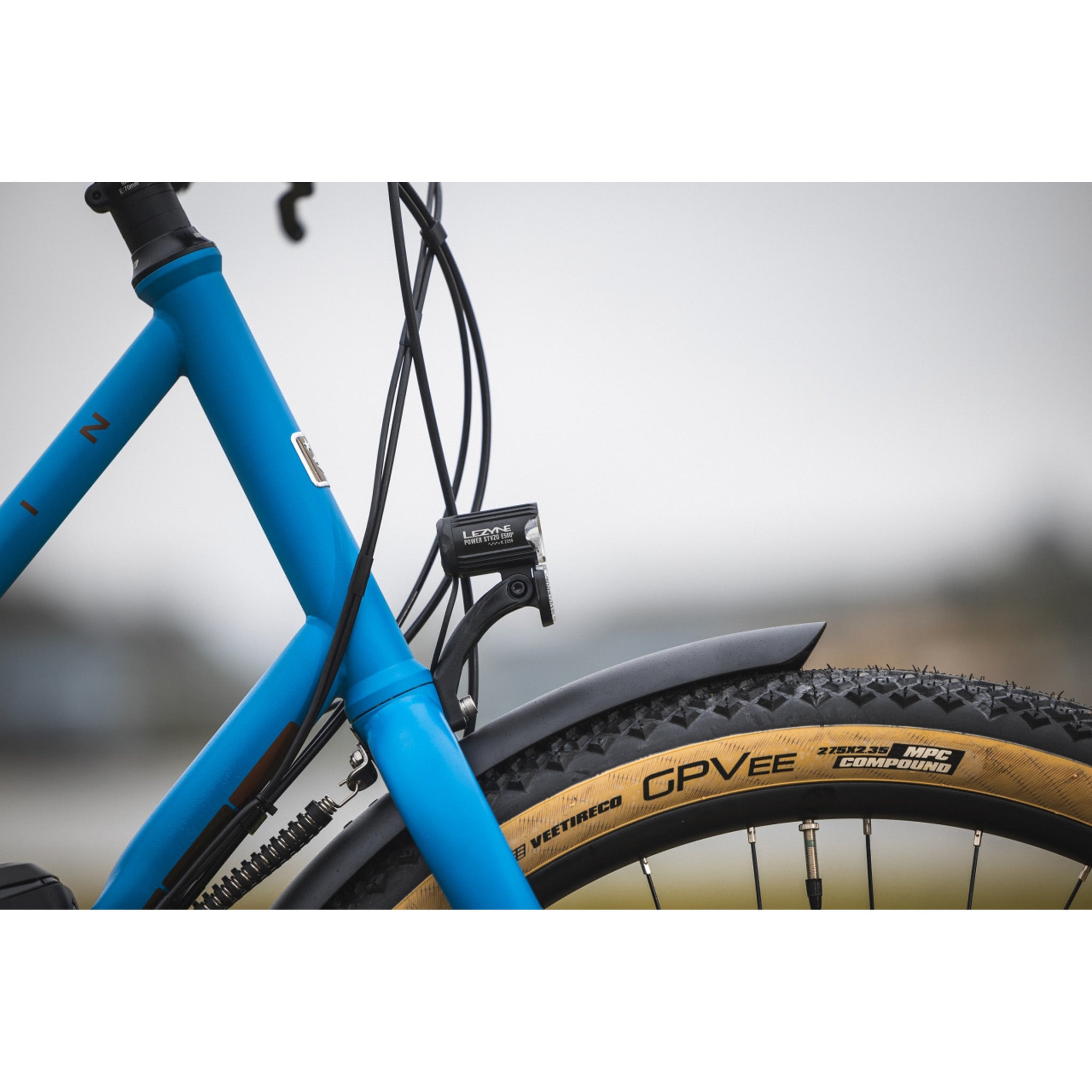

| Light(s): | Lezyne Power STVZO E500+ Headlamp, Lezyne Fender STVZO Taillamp |
| Motor drive unit: | Bosch Active Plus, 250W, 50Nm, Class 1 32km/hr |
| Pedals: | Nylon Platform |
| Rim: | Marin Aluminum Double Wall, Disc Specific |
| Rotor front: | 180mm Rotor |
| Rotor rear: | 180mm Rotor |
| Saddle: | Marin City Plush |
| Season: | 2024 |
| Seat post: | TranzX YSP38J, 1x Shimano I-Spec EV Remote, Size S 70mm, All Other Sizes 110mm Travel |
| Spokes: | 14g Black Stainless Steel |
| Tyres: | Vee Tire Co., GPVee, 27.5x2.35", Wire Bead, Puncture Protection, Mixed Terrain Ready |
| Wheel size: | 27.5" (650b) |
| S | M | L | |
|---|---|---|---|
| Stack | 639 | 649 | 658 |
| Reach | 390 | 410 | 430 |
| Headtube Angle | 67.5° | 67.5° | 67.5° |
| Headtube Length | 230 | 240 | 250 |
| Seattube Angle | 73.5° | 73.5° | 73.5° |
| Seattube Length | 390 | 450 | 500 |
| Toptube Effective | 579 | 602 | 625 |
| BB Height | 280 | 280 | 280 |
| BB Drop | 75 | 75 | 75 |
| Chainstay | 463 | 463 | 463 |
| Wheelbase | 1135 | 1159 | 1182 |
| Standover Height | 546 | 575 | 579 |
| Fork Offset | 50 | 50 | 50 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 700 | 700 | 700 |
| Stem Length | 45 | 45 | 45 |
| Crank Length | 170 | 170 | 170 |
All lengths in millimeters
