Features

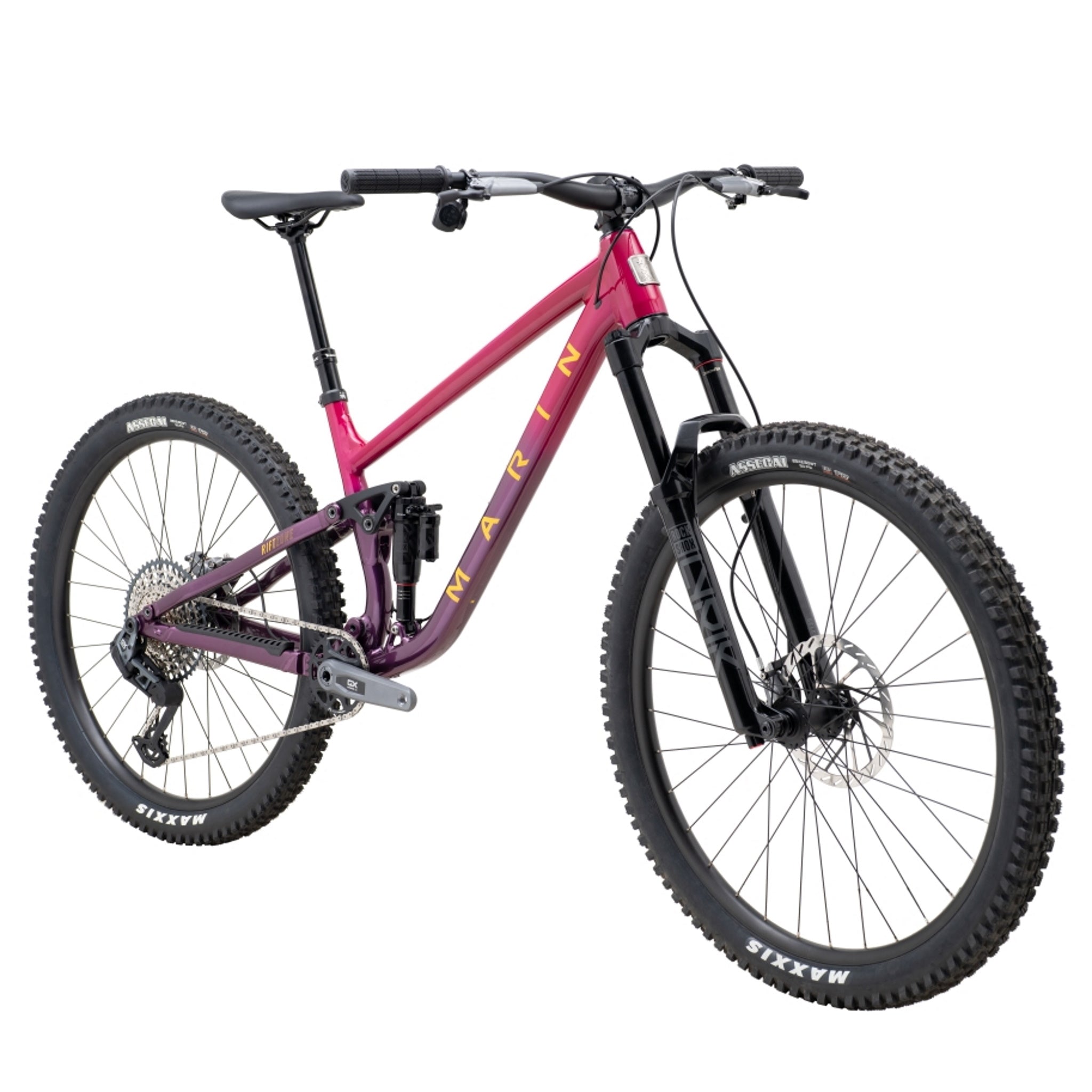

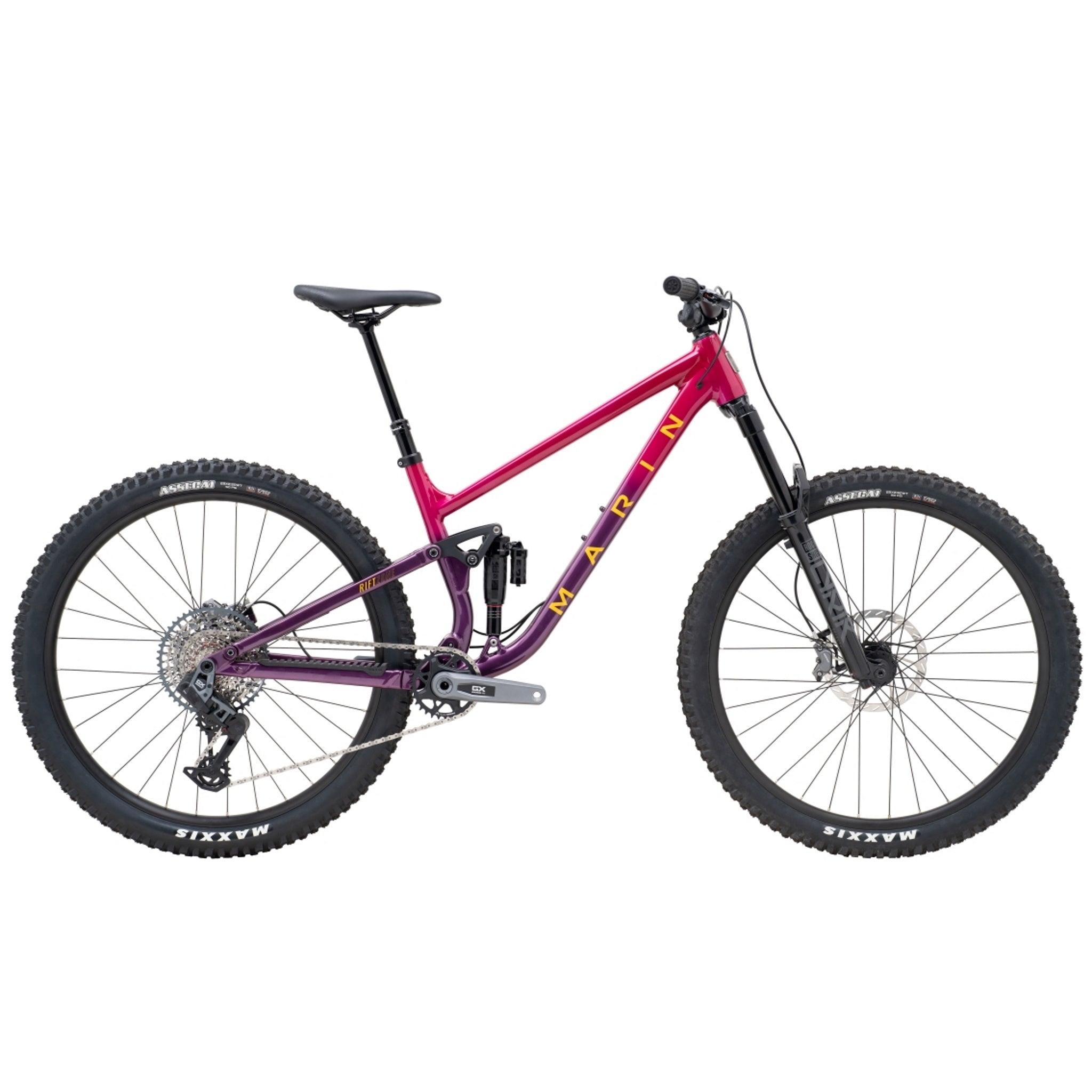

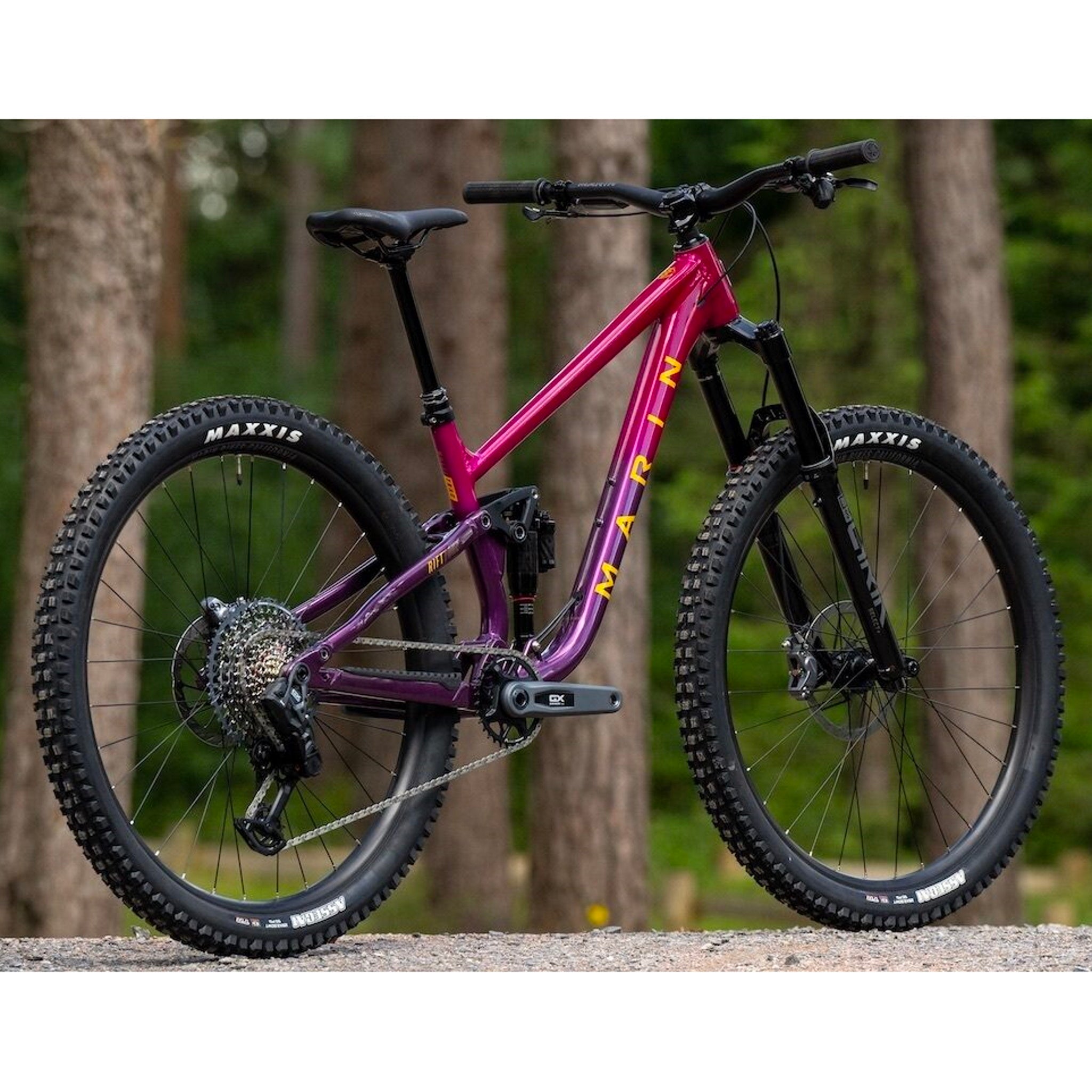

Marin Rift Zone XR AXS Trail Bike 29” Wheels Magenta/Purple
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Series 3 aluminum frame, with detailed forgings and highly manipulated tubes
- Full internal cable routing, with Marin’s new internal cable routing grommets
- Marin acclaimed MultiTrac suspension system
- RockShox Lyrik Select+, 150mm Travel Fork
- RockShox Super Deluxe Select+ Shock
- SRAM GX Eagle AXS wireless shifting, 12 speed
- SRAM Code Bronze 4-Piston Hydraulic Disc Brakes
- TranzX dropper seatpost
- Maxxis Assegai 29 x 2.5" tubeless ready tyres
The Rift Zone 29 brings together trail-taming 29" wheels, 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails. XR means Extra Rad. The Marin Rift Zone XR AXS is Marins hard-charging special edition, made for riders that want the raddest, baddest Rifty in the range. RockShox Lyrik Select+ fork and Super Deluxe Select+ shock, Maxxis Assegai tires, loads of SRAM GX Eagle, SRAM Code 4-piston brakes, loads of Marin fine details. And, the cherry on top, they've added SRAM GX Eagle AXS wireless shifting to create the highest-spec, highest-tech Rift Zone alloy model ever.
| Accessories: | Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head |
|---|---|
| Bottom bracket: | SRAM DUB MTB 73 |
| Brakes: | SRAM Code Bronze 4-Piston Hydraulic Disc |
| Cassette: | SRAM GX 1275 T-Type 10-52T |
| Chain: | SRAM GX Eagle T-Type |

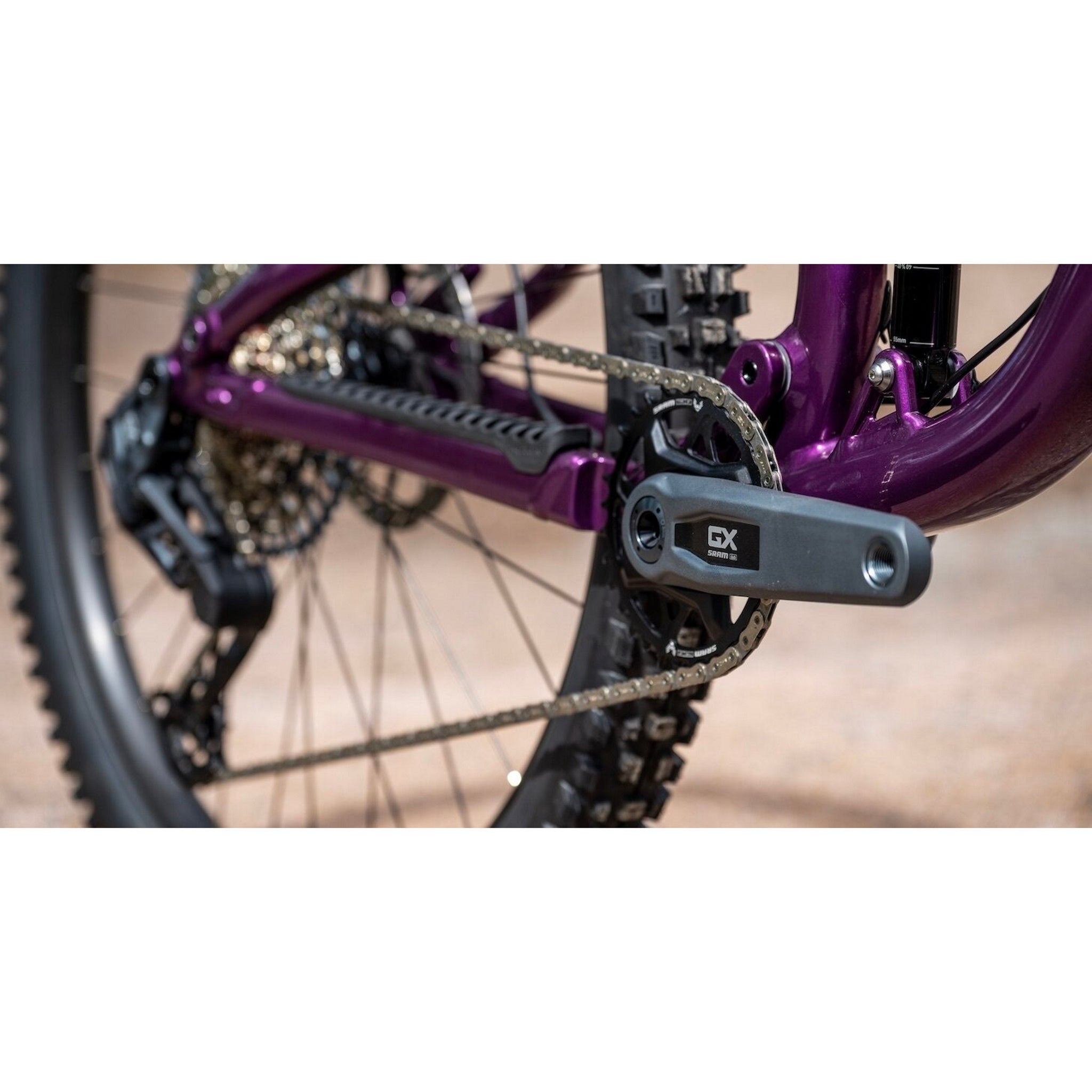

| Crankset: | SRAM GX Eagle, 32T, 55MM CL, 170MM Length |

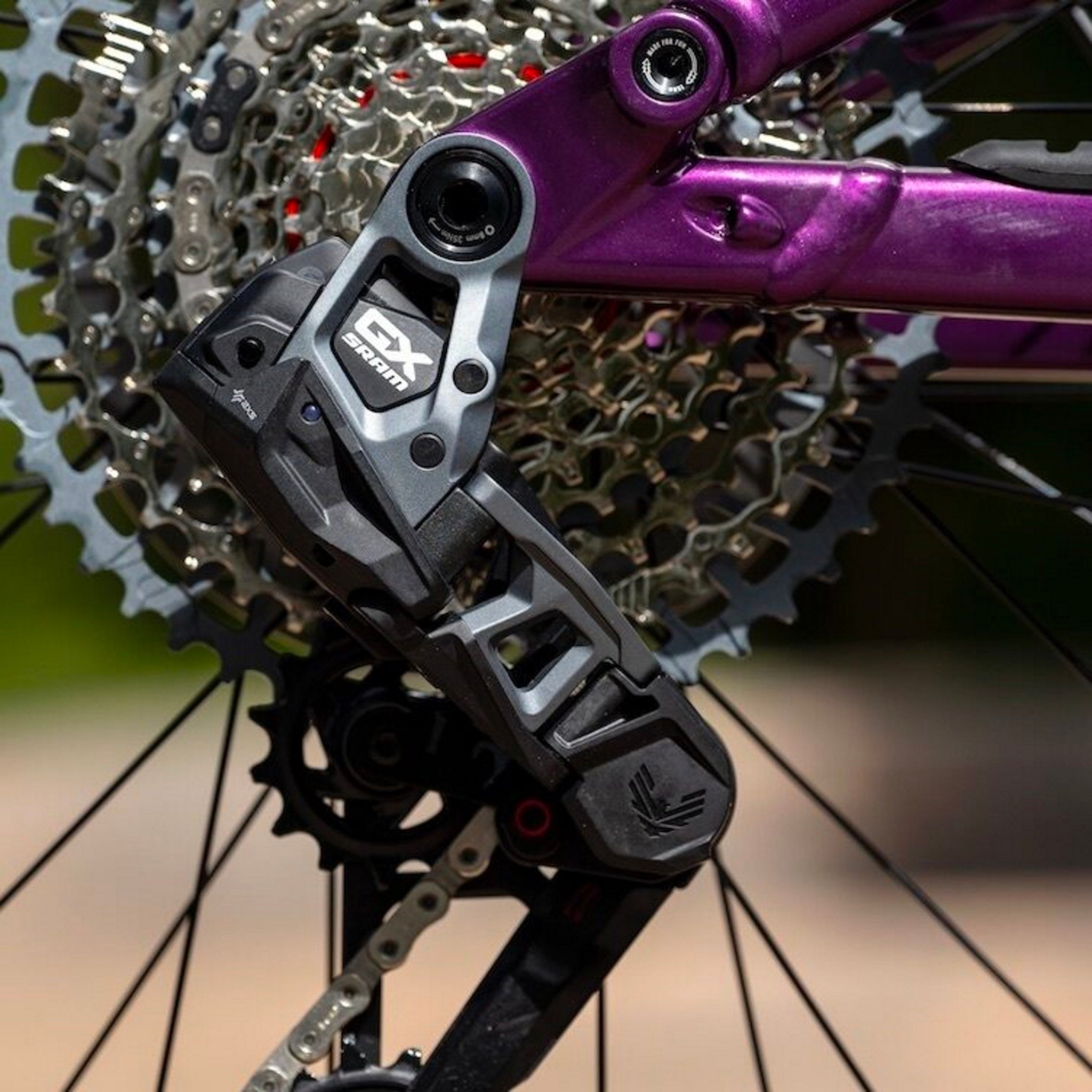

| Derailleur rear: | SRAM GX Eagle AXS T-Type |
| Fork: | RockShox Lyrik Select+, 150mm Travel, 29" wheels, 110x15 Maxle Stealth, 42mm Offset |
| Frame: | Series 3 6061 Aluminum, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs |
| Grip: | Marin Grizzly Lock-On |
| Handlebar: | Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
| Handlebar stem: | Marin CNC, 35mm Length, 35mm Bar Bore |
| Headset: | FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Hubs: | FRONT: Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H / REAR: Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h |
| Rim: | Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible |
| Rotor front: | HSC 200mm Rotor |
| Rotor rear: | HSC 180mm Rotor |
| Saddle: | Marin Speed Concept |
| Season: | 2024 |
| Seat post: | TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm |
| Shock: | RockShox Super Deluxe Select+, 210x55mm, 25xM8 Hardware, Custom Tune |
| Spokes: | 14g Black Stainless Steel |
| Tyre front: | Maxxis Assegai, 29x2.5", MAXX TERAA, EXO, Tubeless Compatible |
| Tyre rear: | Maxxis Assegai, 29x2.5", MAXX TERAA, EXO, Tubeless Compatible |
| Wheel size: | 29" |
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 623.6 | 628.2 | 637.3 | 641.8 |
| Reach | 435 | 460 | 485 | 515 |
| Head Tube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| Head Tube Length | 110 | 115 | 125 | 130 |
| Seat Tube Angle | 77° | 77° | 77° | 77° |
| Seat Tube Length | 390 | 400 | 425 | 430 |
| Top Tube Effective | 579 | 605 | 632.1 | 663.2 |
| BB Height | 343 | 343 | 343 | 343 |
| BB Drop | 35 | 35 | 35 | 35 |
| Chain Stay | 430 | 430 | 430 | 430 |
| Wheel Base | 1170 | 1205.1 | 1234.4 | 1266.3 |
| Stand Over Height | 690.2 | 691.2 | 701.7 | 700.5 |
| Fork Offset | 44 | 44 | 44 | 44 |
| SeatPost Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
| Handlebar Width | 780 | 780 | 780 | 780 |
| Stem Length | 35 | 35 | 35 | 35 |
| Crank Length | 170 | 170 | 170 | 170 |
All lengths in millimeters
Marin Rift Zone Bike Sizing Chart
Marin Bikes are Made For Fun. Since the first mountain bikes bearing the Marin name debuted in 1986, the brand has been dedicated to enriching the lives of riders by making fun, high caliber bicycles, which provide years of riding enjoyment. They operate their business based on hard work, fueled by passion, and fulfilled by the satisfaction of bringing the joy of cycling to riders across the world.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
99 Bikes Home Delivery Available
Assembled Bikes delivered straight to your door • Available on all Bikes in Auckland • $29 flat rate More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
