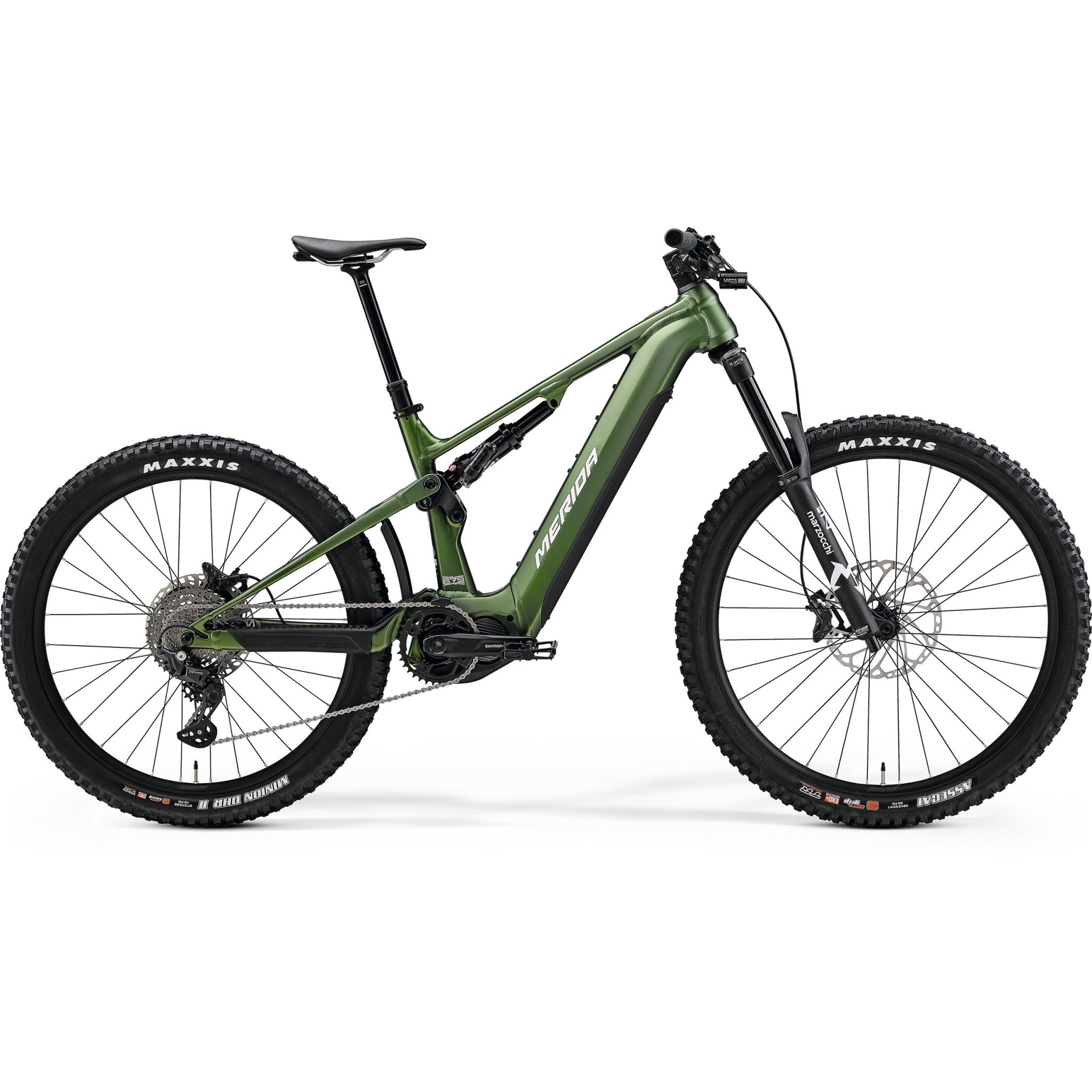

Merida eOne Sixty 675 Electric Enduro Bike 750Wh Battery Silk Fog Green (White)
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Fourth generation LITE aluminium frame
- Marzocchi Z1 fork with 170mm travel
- Bomber Air rear shock, 174mm rear wheel travel
- Powerful Shimano EP801 drive unit
- User-removable 750 Wh battery with optional 360 Wh range extender
- Assist speeds up to 32 km/h
- Approx range 30 - 80km on singletrack, 100 - 270km on flat
- Highly durable Shimano Deore Linkglide drivetrain
- MERIDA tubeless-ready wheelset
- Mixed wheel size as standard with option to full 29"
- Reach-based AGILOMETER sizing system with long-travel dropper posts on all sizes
With the new eONE-SIXTY, the next descent is always about to start. With an all-aluminium frame, it offers maximum value and maximum battery range, thanks to a powerful drive unit paired with a removable 750 Wh battery and optional 360 Wh range extender. The only reason to stop will be because you have to. With incredibly capable geometry derived from the award-winning ONE-SIXTY enduro range, it’s got handling that'll help you conquer the toughest climbs as well as the most grin-inducing descents, while Merida’s proven FAST kinematic suspension will take care of anything the trail throws at it. This low-maintenance flexstay design offers 174 mm of rear wheel travel to go with 170 mm at the front, with size-tuned progression to maximise performance for all sizes of riders. You can run it with the latest coil shocks without any worries too. With mixed size 29" front and 27.5" rear wheels as standard for playful handling, you can switch to a focussed full 29er setup without messing up the geometry, thanks to Merida’s flip chip design. With low standover heights across all sizes, you can choose between a longer frame for more stable handling or a shorter one for an agile feel, while some models feature our ground-breaking 30-230 mm travel-adjustable dropper post.
| Battery: | Trendpower Internal Battery 750Wh |
|---|---|
| Brakes: | Shimano Deore M6120 4 piston |
| Chain: | Shimano LG500 |
| Chainwheel: | FSA 1x Steel Megatooth Chainring 36 teeth |
| Colour: | SILK FOG GREEN (WHITE) |
| Colour (text): | SILK FOG GREEN (WHITE) |
| Crankset: | Shimano FC-EN600 165 mm |
| Derailleur rear: | Shimano DEORE M5130 LinkGlide 10 |
| Display: | Shimano SC-EM800 |
| Fender: | C093-02F + C093-02R |
| Fork: | Marzocchi Z1 eMTB Air 170 mm suspension travel Tapered 44 mm fork offset 29x2.6" max. wheelsize |
| Frame: | eONE-SIXTY LITE IV material: aluminium 174 mm suspension travel 29x2.6" max. wheelsize 148x12 mm axle standard intube |
| Freewheel: | Shimano LG400 11-43 teeth 10 speed |
| Handlebar: | MERIDA EXPERT eTR 780 mm width 20 mm rise |
| Handlebar stem: | MERIDA EXPERT eTR II material: aluminium 35 mm diameter 0° stem angle Supernova mount 40 mm all sizes |
| Headset: | Acros ICR MERIDA EXTERNAL neck w/ Blocklock |
| Hubs: | FRONT: Shimano TC500-B 110x15 mm width front hub 32 spoke holes Centerlock / REAR: Shimano TC600-HM-B 148x12 mm width rear hub 32 spoke holes Centerlock |
| Light(s): | FRONT: Lezyne E-Bike Power STVZO E115, reverse MERIDA Custom Mount / REAR: Lezyne LED Femto USB STVZO |
| Motor drive unit: | Shimano EP801 85Nm |
| Rim: | MERIDA EXPERT TR II 110x15 mm width front hub 148x12 mm width rear hub 28 mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included) front 29" rear 27.5" |
| Rotor front: | Shimano RT64 / 220 mm |
| Rotor rear: | Shimano RT-EM910 / 203 mm |
| Saddle: | MERIDA EXPERT CC V-mount |
| Seat post: | MERIDA EXPERT TR II 34.9 mm diameter 0 mm setback XS: 125 mm travel seatpost - S: 150 mm travel seatpost - M/L/XL: 200 mm travel seatpost |
| Shock: | Marzocchi Bomber Air platform |
| Spokes: | Black stainless |
| Tyre front: | Maxxis Assegai 29x2.5" fold TR EXO+ 3C MaxxGrip |
| Tyre rear: | Maxxis DHR II 27.5x2.4" fold 3C DD MaxxTerra |
| Weight: | 25.64 kg weighed at frame size M / Max Weight: 140 kg Total weight of bike, rider and luggage |
| Wheel size: | 29" / 27.5" (Mullet Bike) |
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| seat tube [mm] | 400 | 410 | 425 | 445 | 465 |
| top tube [mm] | 546 | 567 | 589 | 610 | 632 |
| chain stay length [mm] | 446 | 446 | 446 | 446 | 446 |
| head tube angle [°] | 64.4 | 64.4 | 64.4 | 64.4 | 64.4 |
| seat tube angle [°] | 78.5° | 78.5° | 78.4° | 78.4° | 78.3° |
| bottom bracket drop [mm] | 9 | 9 | 9 | 9 | 9 |
| head tube [mm] | 100 | 105 | 110 | 115 | 120 |
| fork length [mm] | 581 | 581 | 581 | 581 | 581 |
| reach [mm] | 419 | 439 | 459 | 479 | 499 |
| stack [mm] | 624 | 628 | 633 | 637 | 642 |
| wheel base [mm] | 1199 | 1221 | 1244 | 1266 | 1288 |
| stand over height [mm] | 763 | 757 | 751 | 749 | 744 |
Merida Electric Mountain Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
