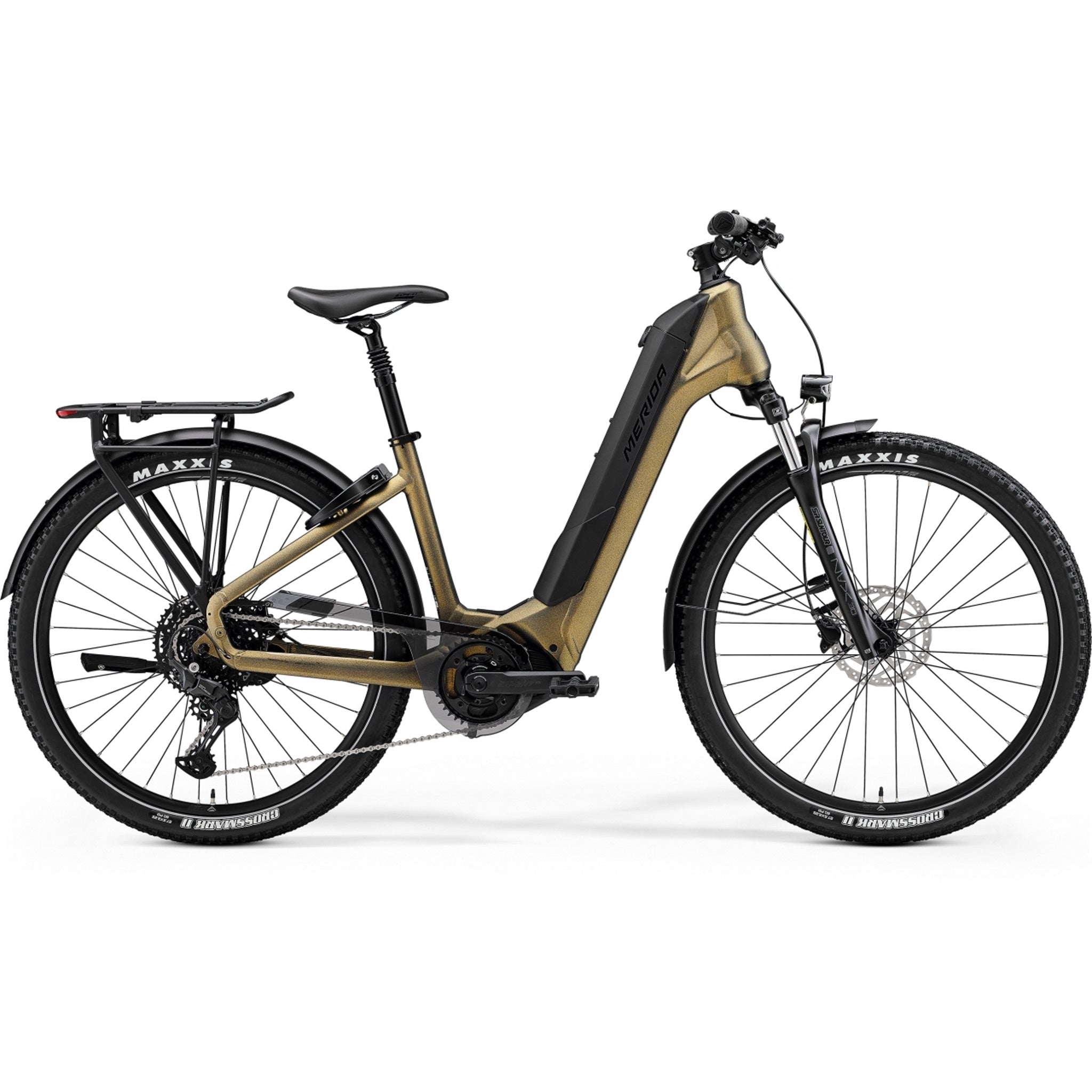

Merida Espresso CC 575 EQ Trekking Electric Bike 750Wh Battery Matt Sparkling Gold (Black)
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- New, powerful Shimano EP6 drive unit
- Super low step-through ENERGY CRADLE frame design
- Internally mounted, high-capacity 750 Wh battery
- Assist speeds up to 32 km/h
- Approx range 80 - 180km terrain/assist mode depending
- Suntour suspension fork and suspension seat post for comfort and control
- Slick Shimano 10-speed drivetrain
- Agile 650b wheels with grippy high-volume tyres
- Fully equipped with guards, lights, lock, rack and kickstand
| Accessories: | Chainguard: Sunnywheel SW-CG-173A / Carrier: MERIDA MIK HD Carrier with Spring clip / Fender: Sunnywheel SW-FA-311-65(MSB) / Kickstand: Atranvelo ED-100-PC / Frame Lock: Abus 4650 XL |
|---|---|
| Battery: | Trendpower Internal Battery 750Wh |
| Brakes: | Shimano MT-200 2 piston |
| Cassette: | Shimano LG300 11-48 teeth 10 speed |
| Chain: | Shimano LG500 |
| Chainwheel: | Samox NWP203 38 teeth |
| Colour (text): | MATT SPARKLING GOLD (BLACK) |
| Crankset: | MERIDA EXPERT TK 165 mm |
| Derailleur rear: | Shimano CUES U6000 GS |
| Display: | Shimano SC-EN500 |
| Fork: | SR Suntour NVX30 DS Coil 80 mm suspension travel 27,5x2,4" max. wheelsize |
| Frame: | eSPRESSO CC LITE III material: aluminium 27,5x2,25" max. wheelsize 135x9 mm axle standard internal |
| Grip: | MERIDA EXPERT TK |
| Handlebar: | MERIDA EXPERT material: aluminium 660 mm width 15 mm rise |
| Handlebar stem: | MERIDA EXPERT CT material: aluminium 31.8 mm diameter adjustable 90 mm- XS/S/M/L/XL |
| Headset: | MERIDA 8254 |
| Hubs: | Shimano QC300 100x9 mm width front hub 32 spoke holes Centerlock 135x9 mm width rear hub 32 spoke holes Centerlock |
| Light(s): | FRONT: Herrmans H-Black MR4 E / REAR: Spanninga Co mmuter Glow XE integrated in MERIDA MIK HD carrier |
| Motor drive unit: | Shimano EP6 85Nm |
| Pedals: | VP VPE-891 |
| Rim: | MERIDA COMP TK 20 mm inner width material: aluminium |
| Rotor front: | Shimano RT10 180 mm |
| Rotor rear: | Tektro TR-35 180 mm |
| Saddle: | MERIDA EXPERT TK II V-mount |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | JD SP79 30.9 mm diameter 15 mm setback 40 mm seatpost suspension travel |
| Spokes: | Black stainless |
| Tyre front: | Maxxis Crossmark II 27.5x2.25" wire reflecting line |
| Tyre rear: | Maxxis Crossmark II 27.5x2.25" wire reflecting line |
| Weight: | Max Weight : 150 kg Total weight of bike, rider and luggage |
| Wheel size: | 27.5" (650b) |
| Frame Size | XS | S | M | L | XL |
| Tyre Sizes | 27.5" | 27.5" | 27.5" | 27.5" | 27.5" |
| ST seat tube [mm] | 380 | 430 | 480 | 530 | 580 |
| TT top tube [mm] | 580 | 595 | 615 | 635 | 655 |
| CS chain stay length [mm] | 470 | 470 | 470 | 470 | 470 |
| HTA head tube angle [°] | 70 | 70 | 70 | 70 | 70 |
| STA seat tube angle [°] | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| BD bottom bracked drop [mm] | 65 | 65 | 65 | 65 | 65 |
| HT head tube [mm] | 170 | 175 | 180 | 190 | 200 |
| FL fork length [mm] | 476 | 476 | 476 | 476 | 476 |
| R reach [mm] | 385 | 399 | 417 | 435 | 452 |
| S stack [mm] | 656 | 661 | 666 | 675 | 685 |
| WB wheel base [mm] | 1113 | 1129 | 1149 | 1170 | 1190 |
| SH stand over height [mm] | 403 | 403 | 402 | 402 | 401 |
Merida Electric Trekking Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
