Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Lightweight nano matrix full carbon fibre CF4 frame
- Fox 38 Factory fork with 170 mm travel and updated Float X2 Factory rear shock
- Powerful Shimano EP801 drive unit, 85Nm torque
- Integrated 600Wh battery with optional 360Wh range extender
- Approx range 30-80km on singletrack, 100-250km on road
- SRAM XX Eagle Transmission 12-speed wireless drivetrain
- Sram Code Ultimate Stealth 4 piston hydraulic disc brakes
- DT Swiss carbon wheelset
- Mixed 'mullet' wheel size as standard, with option to full 29"
- Reach-based AGILOMETER sizing system with 30-230mm adjustable dropper post

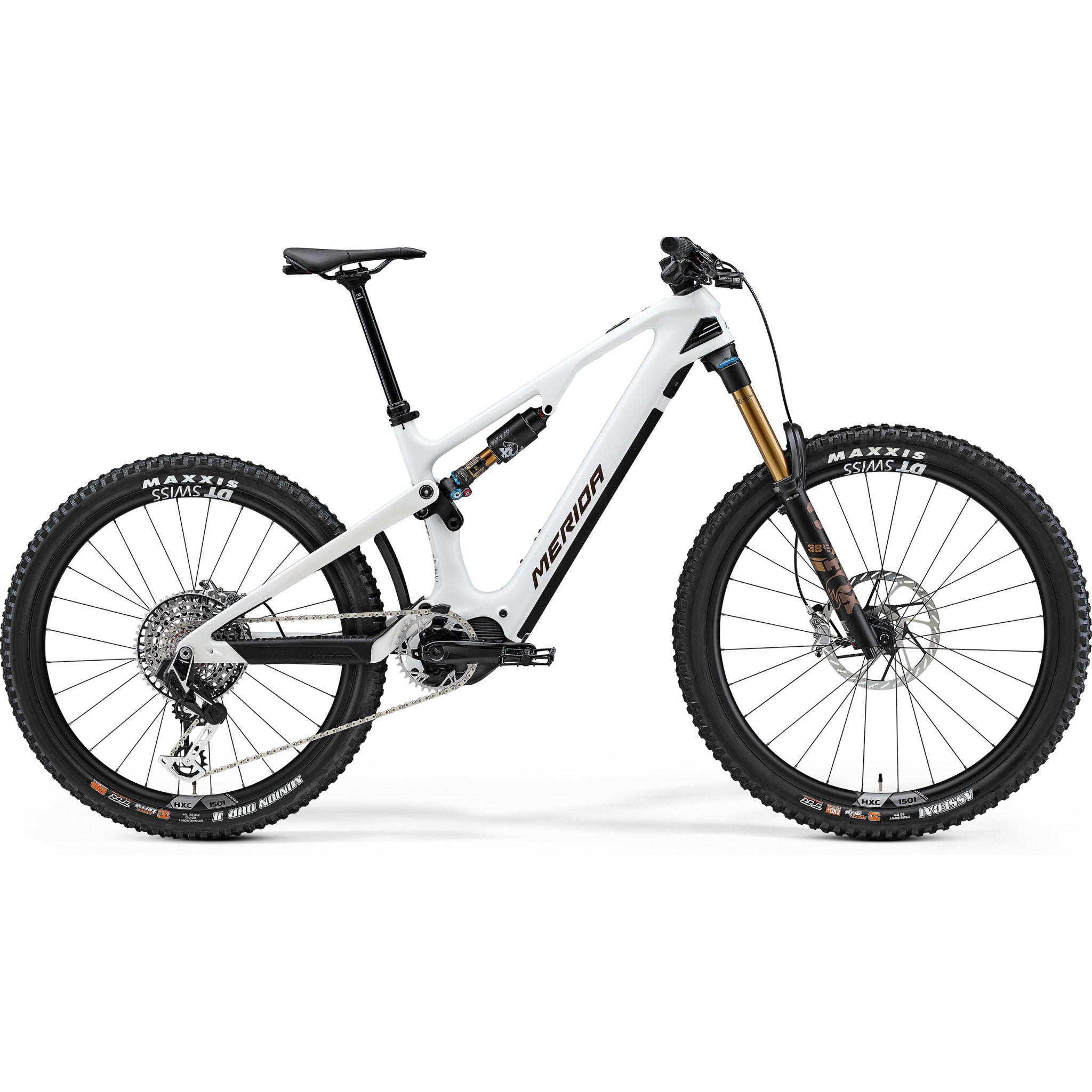

Lightweight or full power? How about both? The new eONE-SIXTY CF combines an enduro-ready lightweight full carbon chassis with a full-support motor, 600Wh battery and an optional 360Wh range extender, so you don't have to choose between precise, playful handling, decent range or support that'll get you up the trickiest technical sections. With 170 mm travel at the front and 174 mm at the rear, it's designed to be perfectly at home on a race track or just hitting the trails on repeat. Merida also married the award-winning FAST kinematic suspension and AGILOMETER sizing of their ONE-SIXTY enduro bike with its proven e-bike heritage, so it's quite the thoroughbred bloodline. The low-maintenance flexstay suspension offers size-tuned progression to maximize performance for all sizes of riders, plus you can run it with the latest coil shocks. With mixed size 29" front and 27.5" rear wheels as standard for playful handling, you can switch to a focused full 29er setup without messing up the geometry, thanks to Merida’s flip chip design. With geometry that can take on the toughest enduro trails while maintaining a playful and fun character.
The eONE-SIXTY 10K is a lightweight, no-compromise, full-power e-bike that can tackle the toughest trails, whether you're racing against the clock - or just racing to get in more runs. The full CF4 carbon frame offers uncompromised handling and is paired with the best kit money can buy, including SRAM's wireless XX T-type drivetrain, Sram Code Ultimate Stealth 4 piston hydraulic disc brakes and top-end Fox factory suspension. The Shimano EP801 drive unit offers 85Nm of trail taming torque, while the built-in 600Wh battery plus the optional 360Wh range extender means you can go lightweight or long, whatever suits you.
Axles: | REAR: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key |
---|---|
Battery: | Trendpower TPS-C15-58SD; 600Wh integrated |
Brakes: | Sram Code Ultimate Stealth; 4 piston |
Cassette: | Sram XX Eagle Transmission ; 10-52; 12 GER |
Chain: | Sram XX Eagle Transmission; Flattop |
Crankset: | Sram XX Eagle Transmission E-MTB for Steps; 36 ATC Shimano FC-EM900; 165 mm all sizes; |
Derailleur rear: | Sram XX Eagle Transmission AXS |
Display: | Shimano SC-EM800 / SWITCH: Shimano SW-EM800-L / DRIVE COVER: CR-026 + CR-027 |
Fender: | EOF-204 |
Fork: | FOX 38 Factory eMTB+; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max WHS |
Frame: | eONE-SIXTY CF III; MAT carbon; 160 STR; 29” x 2,6” max. WHS; 148x12 AST; intube; max. 630 Wh |
Grip: | MERIDA EXPERT EC |
Handlebar: | MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB |
Handlebar stem: | MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount 40 mm all sizes |
Headset: | Acros ICR MERIDA INTEGRATED neck w/ Blocklock |
Light(s): | FRONT: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount / REAR: LEZYNE LED FEMTO USB REAR STVZO |
Motor drive unit: | Shimano EP801; 85Nm |
Pedals: | VP VPE-527 |
Rotor front: | Sram HS2; 220mm |
Rotor rear: | Sram HS2; 220mm |
Saddle: | PROXIM Nembo Triox; V-mount adapter; incl. MERIDA minitool |
Season: | 2025 |
Seat clamp: | MERIDA EXPERT |
Seat post: | MERIDA TEAM TR II; 34.9 DSP; 0 SSB; all sizes 30-230 SPT |
Shock: | Fox Factory Float X2; 2 Pos Lever |
Tyre front: | Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip |
Tyre rear: | Maxxis DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra |
Wheel size: | 29" / 27.5" (Mullet Bike) |
Frame Size | XS | SM | MD | LG | XL |
Frame Length | XShort | Short | Mid | Long | XLong |
Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
seat tube [mm] | 400 | 410 | 425 | 445 | 465 |
top tube [mm] | 546 | 567 | 589 | 610 | 632 |
chain stay length [mm] | 446 | 446 | 446 | 446 | 446 |
head tube angle [°] | 64.4 | 64.4 | 64.4 | 64.4 | 64.4 |
seat tube angle [°] | 78.5° | 78.5° | 78.4° | 78.4° | 78.3° |
bottom bracket drop [mm] | 9 | 9 | 9 | 9 | 9 |
head tube [mm] | 100 | 105 | 110 | 115 | 120 |
fork length [mm] | 581 | 581 | 581 | 581 | 581 |
reach [mm] | 419 | 439 | 459 | 479 | 499 |
stack [mm] | 624 | 628 | 633 | 637 | 642 |
wheel base [mm] | 1199 | 1221 | 1244 | 1266 | 1288 |
stand over height [mm] | 776 | 770 | 765 | 760 | 755 |
Merida Electric Mountain Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
