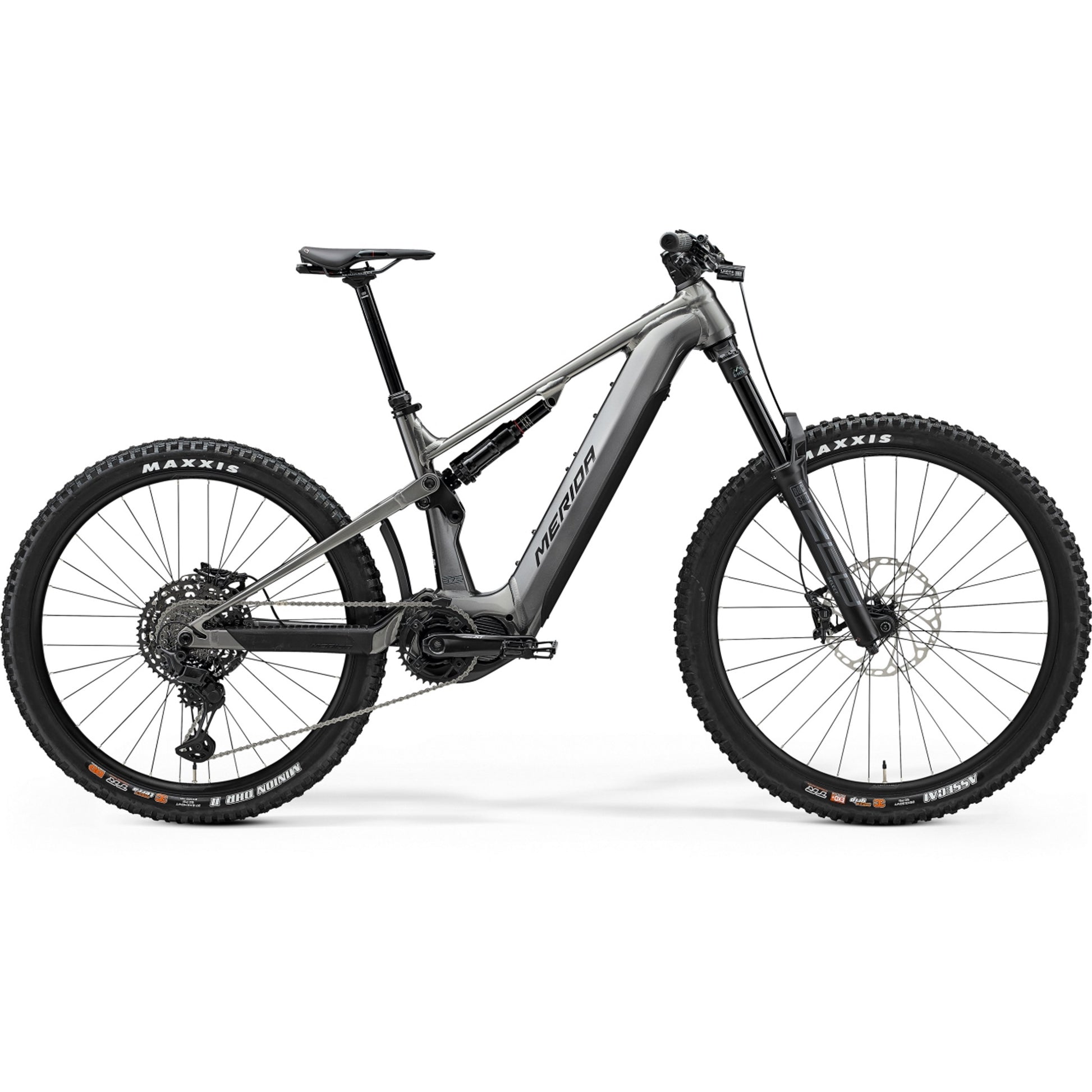

Merida eOne Sixty 875 Electric Enduro Bike 750Wh Gunmetal Grey

$8,999
?

You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

$9,999.99
Buy now, pay later
10% OFF FULL PRICE NEW
SKU: Y6DBHOQW Low stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Fourth generation LITE hydroformed aluminium frame, internal cable routing
  • Rock Shox ZEB Select Air 170mm fork, Rock Shox Super Deluxe Select shock
  • Powerful Shimano EP801 drive unit, 85Nm torque
  • User-removable 750Wh battery with optional 360Wh range extender
  • Assist speeds up to 32 km/h
  • Approx range 30 - 80km on singletrack, 100 - 270km on flat without range extender
  • Hardwearing Shimano XT Linkglide 11 speed drivetrain
  • Merida tubeless-ready wheelset, 27.5/29” with option to run full 29"
  • Reach-based Agilometer sizing system
  • Long-travel dropper posts on all sizes

With the new eONE-SIXTY, the next descent is always about to start. With an all-aluminum frame, it offers maximum value and maximum battery range, thanks to a powerful drive unit paired with a removable 750Wh battery and optional 360Wh range extender. With Merida’s incredibly capable geometry derived from the award-winning ONE-SIXTY enduro range, it’s got handling that'll help you conquer the toughest climbs as well as the most grin-inducing descents, while Merida’s proven FAST kinematic suspension will take care of anything the trail throws at it. The low-maintenance flex stay design offers 174mm of rear wheel travel to go with 170mm at the front, with size-tuned progression to maximize performance for all sizes of riders. You can run it with the latest coil shocks without any worries too. With mixed size 29" front and 27.5" rear wheels as standard for playful handling, you can switch to a focused full 29er setup without messing up the geometry, thanks to its flip chip design. With low standover heights across all sizes, you can choose between a longer frame for more stable handling or a shorter one for an agile feel, while some models feature ground-breaking 30-230 mm travel-adjustable dropper post.

Goodbye range anxiety, hello horizon. The eOne Sixty 875 marries a full-power Shimano EP801 drive unit with 85Nm of torque, a user-removable 750Wh battery and optional 360Wh range extender, all wrapped up in Merida’s durable aluminum frame. With Merida’s proven, low-maintenance Fast suspension platform, you can run mixed wheel sizes as standard or switch to full 29" without compromise, while they've combined the no-compromise suspension performance of a RockShox Zeb 170mm fork and Super Rock Shox Super Deluxe shock with Shimano's durable 11 speed XT Linkglide drivetrain and powerful Shimano XT 4 piston hydraulic disc brakes for when things get rowdy.

Axles: REAR: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Battery: Trendpower Internal Battery Gen 2; 750Wh
Brakes: Shimano XT; 4 piston
Cassette: Shimano LG700; 11-50 ATC; 11 GER
Chain: LG500
Crankset: FSA 1x Steel Chainring; 36 ATC Shimano FC-E8150; 165 mm all sizes;
Derailleur rear: Shimano XT RDM8130 LinkGlide 11
Display: Shimano SC-EM800 / SWITCH: Shimano SW-EM800-L
Fender: EOF-204
Fork: Rock Shox ZEB Select; Air; 170 STR; Tapered; 44mm fork offset; 29x2.8" max WHS
Frame: eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh
Grip: MERIDA EXPERT EC
Handlebar: MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB
Handlebar stem: MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount 40 mm all sizes
Headset: Acros ICR MERIDA EXTERNAL neck w/ Blocklock
Hubs: FRONT: Shimano XT; 110x15 WHF; 32 SPH; Centerlock / REAR: Shimano XT; 148x12 WHR; 32 SPH; Centerlock
Light(s): FRONT: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount / REAR: LEZYNE LED FEMTO USB REAR STVZO
Motor drive unit: Shimano EP801; 85Nm / DRIVE COVER: CR-010 + CR011
Pedals: VP VPE-527
Rotor front: Shimano RT64; 220 mm
Rotor rear: Shimano RTEM600; 203 mm
Saddle: PROXIM Nembo Steel; V-mount adapter; incl. MERIDA minitool
Season: 2025
Seat clamp: MERIDA EXPERT
Seat post: MERIDA TEAM TR II; 34.9 DSP; 0 SSB; all sizes 30-230 SPT
Shock: Rock Shox Super Deluxe Select
Spokes: Black stainless
Tyre front: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip
Tyre rear: Maxxis DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra
Wheel size: 29" / 27.5" (Mullet Bike)
Frame SizeXSSMMDLGXL
Frame Length
XShort
Short
Mid
Long
XLong
Tyre Sizes29/27.5"29/27.5"29/27.5"29/27.5"29/27.5"
seat tube [mm]400410425445465
top tube [mm]546567589610632
chain stay length [mm]446446446446446
head tube angle [°]64.464.464.464.464.4
seat tube angle [°]78.5°78.5°78.4°78.4°78.3°
bottom bracket drop [mm]99999
head tube [mm]100105110115120
fork length [mm]581581581581581
reach [mm]419439459479499
stack [mm]624628633637642
wheel base [mm]11991221124412661288
stand over height [mm]763757751749744


Merida Electric Mountain Bike Sizing Chart

99 Bikes Merida Electric Mountain Bike Sizing Chart

Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.

The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
