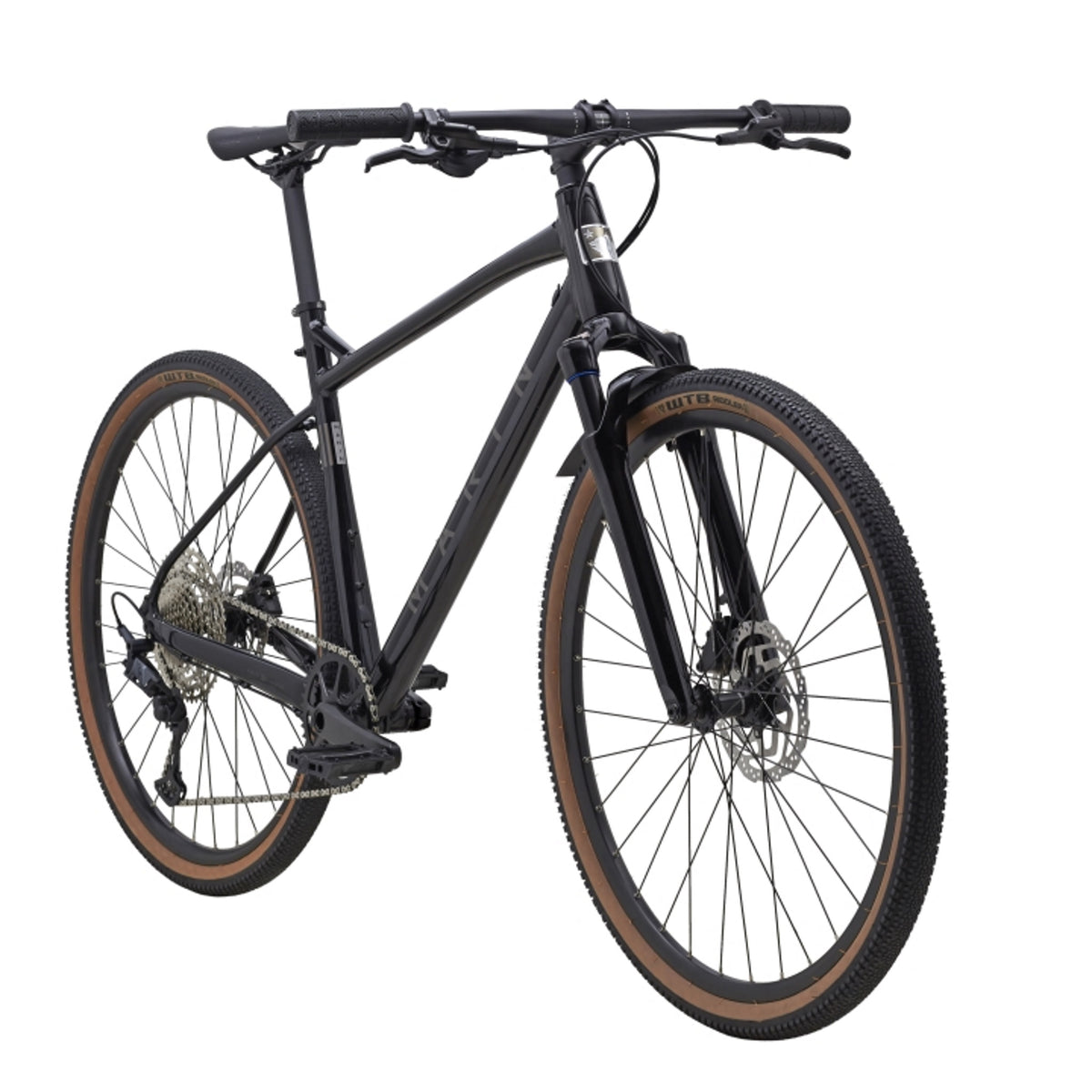

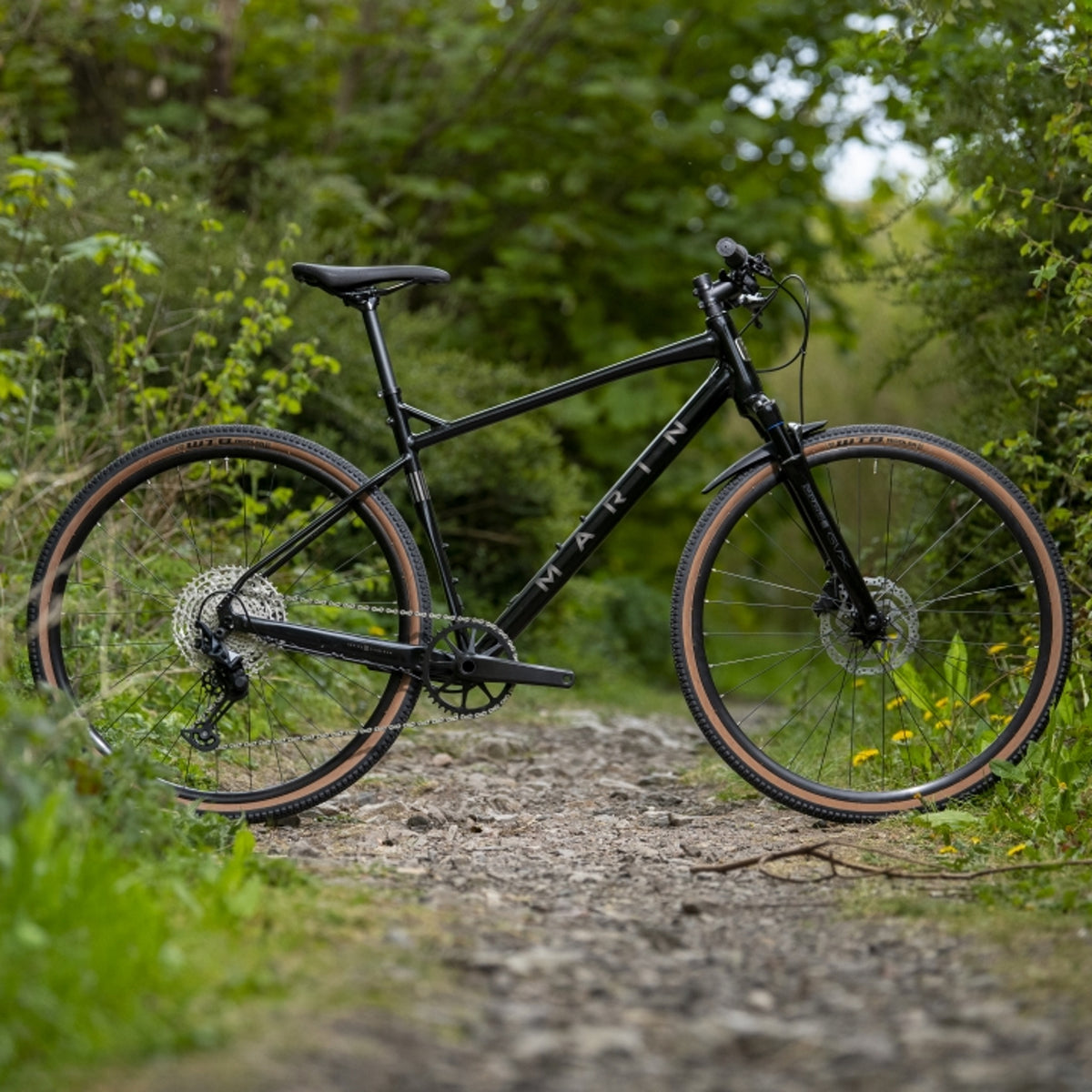

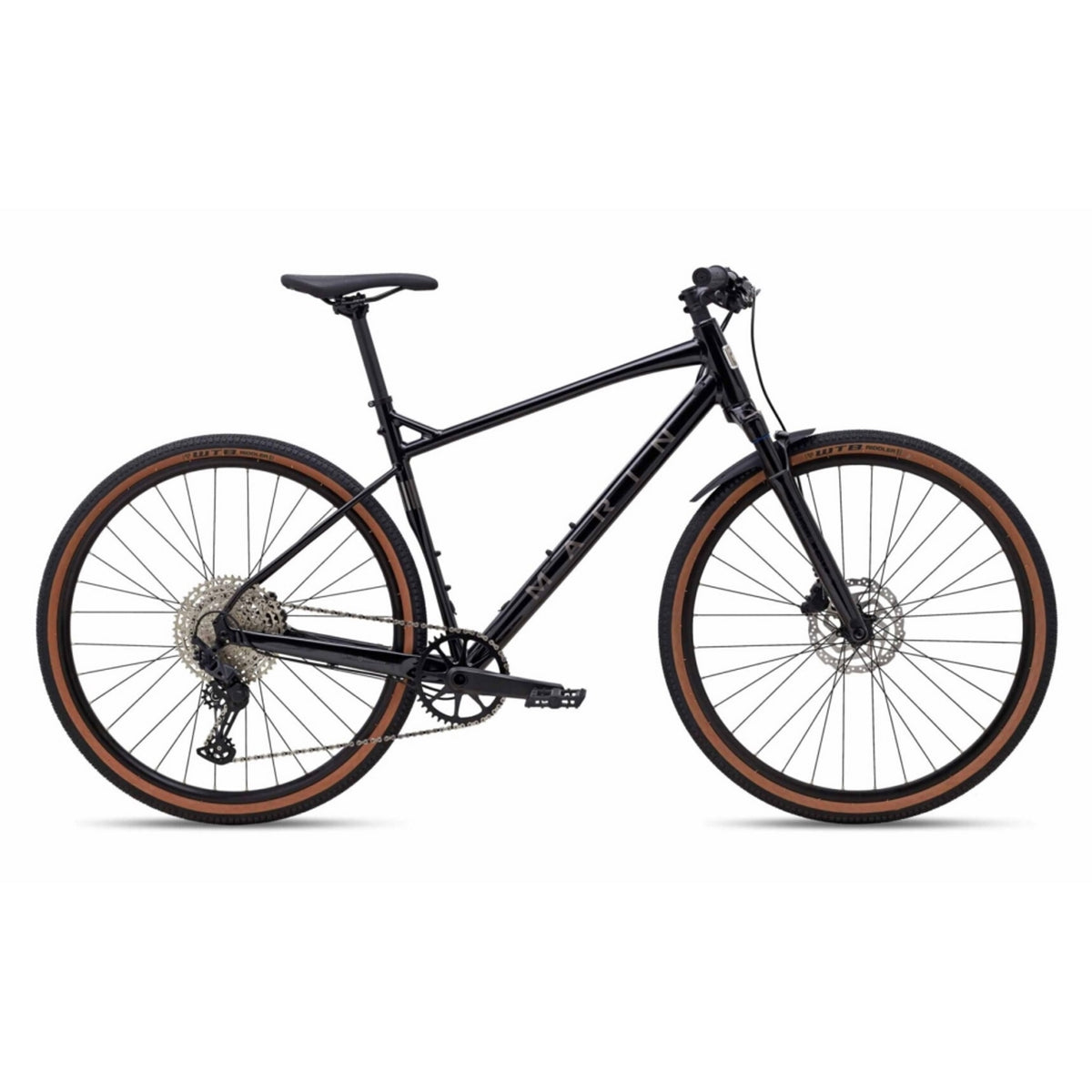

Marin DSX FS Flat Bar Gravel/Beyond Road Bike Black Grey
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum Frame

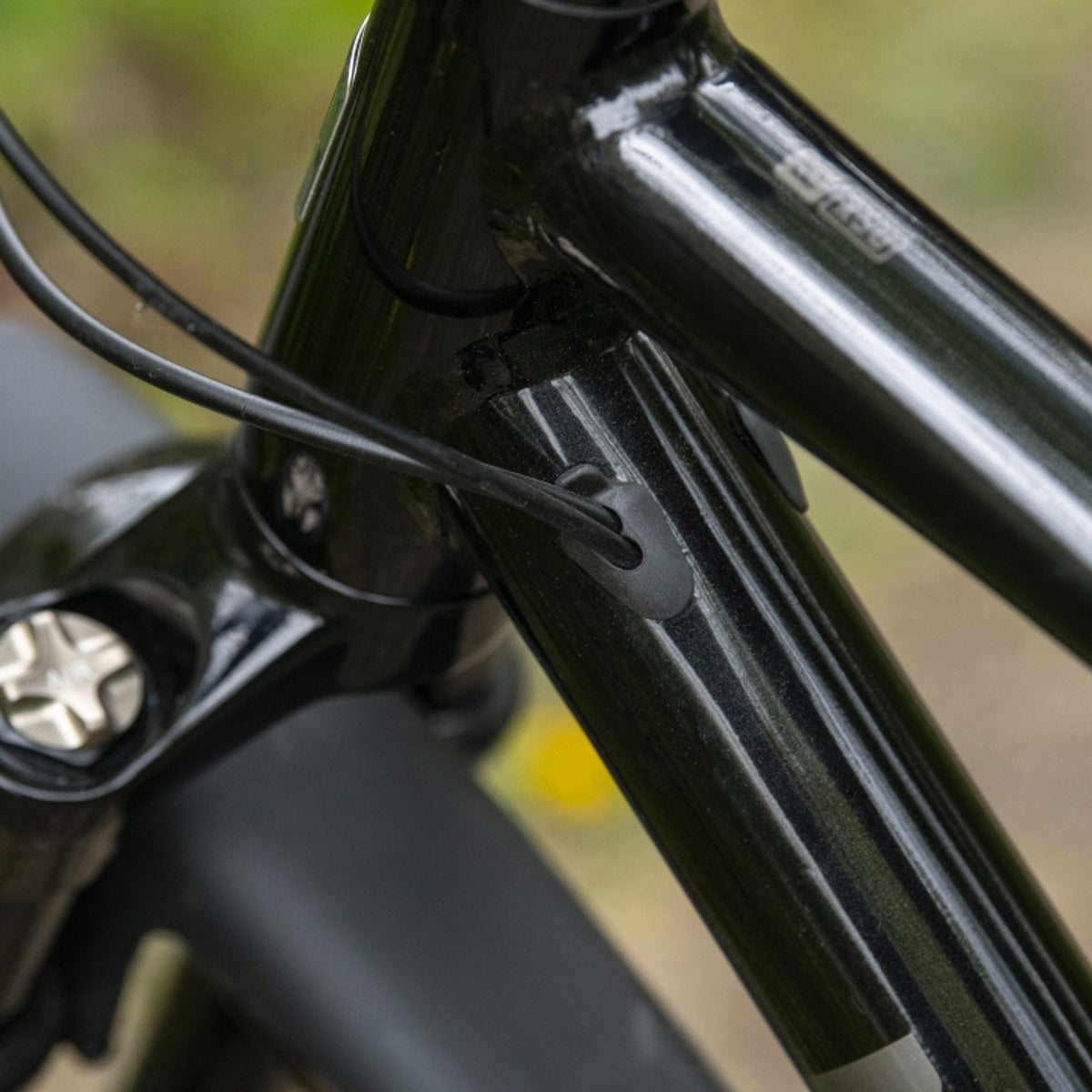

- Internal Cable Routing with integrated Mudguard and Rack Mounts
- SR Suntour GVX LOR, 60mm Travel Fork
- Shimano MT201/UR300 Flat Mount Hydraulic Disc Brakes
- Shimano SLX/Deore 1 x 12-Speed Drivetrain
- WTB Riddler 700C x 45mm Tyres, clearance for 29x2.1” knobbies
| Axles: | Bolt-On Thru-Axles F and R |
|---|---|
| Bottom bracket: | Sealed Outboard Bearing |
| Brakes: | Shimano MT201/UR300 Flat Mount Hydraulic Disc |
| Chain: | KMC X12 |
| Crankset: | Forged Aluminum, 42T Steel Narrow Wide Chainring |

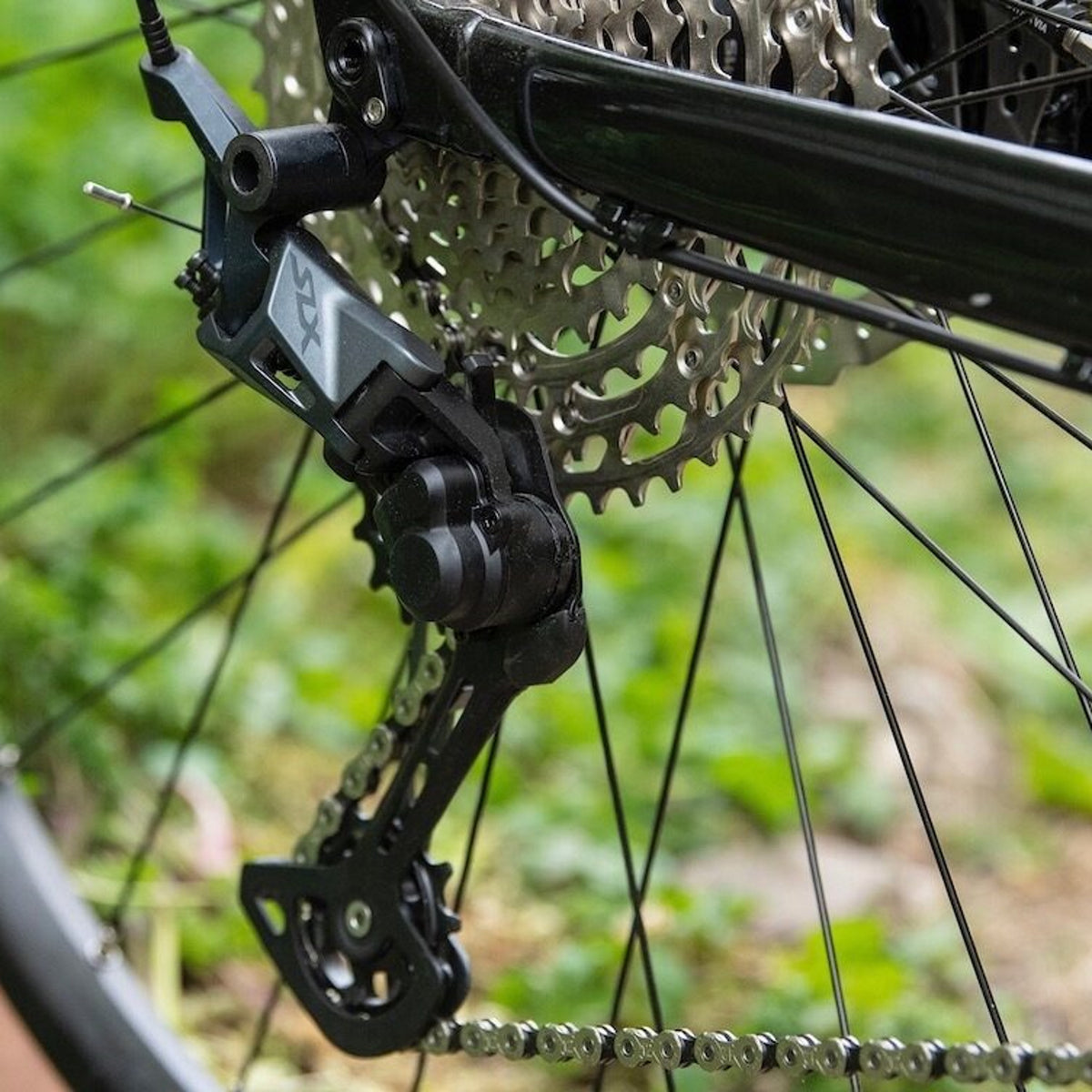

| Derailleur rear: | Shimano SLX 12-Speed |

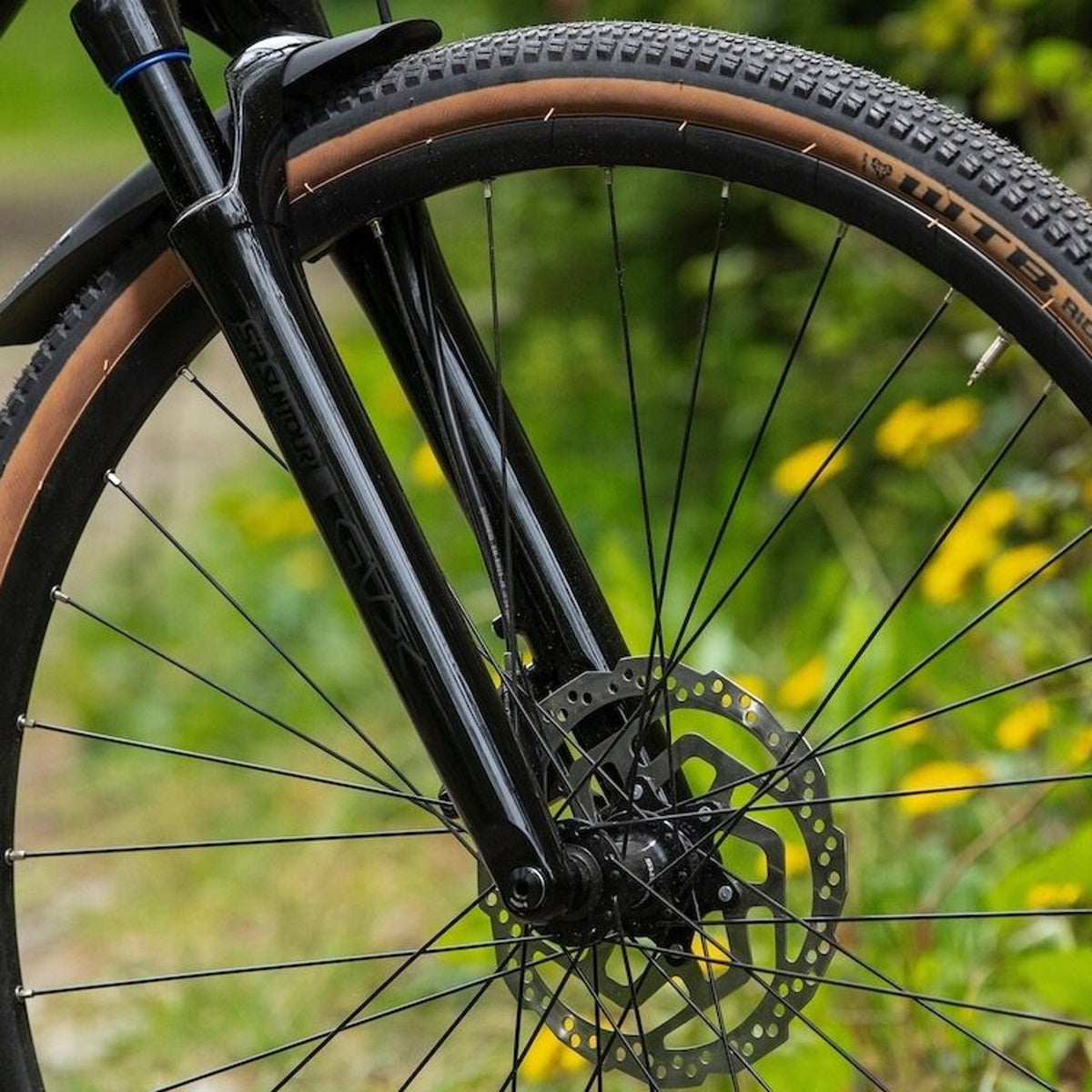

| Fork: | SR Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts |
| Frame: | Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
| Freewheel: | Cassette: Shimano Deore 12-Speed, 10-51T |
| Grip: | Marin MTB |
| Handlebar: | Marin MiniRiser |
| Handlebar stem: | Marin 3D Forged Alloy |
| Headset: | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Hubs: | FRONT: Forged Aluminum, 100x12mm, Disc, 32H / REAR: Shimano Forged Aluminum, 142x12mm, Microspline, Disc, 32H |
| Pedals: | Commute Platform |
| Rim: | Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible |
| Rotor front: | 180mm |
| Rotor rear: | 160mm |
| Saddle: | Marin DSX |
| Season: | 2022 |
| Seat post: | Marin Alloy |
| Spokes: | 14g Black Stainless Steel |
| Tyre front: | WTB Riddler, 700C x 45mm |
| Tyre rear: | WTB Riddler, 700C x 45mm |
| Wheel size: | 700c |
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 583.2 | 601.8 | 629.7 | 657.6 |
| Reach | 400 | 425 | 440 | 455 |
| Headtube Angle | 68.5° | 68.5° | 68.5° | 68.5° |
| Headtube Length | 100 | 120 | 150 | 180 |
| Seattube Angle | 74° | 74° | 74° | 74° |
| Seattube Length | 430 | 480 | 520 | 558 |
| Toptube Effective | 567.23 | 597.6 | 620.6 | 643.6 |
| BB Height | 277.5 | 277.5 | 277.5 | 277.5 |
| BB Drop | 82 | 82 | 82 | 82 |
| Chainstay | 425 | 425 | 425 | 425 |
| Wheelbase | 1065 | 1097.3 | 1123.3 | 1149.3 |
| Standover Height | 667 | 708 | 738 | 761 |
| Fork Offset | 47 | 47 | 47 | 47 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 680 | 680 | 680 | 700 |
| Stem Length | 70 | 70 | 70 | 70 |
| Crank Length | 170 | 175 | 175 | 175 |
All lengths in millimeters
Marin DSX 1 Bike Sizing Chart
Marin Bikes are Made For Fun. Since the first mountain bikes bearing the Marin name debuted in 1986, the brand has been dedicated to enriching the lives of riders by making fun, high caliber bicycles, which provide years of riding enjoyment. They operate their business based on hard work, fueled by passion, and fulfilled by the satisfaction of bringing the joy of cycling to riders across the world.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
Courier Delivery Available
• $9.99 for orders $99 & under • Free for orders over $99 • Bulky shipping fees apply for bikes & bulky items based on item weight More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
