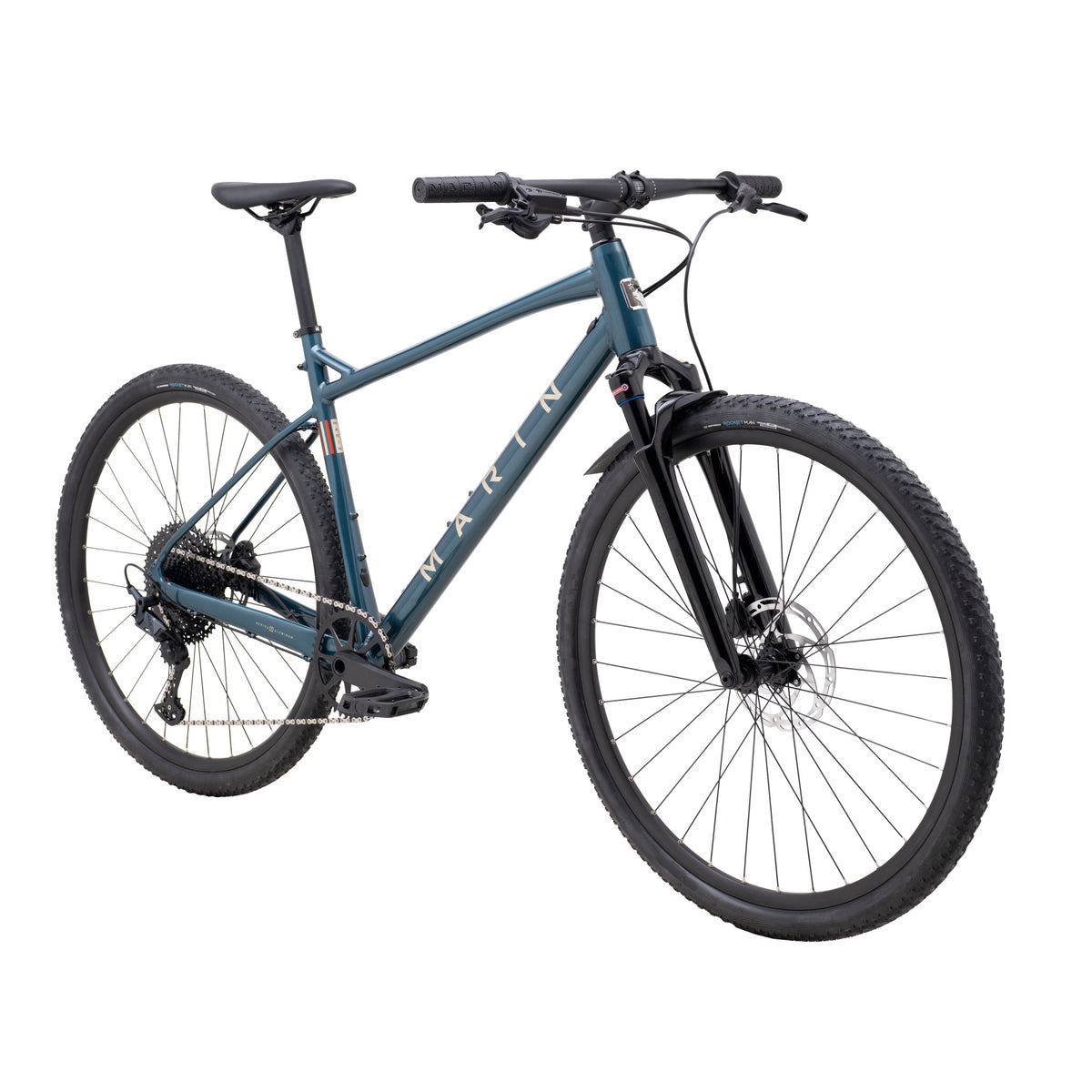

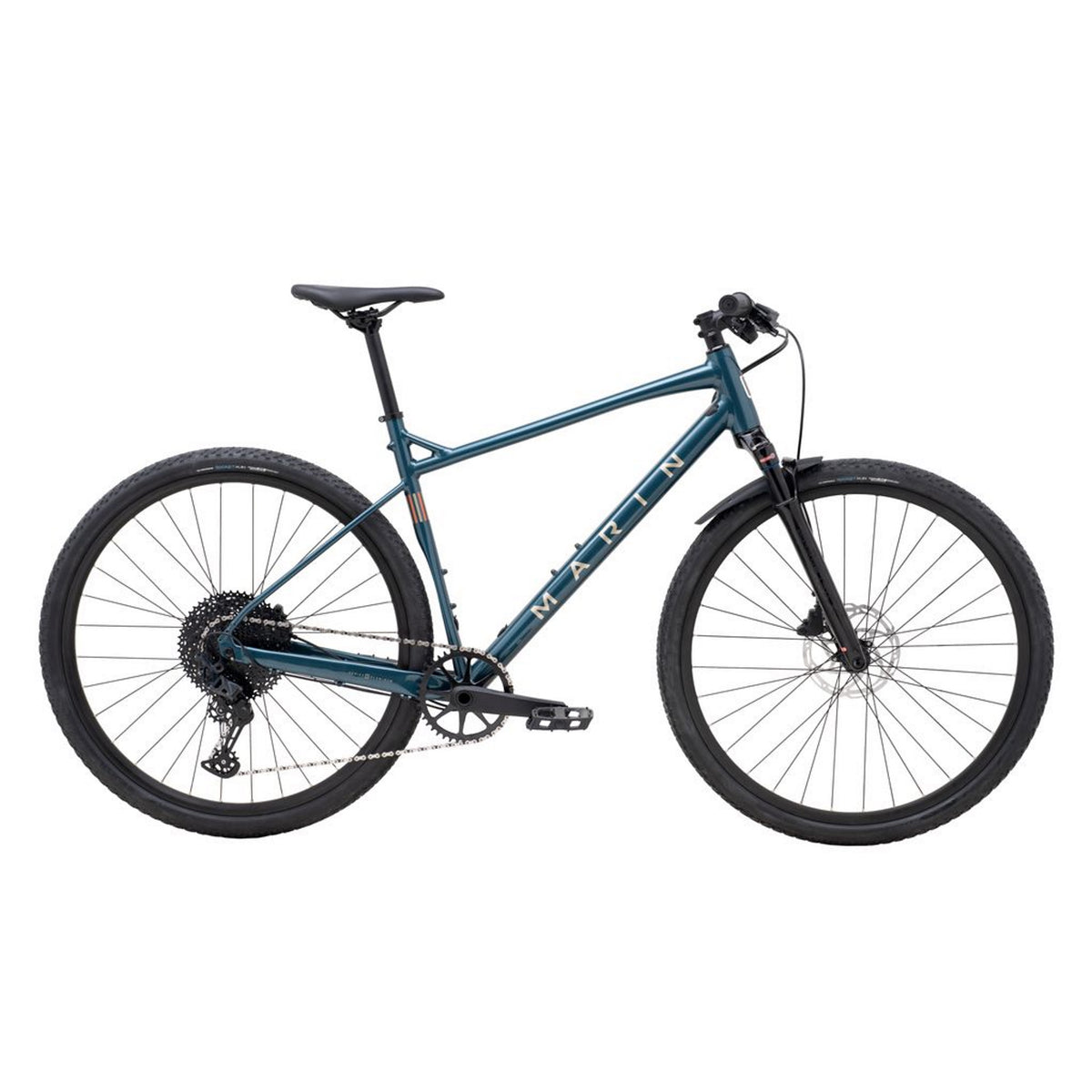

Marin DSX FS Gravel Bike Gloss Blue/Tan
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum Frame
- SR/Suntour GVX LOR 60mm Fork with Rebound Adjust & Lockout
- Shimano SLX/Deore 1 x 12 Speed Drivetrain
- Tektro Flat Mount Hydraulic Disc Brakes
- Vee Tire Co. Rocket Man, 700C x 44mm tyres, clearance up to 29 x 2.1”
- Mounting points for bikepacking accessories
- Internal dropper post ready routing
The Marin DSX is everything you want from a modern, flat-bar gravel bike. Zippy aluminum frames, compliant forks, heaps of tire clearance, low standover, dropper post compatibility and a whole load of options for bags and fenders. Taking inspiration from the Gestalt X drop bar line, Marin made the DSX to feel like an MTB but still cut it on all of those adventures that would normally demand curly bars.
The Marin DSX FS model features a butted and formed Series 3 6061 aluminum frame with internal routing, 142x12mm thru-axles, flat mount disc brakes and rack and fender eyelets. Further breaking the gravel bikes mold, it’s decked out with a 60mm travel SR/Suntour GVX LOR front fork for hard-charging, off-road adventures. There’s also a 1 x 12 speed Shimano SLX/Deore drivetrain, fast rolling Vee Tire Co 44mm Rocket Man tires with room for 29x2.1” knobbies and Shimano hydraulic brakes with the latest flat mount disc brake standard for smooth, controlled stopping in all conditions with minimal maintenance. Rounding off the build is plenty of reliable Marin components and mounting points for bikepacking accessories. Is it a gravel bike? Is it a mountain bike? We’ve got no idea - we just know that it’s a whole mountain of fun.
| Axles: | Bolt-On Thru-Axles F and R |
|---|---|
| Bottom bracket: | Sealed Outboard Bearing |
| Brakes: | Tektro HDR285 Flat Mount Hydraulic |
| Cassette: | SunRace, 12-Speed, 11-51T |
| Chain: | KMC X12 |
| Crankset: | Forged Aluminum, 42T Steel Narrow Wide Chainring |
| Derailleur rear: | Shimano SLX, RD7100, 12-Speed |
| Fork: | SR/Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts |
| Frame: | Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
| Grip: | Marin MTB |
| Handlebar: | Marin Mini Riser |
| Handlebar stem: | Marin 3D Forged Alloy |
| Headset: | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Hubs: | FRONT: Forged Aluminum, 100x12mm, Disc, 32H / REAR: Forged Aluminum, 142x12mm, Disc Specific, 32H |
| Pedals: | Nylon Platform |
| Rim: | Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible |
| Rotor front: | 160mm Rotor |
| Rotor rear: | 160mm Rotor |
| Saddle: | Marin DSX |
| Season: | 2024 |
| Seat post: | Marin Alloy |
| Spokes: | 14g Black Stainless Steel |
| Tyre front: | Vee Tire Co. Rocket Man, 700Cx44mm |
| Tyre rear: | Vee Tire Co. Rocket Man, 700Cx44mm |
| Wheel size: | 700c |
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 583.2 | 601.8 | 629.7 | 657.6 |
| Reach | 400 | 425 | 440 | 455 |
| Headtube Angle | 68.5° | 68.5° | 68.5° | 68.5° |
| Headtube Length | 100 | 120 | 150 | 180 |
| Seattube Angle | 74° | 74° | 74° | 74° |
| Seattube Length | 430 | 480 | 520 | 558 |
| Toptube Effective | 567.23 | 597.6 | 620.6 | 643.6 |
| BB Height | 277.5 | 277.5 | 277.5 | 277.5 |
| BB Drop | 82 | 82 | 82 | 82 |
| Chainstay | 425 | 425 | 425 | 425 |
| Wheelbase | 1065 | 1097.3 | 1123.3 | 1149.3 |
| Standover Height | 667 | 708 | 738 | 761 |
| Fork Offset | 47 | 47 | 47 | 47 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 680 | 680 | 680 | 700 |
| Stem Length | 70 | 70 | 70 | 70 |
| Crank Length | 170 | 175 | 175 | 175 |
All lengths in millimeters
Marin DSX 1 Bike Sizing Chart
