Features

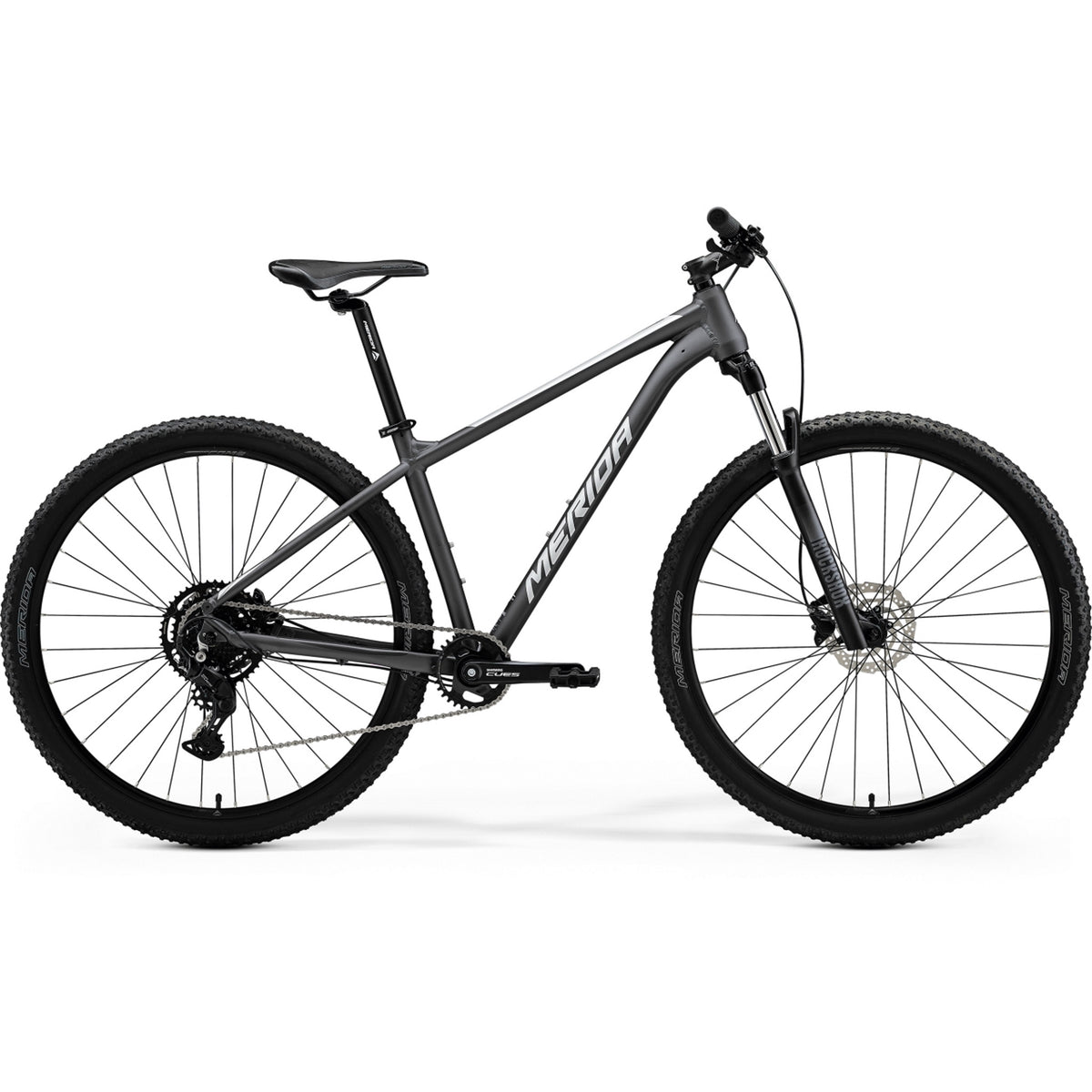

Merida Big Nine 80 Hardtail Mountain Bike Matt Dark Silver
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Double butted aluminium frame with 29er wheels
- Less aggressive and more upright geometry for control and comfort
- RockShox 100mm travel air suspension fork with lockout
- Shimano 9-speed drivetrain
- Hydraulic disc brakes
- Internal cable routing
- Mounting points for commuter/bikepacking accessories
This dependable do-it-all hardtail is the perfect partner for mountain bike adventures as well as a rugged day-to-day companion, the Big Nine 80 uses a quality double-butted aluminium frame with comfortable geometry and smooth rolling 29er wheels to tame the bumps. Add in the control of a 100mm RockShox Judy suspension fork, plus the dependable performance of a Shimano 9-speed drivetrain and powerful hydraulic disc brakes and it's ready to adventure at the weekend or be a utilitarian partner in the week. The frame of the Big Nine 80 offers up trickle down technology, the alloy frame uses a techno forming system for sleeker tube profiles and minimal weight without compromising on durability, while the smooth welding and internal cable routing results in a clean aesthetic and a rattle free ride. Integrated mounting points for a kickstand, fender and rear rack make this versatile rig easy to swap between bikepacking, daily commuting and trail riding.
| Bottom bracket: | Shimano BB-UN101 73-123 |
|---|---|
| Brakes: | Shimano BR-MT200 hydraulic brake |
| Chain: | Shimano CN-LG500 |
| Colour: | MATT DARK SILVER (SILVER) |
| Colour (text): | MATT DARK SILVER (SILVER) |
| Crankset: | Shimano CUES U4000 32 teeth MAT Aluminium 170 mm-S, 175 mm-M up |
| Derailleur rear: | Shimano CUES U4000-9 GS |
| Fork: | Rock Shox Judy TK Coil 100 mm suspension travel Lockout 46 mm fork offset 29x2.25" max. wheelsize |
| Frame: | BIG.NINE TFS IV 100 mm suspension travel material: aluminum 29x2.25" max. wheelsize 135x9 mm axle standard BSA bottom bracket standard |
| Freewheel: | Shimano CUES LG300-9 11-46 teeth 9 speed |
| Grip: | MERIDA EC |
| Handlebar: | MERIDA CC material: aluminium 690 mm width 15 mm rise |
| Handlebar stem: | MERIDA CC material: aluminium 31.8 mm diameter 6° stem angle 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL |
| Headset: | MERIDA M2345 |
| Hubs: | FRONT: Shimano HB-QC300 100x9 mm width front hub 32 spoke holes Centerlock / REAR: Shimano FH-QC300 135x9 mm width rear hub 32 spoke holes Centerlock |
| Pedals: | VP VPE-891 |
| Rim: | MERIDA CC 17 mm inner width material: aluminium |
| Rotor front: | Shimano RT10 160 mm |
| Rotor rear: | Shimano RT10 160 mm |
| Saddle: | MERIDA Sport comfort |
| Seat clamp: | MERIDA COMP QR |
| Seat post: | MERIDA CC 30.9 mm diameter 15 mm setback material: aluminium |
| Spokes: | Black steel |
| Tyre front: | MERIDA K1080 29x2.2" wire |
| Tyre rear: | MERIDA K1080 29x2.2" wire |
| Wheel size: | 29" |
| Frame Size | S | M | L | XL | XXL |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 370 | 430 | 470 | 510 | 560 |
| TT top tube [mm] | 570 | 590 | 610 | 630 | 650 |
| CS chain stay length [mm] | 440 | 440 | 440 | 440 | 440 |
| HTA head tube angle [°] | 70 | 70 | 70 | 70 | 70 |
| STA seat tube angle [°] | 73 | 73 | 73 | 73 | 73 |
| BD bottom bracked drop [mm] | 60 | 60 | 60 | 60 | 60 |
| HT head tube [mm] | 100 | 115 | 130 | 145 | 160 |
| FL fork length [mm] | 506 | 506 | 506 | 506 | 506 |
| R reach [mm] | 382 | 398 | 414 | 429 | 445 |
| S stack [mm] | 614 | 628 | 642 | 656 | 670 |
| WB wheel base [mm] | 1069 | 1090 | 1110 | 1131 | 1152 |
| SH stand over height [mm] | 679 | 727 | 763 | 800 | 843 |
Merida Big Nine Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
