Features

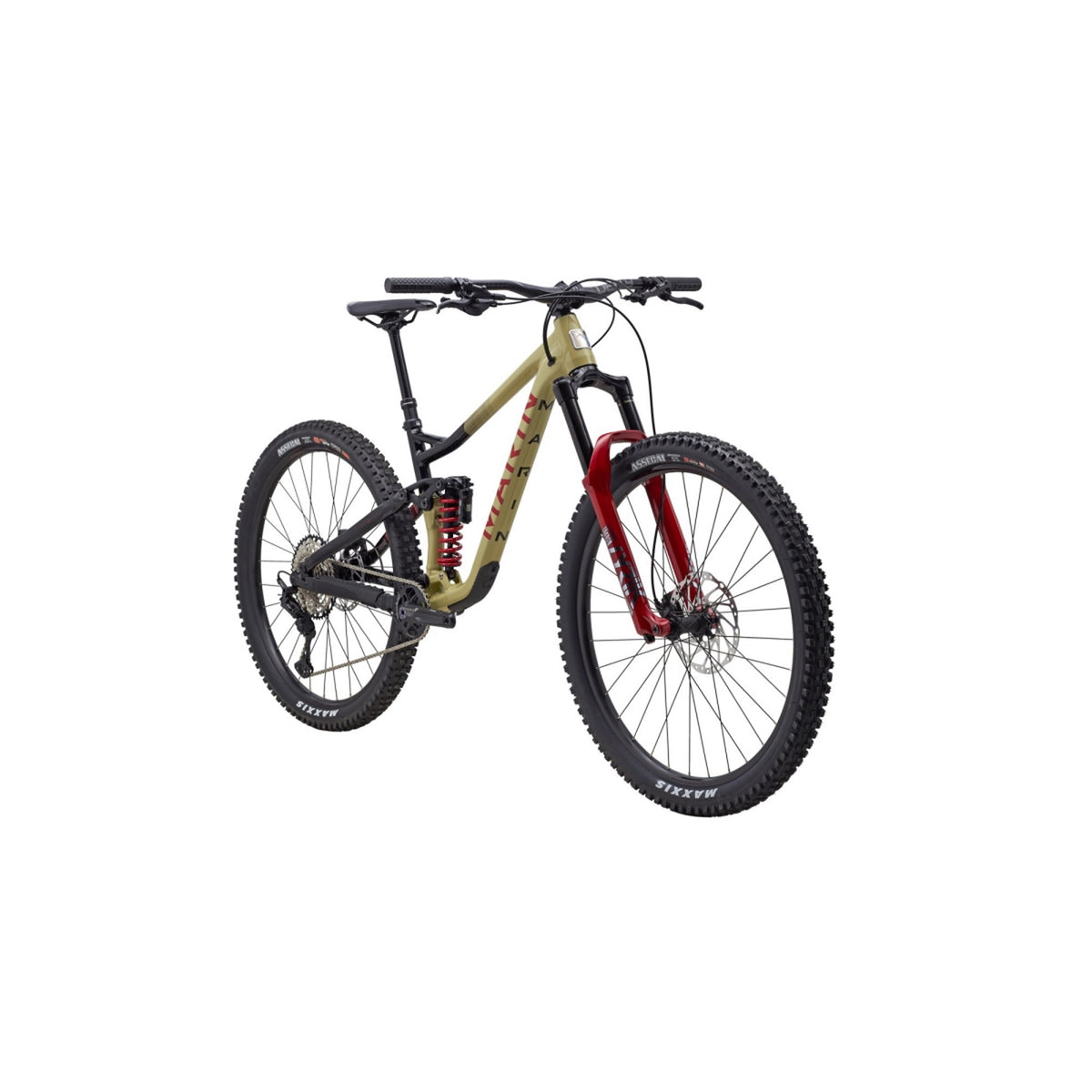

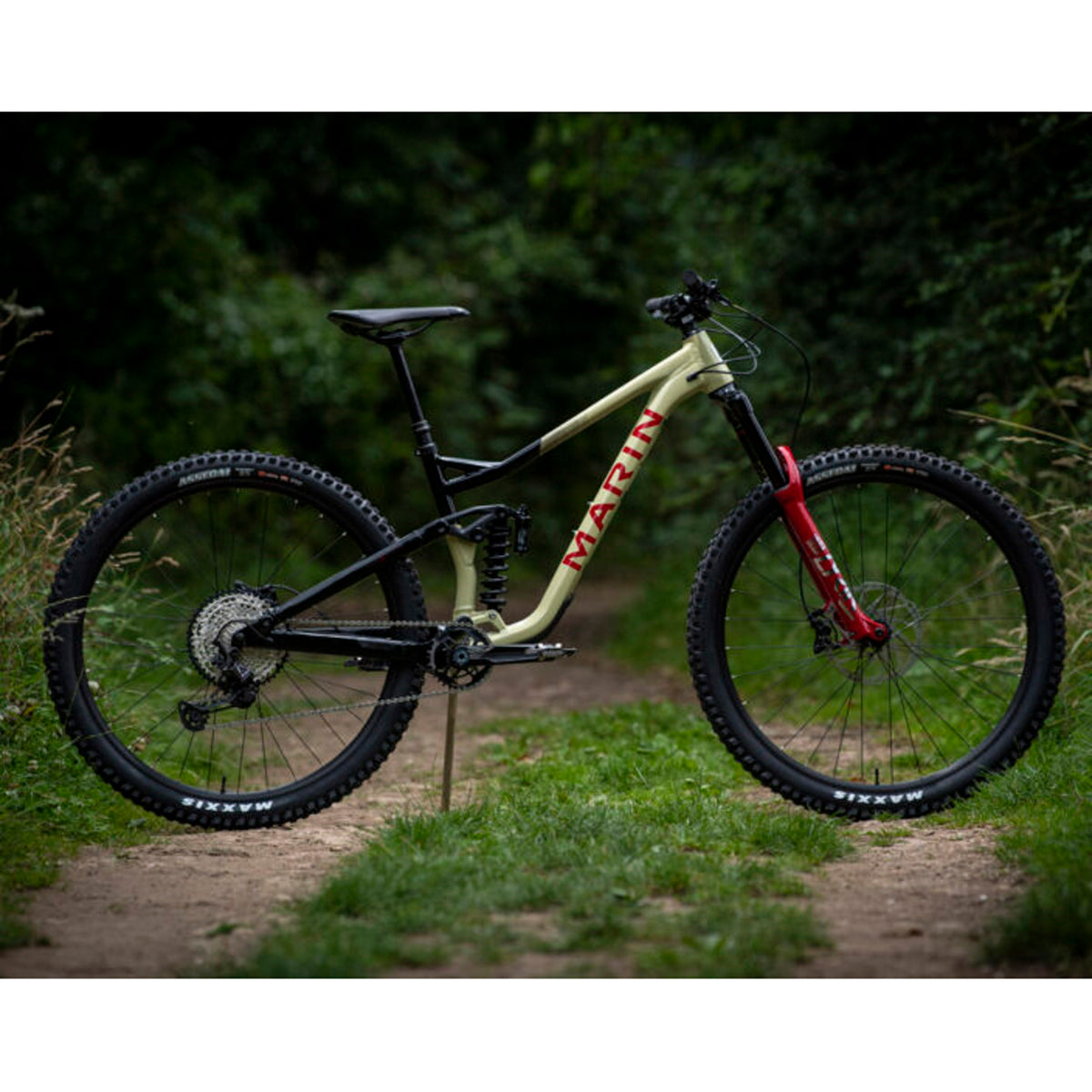

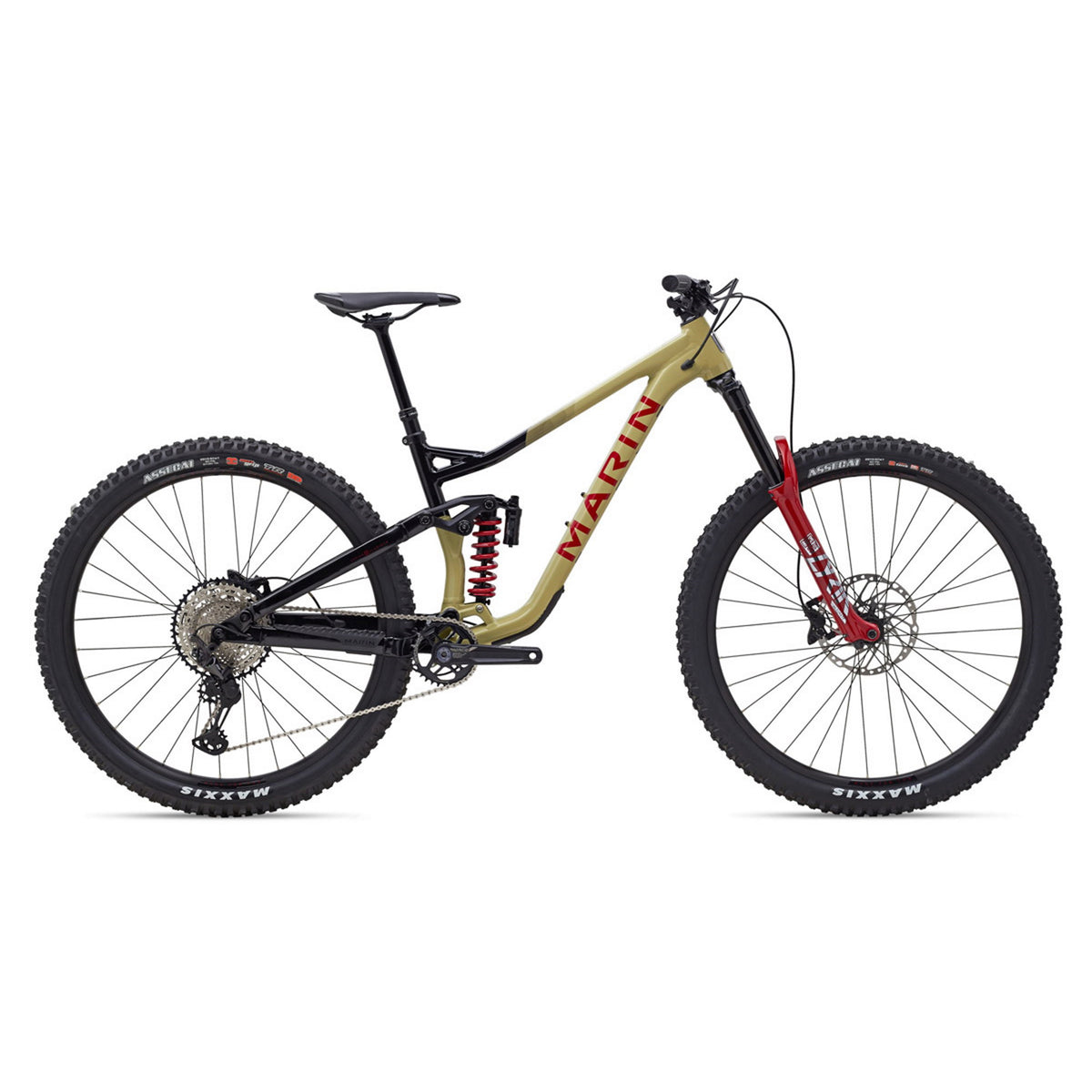

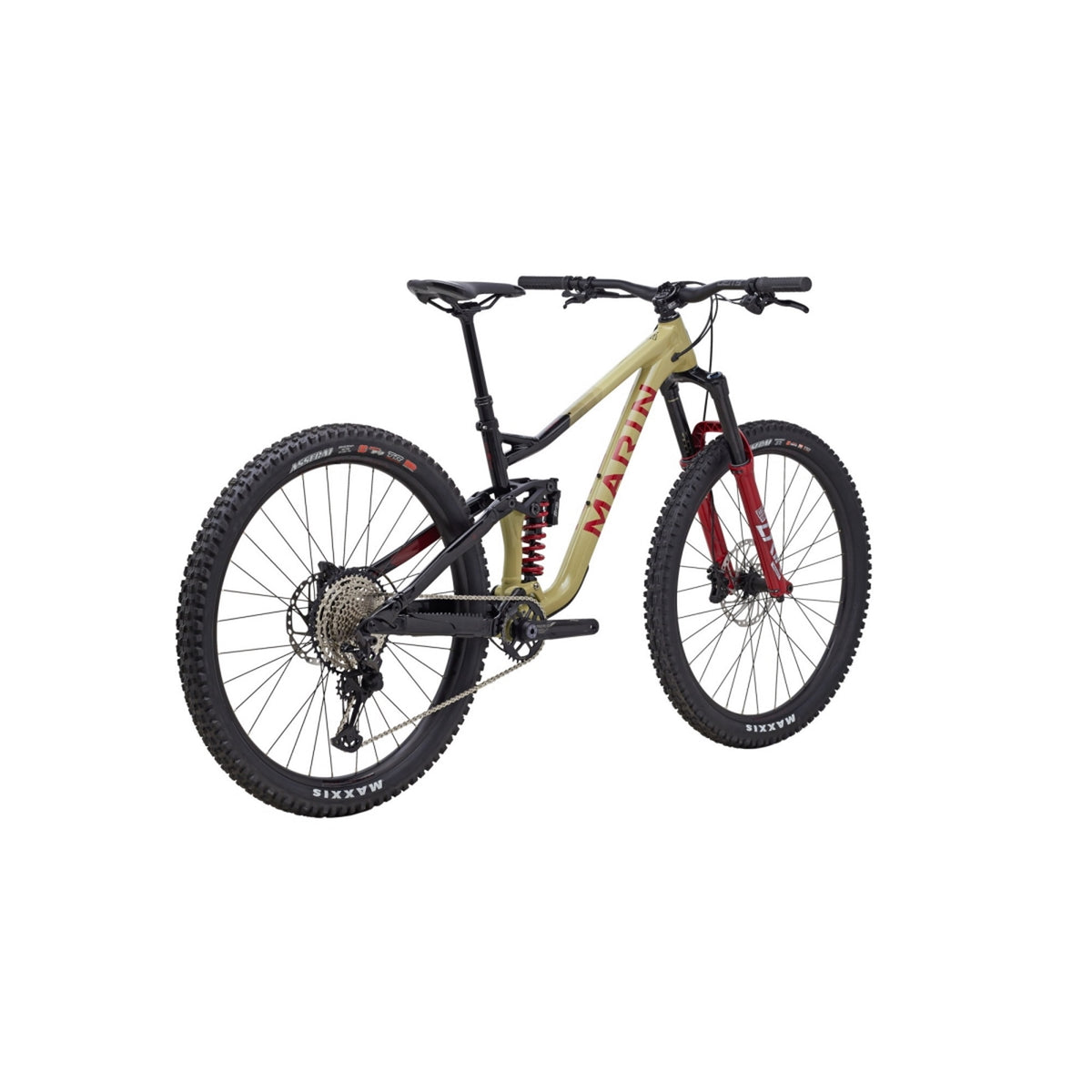

Marin Alpine Trail XR Enduro Bike Tan/Black/Red
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »

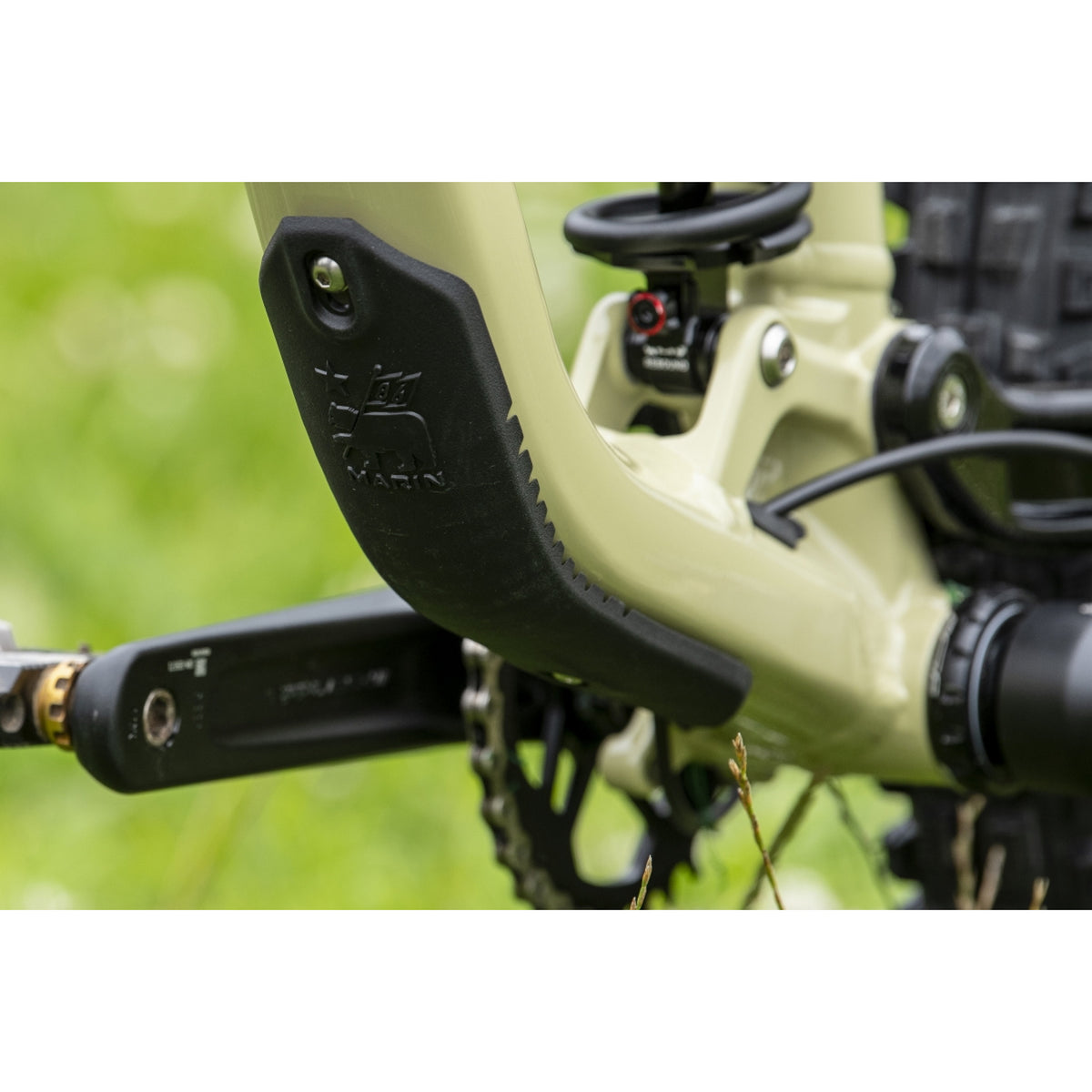

| Accessories: | INCLUDED: Downtube Protector |
|---|---|
| Axles: | Bolt-On Thru-Axle |
| Bottom bracket: | MEGAEVO BB, 73mm BSA Threaded |
| Brakes: | Shimano BR-MT420, 4-Piston Hydraulic Disc |
| Chain: | KMC X-12 Silver and Black |
| Crankset: | FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing |
| Derailleur rear: | Shimano XT 12-Speed, SGS |
| Fork: | RockShox Lyrik Ultimate, 29”, 160mm of Travel, Air Sprung, Debonair, Charger 2.1, Fast Black Stanchions, 110x15mm Maxle Stealth, 42mm Offset |

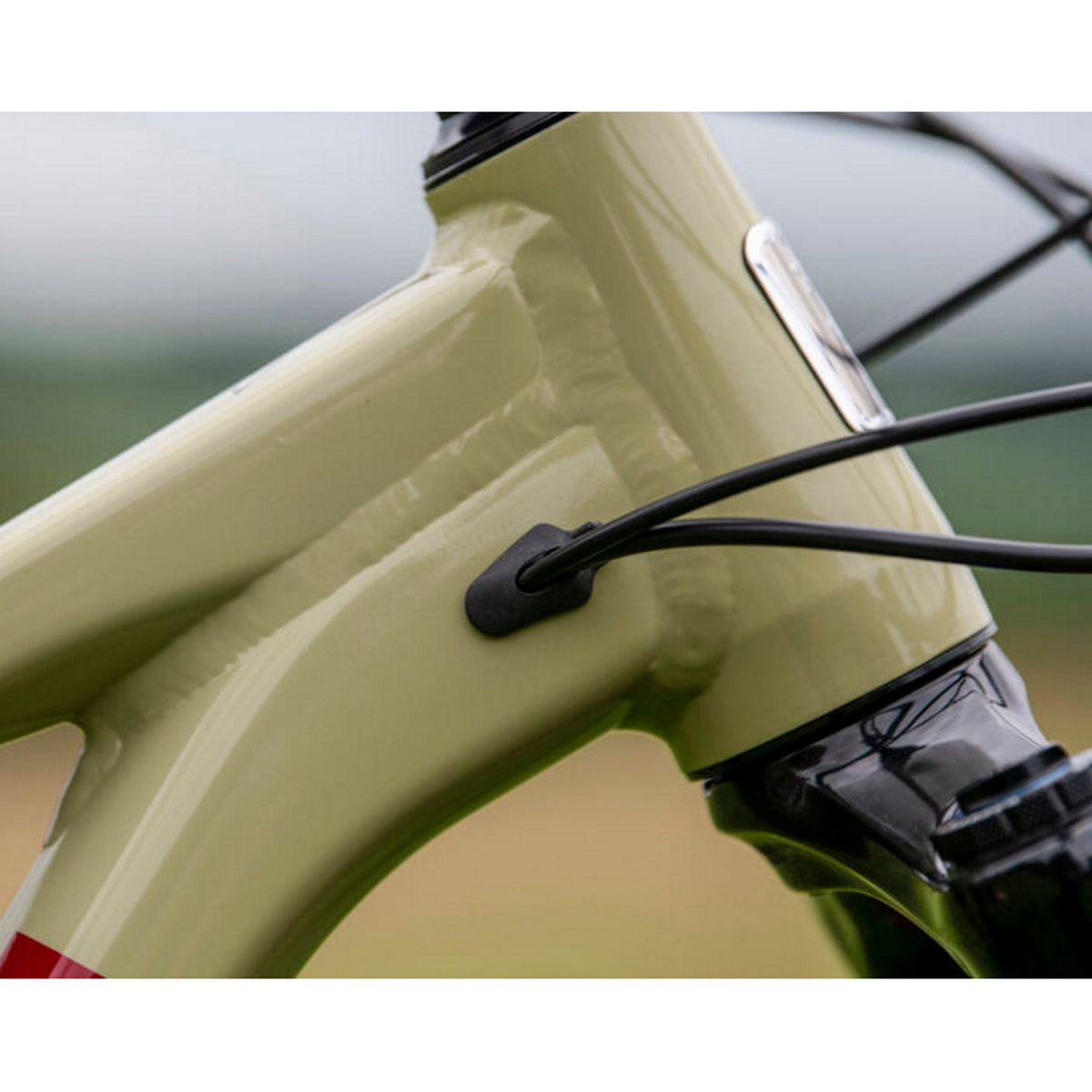

| Frame: | Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs |
| Freewheel: | Shimano SLX M7100 Cassette, 12-Speed, 10-51T |
| Grip: | Marin Single Clamp Locking |
| Handlebar: | Deity Ridgeline, Stealth Finish, 35mm Clamp, 800mm Width |

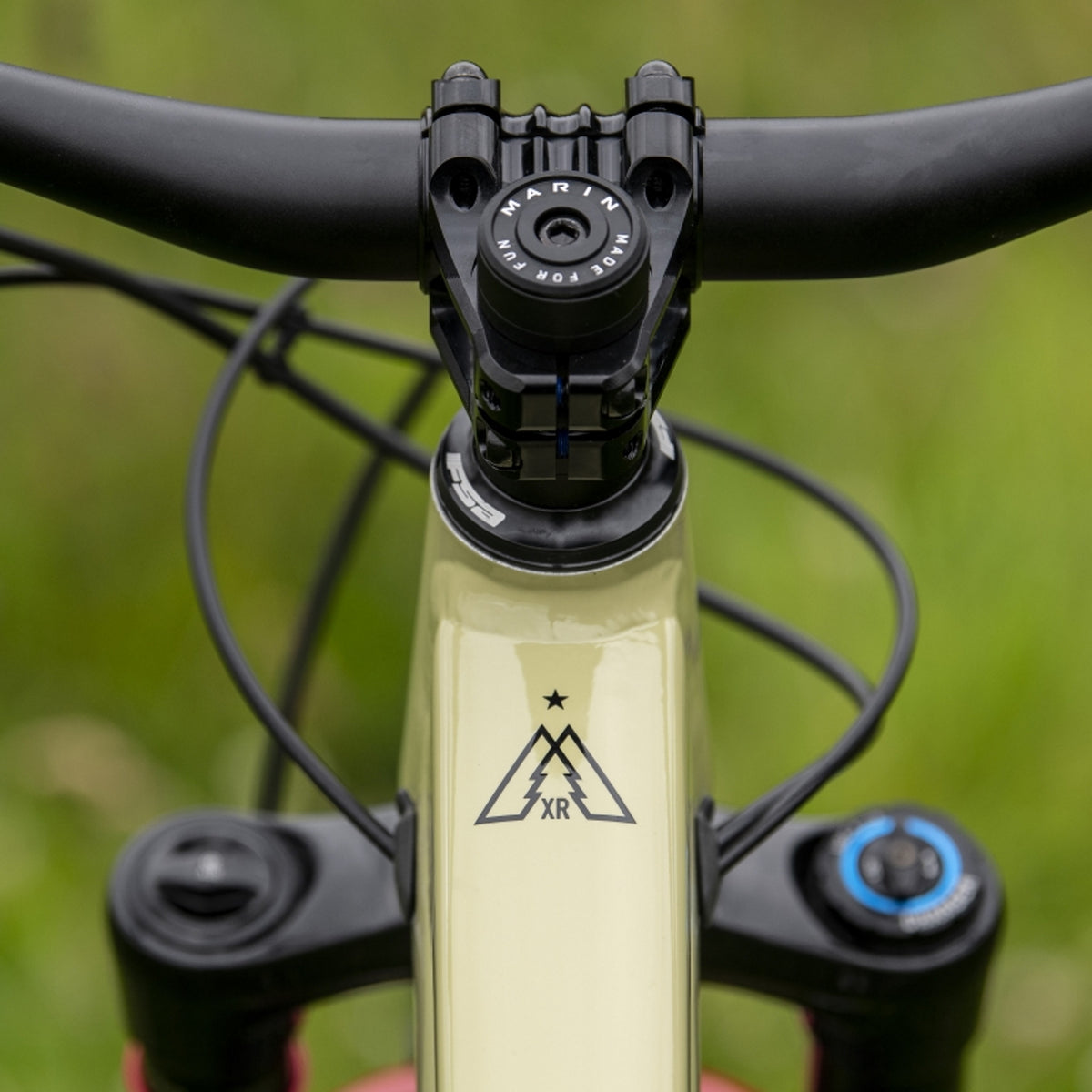

| Handlebar stem: | Deity Copperhead 35mm, Black Ano |
| Headset: | FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Hubs: | FRONT: Shimano HF-MT410B, 110x15mm, Center\lock / REAR: Shimano HB-MT510B, 148x12mm, Centerlock, Microspline Freehub Body |
| Rim: | Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible |
| Rotor front: | 203mm Rotor |
| Rotor rear: | 180mm Rotor |
| Saddle: | Marin Speed Concept |
| Season: | 2022 |
| Seat post: | X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm |

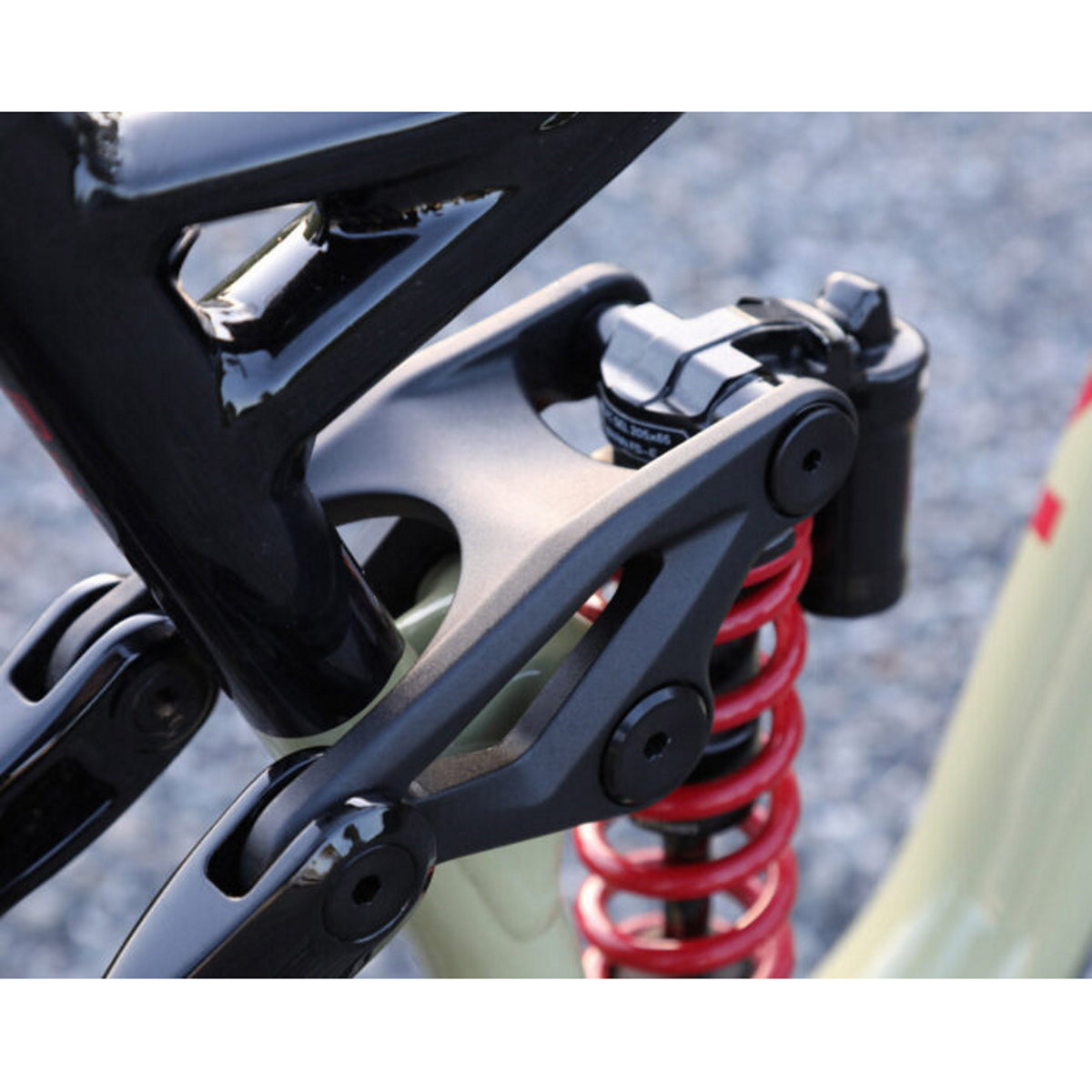

| Shock: | Rock Shox Super Deluxe Coil Ultimate RCT, Coil Spring, Climb Switch, LS Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount (S/M = 300lb, L/XL = 450lb) |
| Spokes: | 14g Black Stainless Steel |
| Tyre front: | Maxxis Assegai 29x2.5”, MAXX TERRA, EXO+, Tubeless Compatible |
| Tyre rear: | Maxxis Assegai 29x2.5”, MAXX GRIP, DoubleDown, Tubeless Compatible |
| Wheel size: | 29" |
Marin Alpine Trail Bike Sizing Chart
Marin Bikes are Made For Fun. Since the first mountain bikes bearing the Marin name debuted in 1986, the brand has been dedicated to enriching the lives of riders by making fun, high caliber bicycles, which provide years of riding enjoyment. They operate their business based on hard work, fueled by passion, and fulfilled by the satisfaction of bringing the joy of cycling to riders across the world.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
