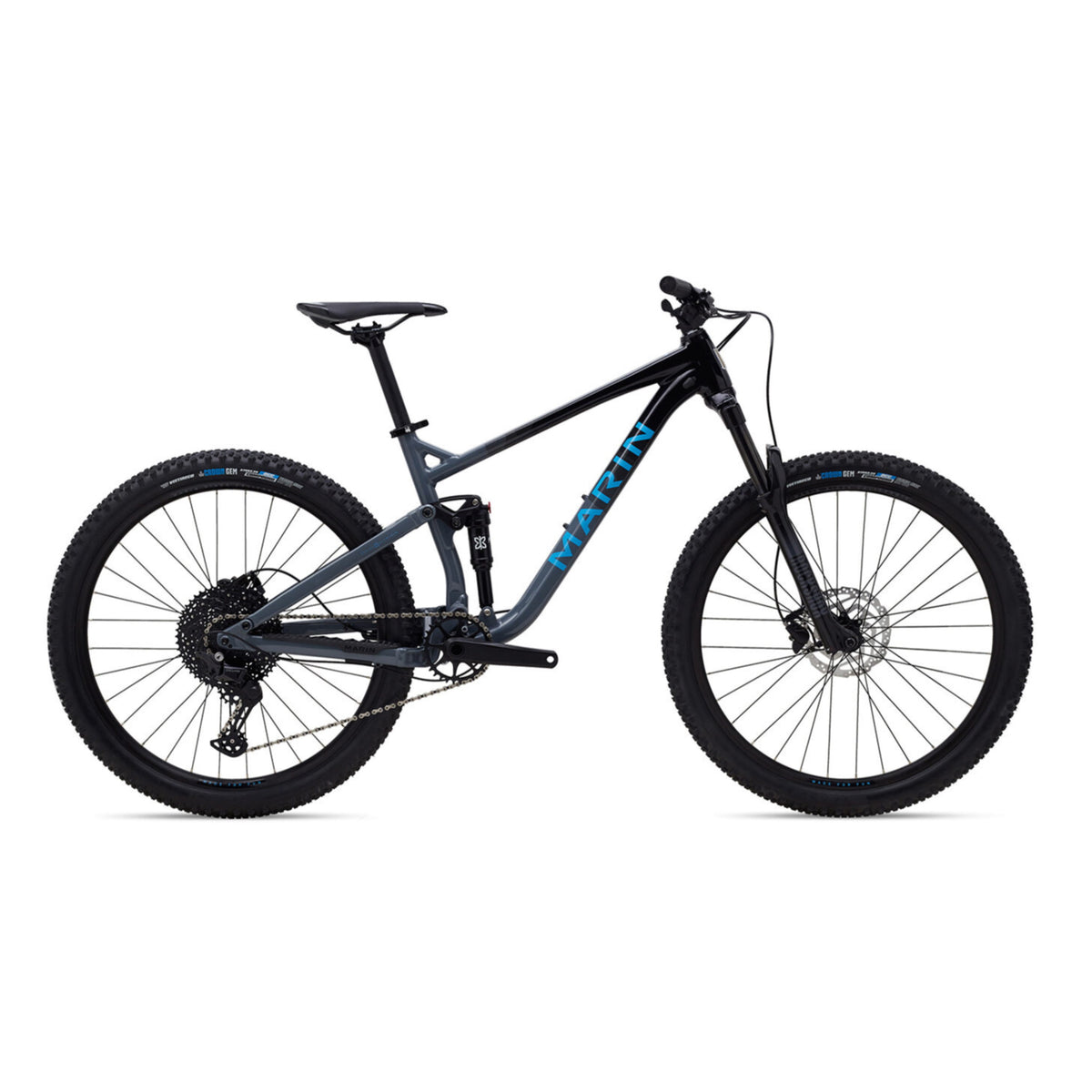

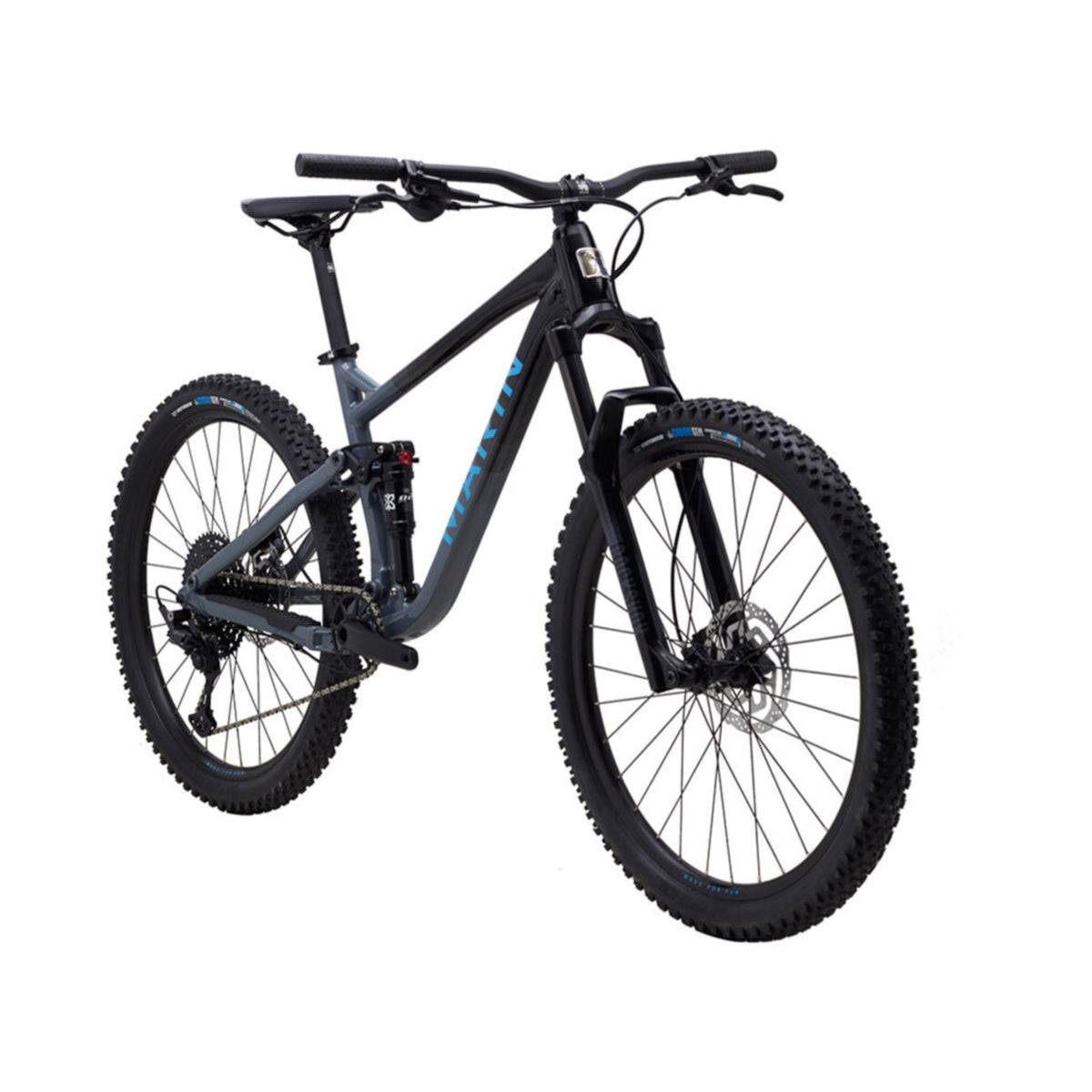

Marin Rift Zone 1 Trail Bike Black/Blue 27.5"
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
| Accessories: | Closed 9-12 Thru-Axle QR System |
|---|---|
| Bottom bracket: | External Sealed Cartridge Bearing |
| Brakes: | Shimano BR-MT201 Hydraulic Disc, 180mm Rotor |
| Chain: | KMC X-11 Silver and Black |
| Crankset: | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing |
| Derailleur rear: | Shimano Deore 11-Speed SGS, Shadow Plus, Direct Attachment |
| Fork: | RockShox Recon Silver RL 27.5", 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110x15mm Boost Spacing, Maxle Stealth, 37mm Offset |
| Frame: | Series 3 6061 Aluminum Frame, 27.5” Wheels, 120mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs |
| Freewheel: | SunRace, 11-Speed, 11-51T Cassette |
| Grip: | Marin MTN, Closed End |
| Handlebar: | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Handlebar stem: | Marin 3D Forged Alloy, 35mm |
| Headset: | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Hubs: | REAR: Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body / FRONT: Shimano HF-MT400B, 110x15mm, Centerlock |
| Rim: | Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible |
| Saddle: | Marin Speed Concept |
| Season: | 2022 |
| Seat post: | Marin Alloy, 30.9mm |
| Shock: | X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom |
| Spokes: | 14g Black Stainless Steel |
| Tyre front: | Vee Tire Crown Gem 27.5x2.3", Dual Control Compound, Tubeless Ready |
| Tyre rear: | Vee Tire Crown Gem 27.5x2.3", Dual Control Compound, Tubeless Ready |
| Wheel size: | 27.5" (650b) |
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 602.6 | 607.15 | 611.7 | 616.25 |
| Reach | 430 | 455 | 480 | 505 |
| Headtube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| Headtube Length | 100 | 105 | 110 | 115 |
| Seattube Angle | 76° | 76° | 76° | 76° |
| Seattube Length | 390 | 400 | 425 | 430 |
| Toptube Effective | 580.24 | 606.36 | 632.51 | 658.6 |
| BB Height | 344 | 344 | 344 | 344 |
| BB Drop | 34 | 34 | 34 | 34 |
| Chainstay | 425 | 425 | 425 | 425 |
| Wheelbase | 1158.92 | 1186 | 1213 | 1240.1 |
| Standover Height | 691.84 | 697.1 | 717.83 | 721.97 |
| Fork Offset | 42 | 42 | 42 | 42 |
| Seatpost Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
| Handlebar Width | 780 | 780 | 780 | 780 |
| Stem Length | 35 | 35 | 35 | 35 |
| Crank Length | 170 | 175 | 175 | 175 |
Marin Rift Zone Bike Sizing Chart
Marin Bikes are Made For Fun. Since the first mountain bikes bearing the Marin name debuted in 1986, the brand has been dedicated to enriching the lives of riders by making fun, high caliber bicycles, which provide years of riding enjoyment. They operate their business based on hard work, fueled by passion, and fulfilled by the satisfaction of bringing the joy of cycling to riders across the world.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
99 Bikes Home Delivery Available
Assembled Bikes delivered straight to your door • Available on all Bikes in Auckland • $29 flat rate More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
