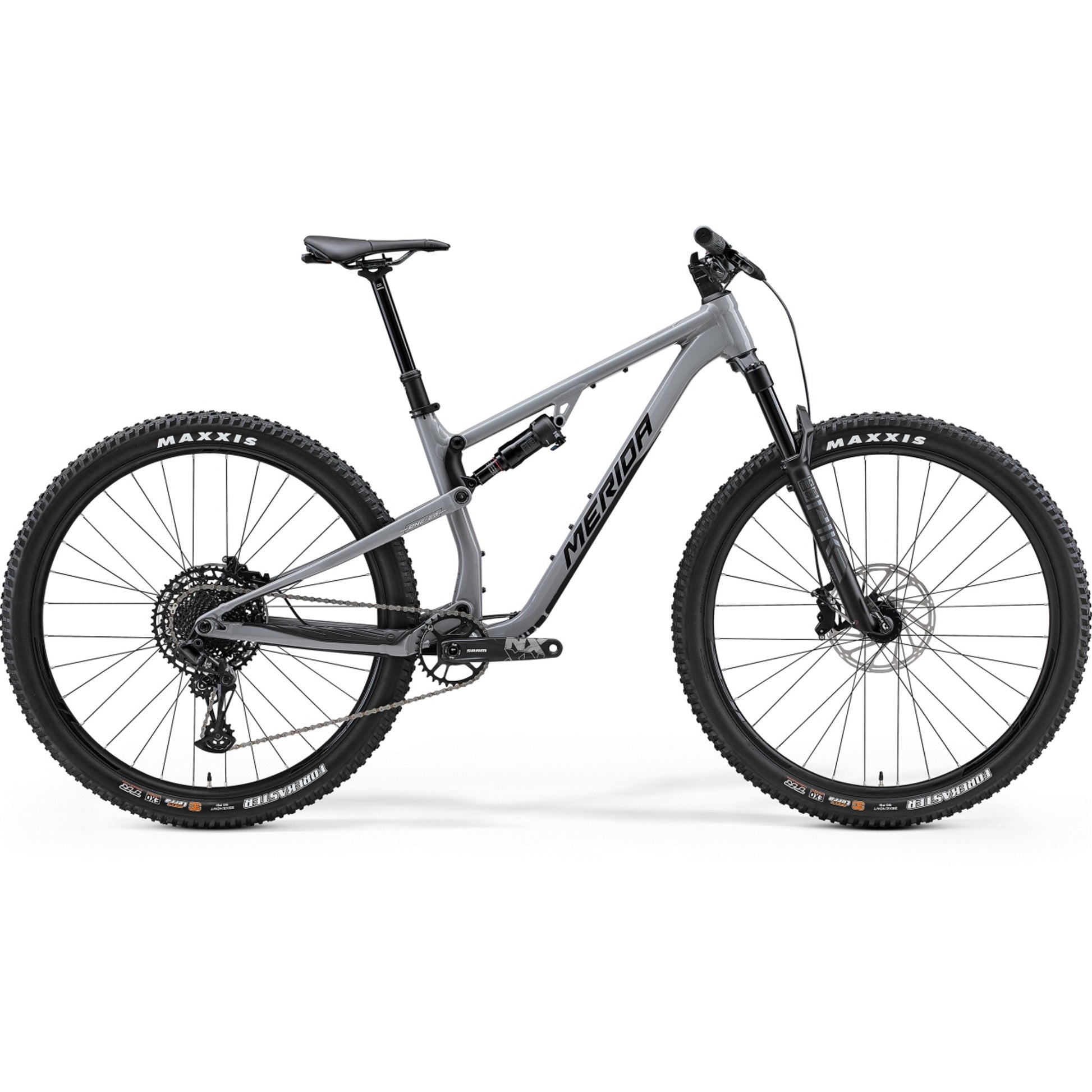

Merida One Twenty 700 Trail Bike Cool Grey (Black/Silver)
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Trail-ready LITE aluminium frame with P-FLEX technology
- Progressive geometry and AGILOMETER sizing
- RockShox Pike fork and Deluxe shock both 130mm
- SRAM 12-speed wide range drivetrain
- Powerful 4-piston hydraulic SRAM disc brakes
- MERIDA dropper seat post
The One Twenty is a bike that doesn't need to be shoehorned into a category. Short travel trail, downcountry - call it whatever you want, but this is a fun mountain bike for doing fun mountain bike things. Light enough to climb all day but planted on the descents - and the perfect balance everywhere else. Whether you're into flowing singletrack sessions or big mileage in the mountains, the One Twenty is Merida’s do-it-all Swiss Army Knife of a bike. The high-value, high-quality LITE aluminium frame is paired with Merida’s progressive geometry concept but tweaked it to suit a fun, short-travel machine and, thanks to the Agilometer sizing concept from their award-winning One Sixty and One Forty range, you can pick stable or agile handling independently of bike fit. The hardest part will be getting the smile off your face.
| Axles: | MERIDA EXPERT TR including removeable lever, 6/4 mm allen key |
|---|---|
| Bottom bracket: | Sram BB DUB BSA 73 MTB WIDE |
| Brakes: | Sram DB8 4 piston |
| Chain: | Sram SX Eagle |
| Colour: | COOL GREY (BLACK/SILVER) |
| Colour (text): | COOL GREY (BLACK/SILVER) |
| Crankset: | Sram NX Eagle DUB 32 teeth 170 mm on all sizes |
| Derailleur rear: | Sram NX Eagle |
| Fork: | Rock Shox PIKE Select Air 130 mm suspension travel Tapered 44 mm fork offset platform 29x2.X" max. wheelsize |
| Frame: | ONE-TWENTY LITE V 130 mm suspension travel material: aluminium 29x2.5" max. wheelsize 148x12 mm axle standard BSA bottom bracket standard |
| Freewheel: | Sram PG-1210 Eagle 10-50 teeth 12 speed |
| Grip: | MERIDA COMP EC |
| Handlebar: | MERIDA EXPERT TR II material: aluminium 780 mm width 18 mm rise |
| Handlebar stem: | MERIDA EXPERT eTRII material: aluminium 35 mm diameter 0° stem angle 40 mm |
| Headset: | Acros ICR MERIDA EXTERNAL neck Upper and lower IPS sealing |
| Hubs: | Novatec SL-TEAM D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S 110x15 mm width front hub 32 spoke holes 6 bolt 148x12 mm width rear hub 32 spoke holes 6 bolt |
| Rim: | MERIDA EXPERT TR 29 mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included) |
| Rotor front: | Sram CenterLine 200 mm |
| Rotor rear: | Sram CenterLine 200 mm |
| Saddle: | Proxim W400 STN V-mount adapter incl. MERIDA minitool |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA EXPERT TR II Diameter: 34.9 mm Setback: 0 mm Travel: 150 mm XSHORT/SHORT, 170 mm MID, 200 mm LONG/XLONG |
| Shock: | Rock Shox Deluxe Select+ lockout |
| Spokes: | Double Butted Black stainless |
| Tyre front: | Maxxis Forekaster 29x2.4" fold TR EXO 3C MaxxTerra |
| Tyre rear: | Maxxis Forekaster 29x2.4" fold TR EXO 3C MaxxTerra |
| Weight: | 15.1 kg weighed at frame size M / Max Weight: 135 kg Total weight of bike, rider and luggage |
| Wheel size: | 29" |
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 470 |
| TT top tube [mm] | 548 | 569 | 590 | 611 | 632 |
| CS chain stay length [mm] | 435 | 435 | 435 | 435 | 435 |
| HTA head tube angle [°] | 66 | 66 | 66 | 66 | 66 |
| STA seat tube angle [°] | 78.5 | 78.5 | 78.5 | 78.5 | 78.5 |
| BD bottom bracked drop [mm] | 40 | 40 | 40 | 40 | 40 |
| HT head tube [mm] | 95 | 100 | 105 | 110 | 115 |
| FL fork length [mm] | 541 | 541 | 541 | 541 | 541 |
| R reach [mm] | 425 | 445 | 465 | 485 | 505 |
| S stack [mm] | 604 | 609 | 613 | 618 | 622 |
| WB wheel base [mm] | 1155 | 1177 | 1199 | 1221 | 1243 |
| SH stand over height [mm] | 748 | 750 | 752 | 754 | 756 |
Merida Dual Suspension Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
